Specifications - TMP Voronezh KB8042 (ID: S89615)
| Type | Hot forging press |
| Manufacturer | TMP Voronezh |
| Model | KB8042 |
| Year of manufacture | 1988 |
| Overhaul | 2006 |
| Capacity | 1600 ton |
| Stroke | 300 mm |
| SPM | 85 |
| Distance between | 660 mm |
| Adjustment | 10 mm |
| Upper ejector | |
| — Stroke | 40±3 mm |
| — Force | 63 kN |
| Lower ejector | |
| — Stroke | 32±2 mm |
| — Force | at least 100 kN |
| Table | 1050 x 1200 mm |
| Slide | 860 x 910 mm |
| Size of windows in press columns | |
| — Height | 710 mm |
| — Width | 630 mm |
| Press dimensions (L x W x H) ±50 mm | 4850 x 3515 x 5570 mm |
| Main drive electric motor | 90 kW |
| Press weight | 116 ton |

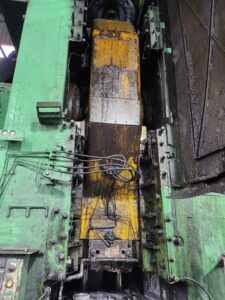

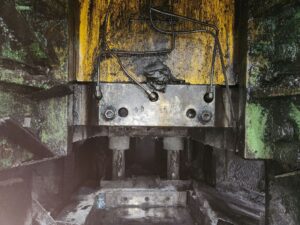

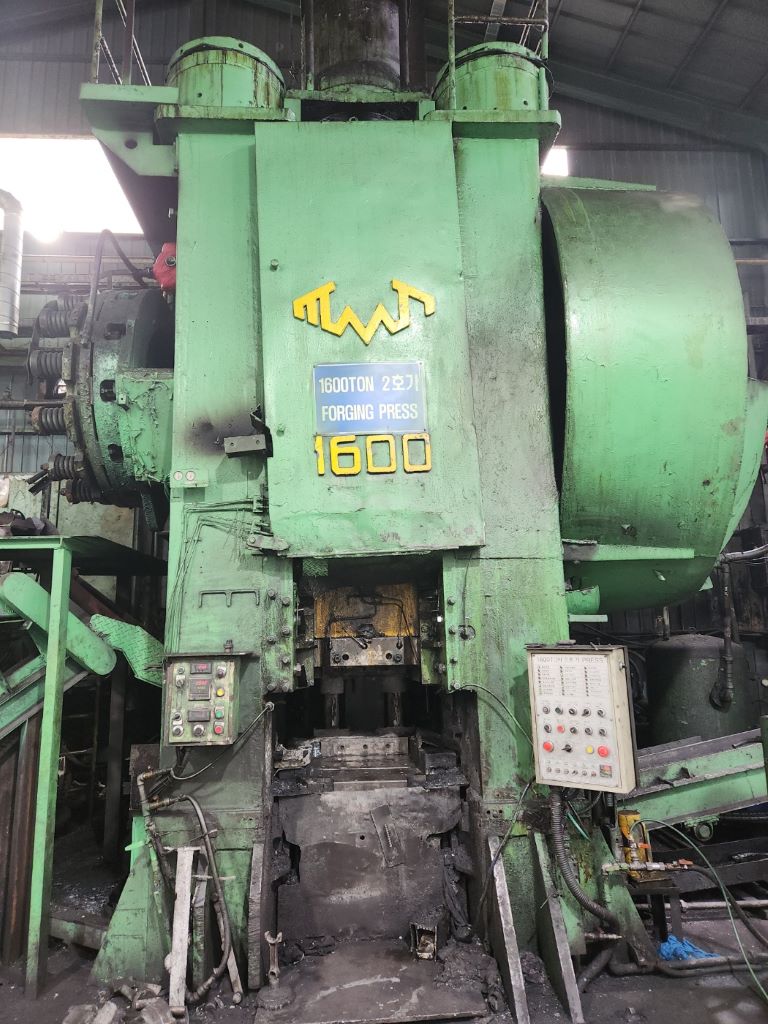

Photos - TMP Voronezh KB8042 (ID: S89615)
Hot forging press for sale: Hot forging press TMP Voronezh KB8042 - 1600 ton (ID: S89615). All details of this offer (availability, condition, price, delivery terms) will be sent to you by our manager, please click "Send inquiry". We can also help with finding other equipment for your needs.
Send inquiry
