Specifications - Barnaul K8342 (ID: 76334)

TypeKnuckle joint press
ManufacturerBarnaul
ModelK8342
Nominal effort1600 ton
Slide stroke180 mm
Number of strokes per minute25
Single stroke per minute16
Shut height510 mm
Bolster plate-to-ram adjustable stroke16
Table size1000 x 1000 mm
Slide dimensions860 x 900 mm
Bolster plate thickness160 mm
Lower knockout
— Stroke110 mm
— Force500 kN
Upper knockout
— Stroke16 mm
— Force160 kN
Overall dimensions3480 x 2600 x 4110 mm
Weight45 ton

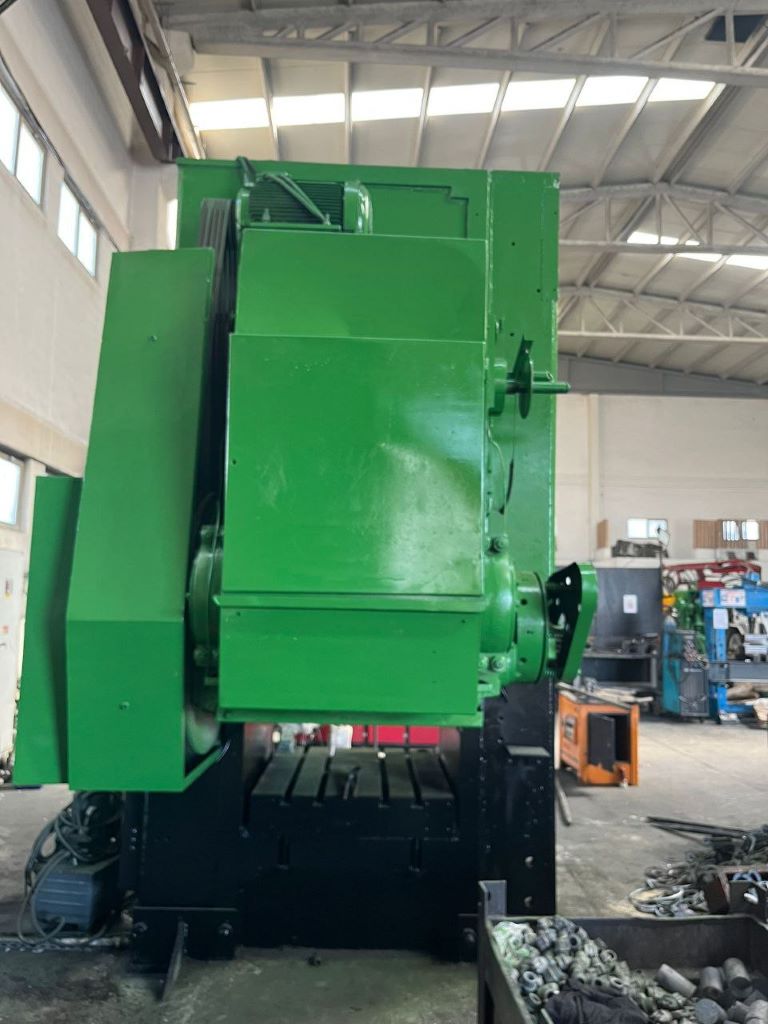

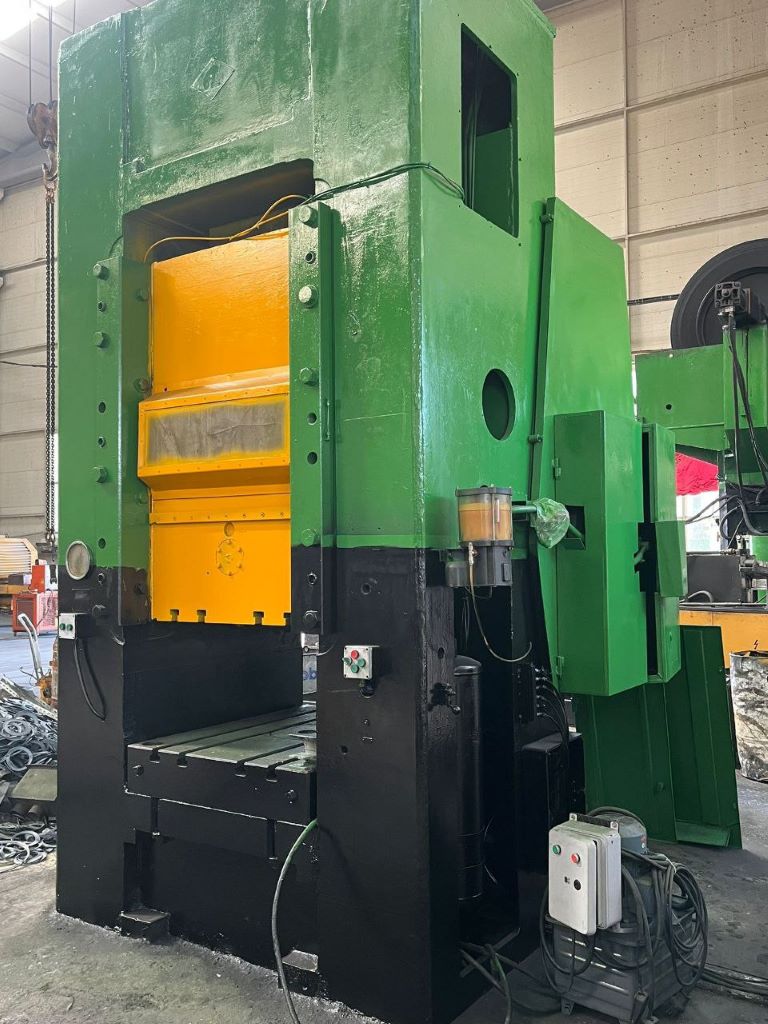

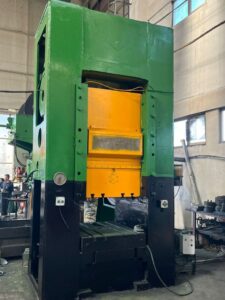

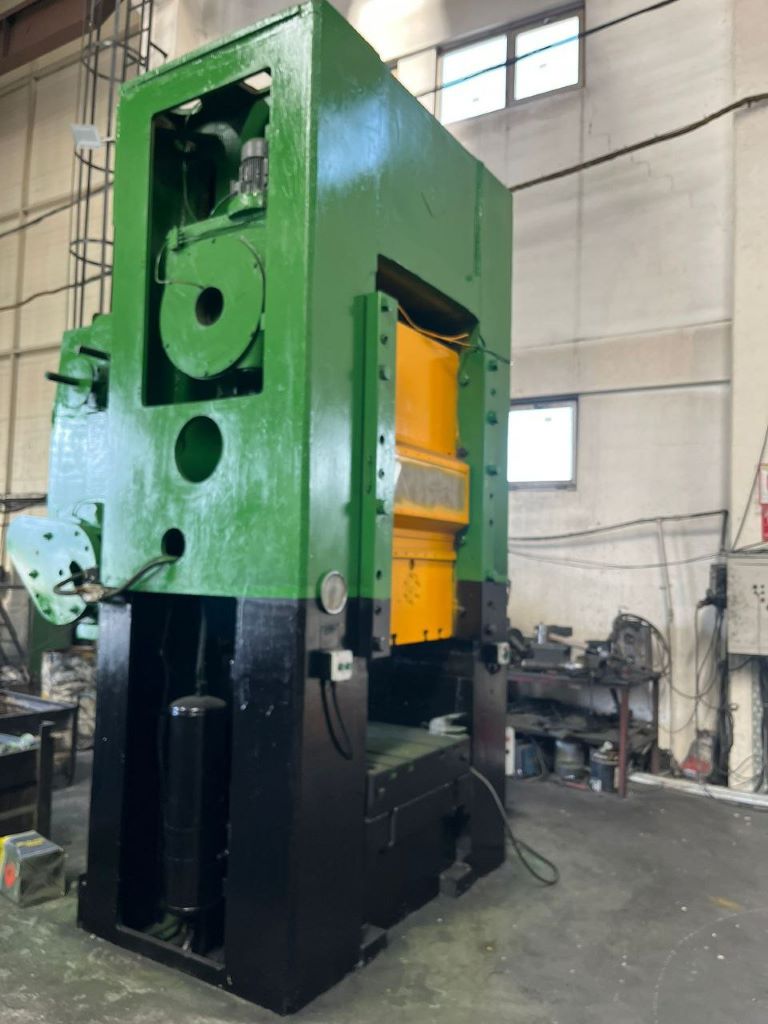

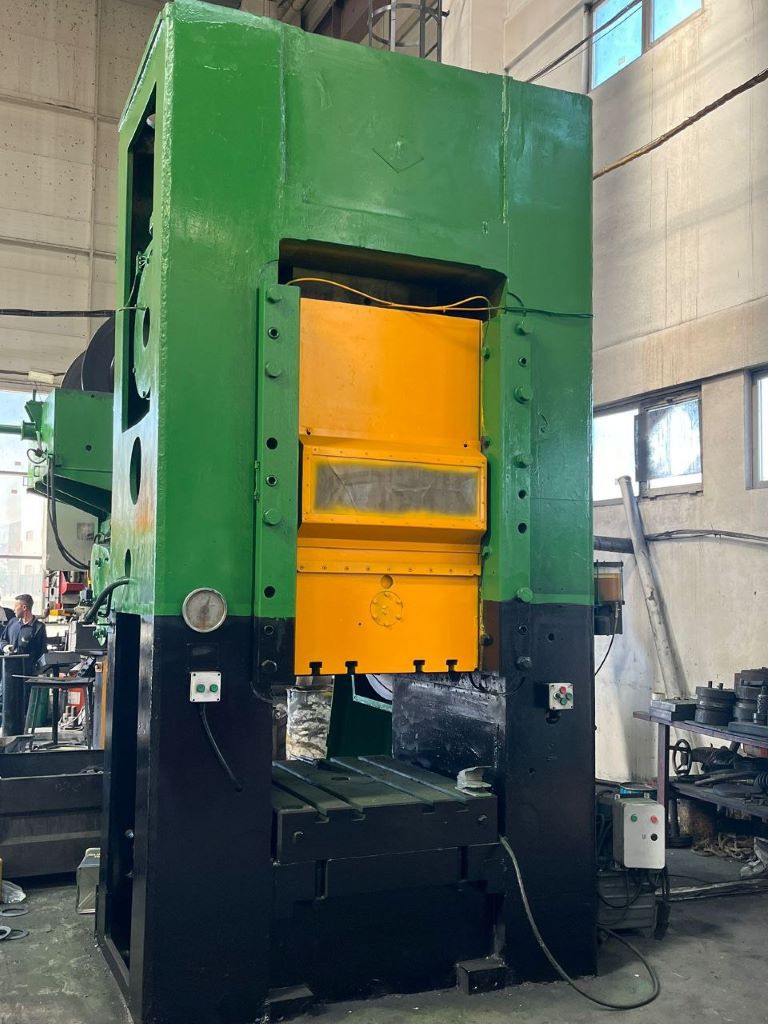

Photos - Barnaul K8342 (ID: 76334)
