Specifications - Aida DSF-TE4-20000-730-250 (ID: 76378)
| Type | Stamping press |
| Manufacturer | Aida |
| Model | DSF-TE4-20000-730-250 |
| Year of manufacture | 2022 |
| Nominal press force | 2000 ton |
| Energy at 15 spm | 630 kJ |
| Energy at 28 spm | 390 kJ |
| Strokes per minute | |
| — full-revolution mode | 3–28 |
| — endulum mode (at max. feed 105 mm) | 3–50 |
| Slide stroke | 800 mm |
| Slide adjustment | 400 mm |
| Maximum distance between slide and press table | 1200 mm |
| Clearance between uprights | 7580 mm |
| Slide dimensions | 7300 × 2500 mm |

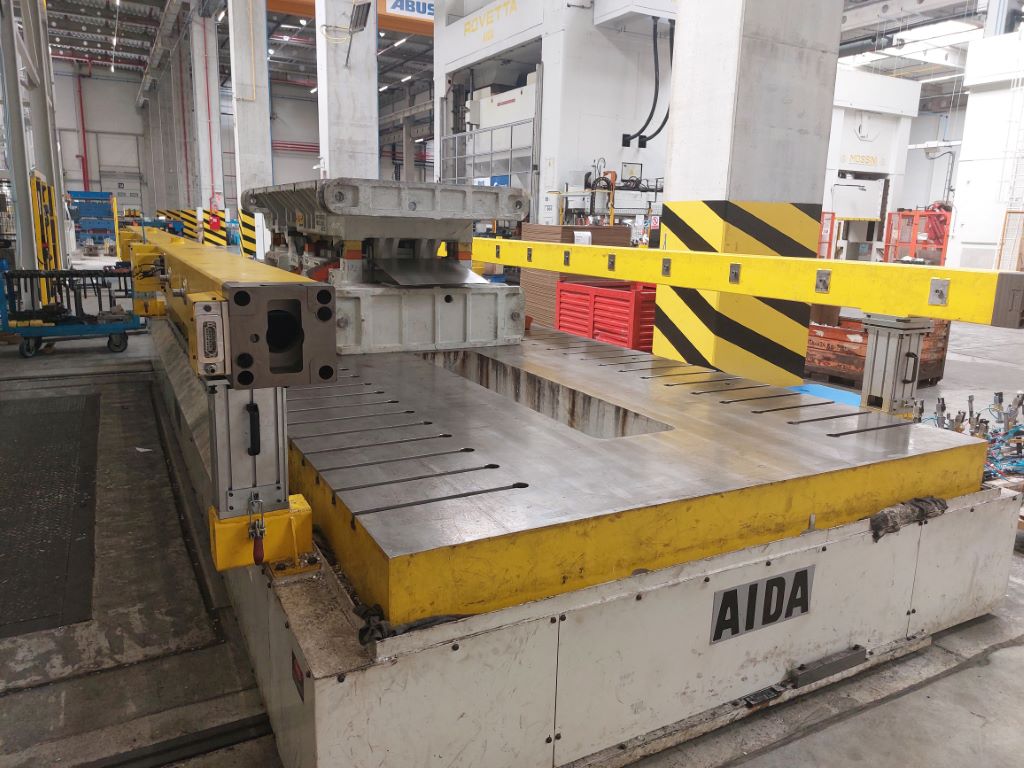

| Table dimensions | 7300 × 2500 mm |
| Distance between side columns (front–back opening) | 3650 mm |
| Main motor power | 2 × 750 kW |
| Slide-adjustment motor power | 30 kW |
| Maximum upper die weight | 35000 kg |
| Normal slide rest position | Top Dead Centre |
| Total stopping time at 15 strokes/min | 799 ms |
| Safety distance | 1278 mm |
| Safety brake pressure | 105 bar |
| Power supply (three-phase) | 400 V, 50 Hz |
| Minimum pneumatic supply pressure | 5.5 bar |

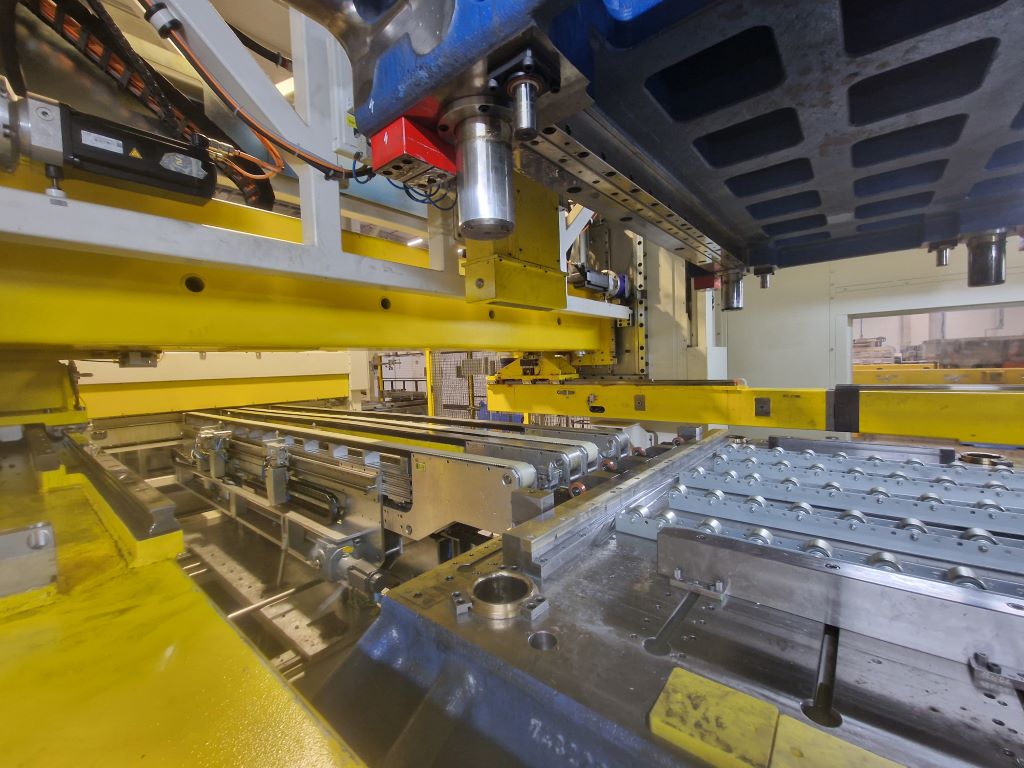

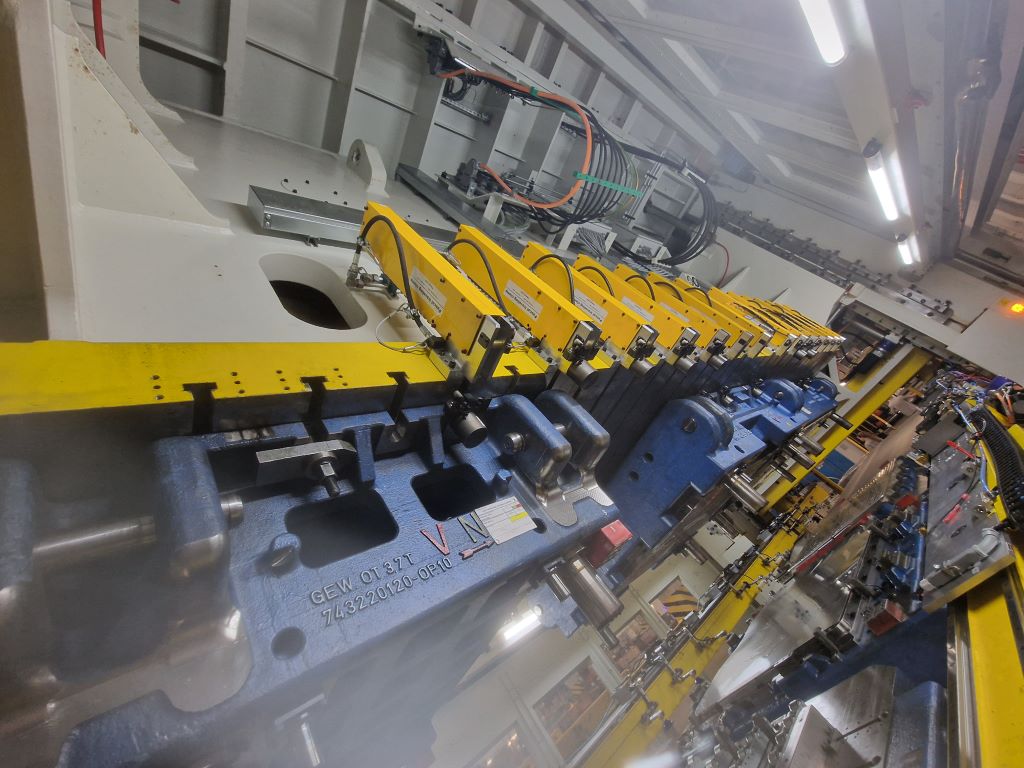

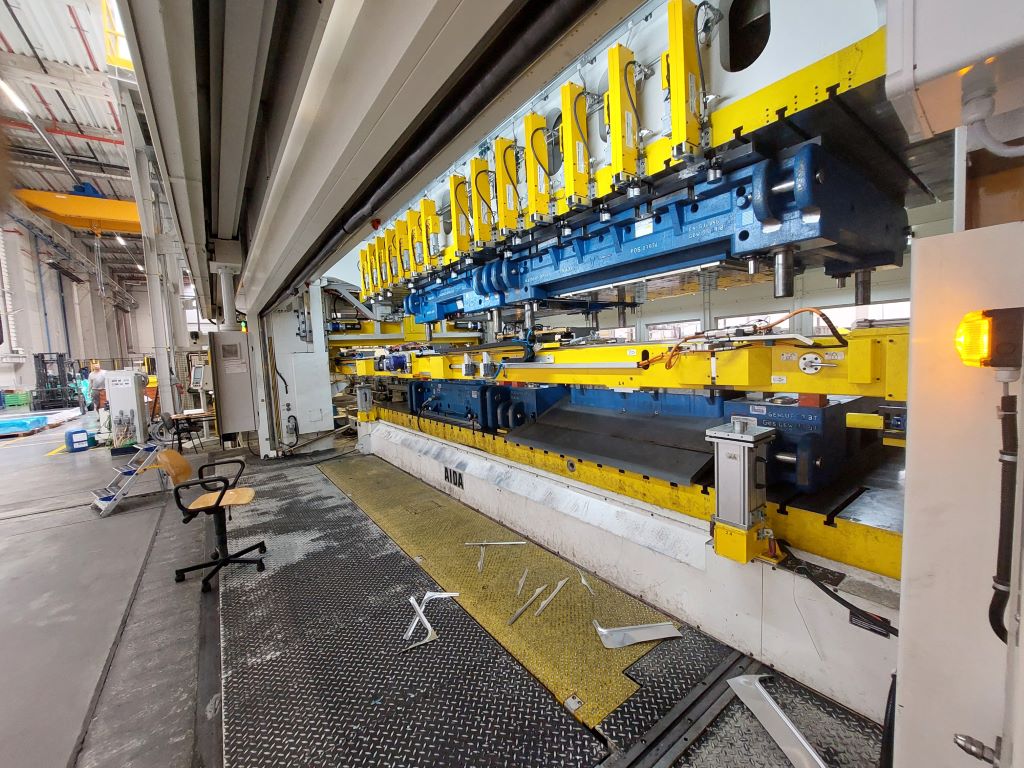

| Transfer system | |
| Transfer stroke, forward (adjustable) | 0–1200 mm |
| Opening/closing stroke for each side (bar travel, adjustable) | 0–1020 mm |
| Lift stroke (adjustable) | 0–350 mm |
| Internal clearance between bars in closed position | 700 mm |
| Maximum opening between bars (bars fully open) | 2740 mm |
| Bar section dimensions | 220 × 220 mm |

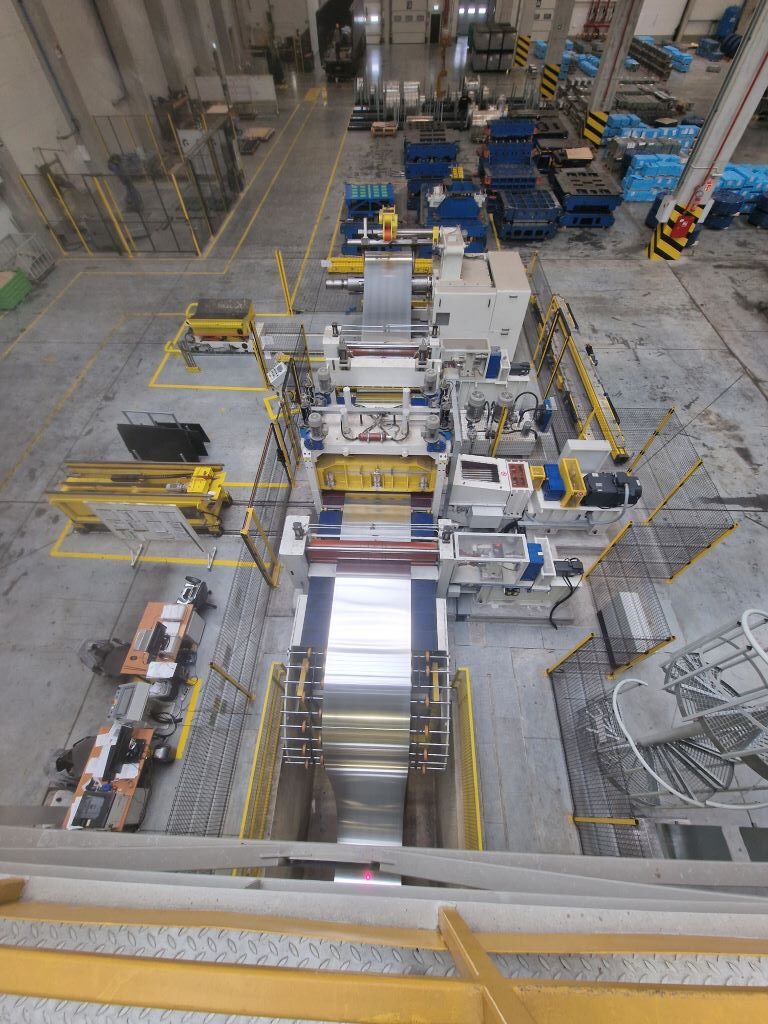

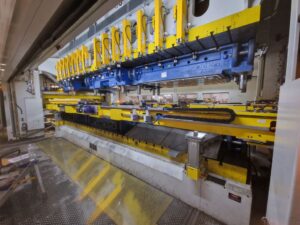

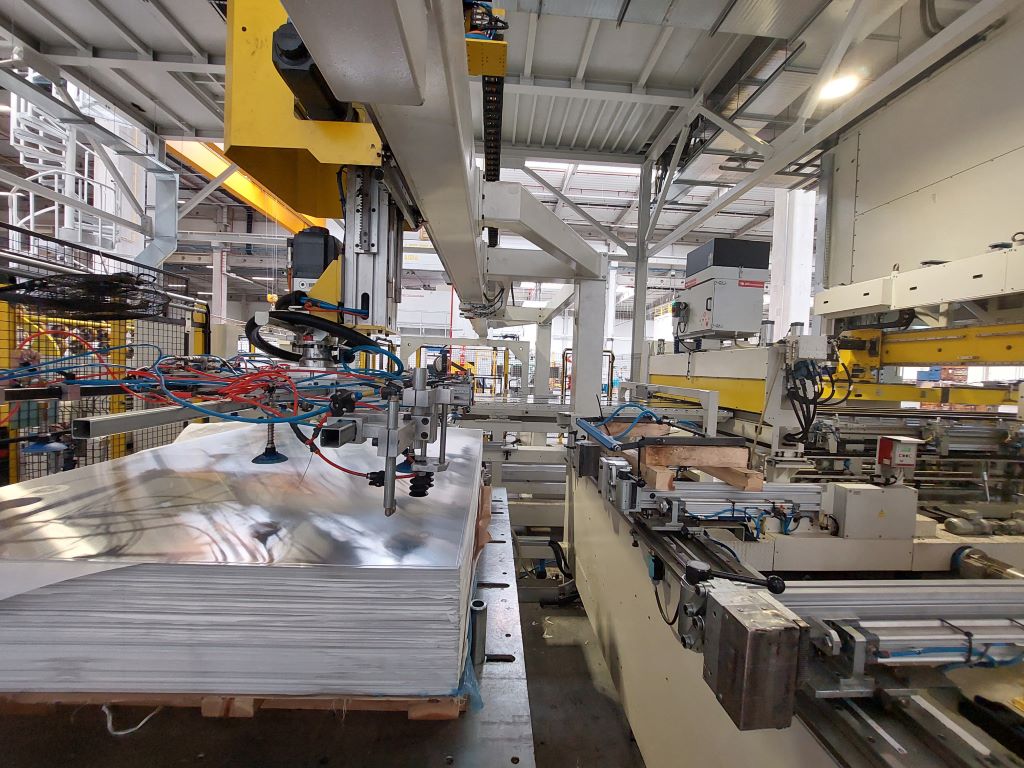

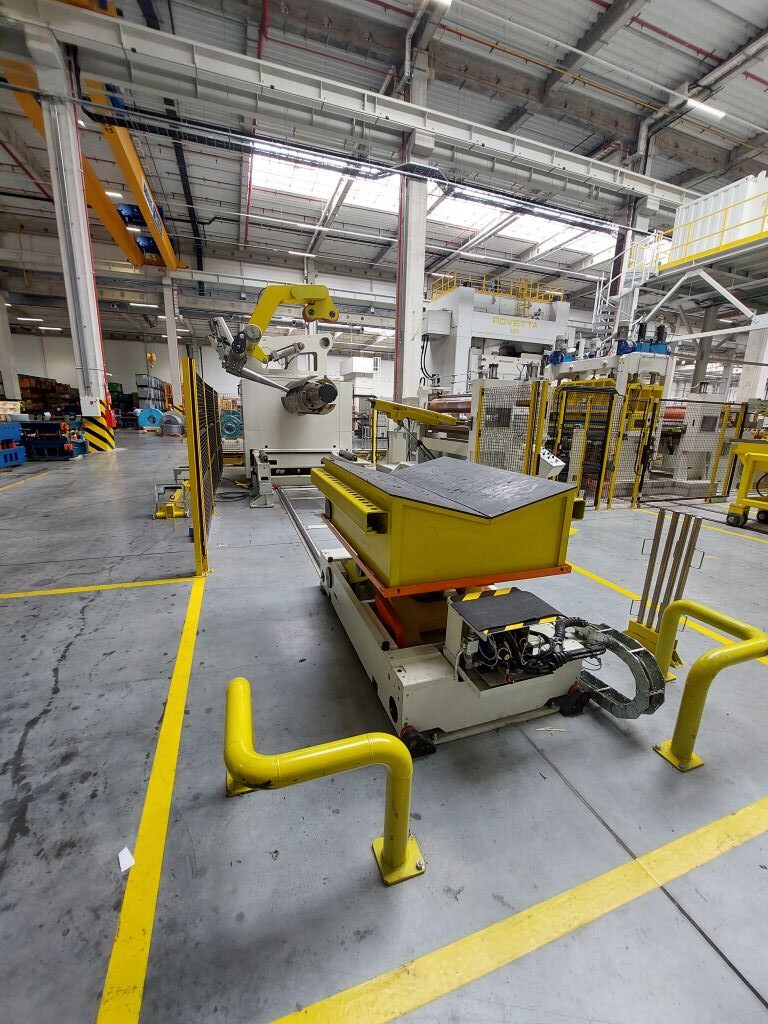

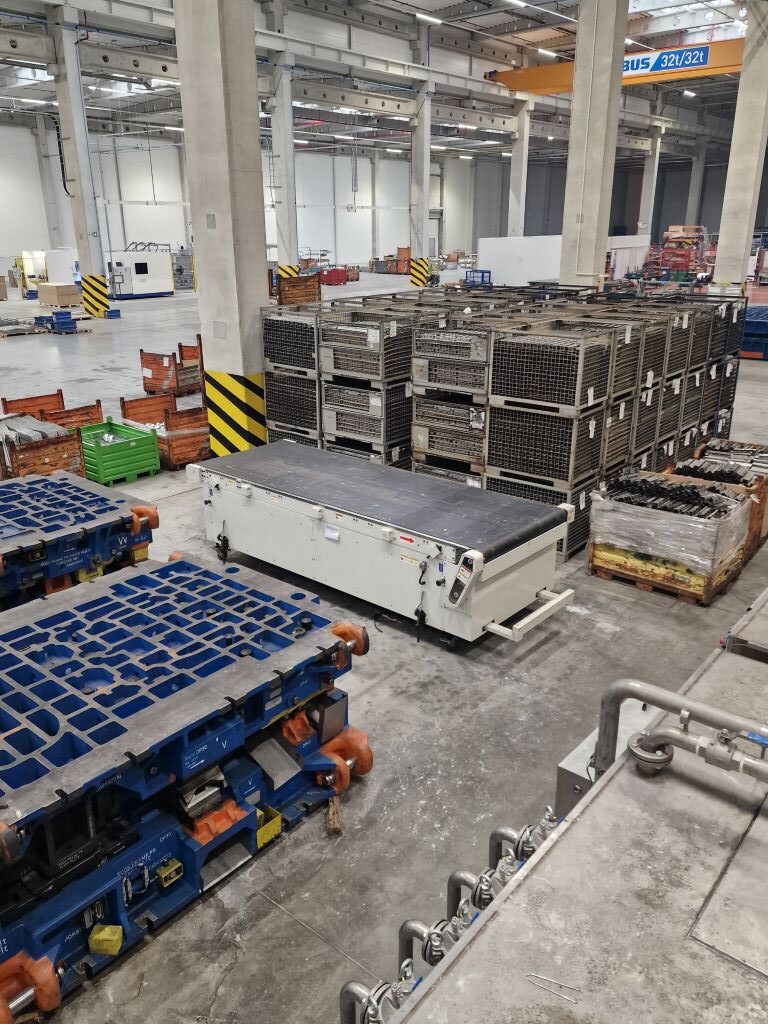

Photos / video - Aida DSF-TE4-20000-730-250 (ID: 76378)

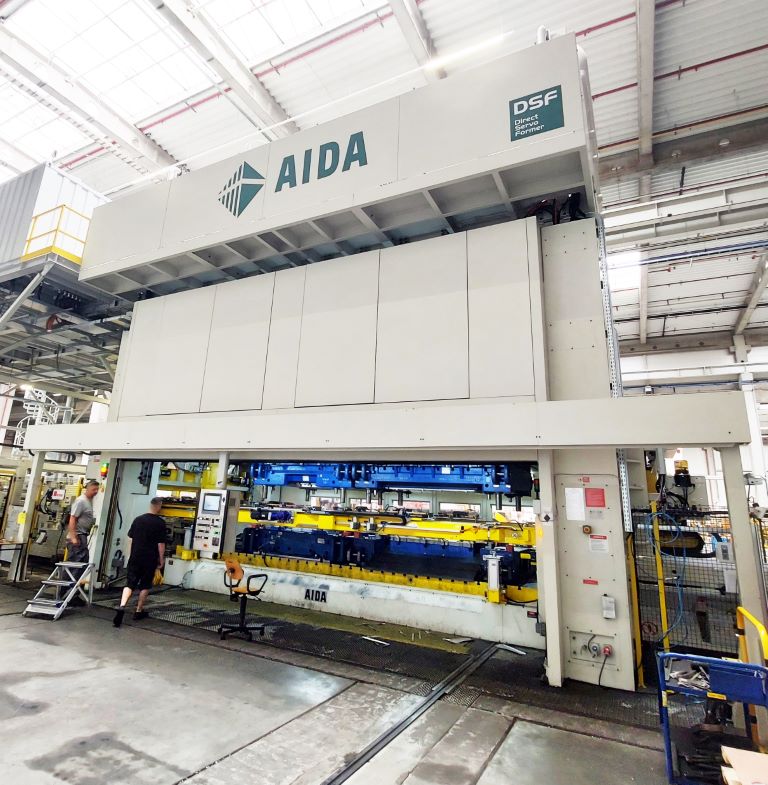

Stamping press for sale: Transfer progressive servo press Aida DSF-TE4-20000-730-250 - 2000 ton (ID: 76378). All details of this offer (availability, condition, price, delivery terms) will be sent to you by our manager, please click "Send inquiry". We can also help with finding other equipment for your needs.Send inquiry
