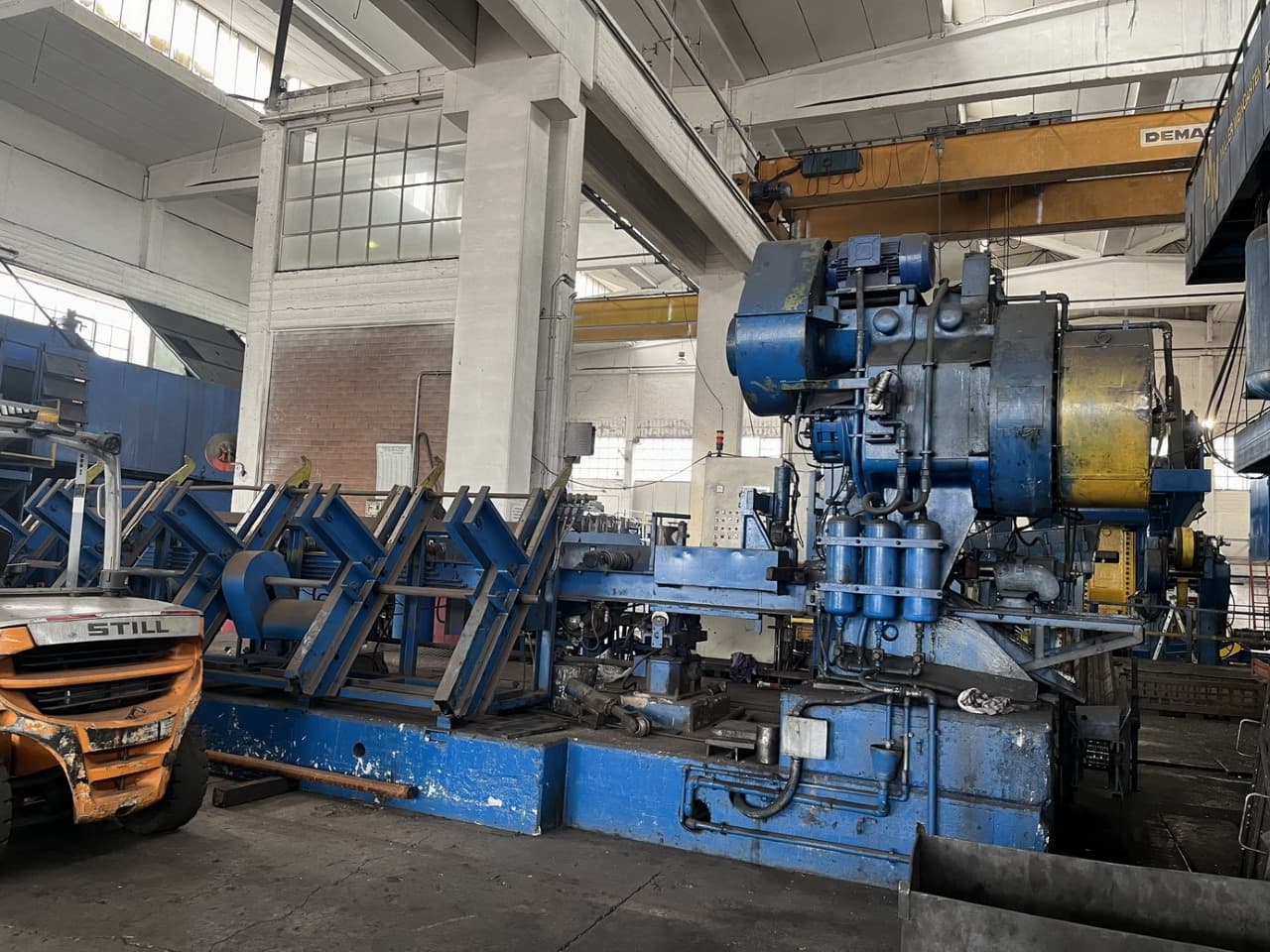

Billet shear Ficep F360 — 360 ton

Dabrox Listing ID: 76491

Request detailed information on this offer:
- availability, price
- payment/delivery terms
- specifications, condition, photos, etc.

* Required fields

Ficep F360 billet shear - description

Billet shear Ficep F360 — 360 ton (ID:76491) is industrial equipment designed for cutting metal billets and bars into measured lengths prior to subsequent forming operations. The machine provides high cutting accuracy and quality, minimal material waste, and high productivity. Used in blanking shops of forging and pressing plants, metallurgical and machine-building enterprises.

Technical specifications Ficep F360 (ID:76491)

TypeBillet shear
ManufacturerFicep
ModelF360
Cutting force3600 kN / 360 ton
Strokes per minute full speed50
Cuts per minute max27
Motor power22 kW
Gauge support bracket standard quantity2
Minimum measurable length standard0 mm
Maximum measurable length standard600 mm
Gauge support bracket special quantity1
Maximum measurable length special1600 mm
Minimum support force TQ device375 kN / 37,5 ton
Maximum support force TQ device875 kN / 87,5 ton
Long piece support minimum length400 mm
Long piece support maximum length1600 mm
Maximum bar dimension center square100 mm
Maximum bar dimension center round105 mm
Maximum bar dimension side square70 mm
Maximum bar dimension side round75 mm
Scrap piece minimum length0 mm
Scrap piece maximum length250 mm
Feeding table length12000 mm
Minimum bar length automatic loading4000 mm
Maximum bar length7000 mm
Roller rotation motors quantity2
Roller rotation motor power2,2 kW
Vertical table movement motor quantity1
Vertical table movement motor power2,2 kW
Loading bed minimum length4000 mm
Loading bed maximum length7000 mm
Minimum bar dimension40 mm
Maximum bar dimension100 mm
Loading bed maximum capacity10000 kg
Walking beam motor power4 kW
Chain motor power0,36 kW

Billet shear Ficep - technological processes and operations

Shearing Metal is cut along a straight line by the shear action of cutting edges. The process is fast, requires no heating or complex tooling. Used for cutting sheets and strips into blanks prior to further stamping.
