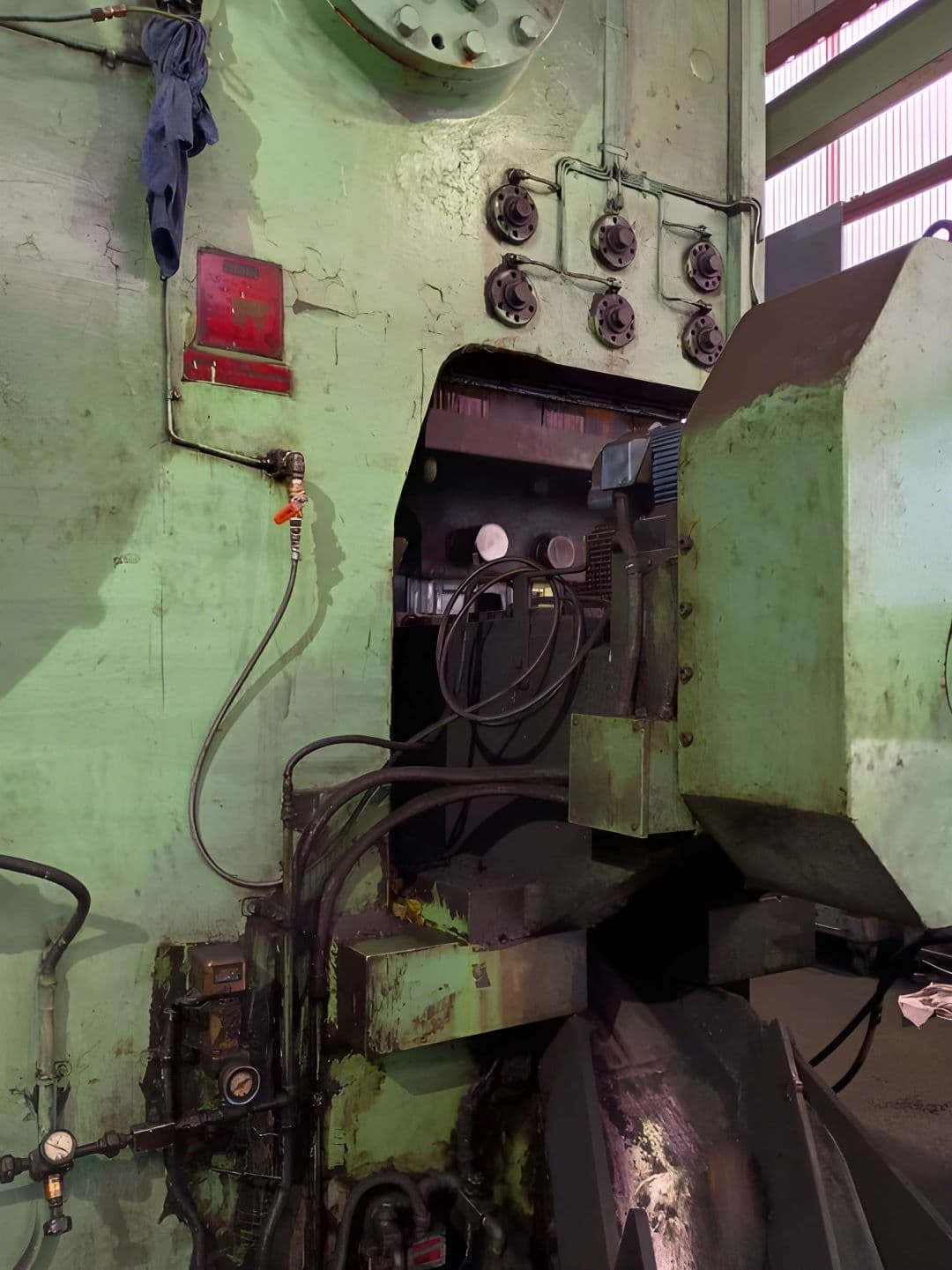

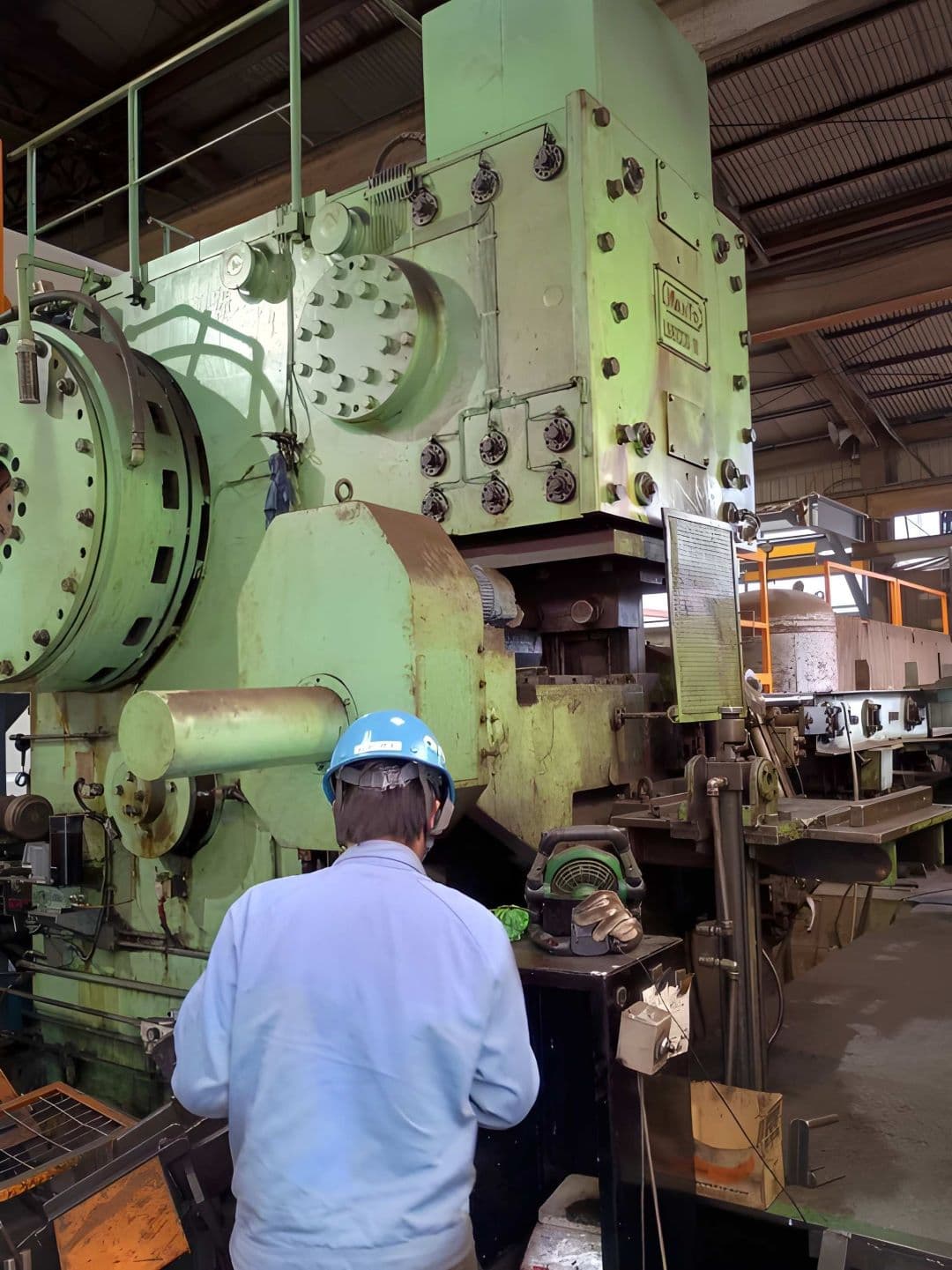

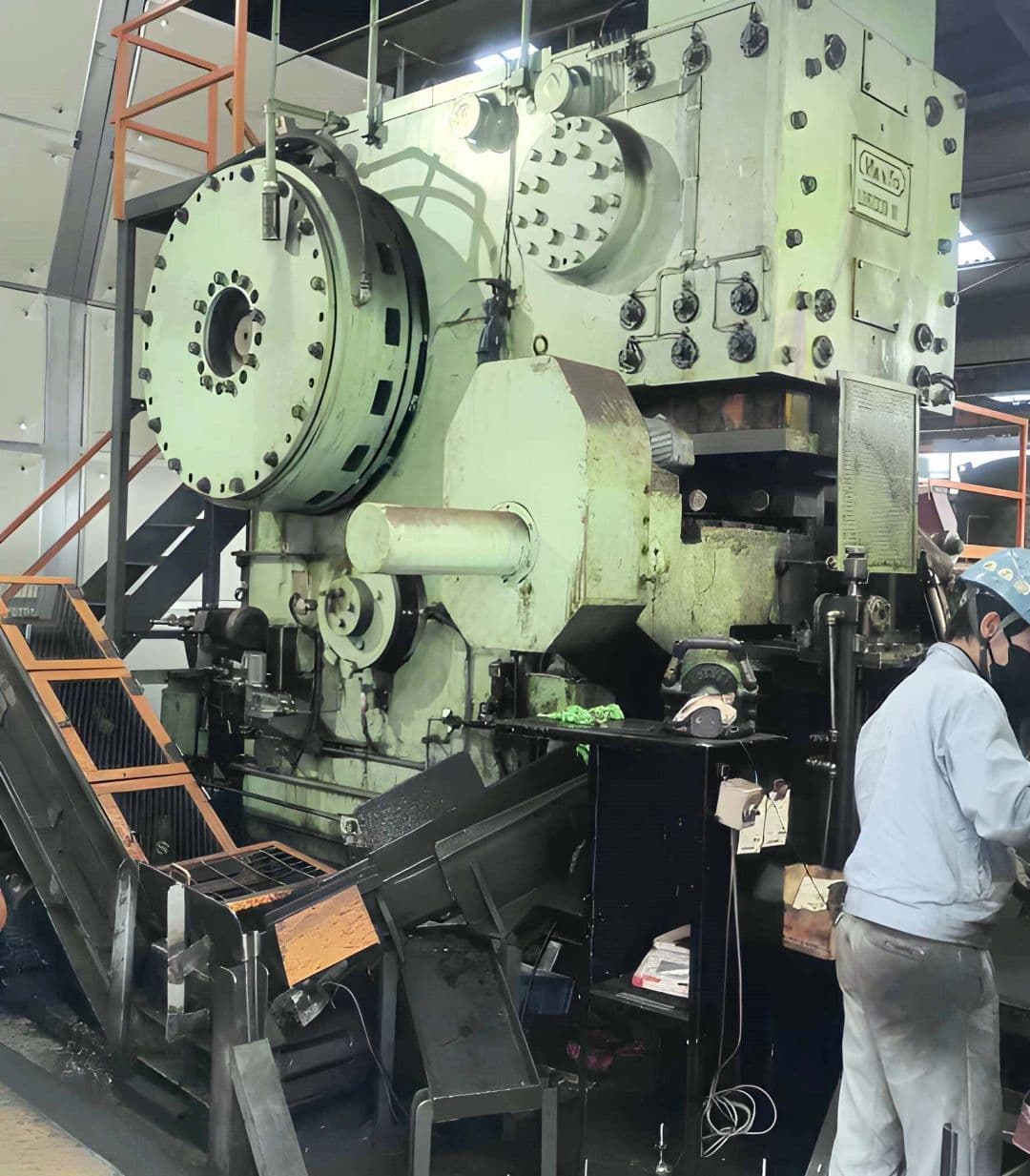

Billet shear Manyo LBS1000 — 1000 ton

Dabrox Listing ID: 76452

Request detailed information on this offer:
- availability, price
- payment/delivery terms
- specifications, condition, photos, etc.

* Required fields

Manyo LBS1000 billet shear - description

Billet shear Manyo LBS1000 — 1000 ton (ID:76452) is industrial equipment designed for cutting metal billets and bars into measured lengths prior to subsequent forming operations. The machine provides high cutting accuracy and quality, minimal material waste, and high productivity. Used in blanking shops of forging and pressing plants, metallurgical and machine-building enterprises.

Technical specifications Manyo LBS1000 (ID:76452)

TypeBillet shear
ManufacturerManyo
ModelLBS1000
Year of manufacture1985
Capacity1000 ton
Stroke140 mm
SPM35
ClutchAir friction type
BrakeAir friction disc
Main Motor75 kW × 6P
Required Air Pressure5-6 kg/cm²
Total Machine Weight65 ton
Cutting Die Specifications
Cutting MethodShearing type
Cutting ShapeUpper blade / lower blade
Cutting Diameter (max)140 mm
Cutting Length (max)400 mm
Cutting Length (min)125 mm
Ejector1.5 kW × 4P x 1/20
Feeding Device Specifications
ModelLAF–1000
Feed Speed130 pieces/min (≈ 20 m/min)
Feed Drive Motor3.7 kW × 4P
Feed Reduction Ratio1/20
Feed Length1500 mm
Material Table Dimensions (H × W × L)1100 x 3050 x 5000 mm
Material Table Load Capacity (max)20 ton
Required Air Pressure5–6 kg/cm

Billet shear Manyo - technological processes and operations

Shearing Metal is cut along a straight line by the shear action of cutting edges. The process is fast, requires no heating or complex tooling. Used for cutting sheets and strips into blanks prior to further stamping.
