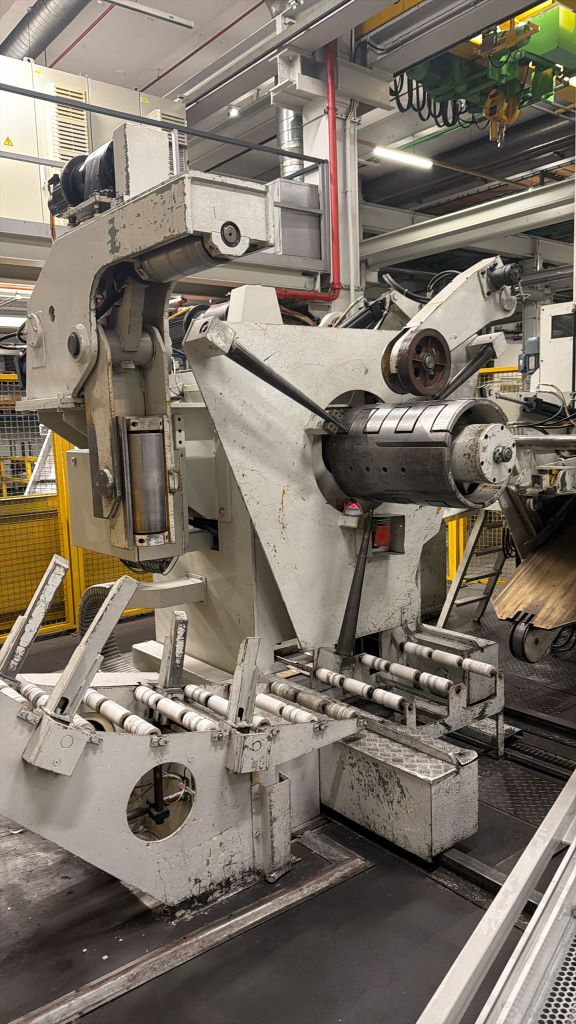

Decoiler straightening machine Muller Weingarten UWR 60

Dabrox Listing ID: 76430

Request detailed information on this offer:
- availability, price
- payment/delivery terms
- specifications, condition, photos, etc.

* Required fields

Muller Weingarten UWR 60 decoiler straightening machine - description

Decoiler straightening machine Muller Weingarten UWR 60 (ID:76430) is equipment for preparing coiled metal before feeding it into a stamping press or processing line. The machine uncoils the roll, removes strip curvature, and feeds the straightened material at a set speed. The equipment ensures stable feeding quality, which directly affects stamping accuracy and die service life.

Technical specifications Muller Weingarten UWR 60 (ID:76430)

TypeDecoiler straightening machine
ManufacturerMuller Weingarten
ModelUWR 60
Year of manufacture1985
Strip width30-500 mm
Strip thickness0.5-4 mm
Coil outer diameter1800 mm
Coil inner diameter508 mm

Decoiler straightening machine Muller Weingarten - technological processes and operations

Decoiling Uncoiling releases the metal strip from the roll and feeds it into the processing line at a set speed and tension. The operation ensures continuity of the production cycle and correct positioning of the strip before stamping. The rhythm of the entire production and the quality of subsequent operations depend on the stability of feeding.
Straightening Sheet or strip metal is rarely perfectly flat after rolling and transportation. Straightening eliminates curvature, waviness, and internal stresses by passing the metal through a system of staggered rollers. After such treatment, the workpiece obtains flat geometry, which is critically important for precise stamping.
