Specifications - Clearing EF11600 (ID: 76254)
| Type | Hot forging press |
| Manufacturer | Clearing |
| Model | EF11600 |
| Capacity | 1600 ton |
| Ram Stroke | 305 mm |
| Stroke per minute | 65 |
| Table adjustment | 13 mm |
| Shut height | 760 mm |
| Bottom die holder dimension | |
| — Left to right | 1010 mm |
| — Front to back | 1143 mm |
| Power main motor | 75 kW |
| Dimension of the the press | |
| — Left to right | 4000 mm |
| — Front to back | 3500 mm |
| Height form the floor | 5900 mm |
| Weight of the press | 120 ton |

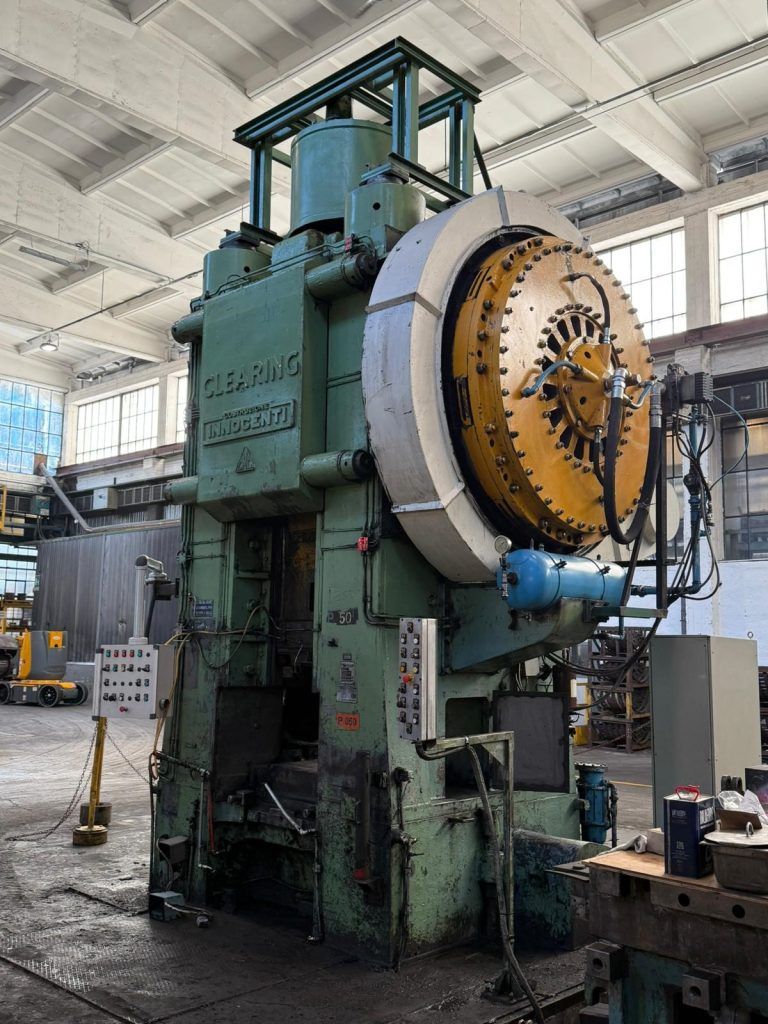

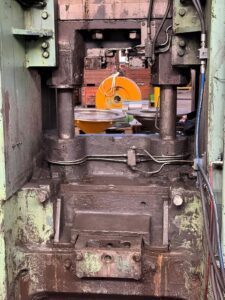

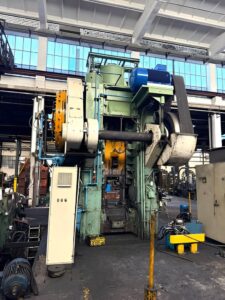

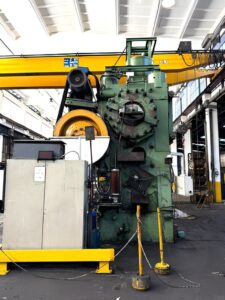

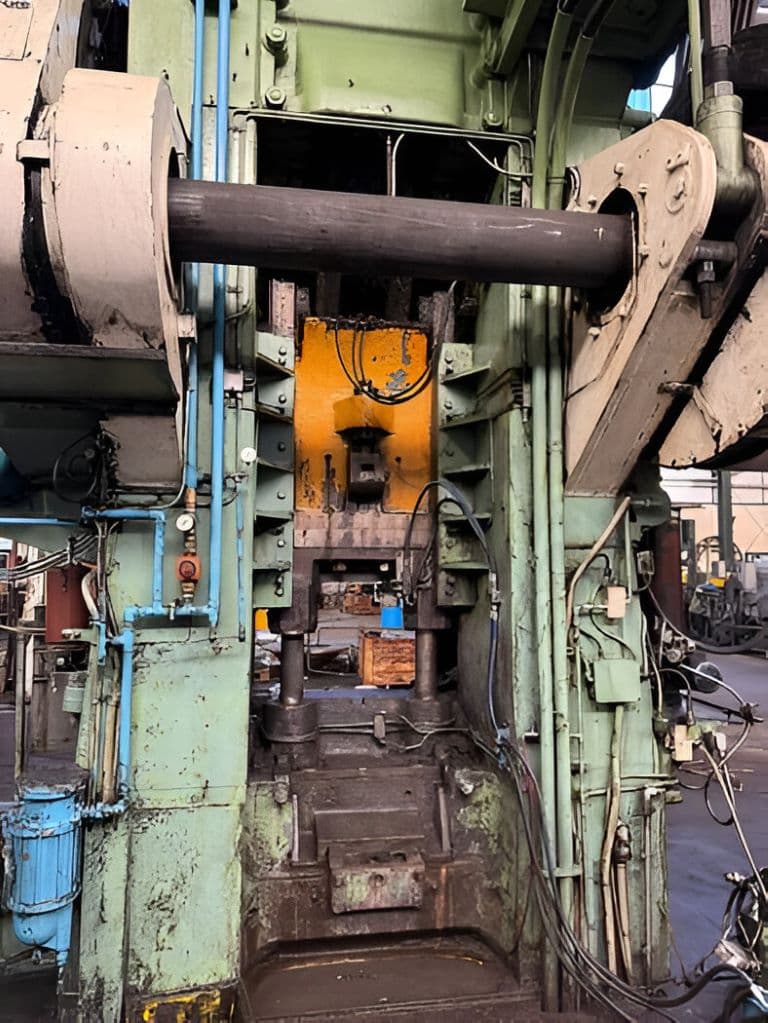

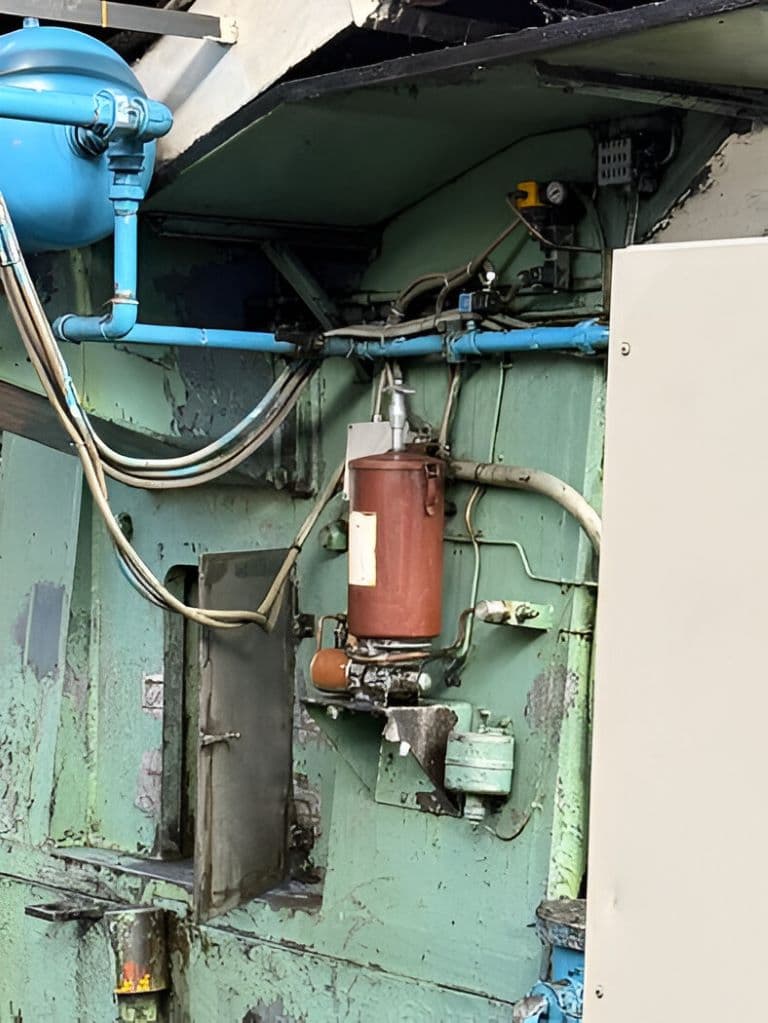

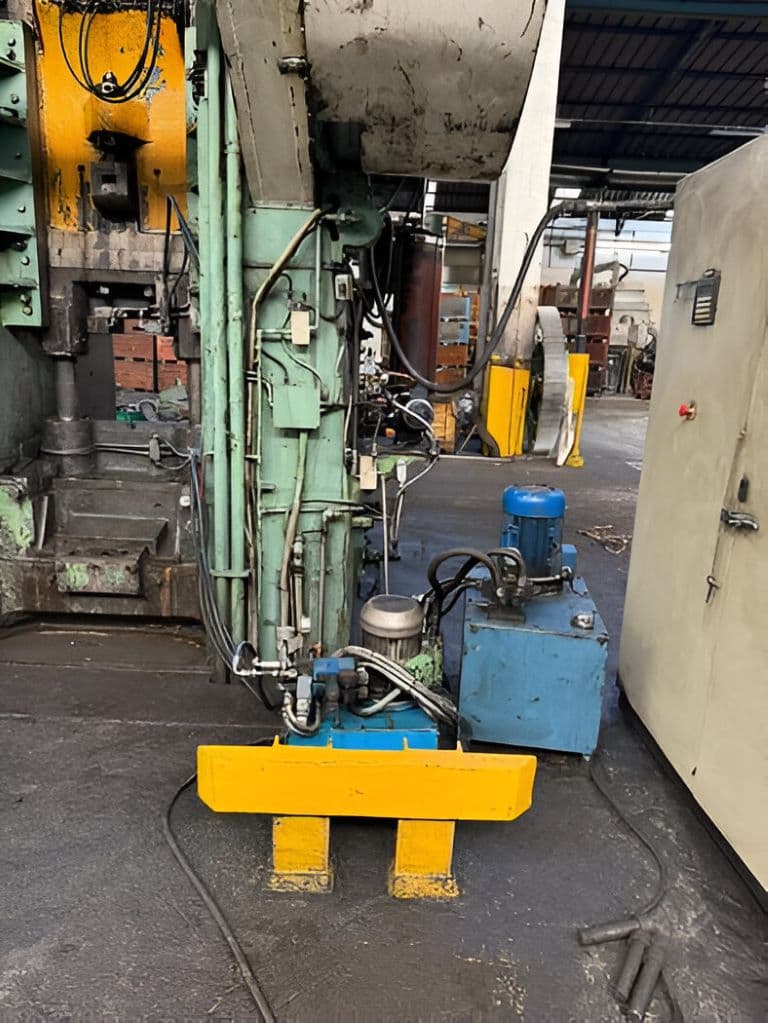

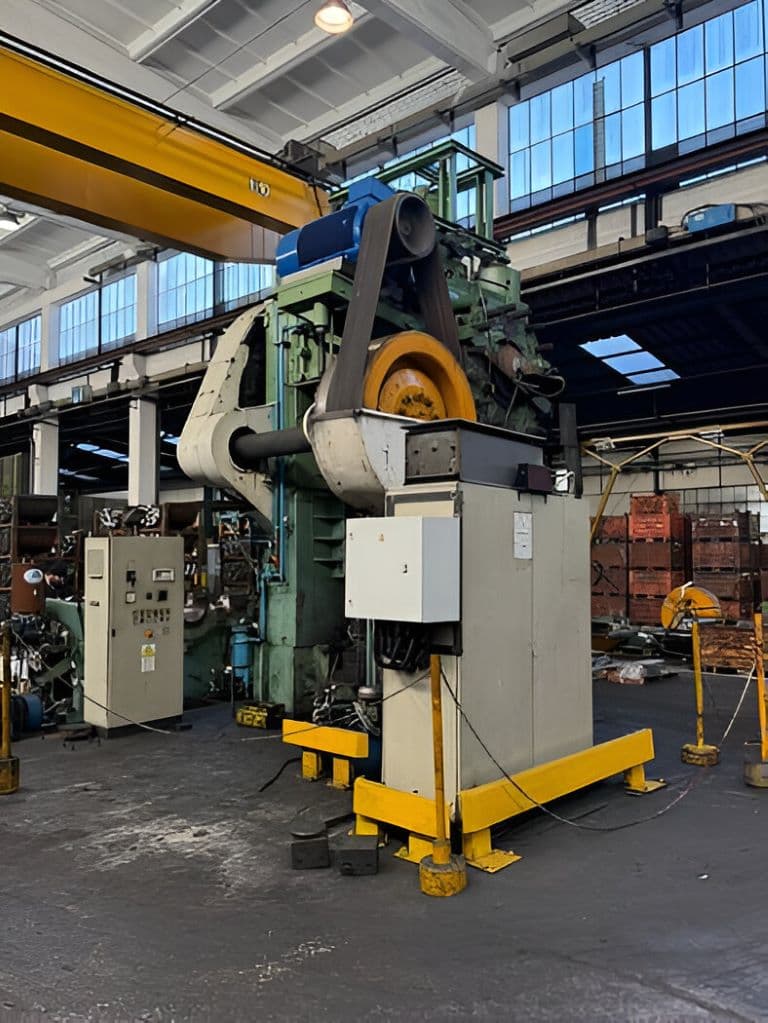

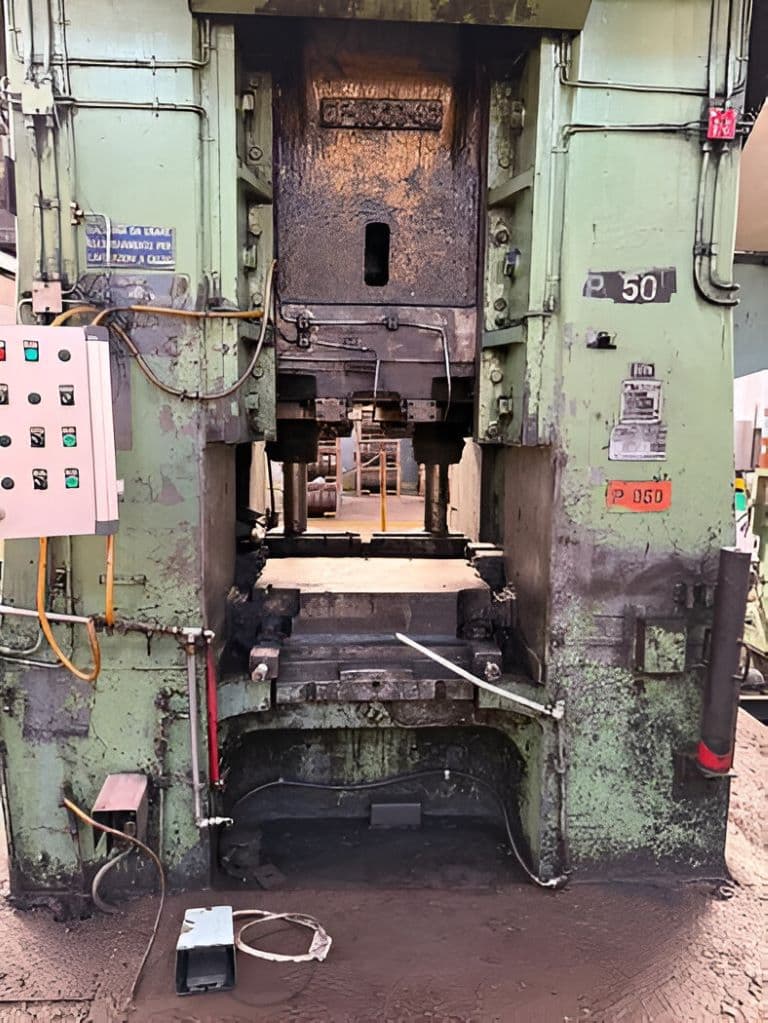

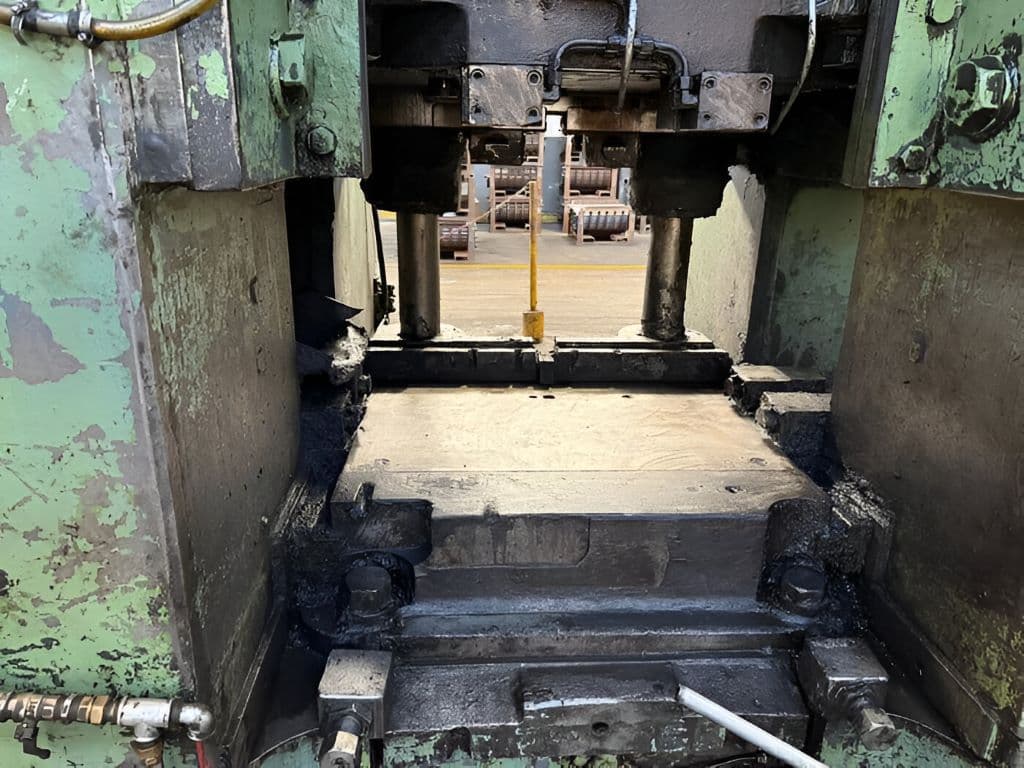

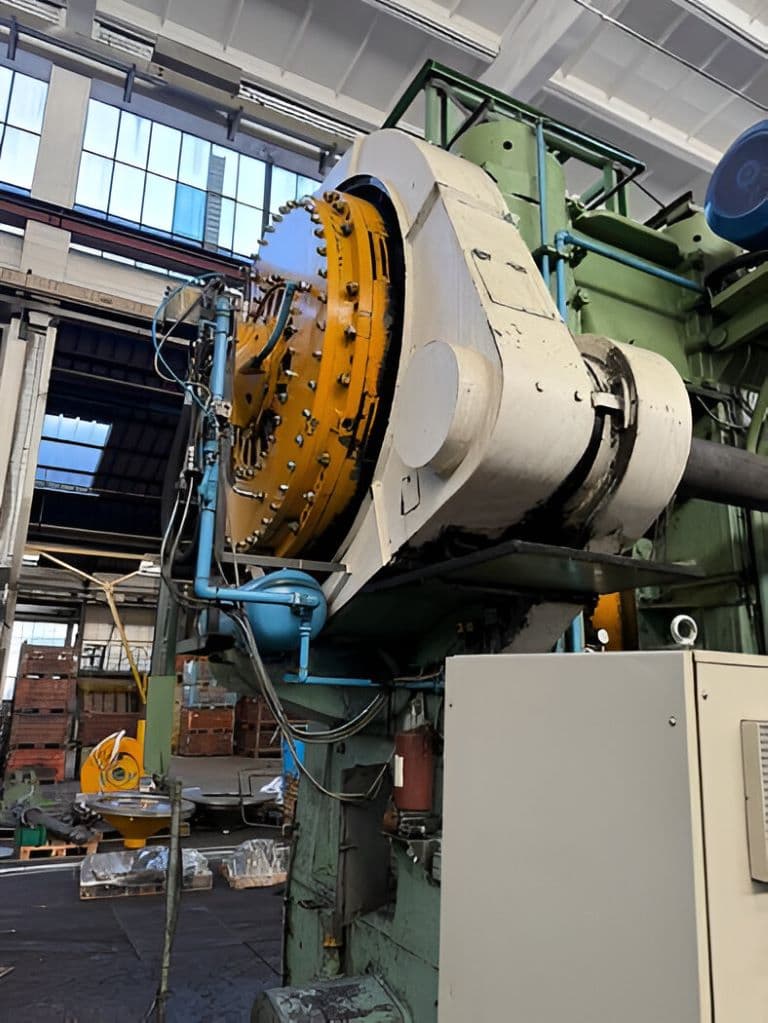

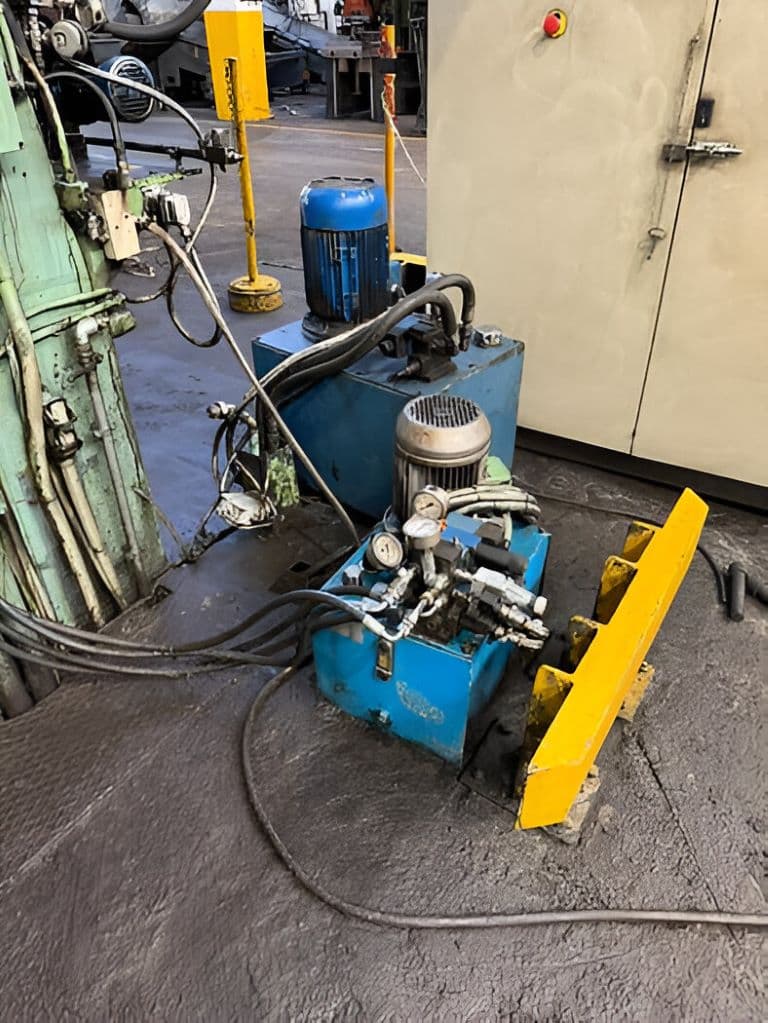

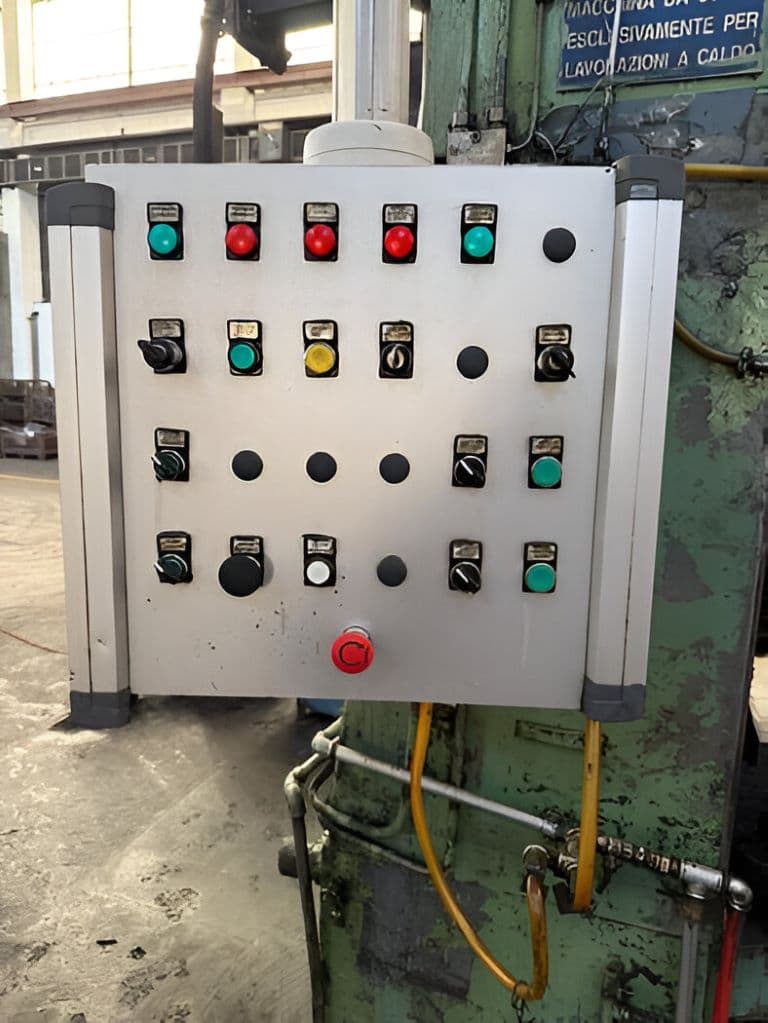

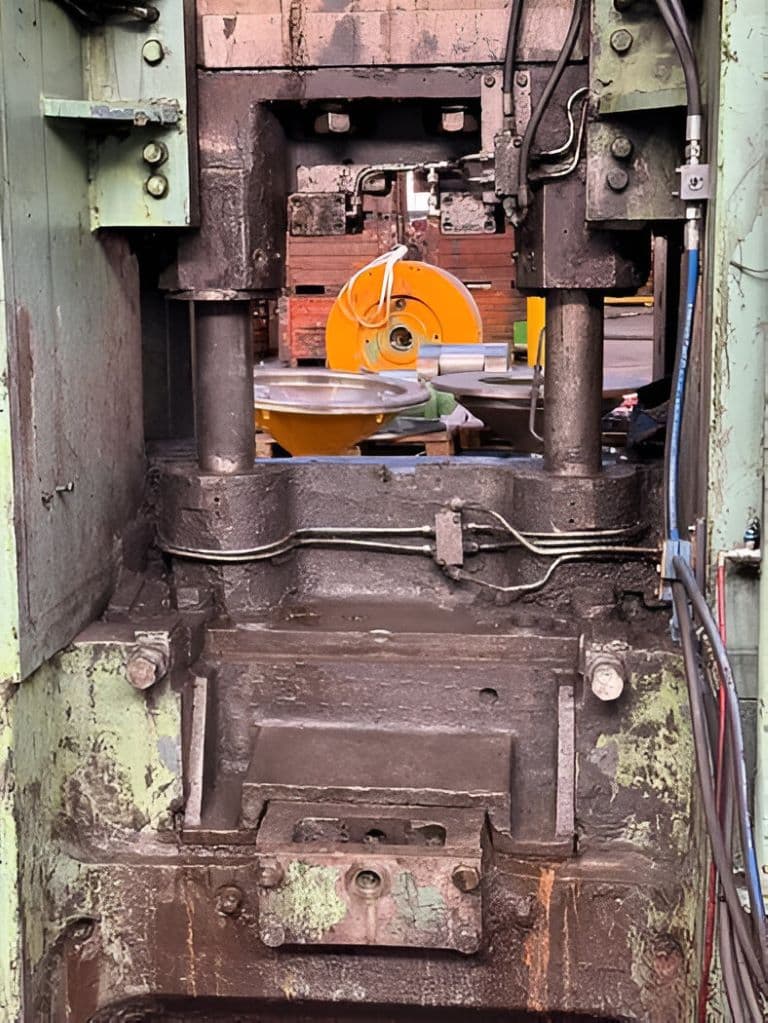

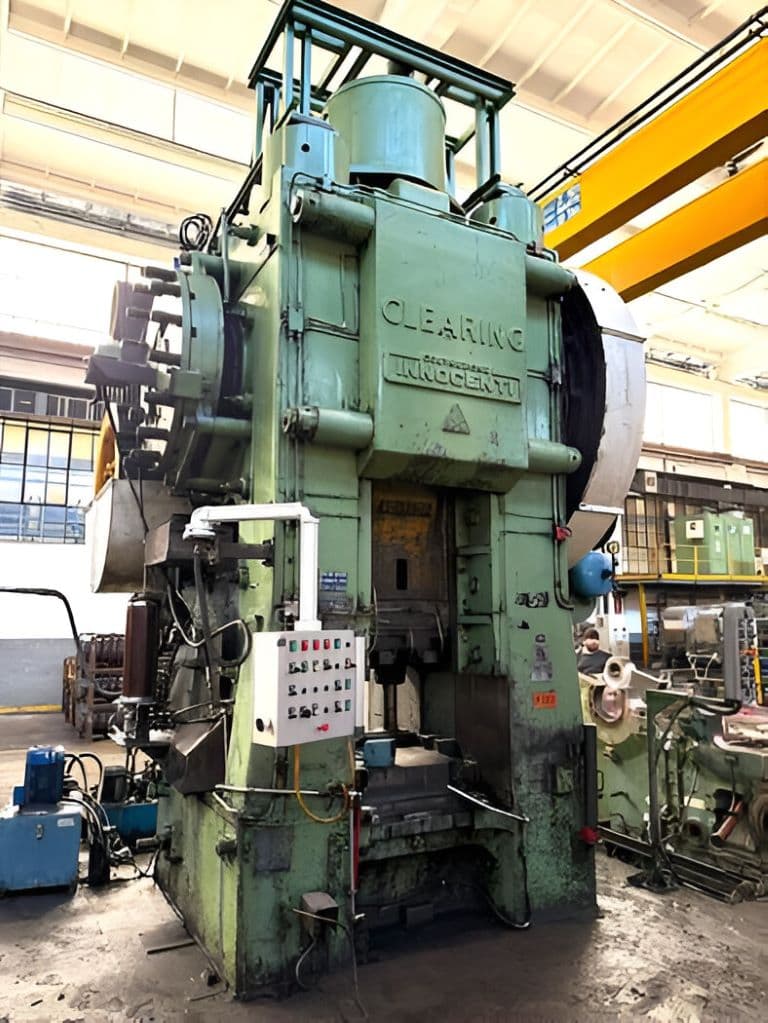

Photos - Clearing EF11600 (ID: 76254)
