Hot forging press TMP Voronezh K04.196.840 - 1000 ton

Dabrox Listing ID: 75625

Request detailed information about this offer:
- availability, status, price
- terms of payment / delivery
- specifications, condition, photos and etc.

Specifications - TMP Voronezh K04.196.840 (ID: 75625)

TypeHot forging press
ManufacturerTMP Voronezh
ModelK04.196.840
YOM 1986
Rated capacity 1000 tons
Capacity of the inner slider 600 tons
Capacity of the external slider 400 tons
Slide stroke 250 mm
Slide strokes per 1 min 90
Distance between table and punch plate of slider in case of upper table location
Inner slider 435 mm
External slider 655 mm
Adjustemnt of distance between table and slider 10 mm
Upper ejector
Stroke 15 mm
Power 20 kN
Bottom ejector
Stroke 40 mm
Power 180 kN
Bed dimensions 1000 x 1000 mm
Slide dimensions
Left-to-right 900 mm
Front-to-back 800 mm
Diameter of the inner slider 290 mm
Window size in the column 810 x 600 mm
Overall dimensions
Width 5240 mm
Length 3000 mm
Height above floor 5950 mm
Total weight 93000 kg

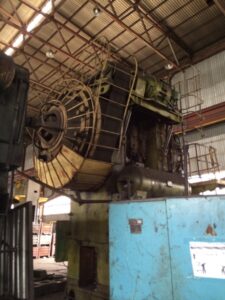

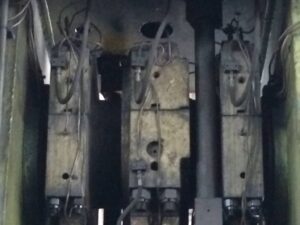

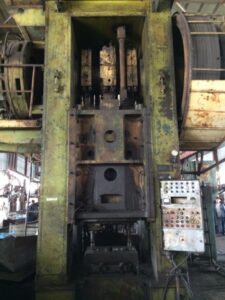

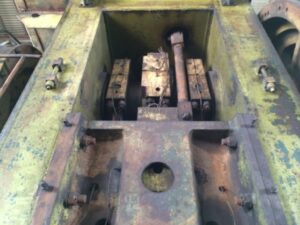

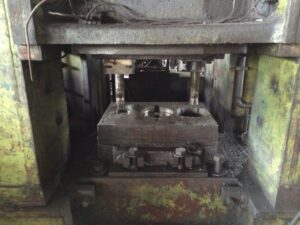

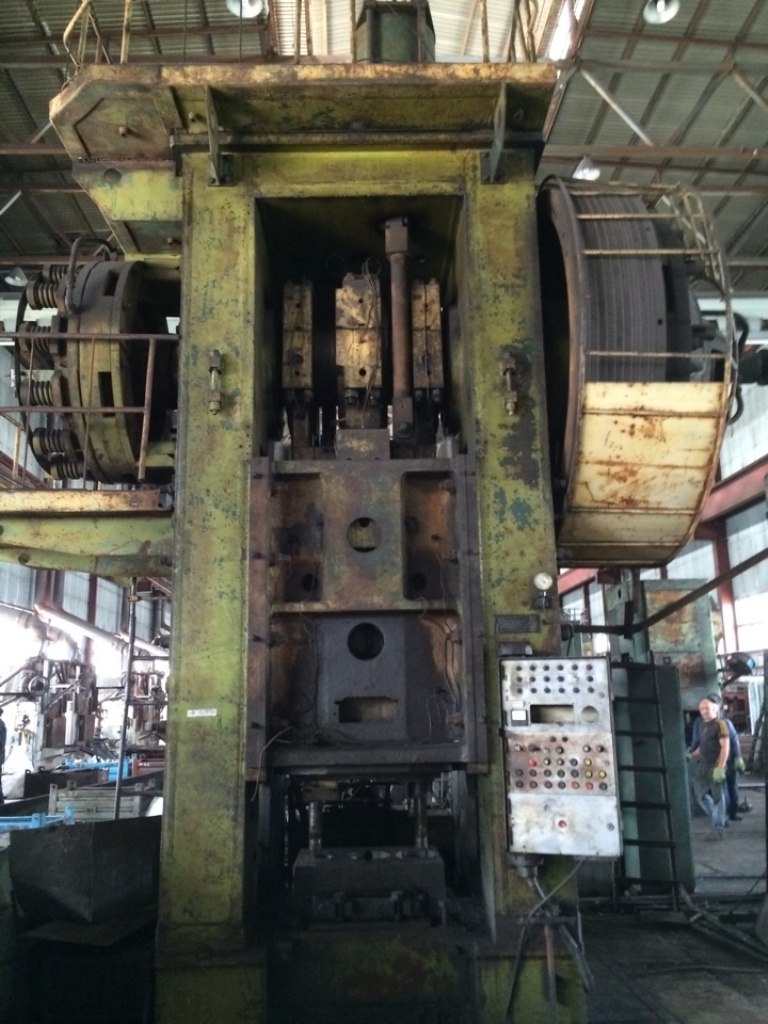

Photos - TMP Voronezh K04.196.840 (ID: 75625)

Hot forging press for sale: Hot forging press TMP Voronezh K04.196.840 - 1000 ton (ID: 75625). All details of this offer (availability, condition, price, delivery terms) will be sent to you by our manager, please click "Send inquiry". We can also help with finding other equipment for your needs. Send inquiry
