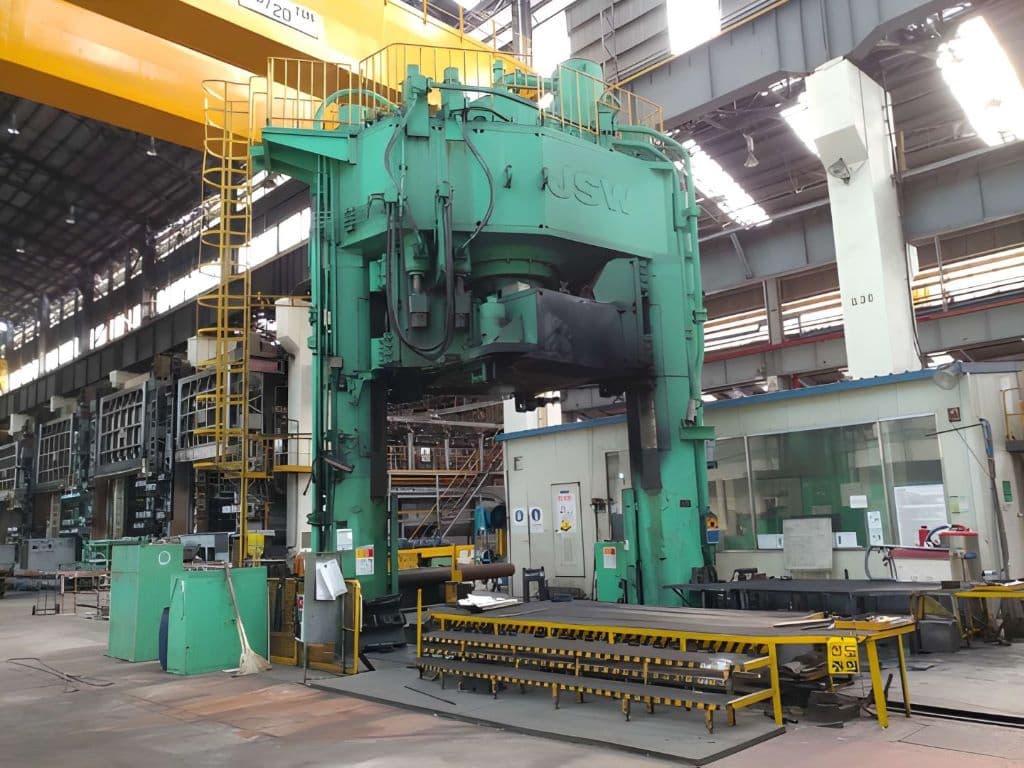

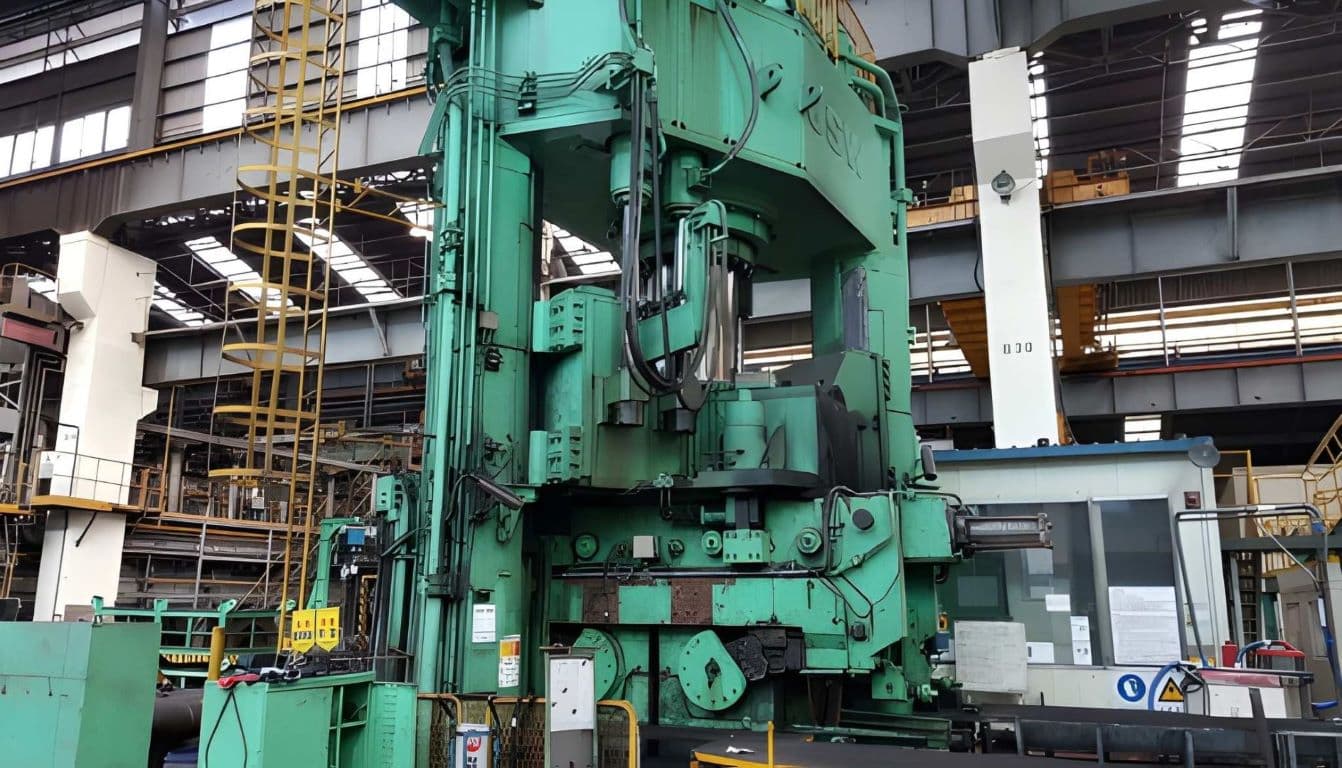

Hydraulic open die forging press JSW 2500 MT — 2500 ton
JSW 2500 MT open die forging press - description
Technical specifications JSW 2500 MT (ID:S91425)
| Type | Open die forging press |
|---|---|
| Manufacturer | JSW |
| Model | 2500 MT |
| Year of manufacture | 1992 |
| Capacity | 2500 ton |
| Frame design | 2 Column |
| Main forging cylinder | 2500 ton |
| Lifting cylinders | 150 ton × 4 sets |
| Daylight | 4000 mm |
| Ram stroke | 1800 mm |
| Distance between columns | 2800 mm |
| Approach speed | 250 mm/s (fixed option |
| Forging speed | 30 mm/s (at 2300 ton) |
| Lifting speed | 90 / 180 / 240 mm/s (selectable stages) |
| Working oil pressure | 320 kg/cm² |
| Max forging eccentricity | 200 mm / 500 ton |
| Max height above floor | 9700 mm |
| Total electric power | 652 kW |
| Peak power | 915 kW |

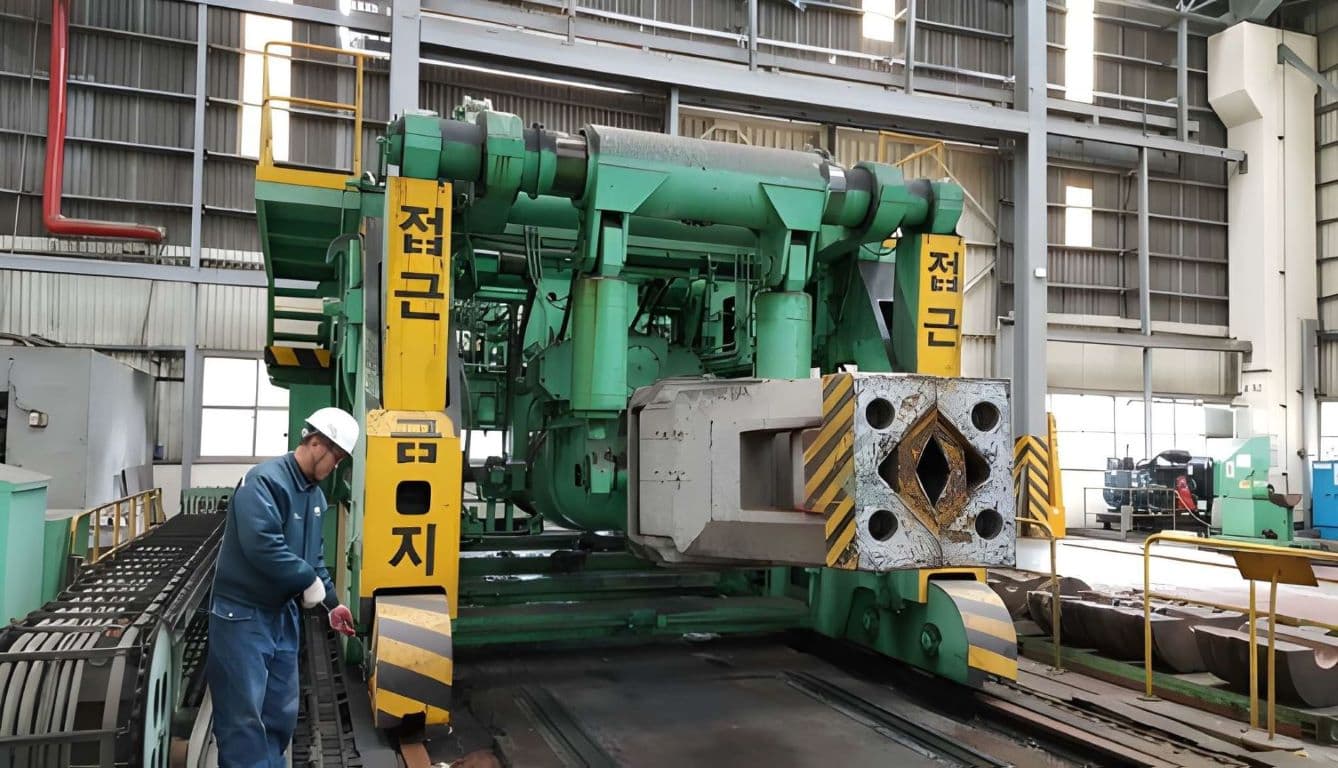

| Included equipment | 20 ton forging manipulator |
Open die forging press JSW 2500 MT - technological processes and operations
| Forging | The process of plastic deformation of metal, in which the workpiece changes shape under the impact of blows or static pressure. During forging, the metal structure is densified, internal inhomogeneities are eliminated, and the mechanical properties of the material are improved. As a result, forged products are distinguished by high strength and reliability when operating under significant loads. Forging is used both for producing finished parts and for preparing workpieces for subsequent stamping. |
|---|---|
| Hot forging | Hot forging is a process of shaping metal under pressure at elevated temperatures. Heating reduces the deformation resistance of the material, allowing it to flow more easily into the die cavity. The process provides high productivity and the ability to form complex shapes. Used for manufacturing forgings from steel and alloys in series and mass production. |
| Open-die forging | Metal is deformed between flat or shaped tools without lateral restriction, allowing free flow in all directions. The workpiece is gradually shaped by repeated blows or press strokes, with the operator controlling its position between each step. This method is used for producing large forgings such as shafts, discs, and rings, where a refined internal structure is essential. |
| Preforming | Preforming prepares the workpiece for the main stamping operation by giving it an approximate shape of the future part. The metal is distributed in the die to facilitate final filling and reduce tool wear. This intermediate step improves accuracy and quality of the finished product. |
| Piercing | Piercing forms a hole in a solid workpiece by driving a tool through the material without removing it. The metal is displaced sideways, creating a through or blind opening while preserving the structure around it. The operation is performed on presses and is used in the production of hollow parts such as bushings, rings, and shafts. |
