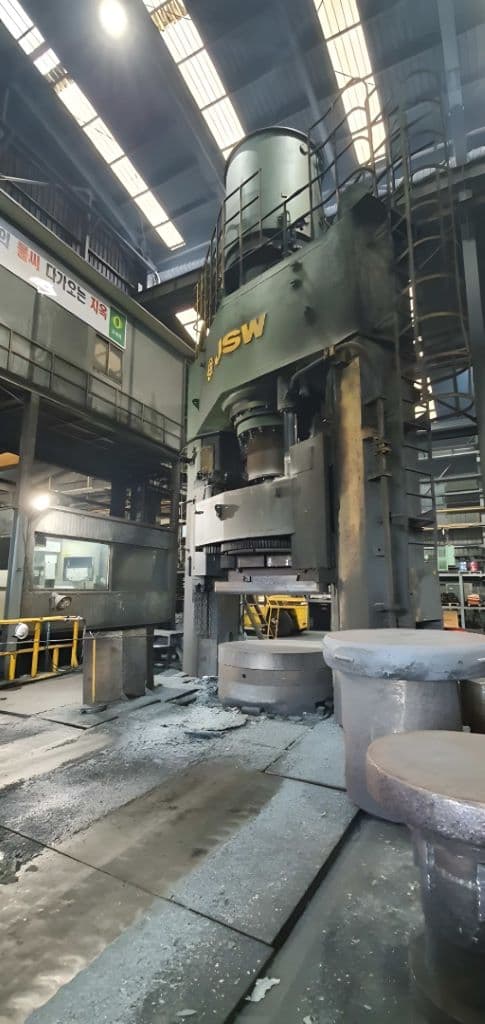

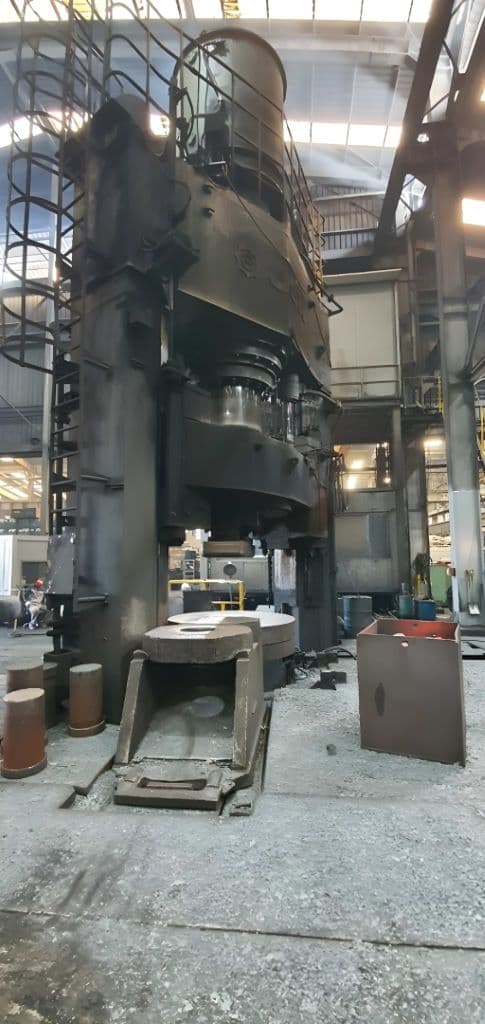

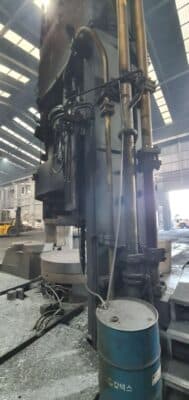

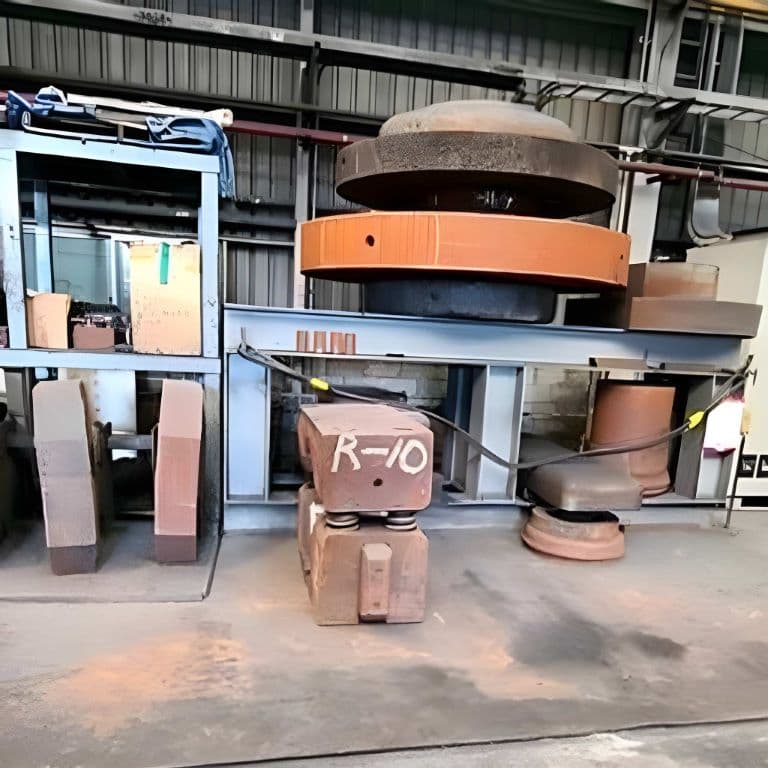

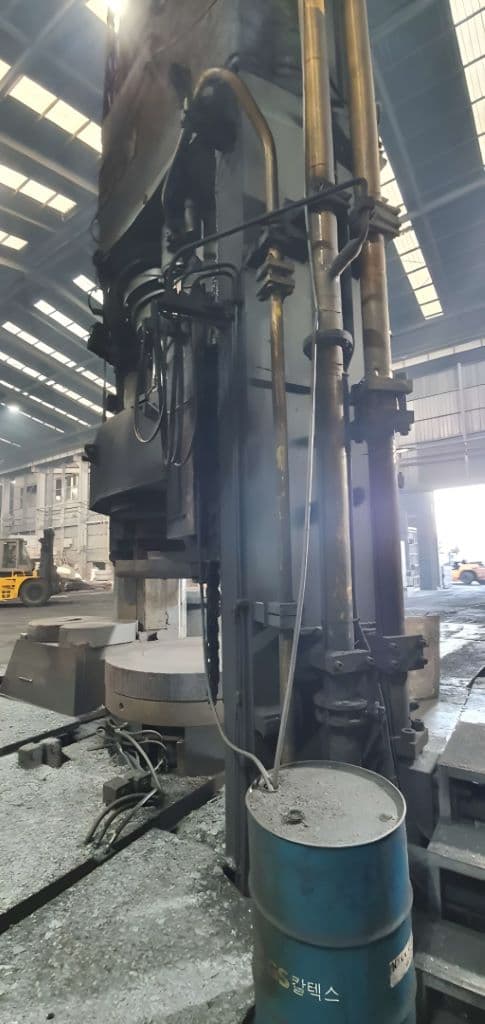

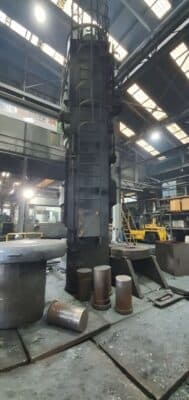

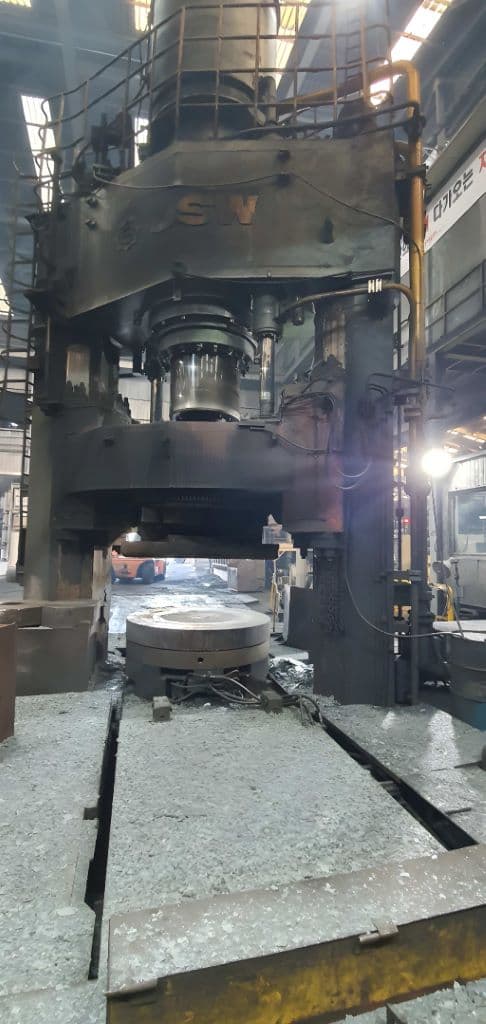

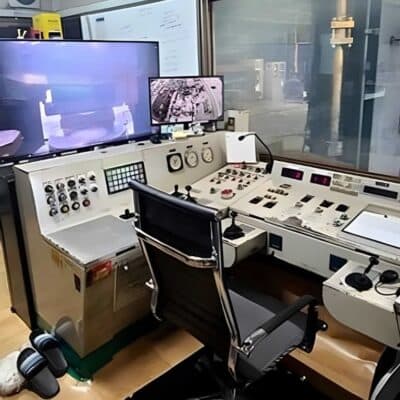

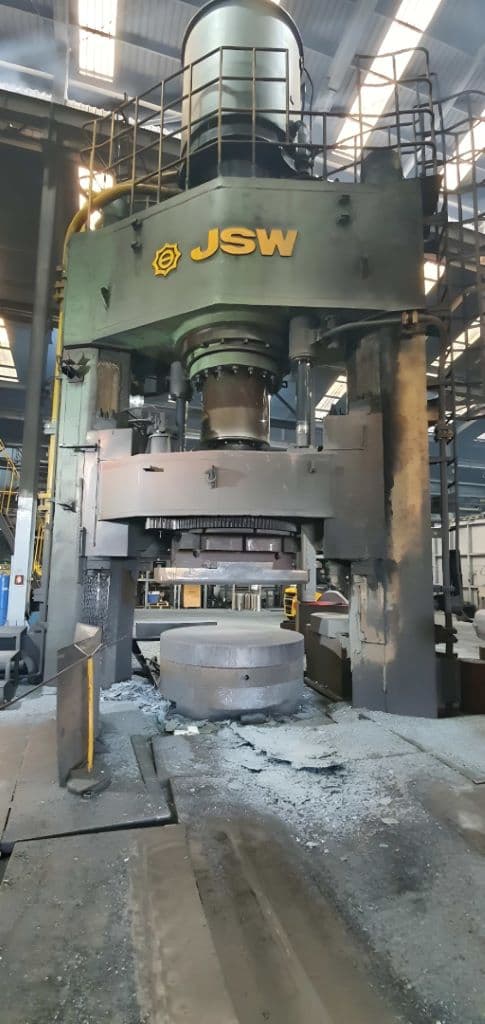

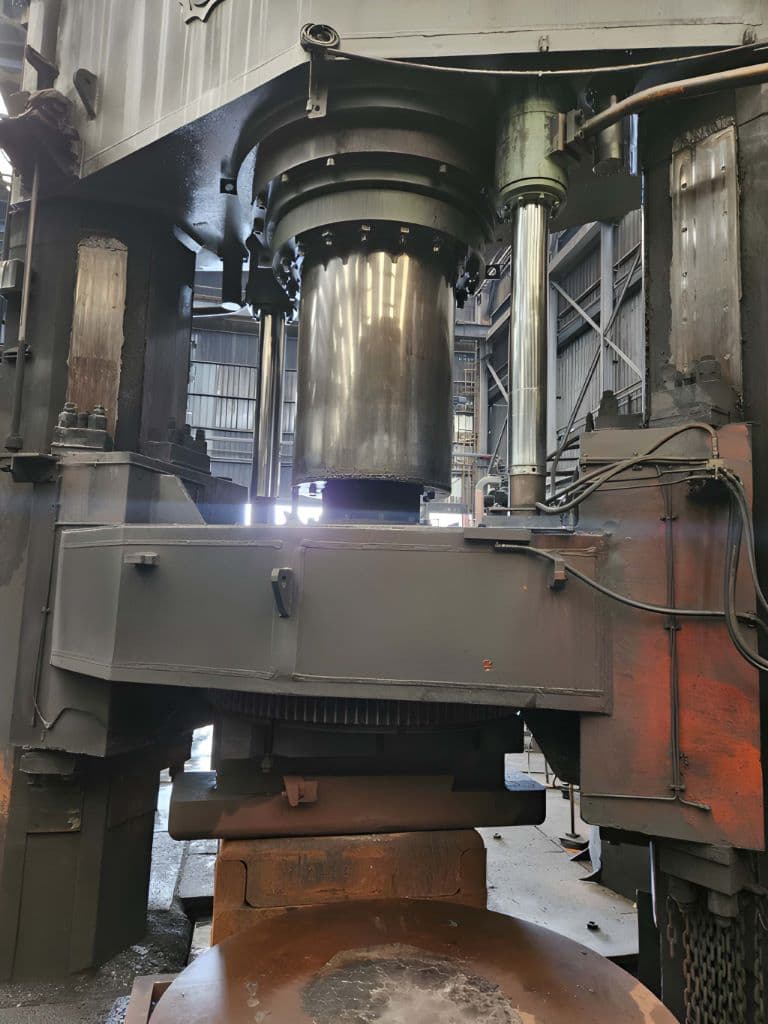

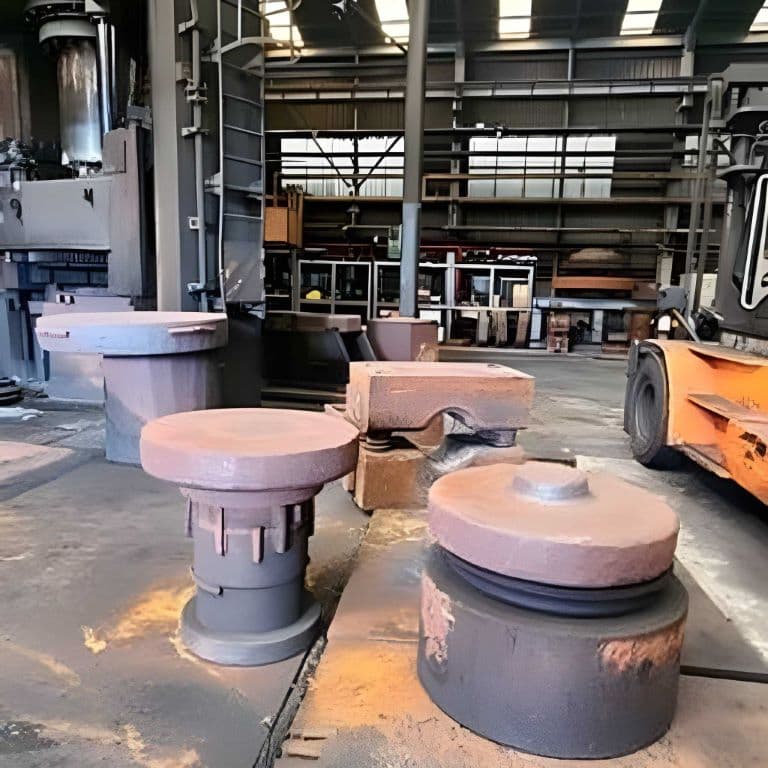

Hydraulic open die forging press JSW 2500 MT — 2500 ton
JSW 2500 MT open die forging press - description
Technical specifications JSW 2500 MT (ID:76449)
| Type | Open die forging press |
|---|---|
| Manufacturer | JSW |
| Model | 2500 MT |
| Year of manufacture | 1987 |
| Year of overhaul | 1999 |
| Press Specifications | |
| Capacity | 2500 tons (300 kg/cm²) |
| Upsetting Force at Static Working Pressure | 25 MN (234 bar) |
| Stroke | 1000 mm |
| Press Daylight | 2489 mm |
| Distance Between Side Flame | 1549 mm |
| Number of Pull Back Cylinder | 1 |
| Allowable Eccentric Load at 25 MN | 200 mm radius |
| Forging Tolerance Measure on Hot Workpiece | ±1 mm |
| Die Table Area (Width x Length x Stroke) | 1400 x 3365 x 1500 mm |
| Press Speeds | |
| Forging & Upsetting at 25 MN | 58 mm/sec |
| Advance Speed, Fast/Slow | 250/10 mm/sec |
| Die Table Slide Forward, Fast/Slow | 250/5 mm/sec |
| Press Forces | |
| Forging & Upsetting at 234 bar | 25 MN (2500 tons) |
| Return at 234 bar | 3.5 MN (350 tons) |
| Table Shift at 234 bar (Forward) | 0.6 MN (60 tons) |
| Table Shift at 234 bar (Back) | 0.4 MN (40 tons) |

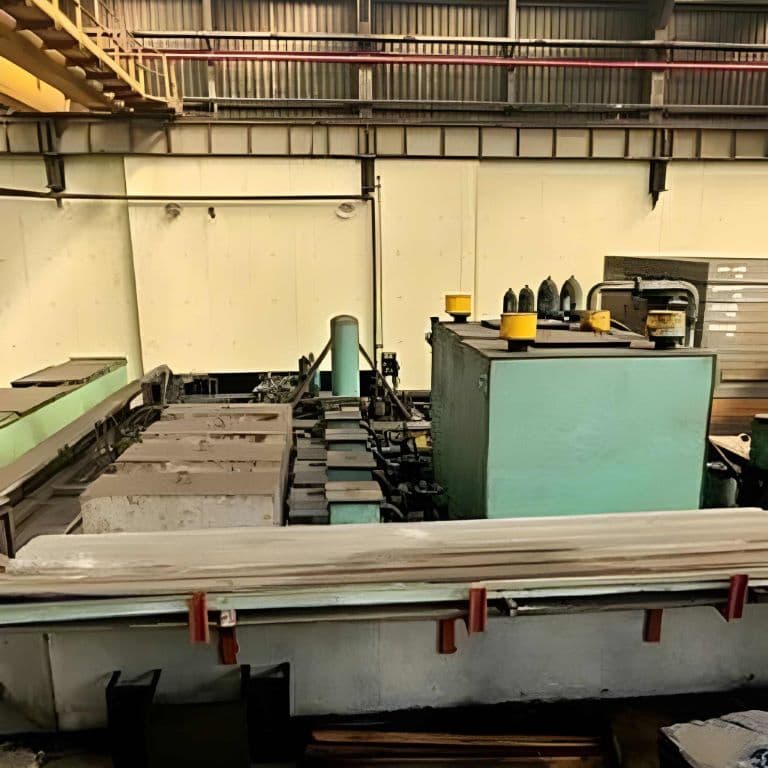

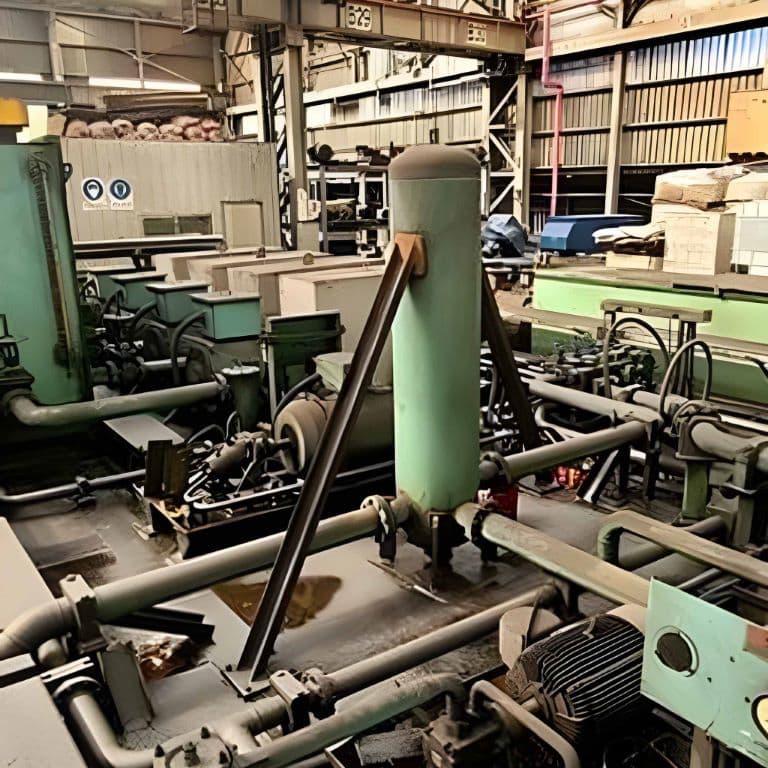

| Hydraulic Pumps (Main) | |
| Type | Axial Piston Pump |
| Quantity | 4 sets |
| Pressure Rate | 400 bar |
| Working Pressure | 350 bar |
| Model | Rexroth (A2F500, A2F125) |
| Total Flow | 2500 ℓ/min (315 bar) |
| Electric Main Motors | |
| 4 sets | 300 KW, 6P, 3300 volt, 60 Hz, IP54, F class, Single end shaft |
| Total Electric Power Supply | 1377 KW |

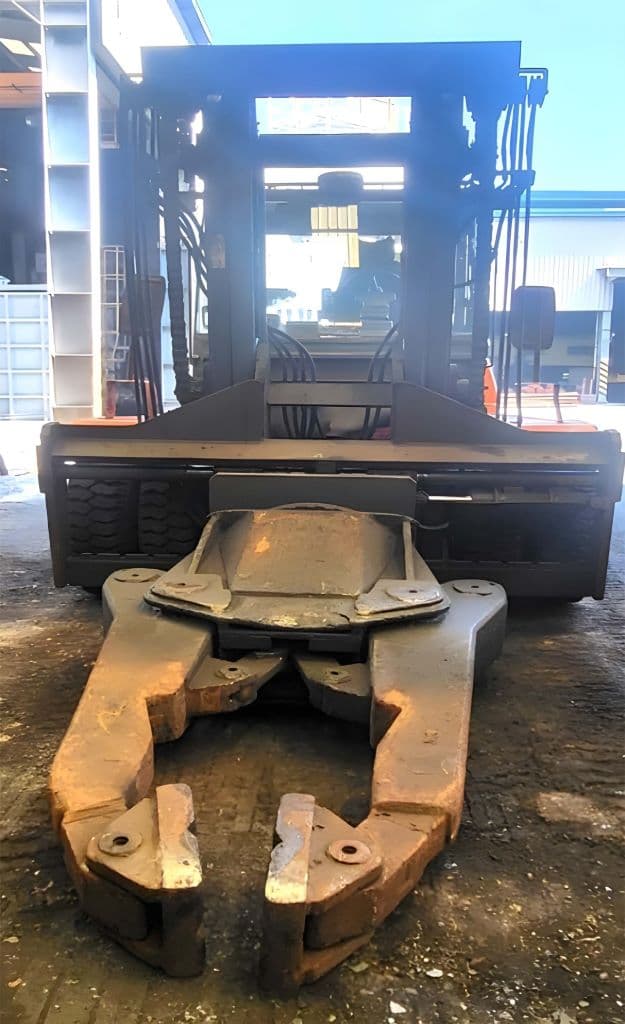

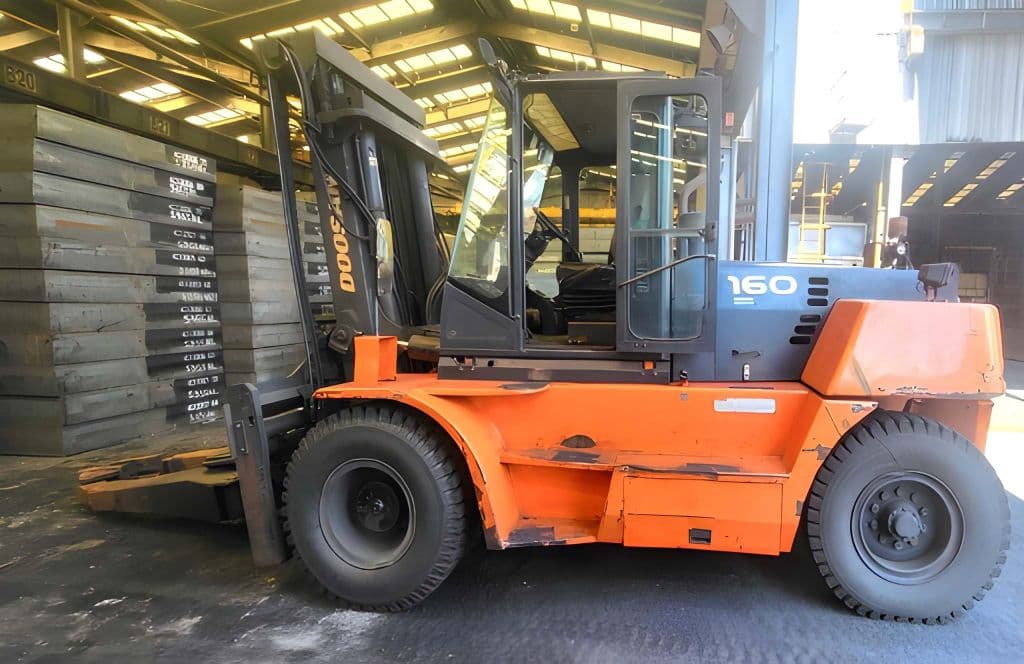

| Forklift Manipulator | |

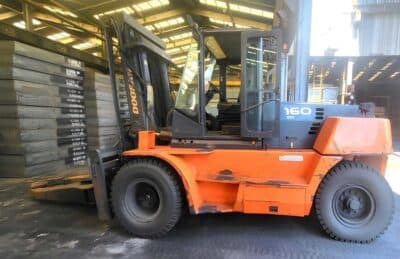

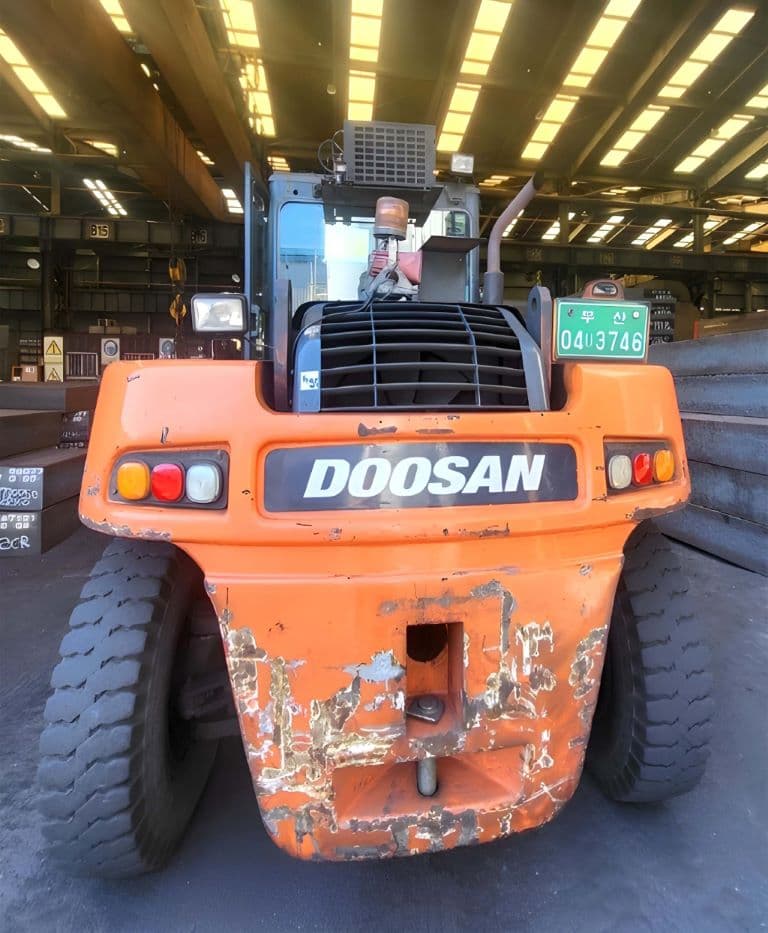

| Type | Used Doosan or Daewoo 16 (15) Ton Forklift Type Manipulator |
| Model | D160S-5 |
| Year of Manufacture | 2007 |
| Actual Loading Capacity | 5 Ton |
| Length | 6065 mm |
| Width | 2490 mm |
| Height | 3170 mm |
| Gross Weight | 18.9 tons |
| Driving Type | Self-propelled (Tire Type) |
| Rated Power | 160/2100 PS/RPM |
| Number of Cylinders | 6 |
| Fuel Type | Diesel |
Open die forging press JSW 2500 MT - technological processes and operations
| Forging | The process of plastic deformation of metal, in which the workpiece changes shape under the impact of blows or static pressure. During forging, the metal structure is densified, internal inhomogeneities are eliminated, and the mechanical properties of the material are improved. As a result, forged products are distinguished by high strength and reliability when operating under significant loads. Forging is used both for producing finished parts and for preparing workpieces for subsequent stamping. |
|---|---|
| Hot forging | Hot forging is a process of shaping metal under pressure at elevated temperatures. Heating reduces the deformation resistance of the material, allowing it to flow more easily into the die cavity. The process provides high productivity and the ability to form complex shapes. Used for manufacturing forgings from steel and alloys in series and mass production. |
| Open-die forging | Metal is deformed between flat or shaped tools without lateral restriction, allowing free flow in all directions. The workpiece is gradually shaped by repeated blows or press strokes, with the operator controlling its position between each step. This method is used for producing large forgings such as shafts, discs, and rings, where a refined internal structure is essential. |
| Preforming | Preforming prepares the workpiece for the main stamping operation by giving it an approximate shape of the future part. The metal is distributed in the die to facilitate final filling and reduce tool wear. This intermediate step improves accuracy and quality of the finished product. |
| Piercing | Piercing forms a hole in a solid workpiece by driving a tool through the material without removing it. The metal is displaced sideways, creating a through or blind opening while preserving the structure around it. The operation is performed on presses and is used in the production of hollow parts such as bushings, rings, and shafts. |
