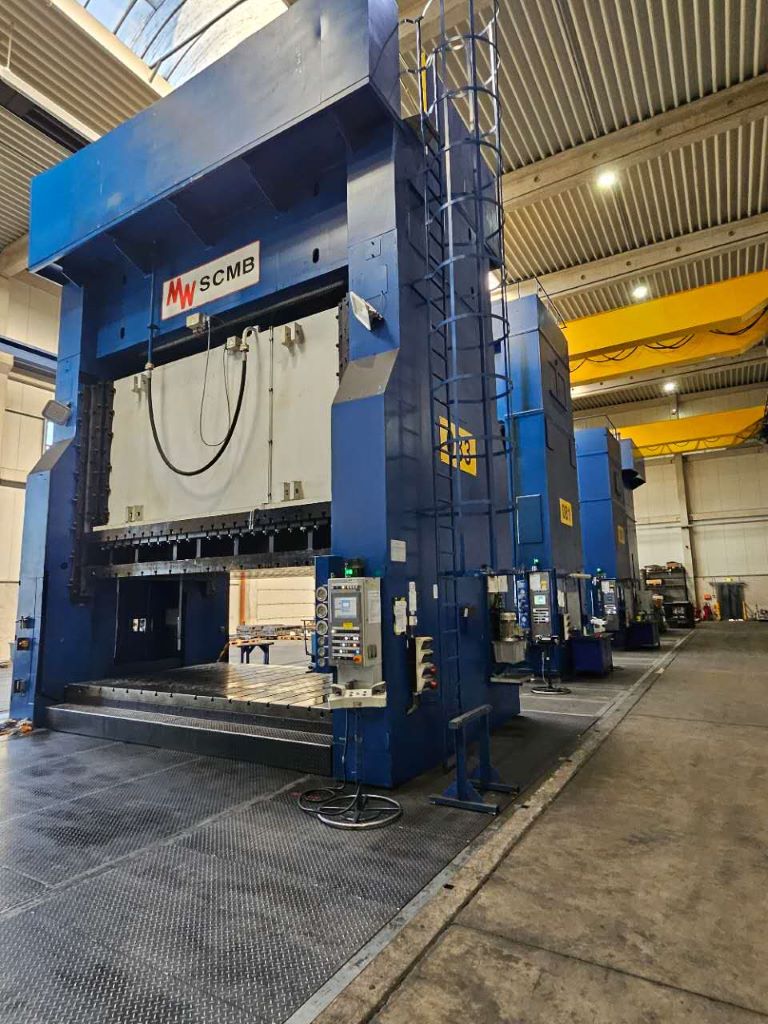

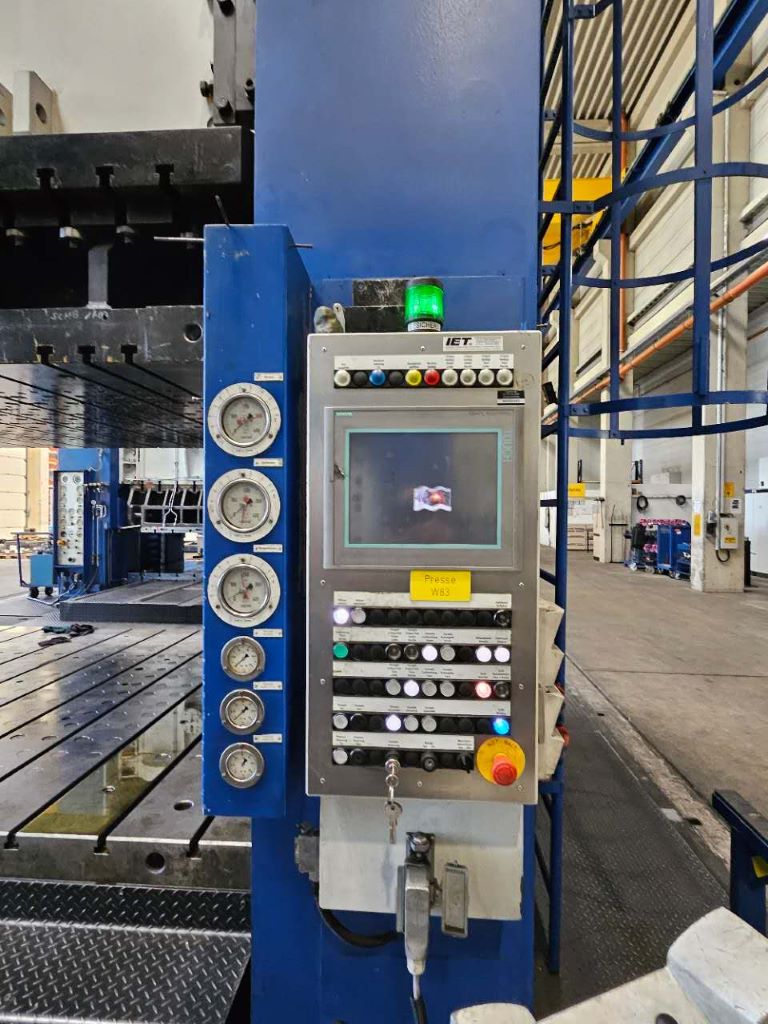

Hydraulic stamping press SCMB PH2000 — 2000 ton
SCMB PH2000 stamping press - description
Technical specifications SCMB PH2000 (ID:76344)
| Type | Stamping press |
|---|---|
| Manufacturer | SCMB |
| Model | PH2000 |
| Year of overhaul | 2014 |
| Pressing force | 2000 ton |

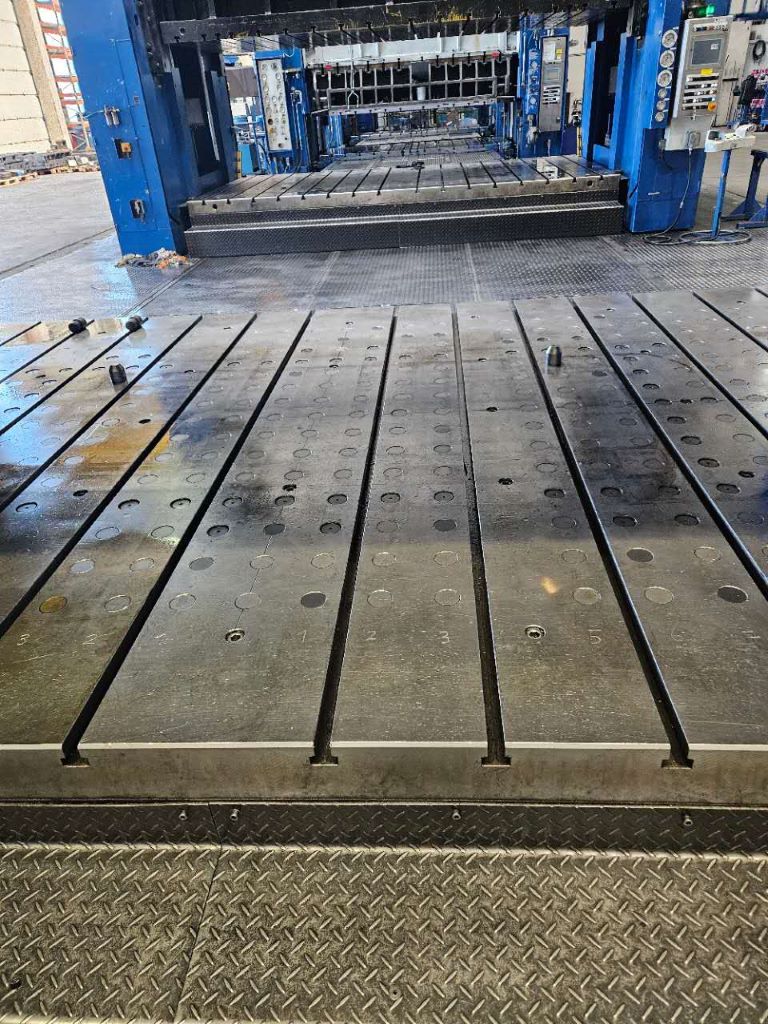

| Table size | 5000 x 2900 mm |
| Die cushion size (table) | 4200 x 1800 mm |
| Die cushion stroke (table) | 280 mm |
| Die cushion force (table) | 380 ton |
| Die cushion system | 4-way controlled cushion, no balancing required |

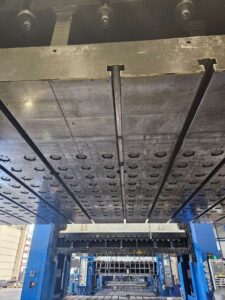

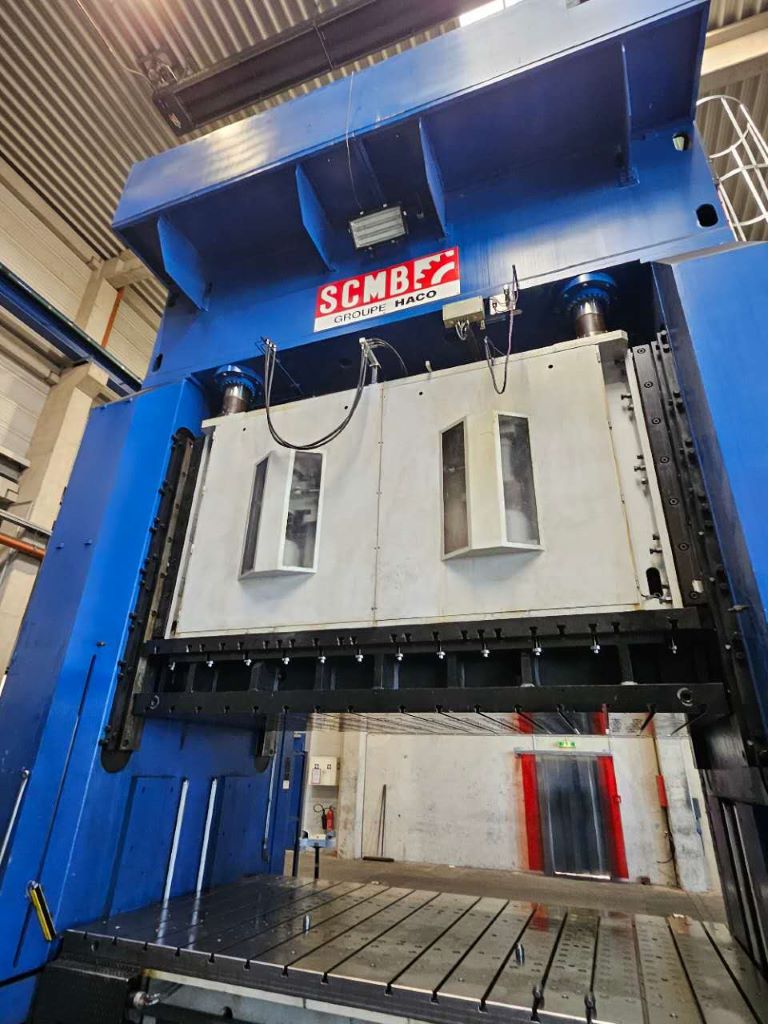

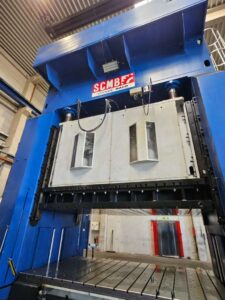

| Ram size | 5000 x 2900 mm |
| Ram top position | 1650 mm |
| Ram stroke | 1050 mm |
| Ram cushion size | 3900 x 1500 mm |
| Ram cushion stroke | 150 mm |
| Ram cushion force | 200 ton |
| Ram return force | 95 ton |
| Table height above floor | 585 mm |
| Minimum shut height | 650 mm |

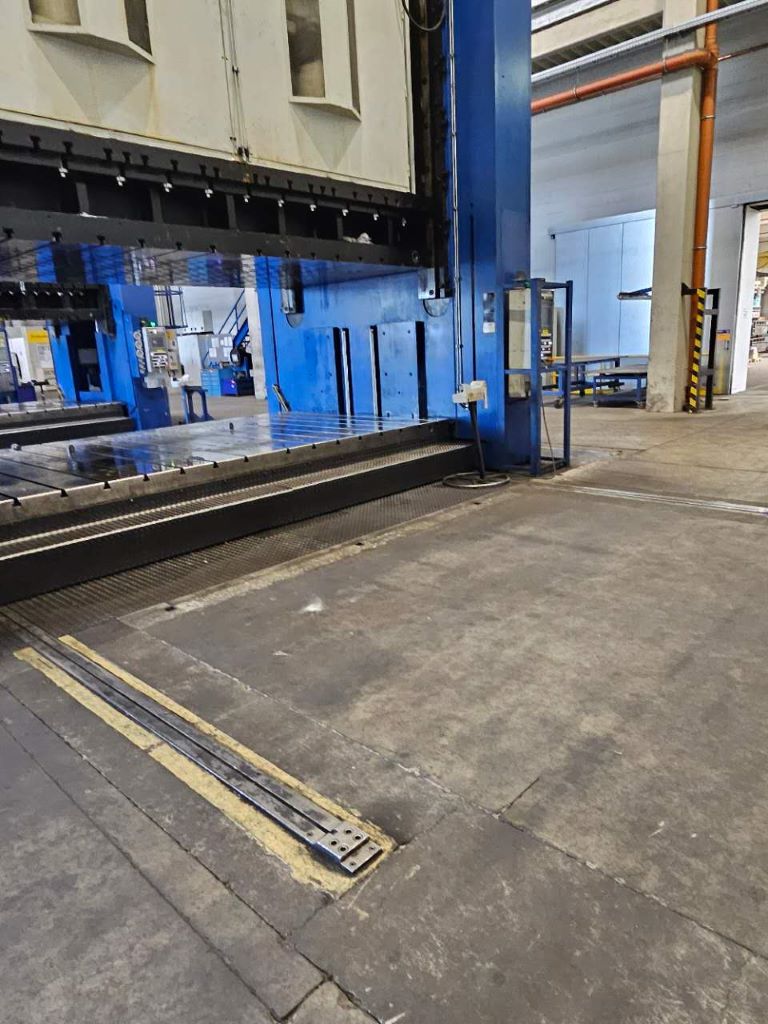

| Sliding table travel | 3000 mm |
| Dimensions | 7440 x 3700 x 9500 mm |
Stamping press SCMB - technological processes and operations
| Sheet stamping | Sheet stamping is a class of operations for forming parts from sheet material using dies. The workpiece is deformed in the tool without significant change in thickness, acquiring the specified shape. This group includes blanking, punching, bending, drawing, and other processes performed on presses. Sheet stamping is the foundation of mass production of body panels, housings, and other thin metal parts. |
|---|---|
| Drawing | Drawing turns a flat blank into a hollow product. The sheet is clamped at the edges while the tool presses the central part, forcing the metal to flow into the die cavity and form walls. This is how cups, caps, housings, and other parts with one open side are produced. |
| Punching | Punching holes in sheet metal is performed in a die: a tool with sharp edges passes through the workpiece, separating material along a closed contour. The process is fast and precise, leaving no burrs when properly set up. Used for producing holes, slots, and cutouts in sheet metal parts. |
| Blanking | Blanking a part from a sheet along a closed contour is performed on a press using a blanking die. The tool passes through the material, separating the finished part from the sheet. The accuracy of the contour and the cleanliness of the edge determine the quality of the final product. |
| Bending | Bending gives a sheet blank an angle or curvature. The metal is bent in the die under the force of the press: the outer layers stretch, the inner layers compress, and the middle retains its original length. The operation allows producing parts with the specified geometry without changing the material thickness. |
