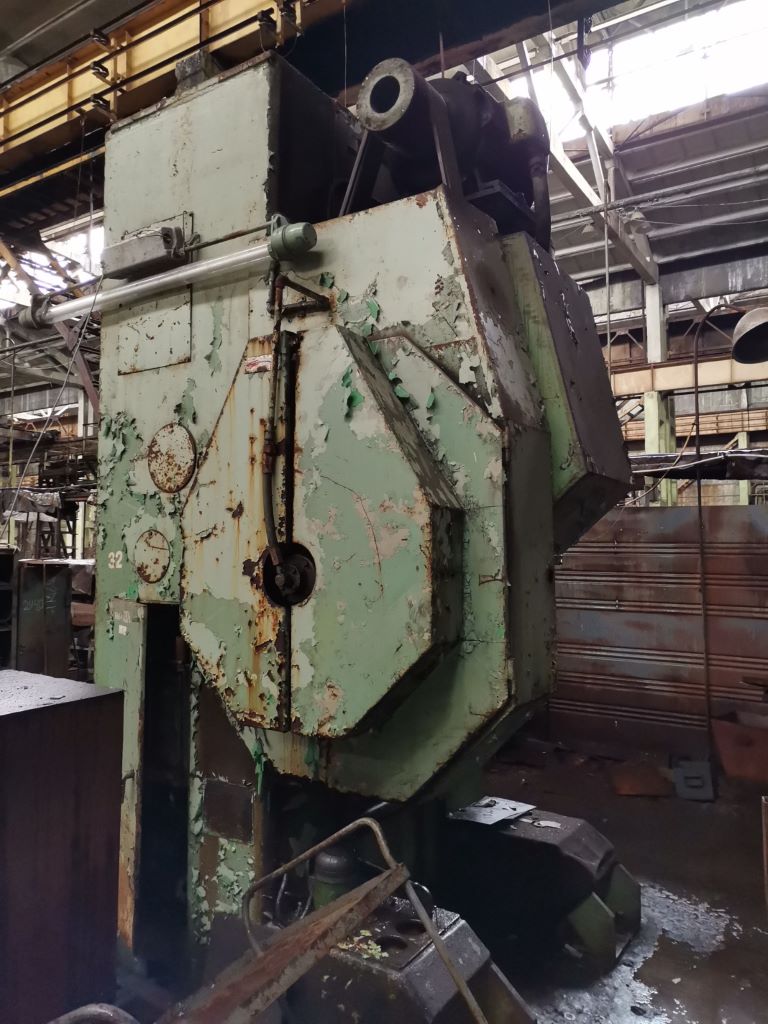

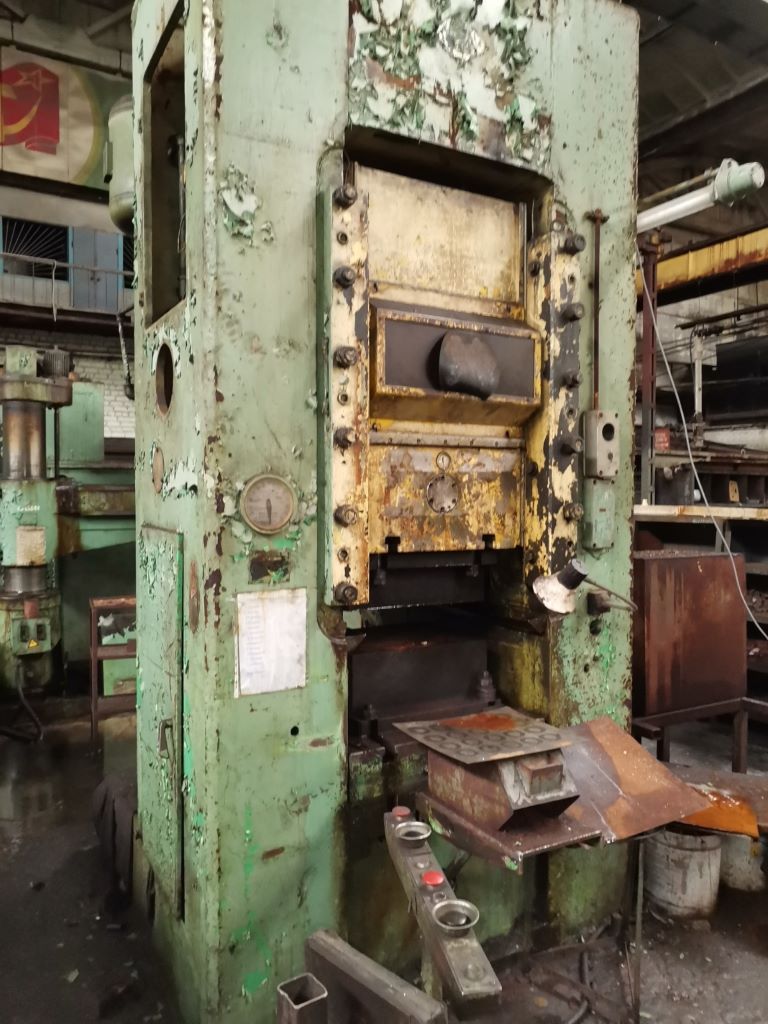

Knuckle joint press Barnaul K8340 — 1000 ton

Dabrox Listing ID: 76325

Request detailed information on this offer:
- availability, price
- payment/delivery terms
- specifications, condition, photos, etc.

* Required fields

Barnaul K8340 knuckle joint press - description

Knuckle joint press Barnaul K8340 — 1000 ton (ID:76325) is an industrial press with a knuckle-joint mechanism that delivers high force with a short ram stroke. The machine achieves significant pressure at the final stage of the working cycle while maintaining relatively compact dimensions. Used for coining, calibration, and cold stamping operations where a short but powerful force application is required.

Technical specifications Barnaul K8340 (ID:76325)

TypeKnuckle joint press
ManufacturerBarnaul
ModelK8340
Nominal effort1000 ton
Course stroke170 mm
Number of strokes in a minute32
Shut height470 mm
Slide adjustment15 mm
Table size800 x 800 mm
Main motor25 kW
Overall dimensions
Length3050 mm
Width1730 mm
Height3980 mm
Weight25 ton
