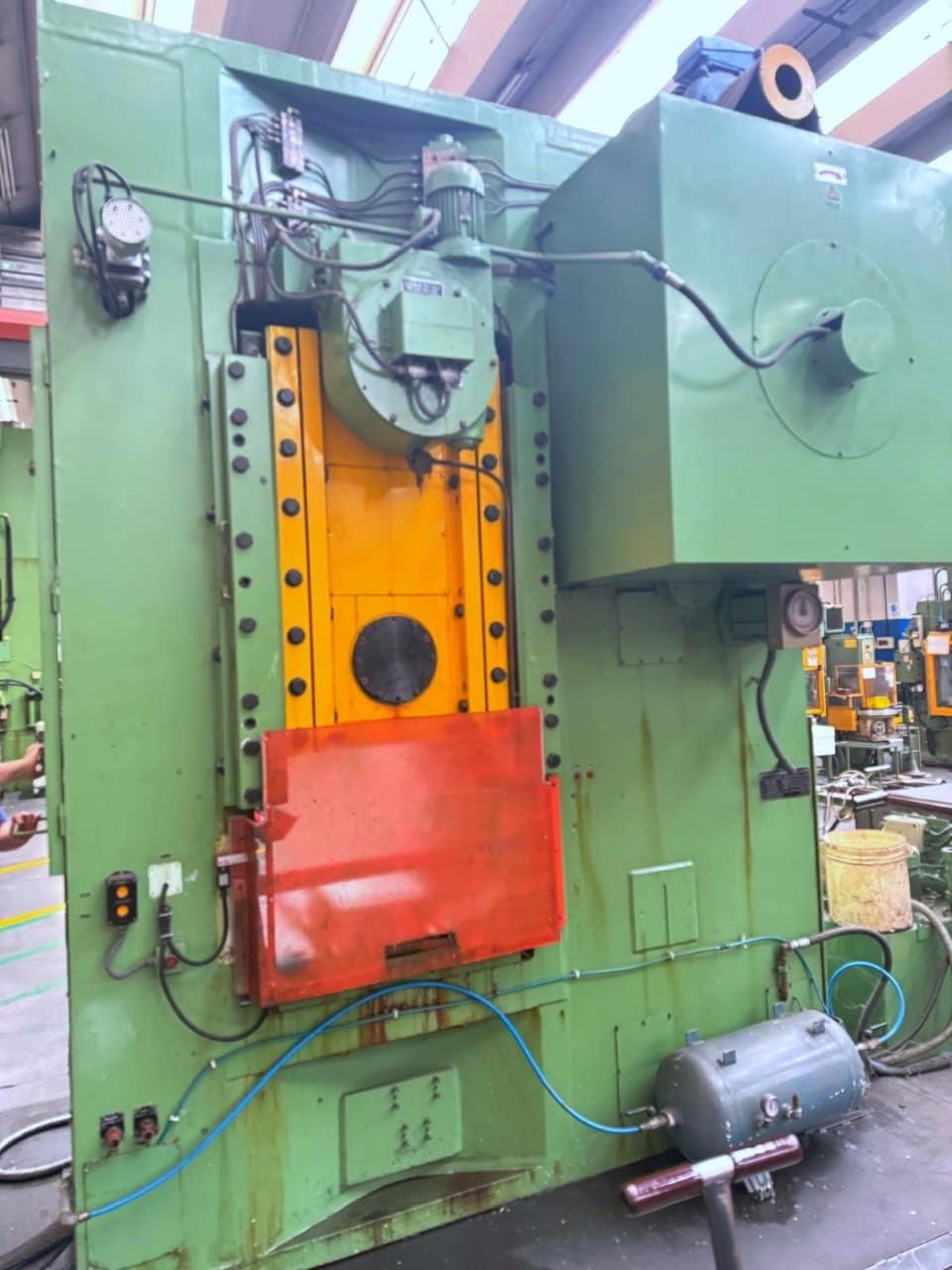

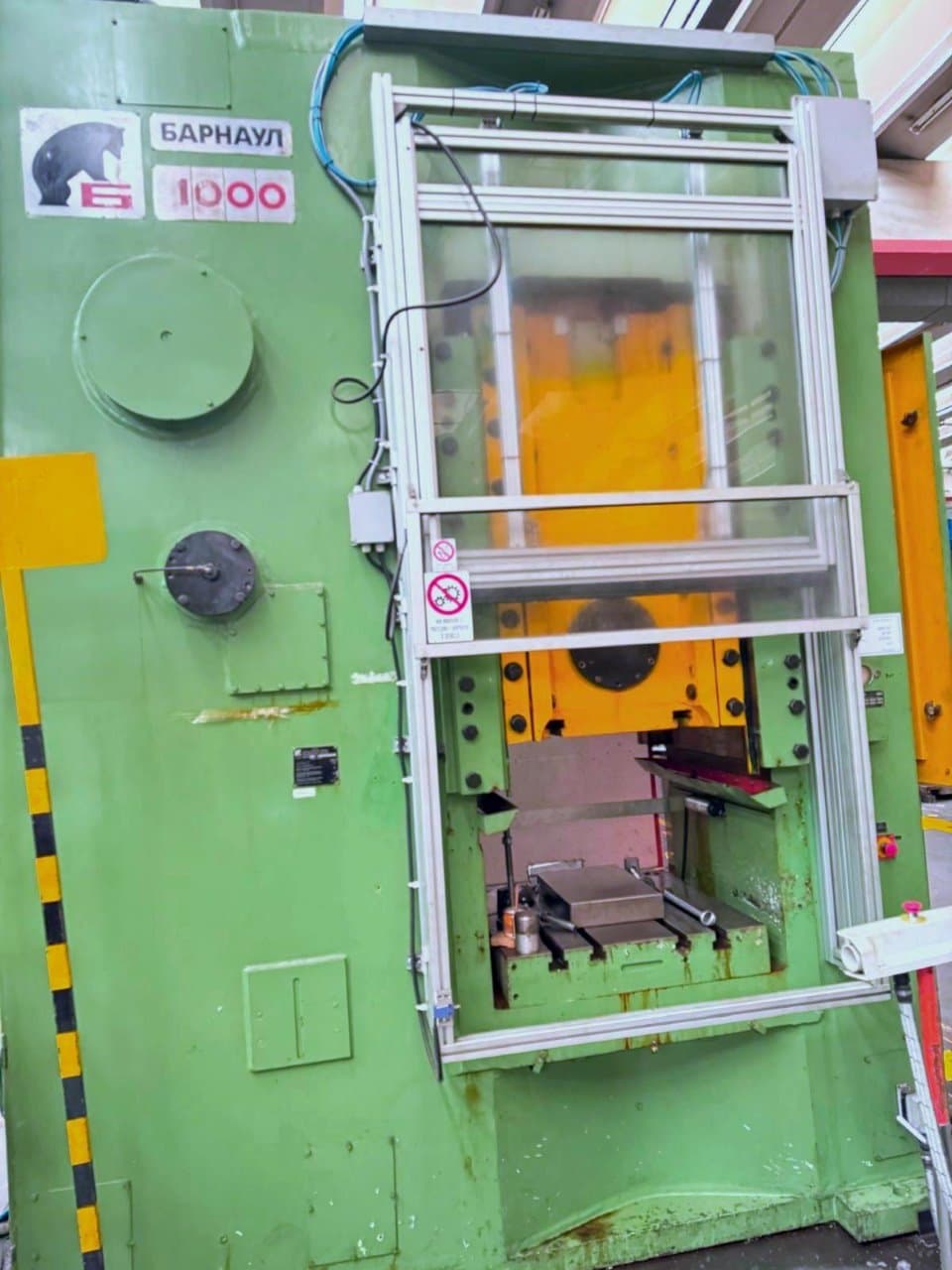

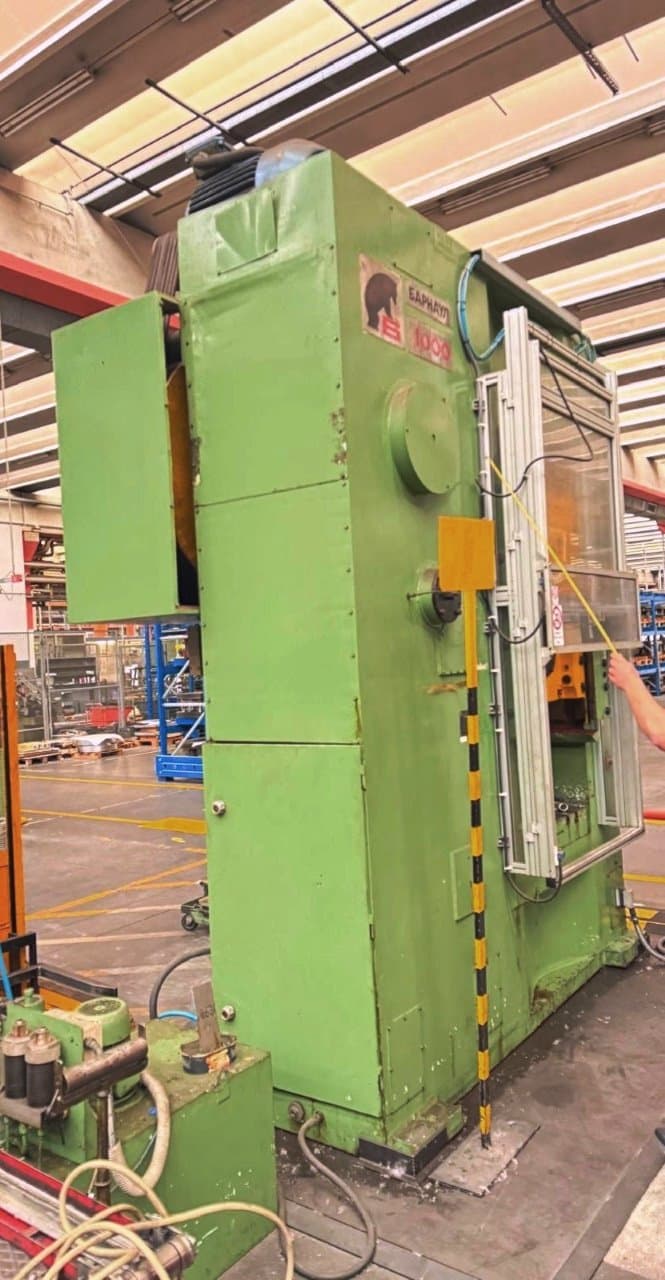

Knuckle joint press Barnaul KB8340 B — 1000 ton

Dabrox Listing ID: 76463

Request detailed information on this offer:
- availability, price
- payment/delivery terms
- specifications, condition, photos, etc.

* Required fields

Barnaul KB8340 B knuckle joint press - description

Knuckle joint press Barnaul KB8340 B — 1000 ton (ID:76463) is an industrial press with a knuckle-joint mechanism that delivers high force with a short ram stroke. The machine achieves significant pressure at the final stage of the working cycle while maintaining relatively compact dimensions. Used for coining, calibration, and cold stamping operations where a short but powerful force application is required.

Technical specifications Barnaul KB8340 B (ID:76463)

TypeKnuckle joint press
ManufacturerBarnaul
ModelKB8340 B
Nominal effort1000 tons
Slide stroke170 mm
Strokes per 1 min32
Shut height470 mm
Bolster plate-to-ram adjustable stroke16
Table size800 x 800 mm
Bolster plate thickness140 mm
Lower knockout
Stroke110 mm
Force320 kN
Upper knockout
Stroke10 mm
Force100 kN
Main motor power33 kW, 380 V
Overall dimensions2950 x 1950 x 4090 mm
Weight26 tons
