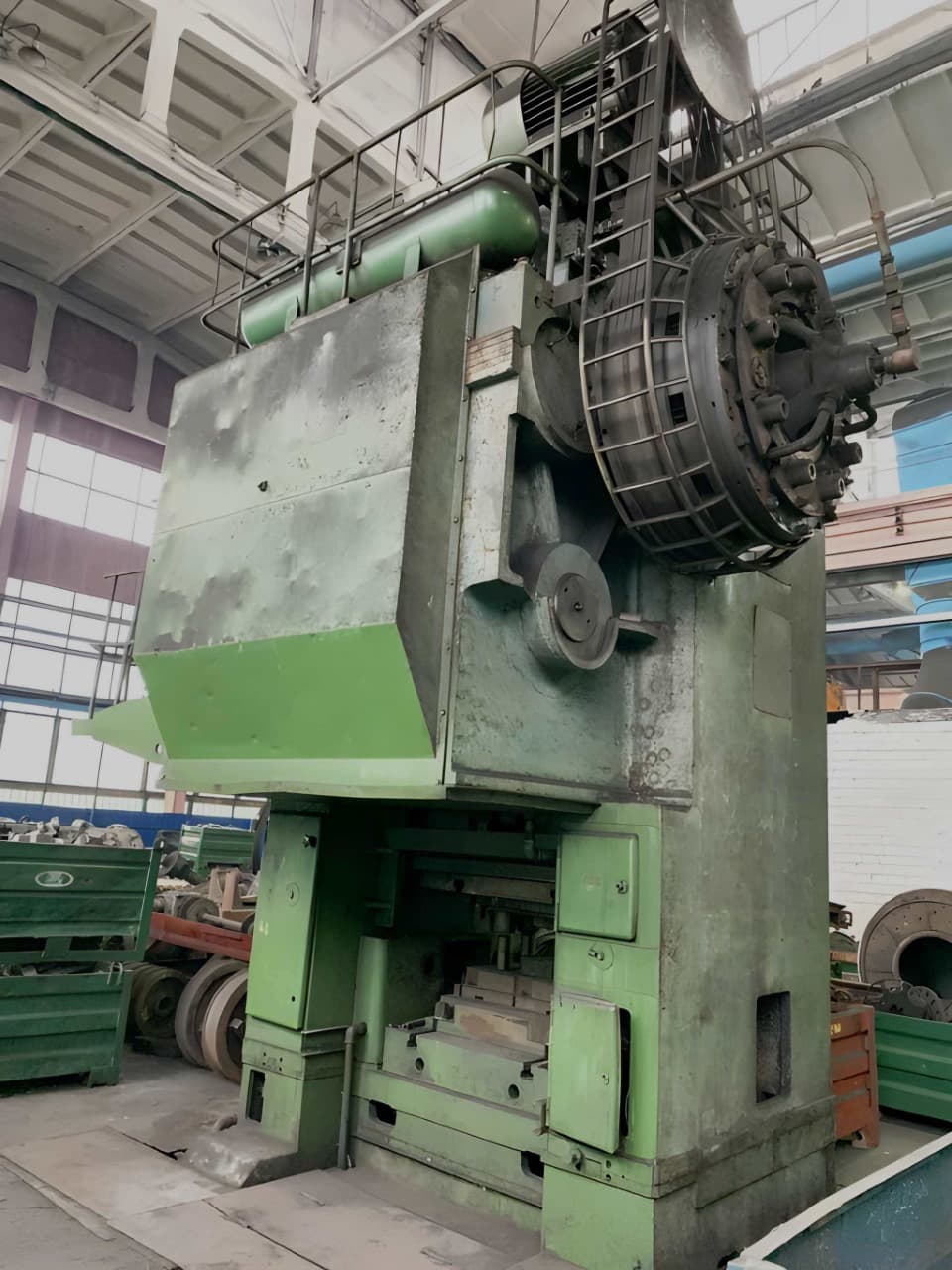

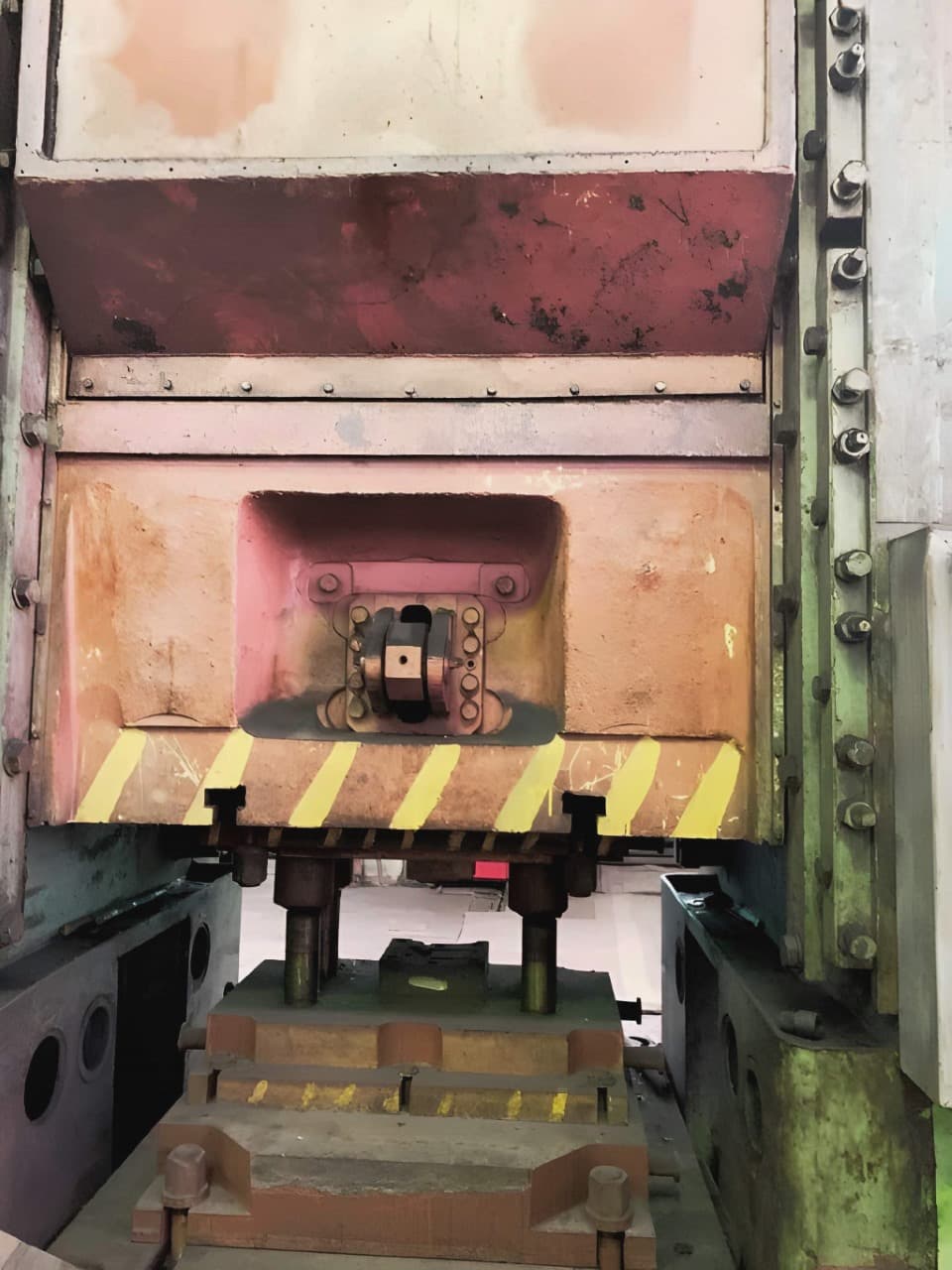

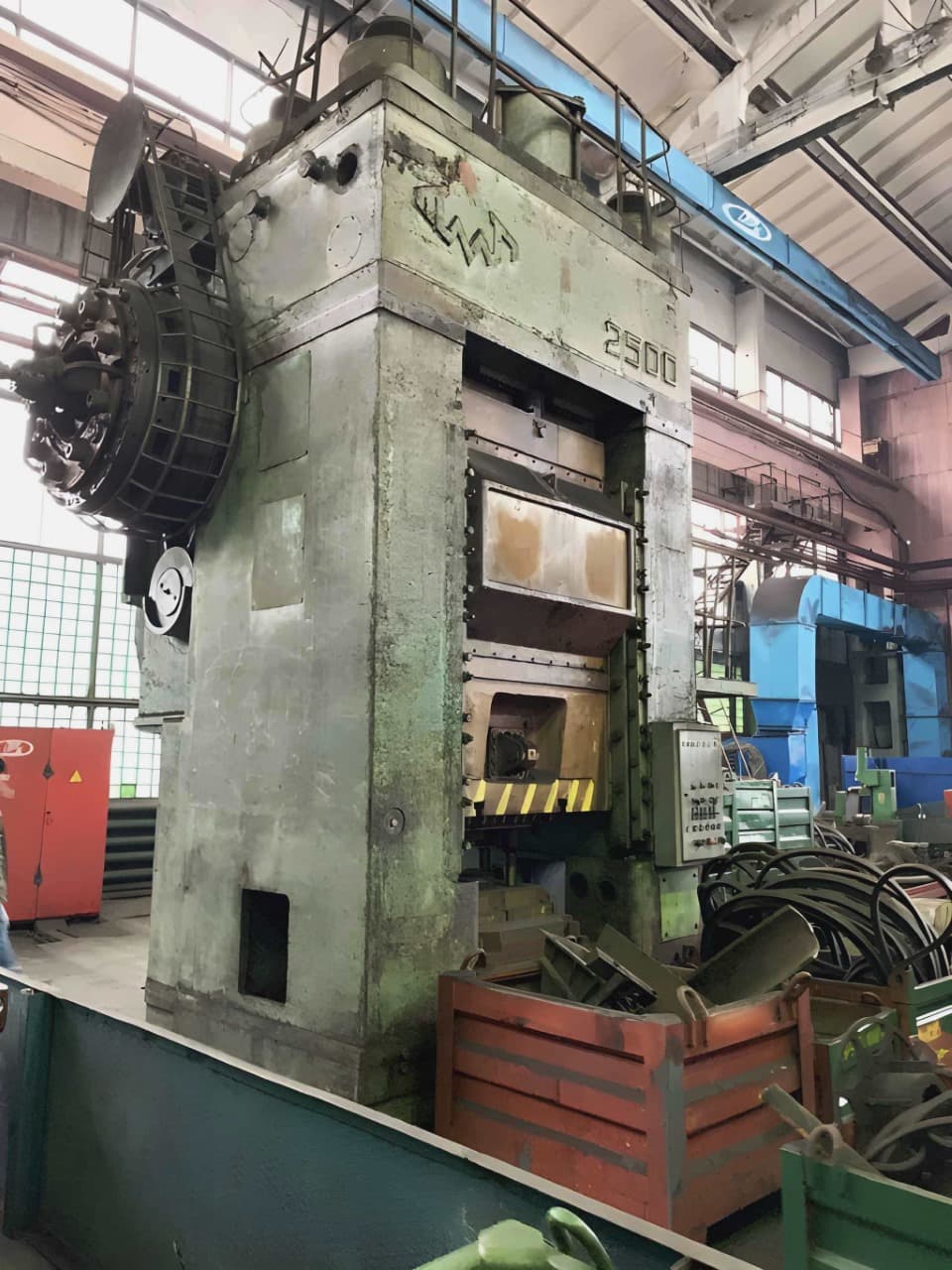

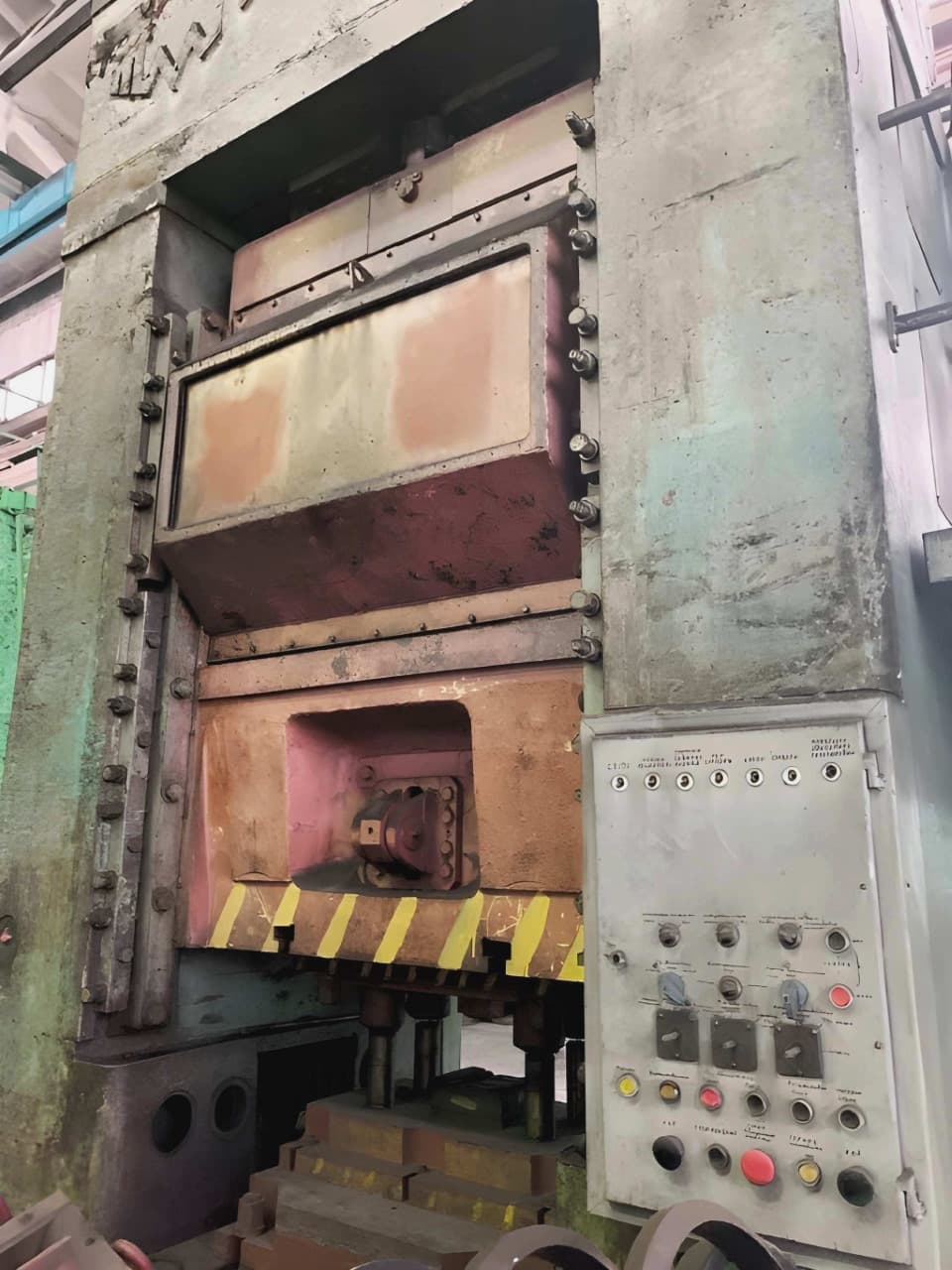

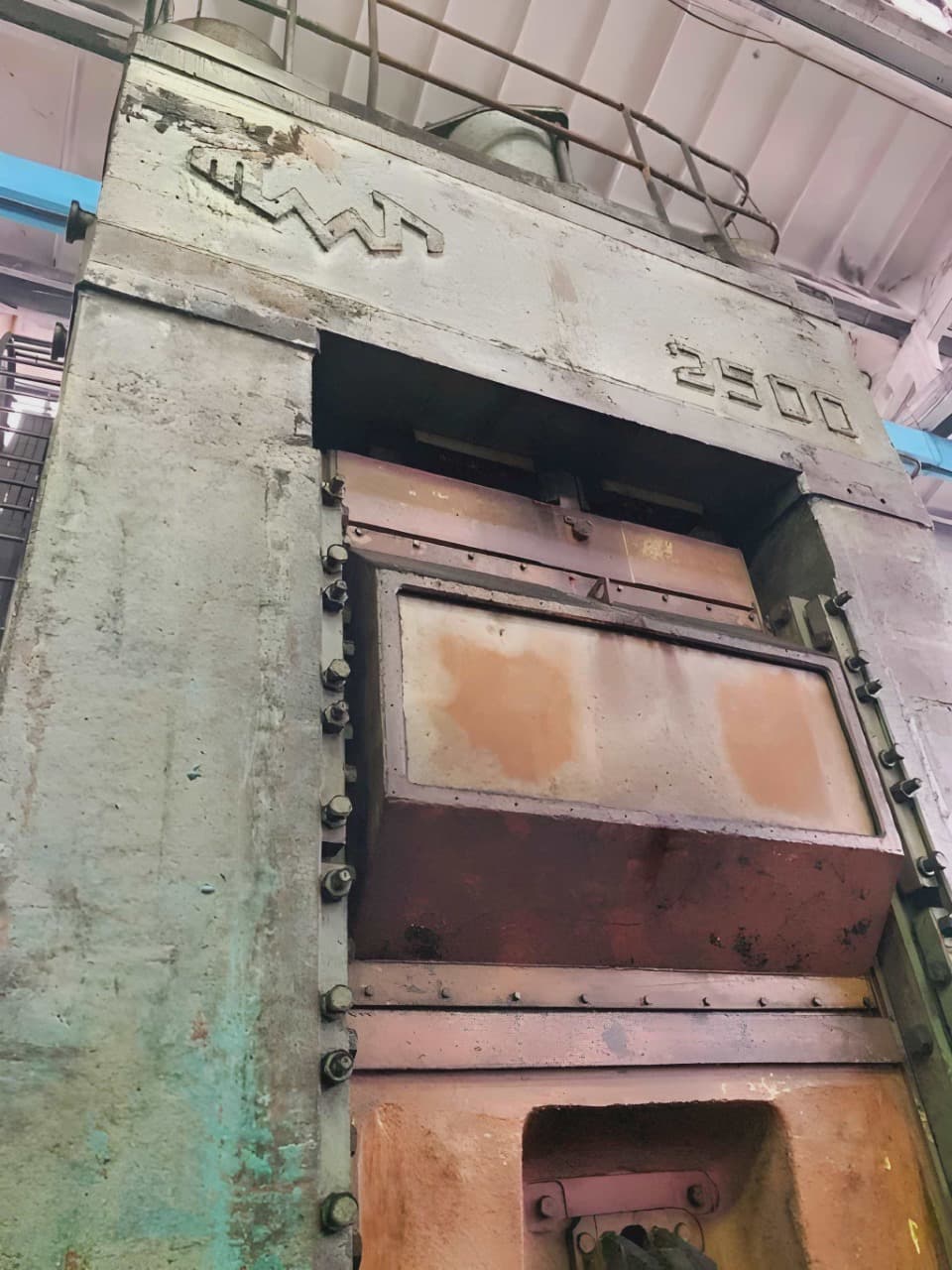

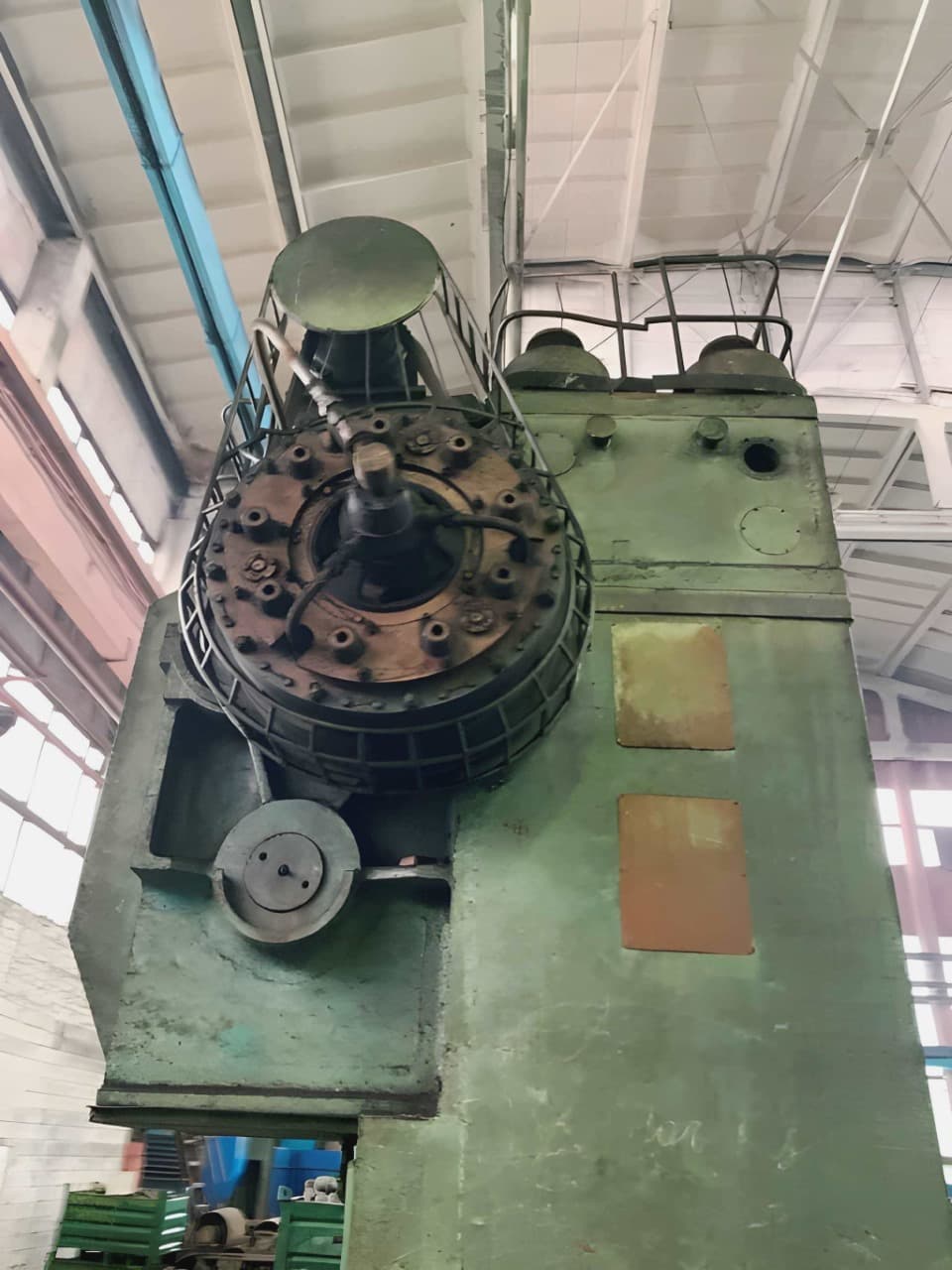

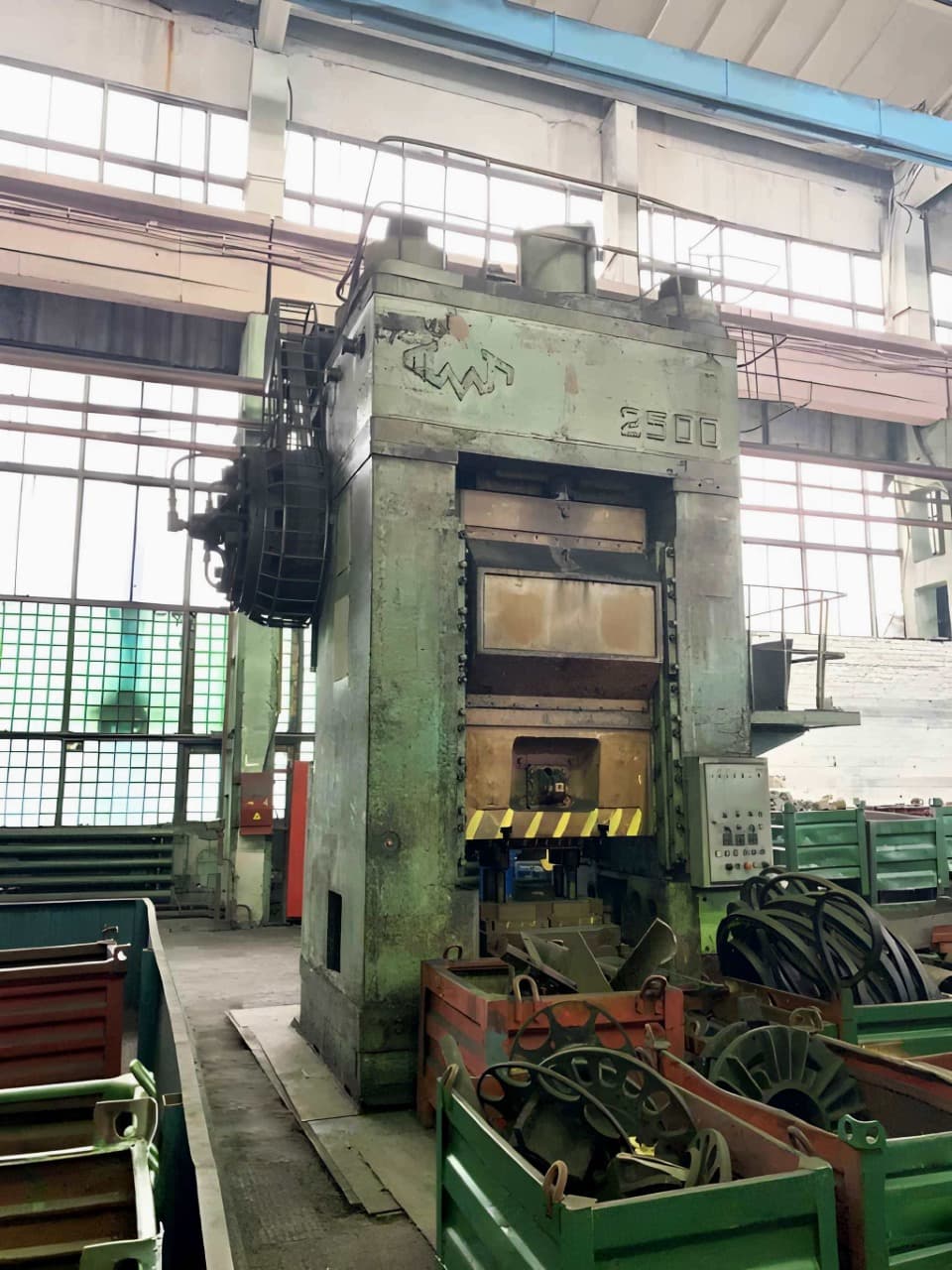

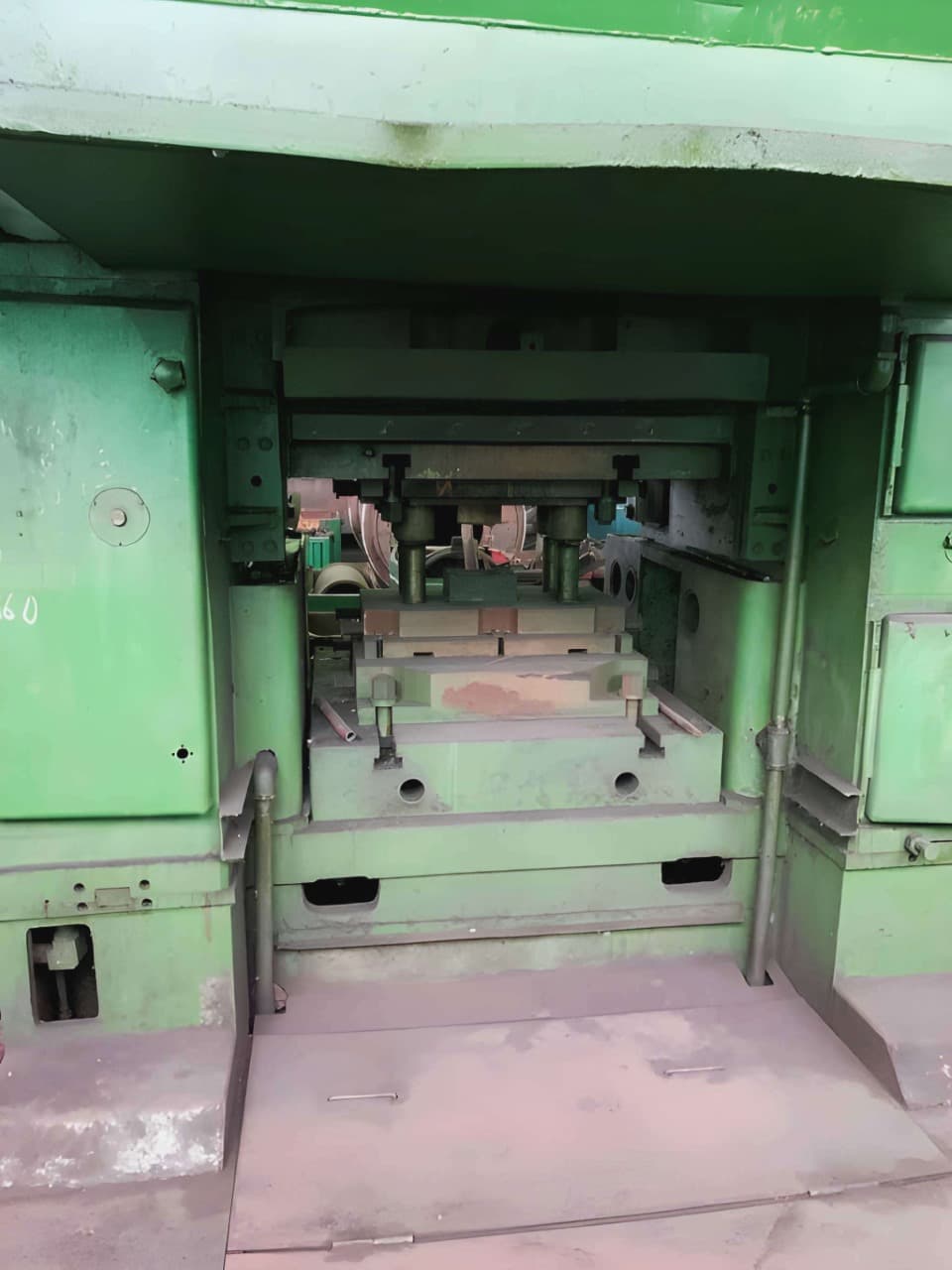

Knuckle joint press TMP Voronezh K504.003.844 / KB8344 — 2500 ton

Dabrox Listing ID: 75686

Request detailed information on this offer:
- availability, price
- payment/delivery terms
- specifications, condition, photos, etc.

* Required fields

TMP Voronezh K504.003.844 knuckle joint press - description

Knuckle joint press TMP Voronezh K504.003.844 / KB8344 — 2500 ton (ID:75686) is an industrial press with a knuckle-joint mechanism that delivers high force with a short ram stroke. The machine achieves significant pressure at the final stage of the working cycle while maintaining relatively compact dimensions. Used for coining, calibration, and cold stamping operations where a short but powerful force application is required.

Technical specifications TMP Voronezh K504.003.844 (ID:75686)

TypeKnuckle joint press
ManufacturerTMP Voronezh
ModelK504.003.844
Nominal force2500 tons
Ram stroke190 mm
Number of strokes in 1 minute14-20
Shut height800 mm
Bolster plate-to-ram adjustable stroke15
Ram course in bottom position with max. power4,5
Table size1250 x 1400 mm
Ram size
Front-to-back900 mm
Left-to-right1250 mm
Lower knockout
Stroke50 mm
Force100 kN
Upper knockout
Stroke40 mm
Force100 kN
Main motor77 kW, 380 V
Overall dimensions4770 x 3050 x 5890 mm
Weight125 tons
