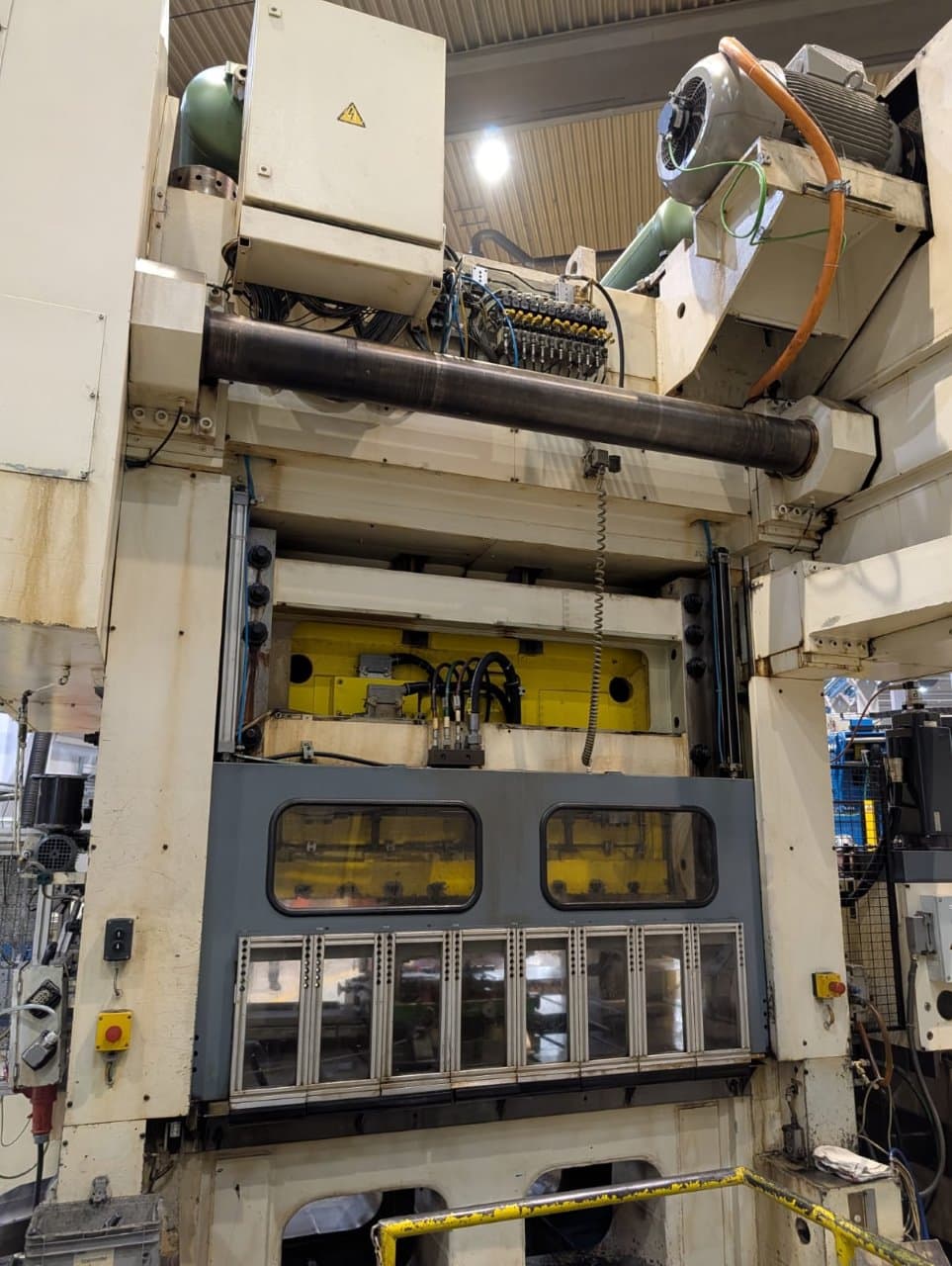

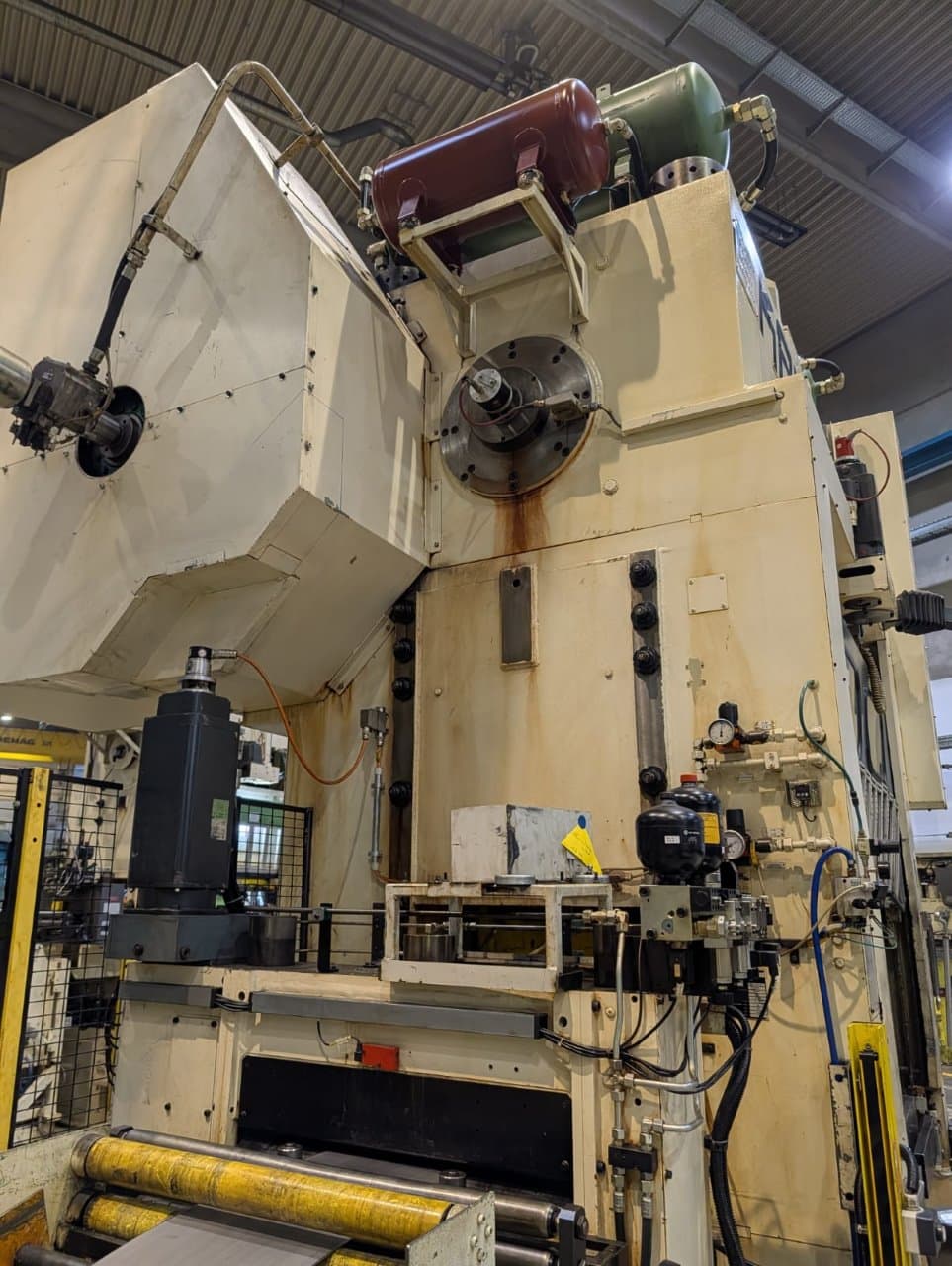

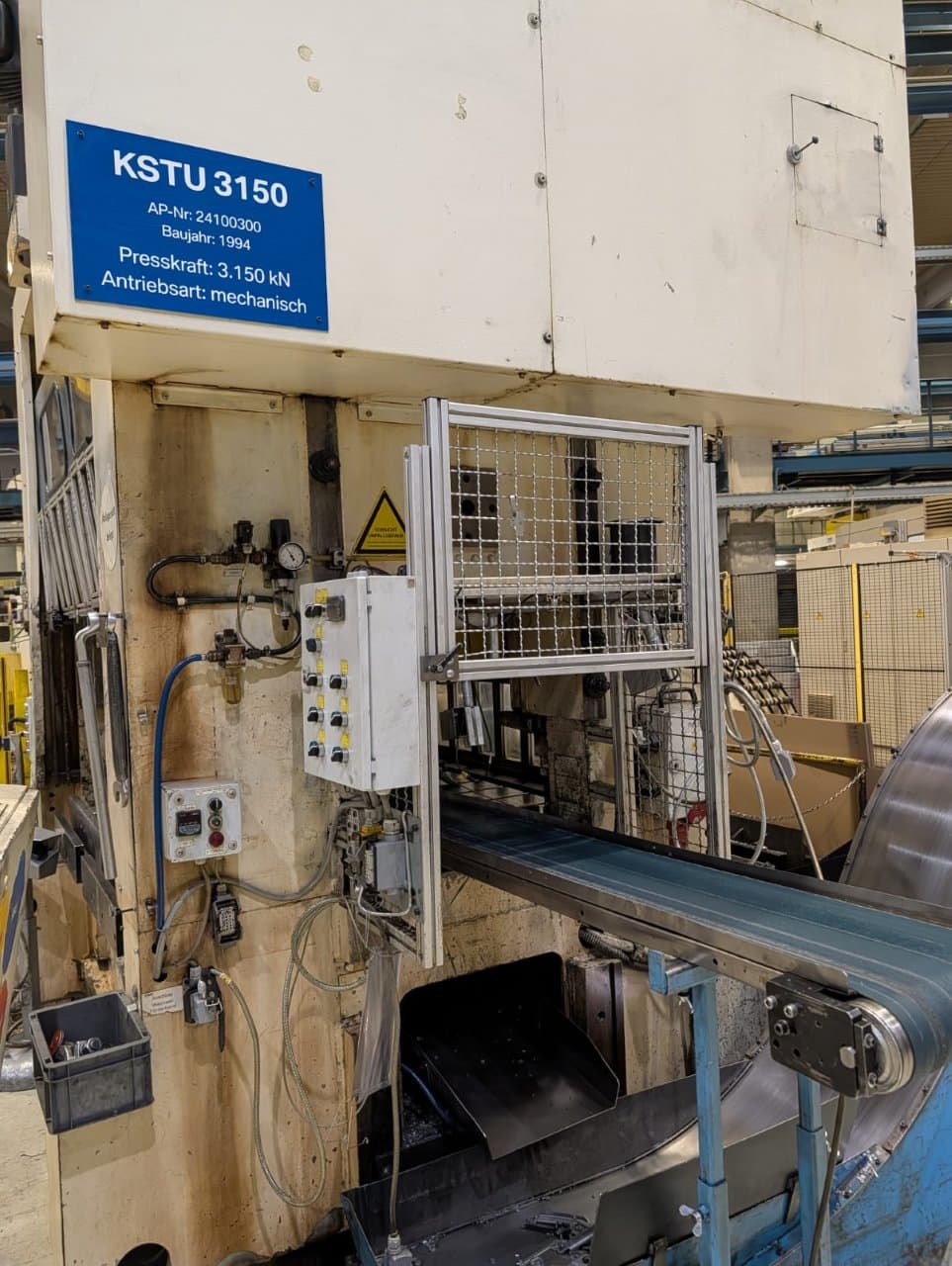

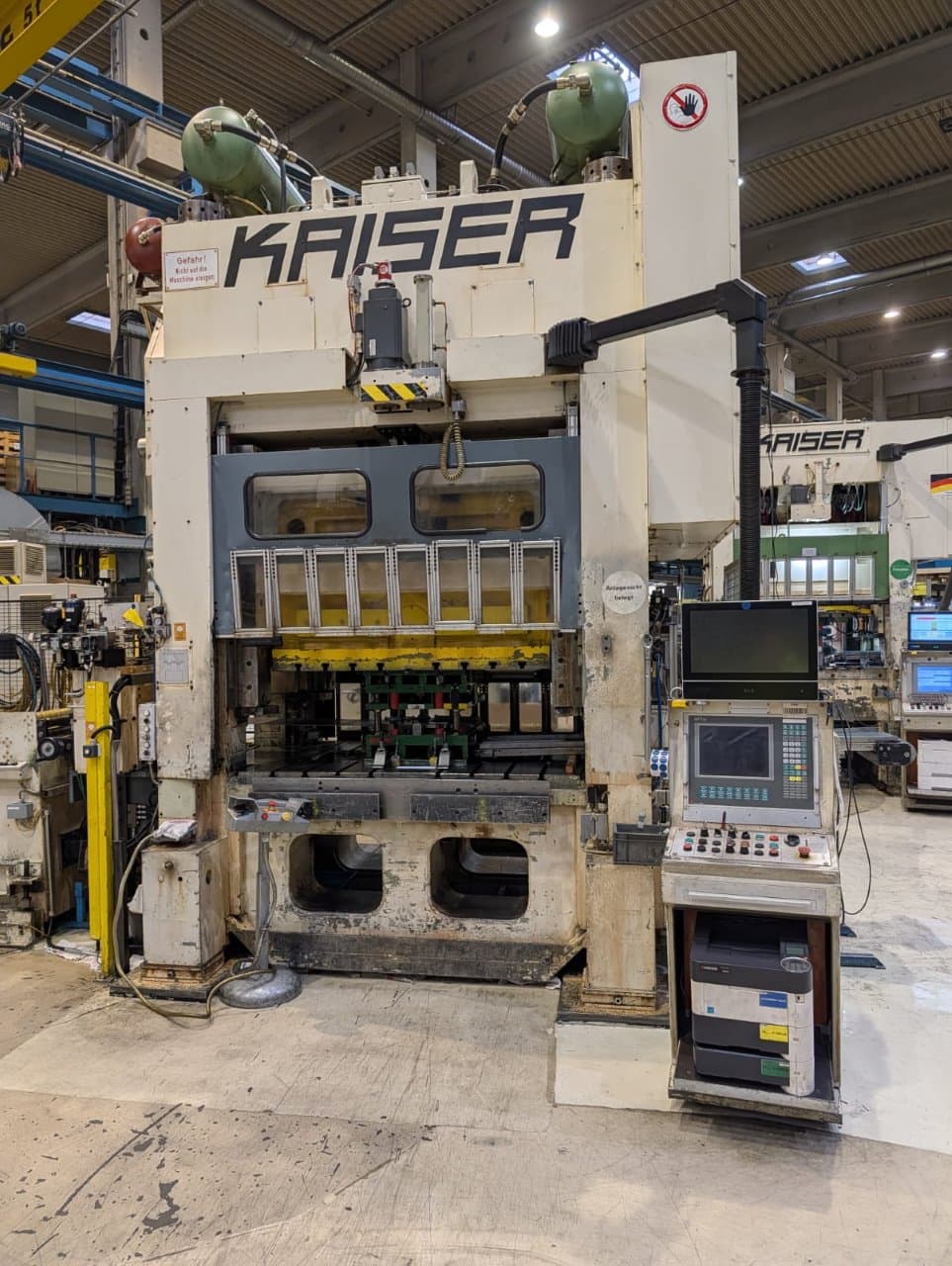

Mechanical press Kaiser KSTU 3150 — 315 ton

Dabrox Listing ID: 76460

Request detailed information on this offer:
- availability, price
- payment/delivery terms
- specifications, condition, photos, etc.

* Required fields

Kaiser KSTU 3150 mechanical press - description

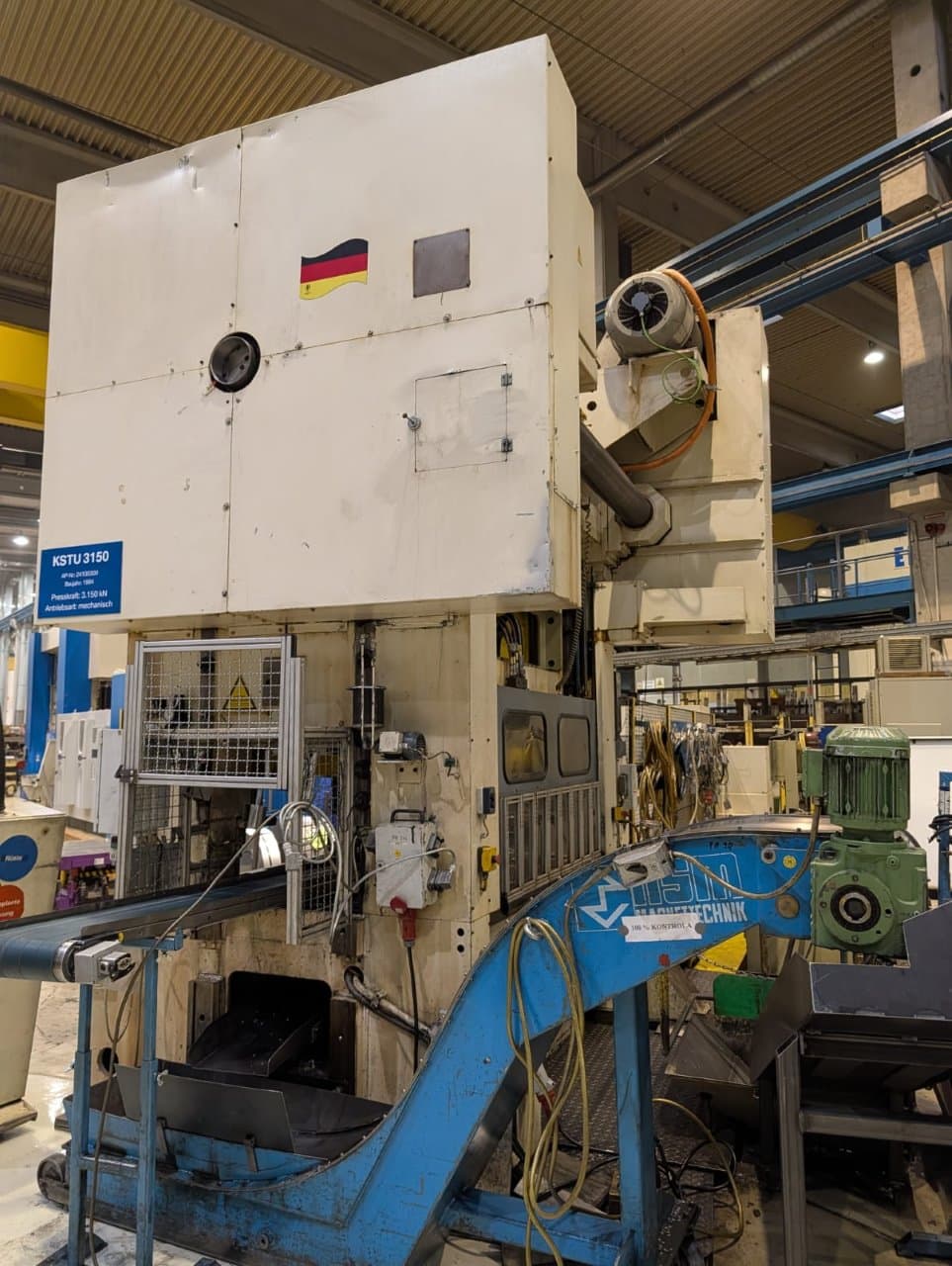

Mechanical press Kaiser KSTU 3150 — 315 ton (ID:76460) is press equipment with a mechanical drive, in which energy from the electric motor is transmitted to the ram through a kinematic chain. The press provides high cycle speed, precise ram positioning, and stable performance under intensive operation. Used for stamping, blanking, and forming of parts in mass production conditions.

Technical specifications Kaiser KSTU 3150 (ID:76460)

TypeMechanical press
ManufacturerKaiser
ModelKSTU 3150
Press force315 ton
SPM20 — 120
Stroke20 — 150 mm
Slide adjustment150 mm

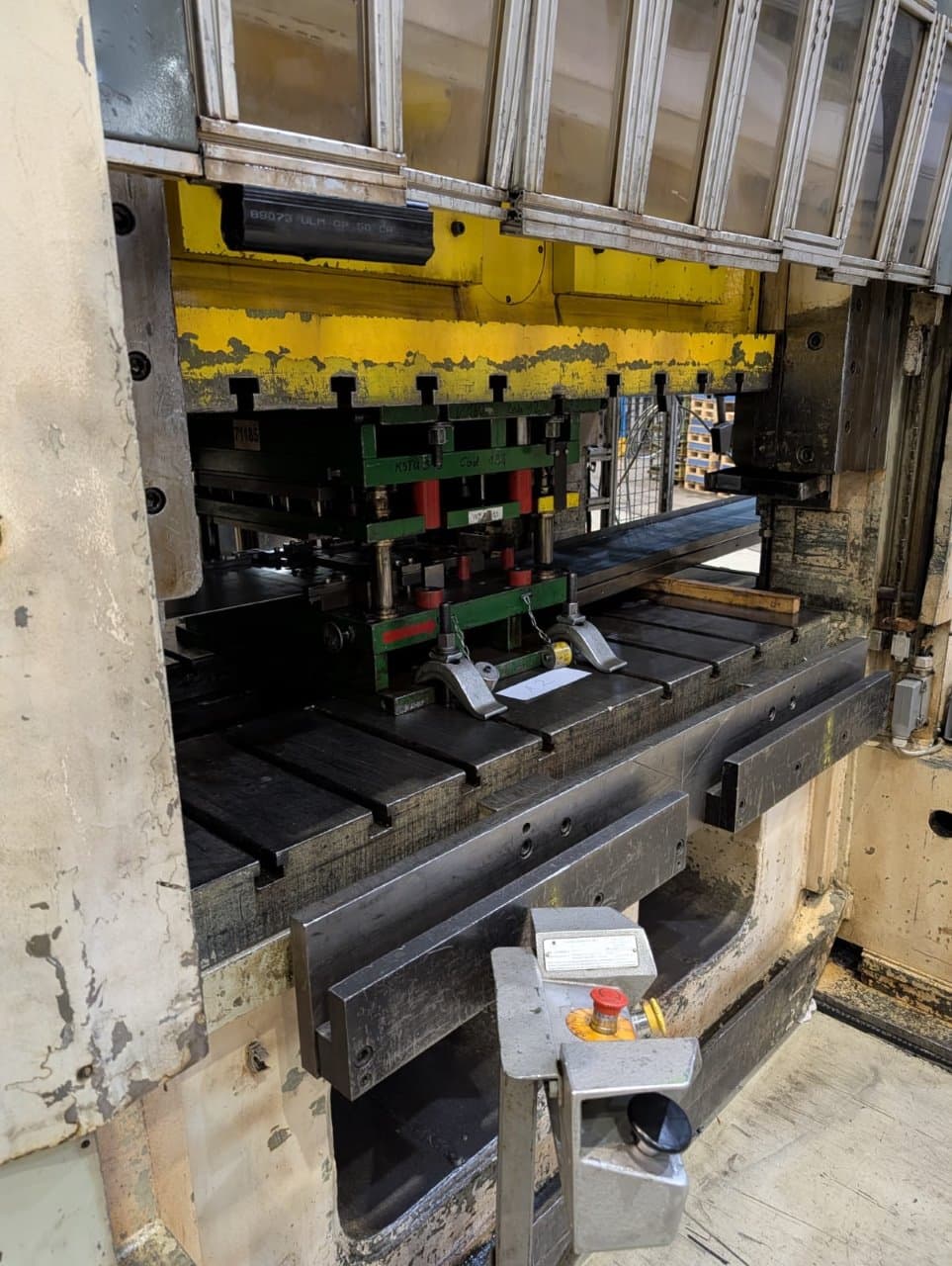

Table size1780 x 1250 mm
Ram surface1500 x 1000 mm
Installation height565 mm
Max tool weight3000 kg
Strip width30 — 800 mm
Strip thickness0.5 — 3 mm
Max strip thickness4 mm
Strip entry height160 — 260 mm
Strip speed4 — 30 m/min

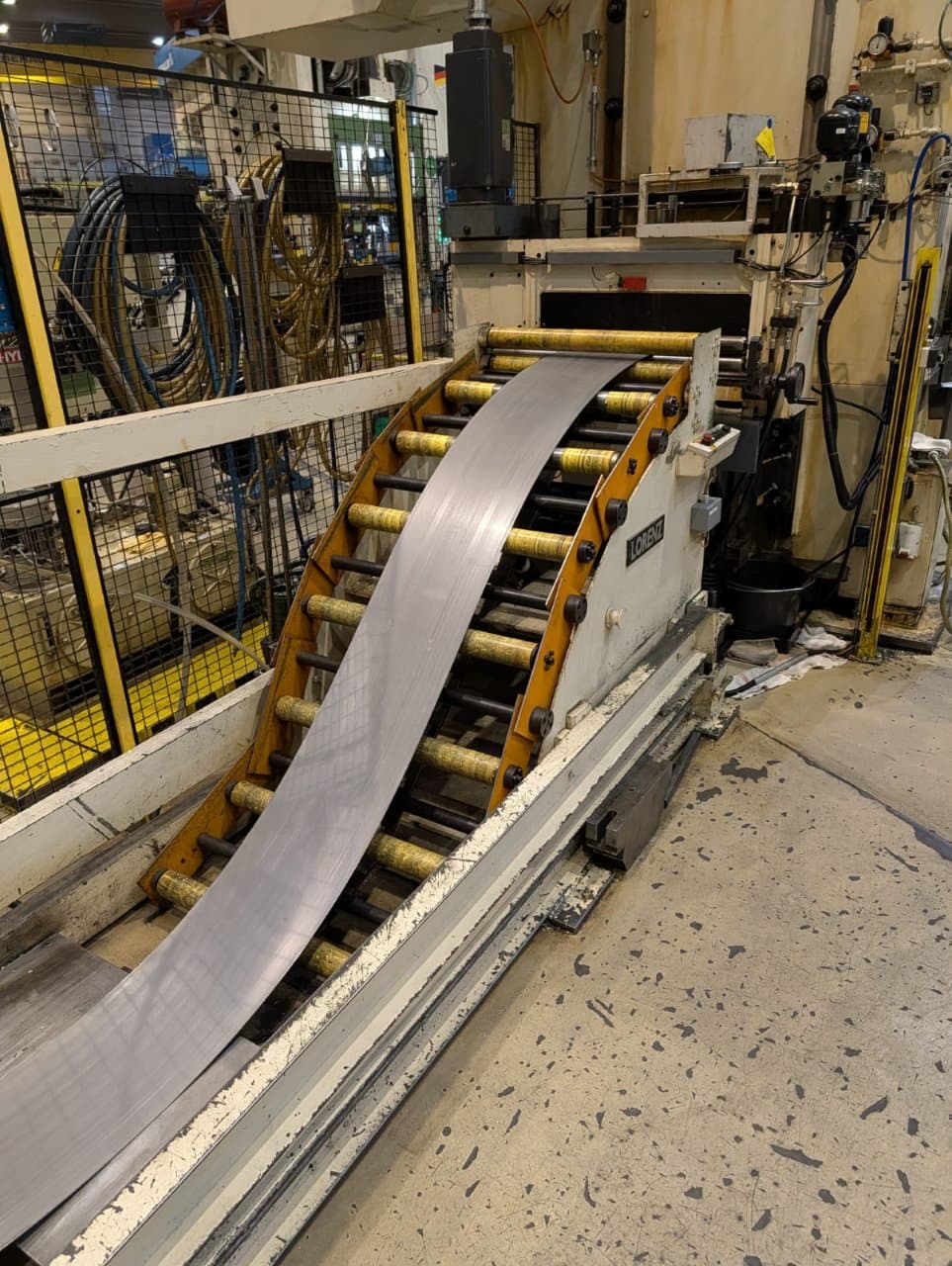

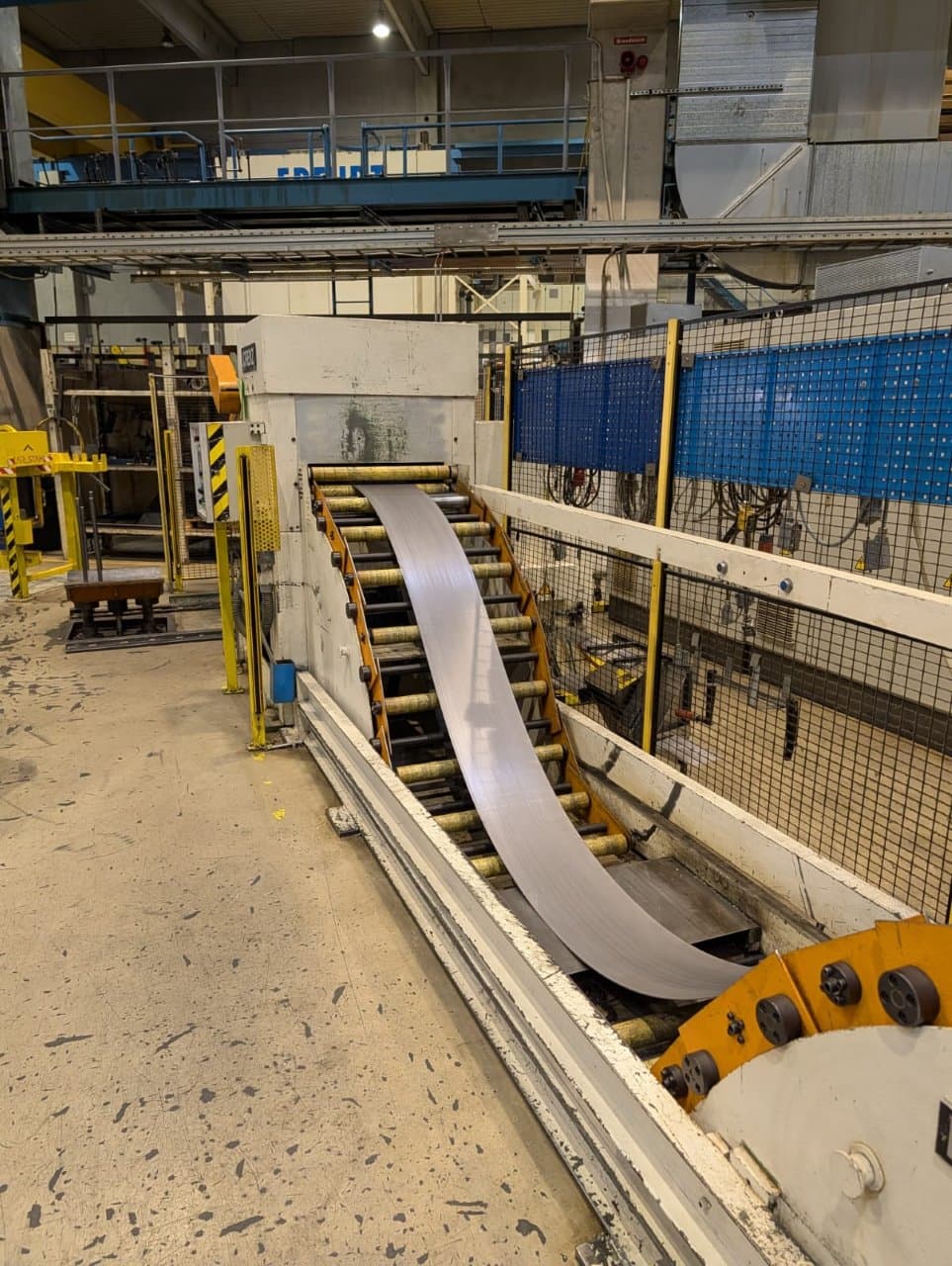

Straightening rolls9 pcs
Feed accuracy± 0.1 mm

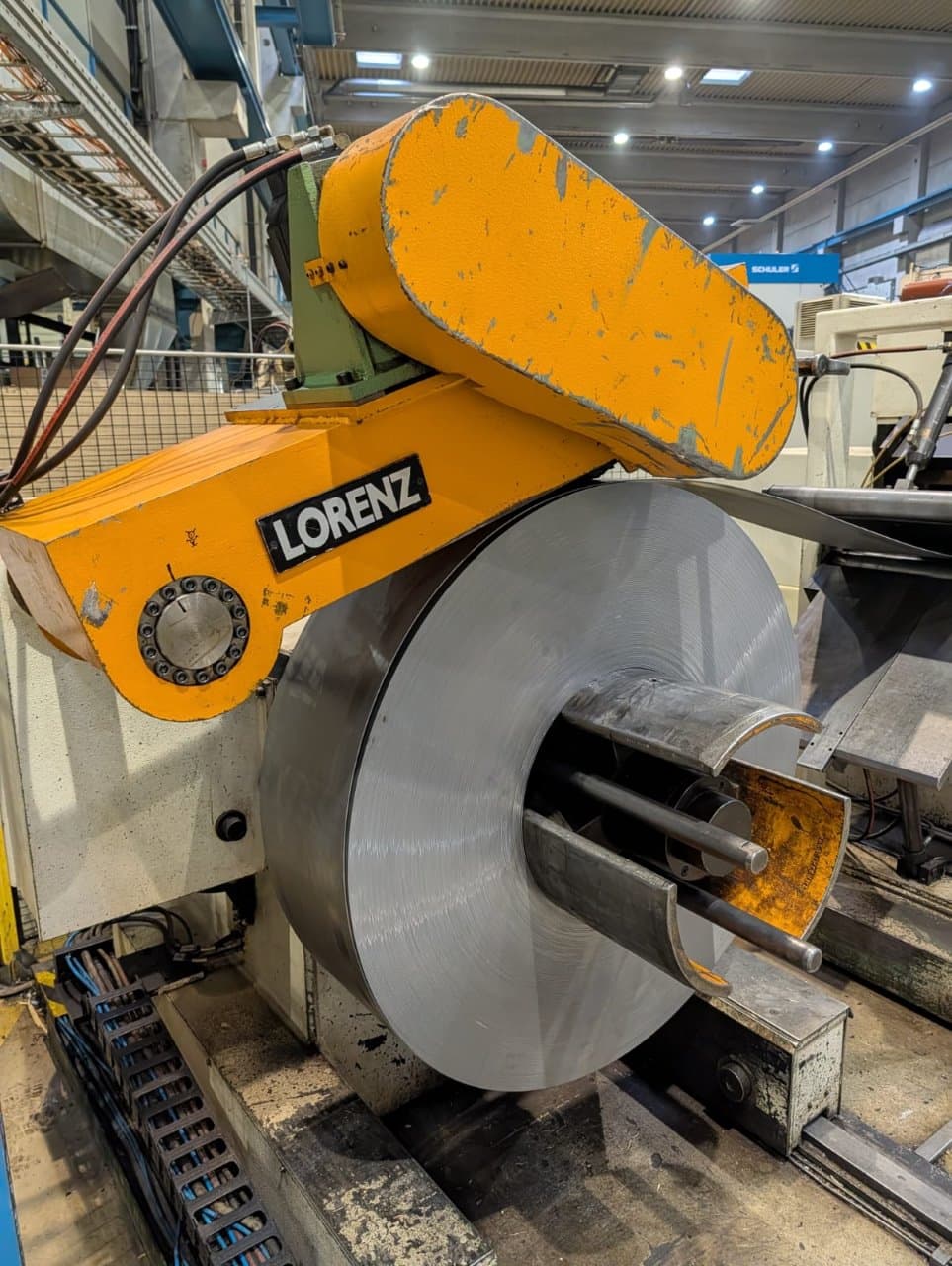

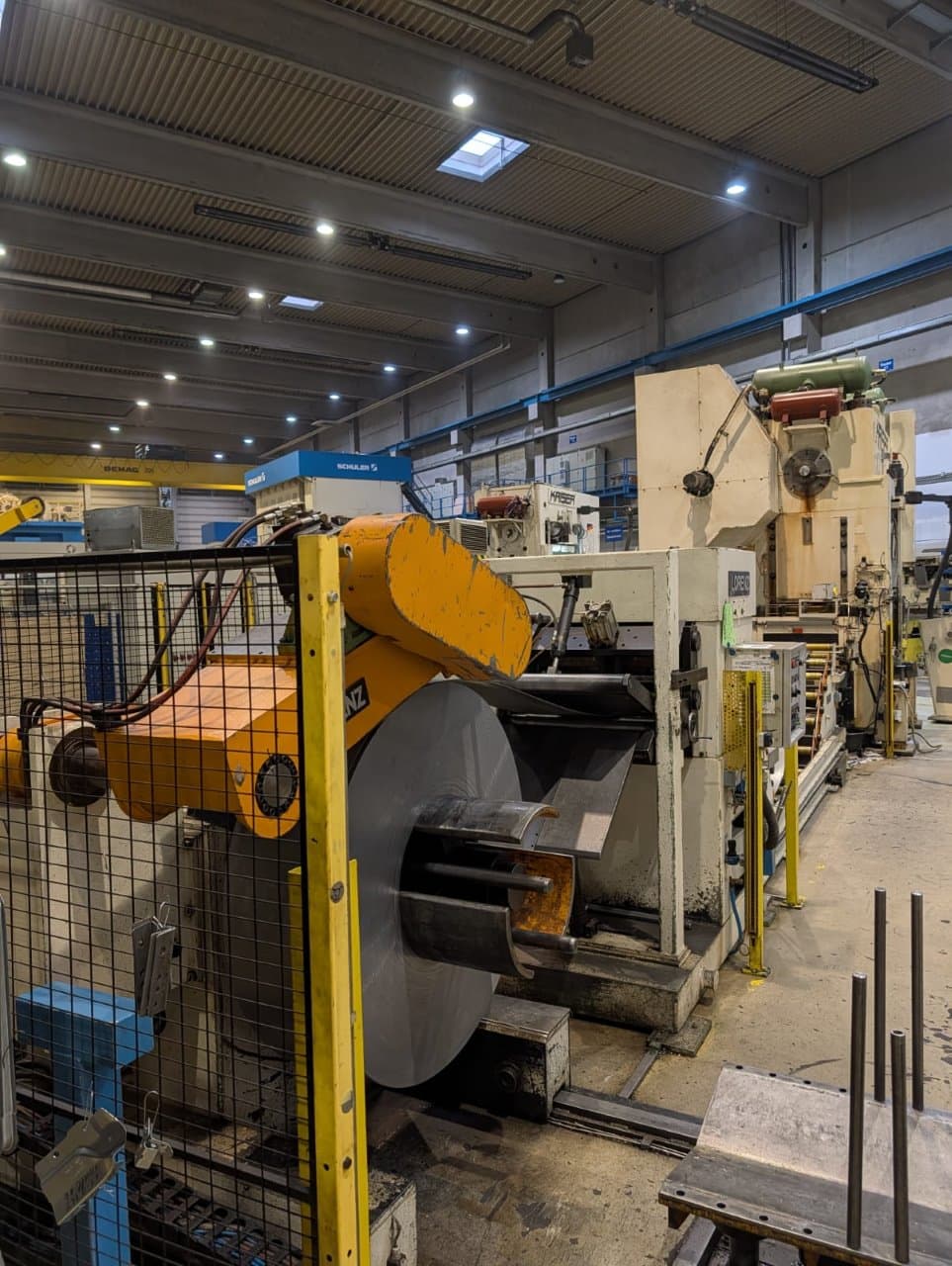

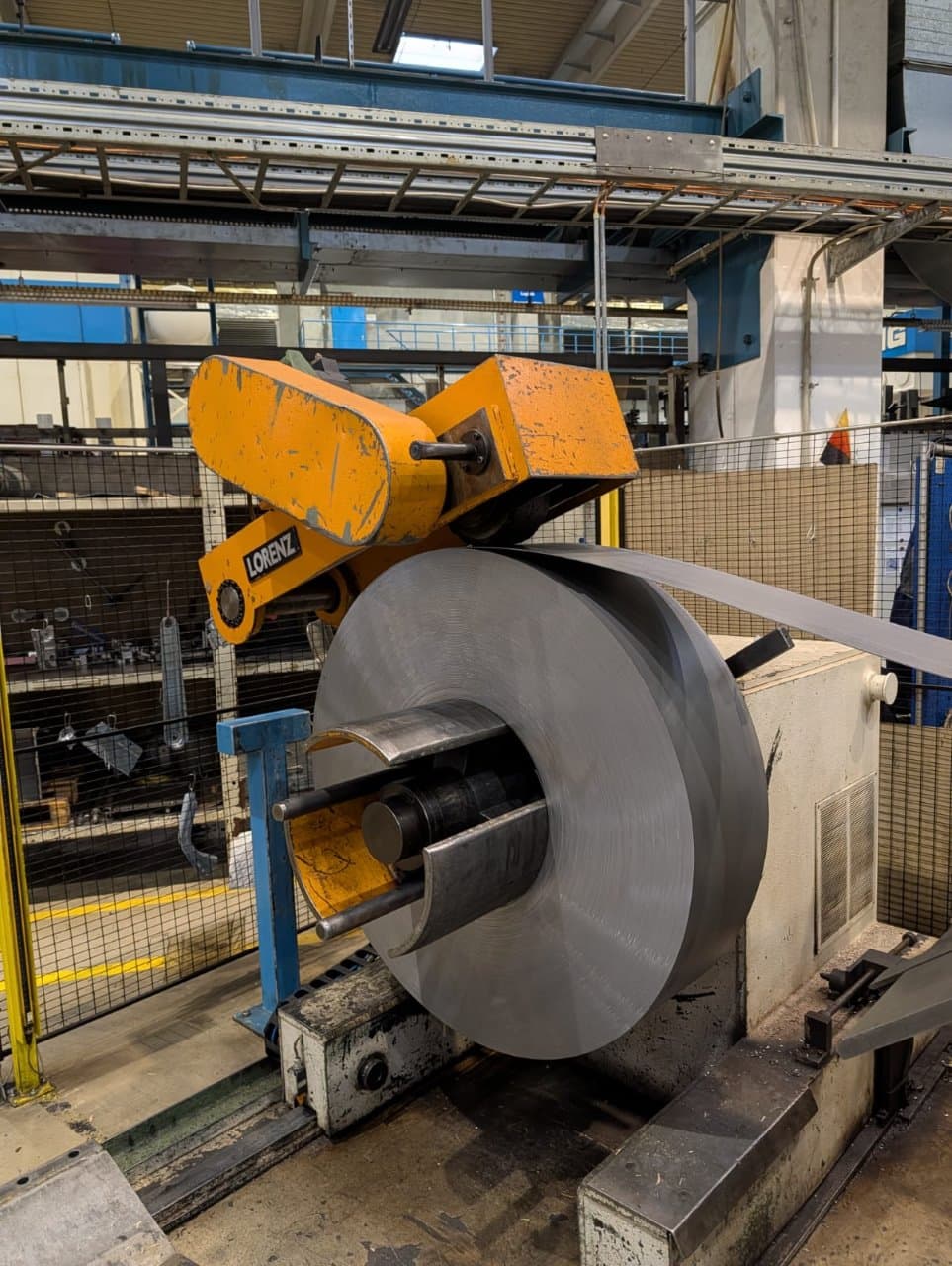

Coil inner diameter508 mm
Coil outer diameter1000 — 1500 mm
Power supply3 x 400 V
Air pressure5 bar

Mechanical press Kaiser - technological processes and operations

Sheet stamping Sheet stamping is a class of operations for forming parts from sheet material using dies. The workpiece is deformed in the tool without significant change in thickness, acquiring the specified shape. This group includes blanking, punching, bending, drawing, and other processes performed on presses. Sheet stamping is the foundation of mass production of body panels, housings, and other thin metal parts.
Drawing Drawing turns a flat blank into a hollow product. The sheet is clamped at the edges while the tool presses the central part, forcing the metal to flow into the die cavity and form walls. This is how cups, caps, housings, and other parts with one open side are produced.
Blanking Blanking a part from a sheet along a closed contour is performed on a press using a blanking die. The tool passes through the material, separating the finished part from the sheet. The accuracy of the contour and the cleanliness of the edge determine the quality of the final product.
