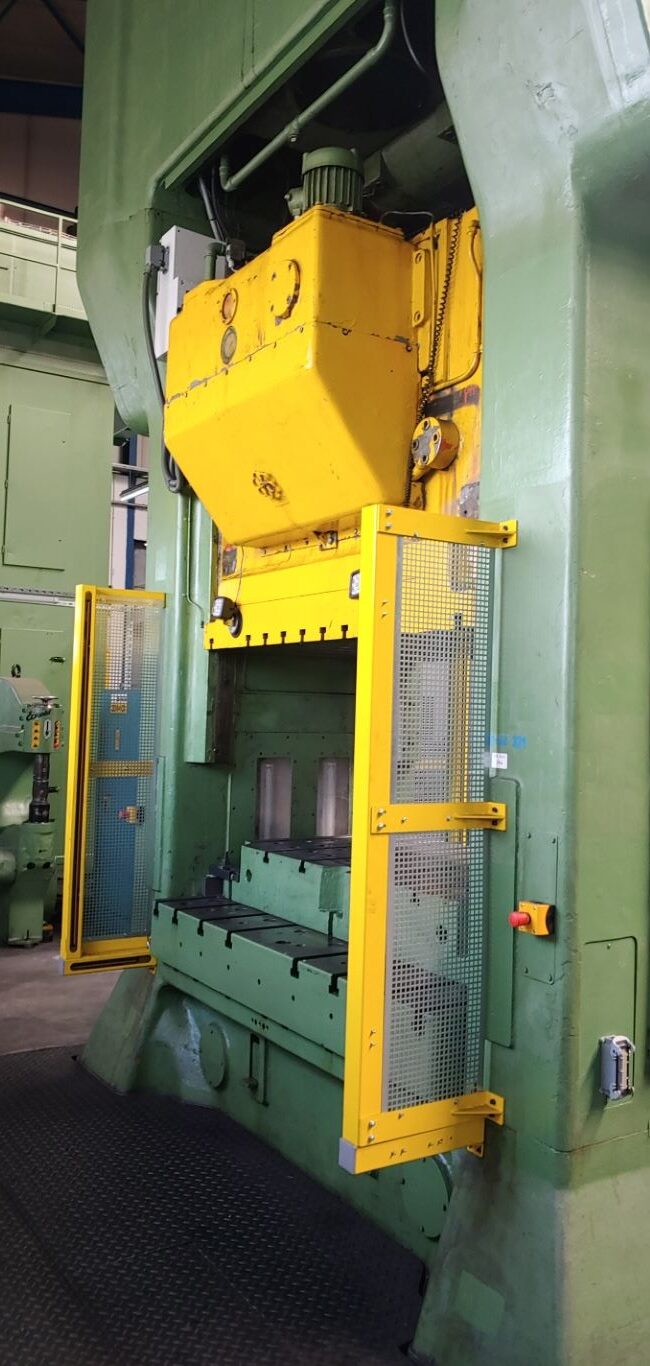

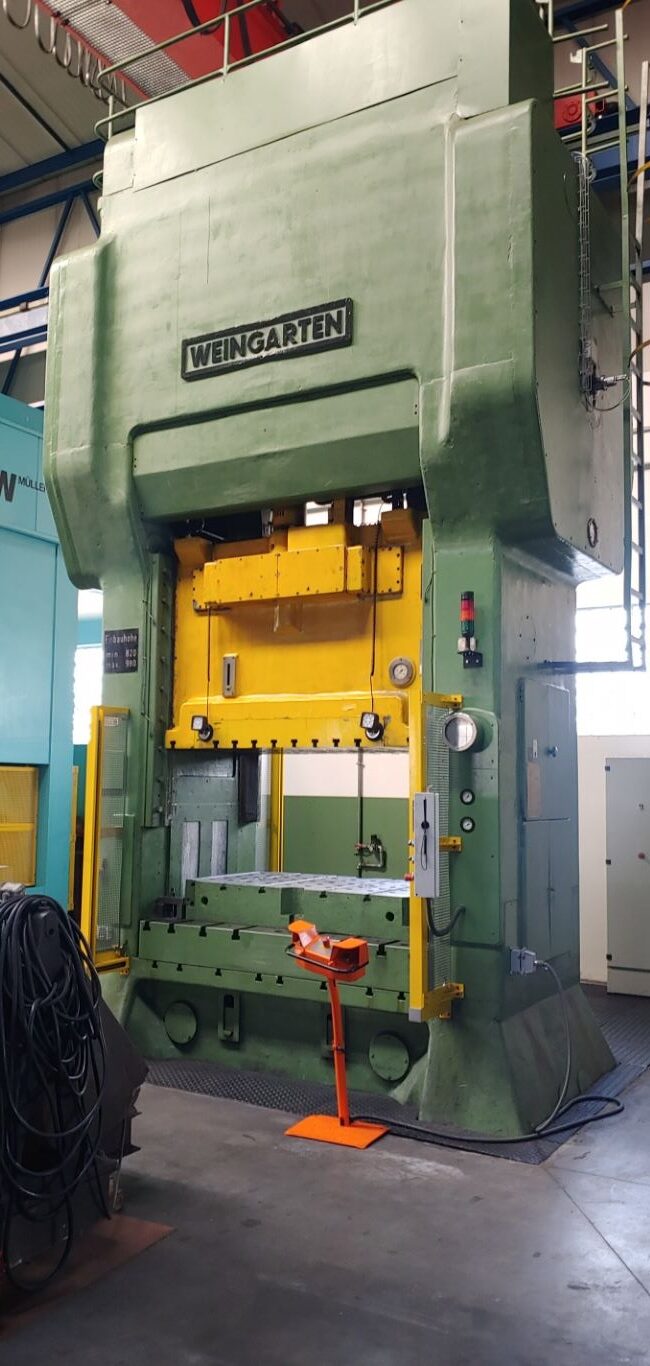

Mechanical press Weingarten OK400 — 400 ton
Weingarten OK400 mechanical press - description

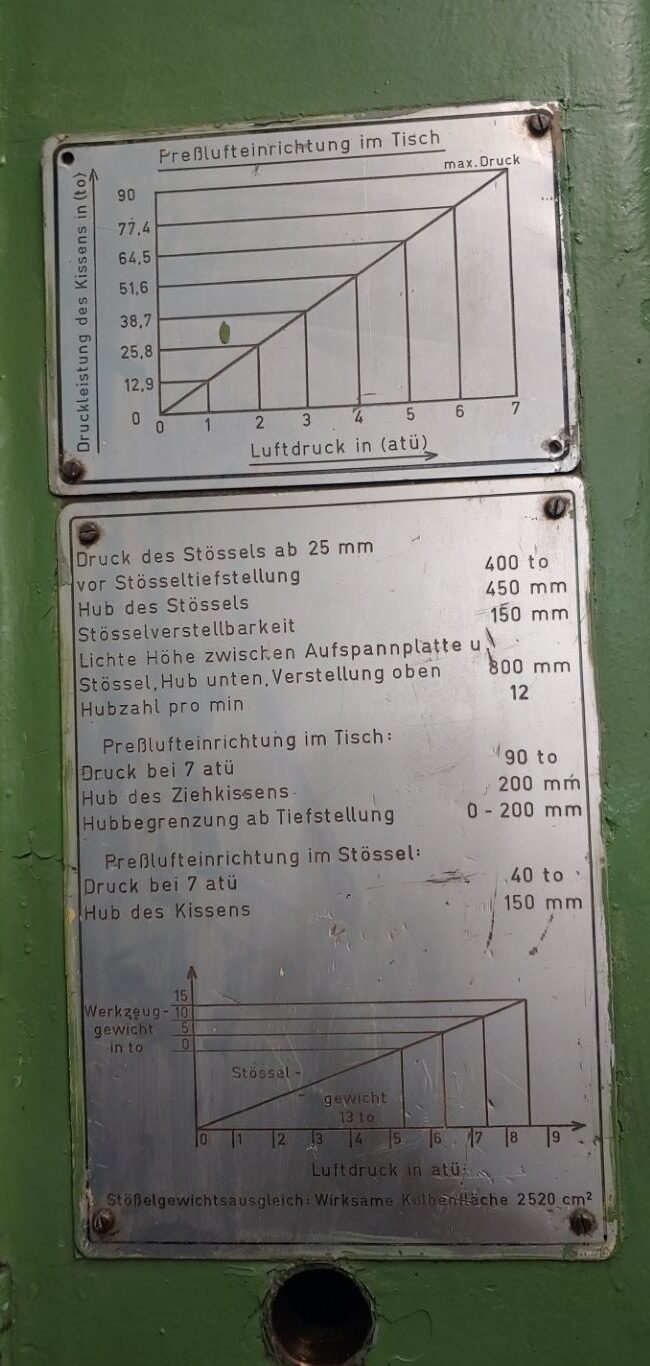

Technical specifications Weingarten OK400 (ID:76428)
| Type | Mechanical press |
|---|---|
| Manufacturer | Weingarten |
| Model | OK400 |
| Year of overhaul | 2021 |
| Capacity | 400 ton |
| Stroke | 450 mm |
| SPM | 12 |

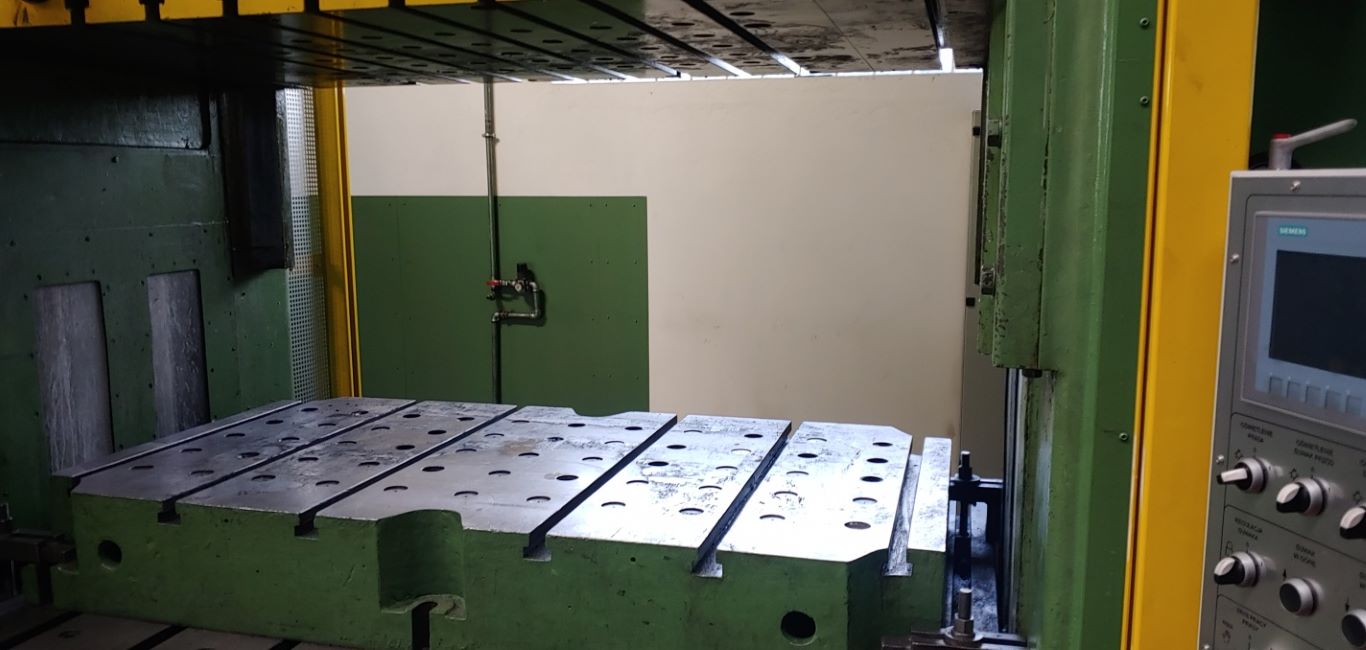

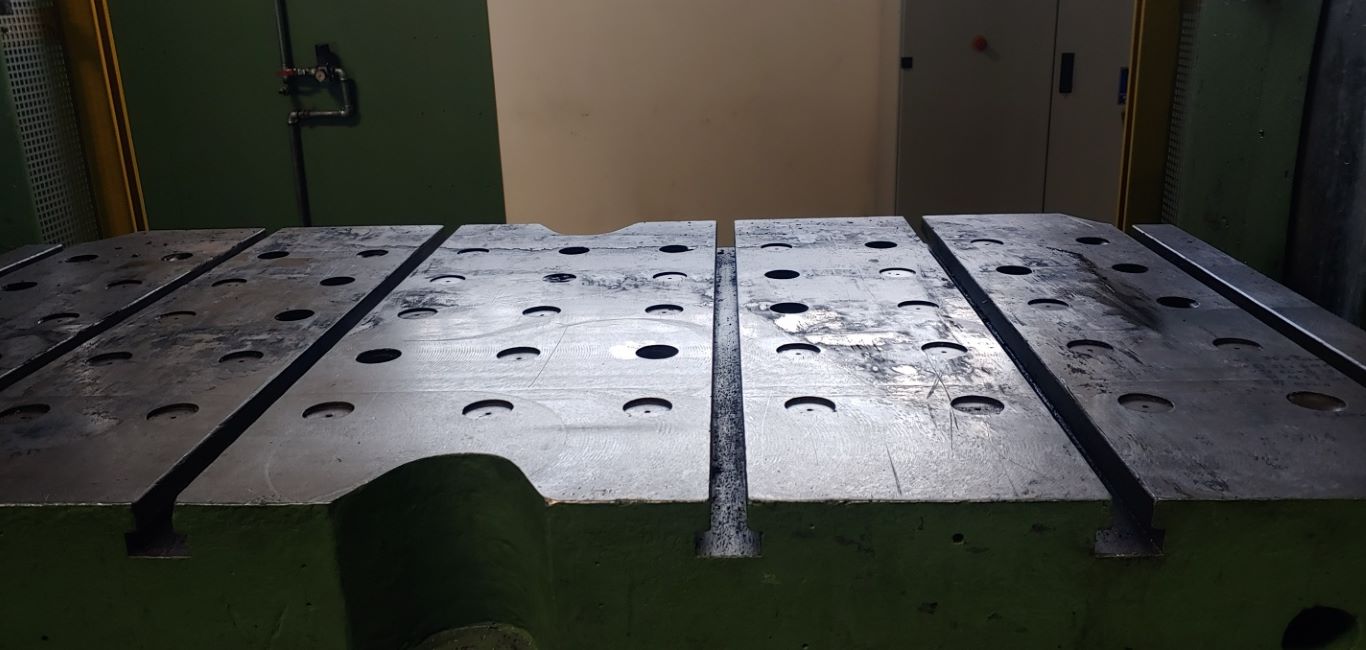

| Table | 1500 x 2050 mm |

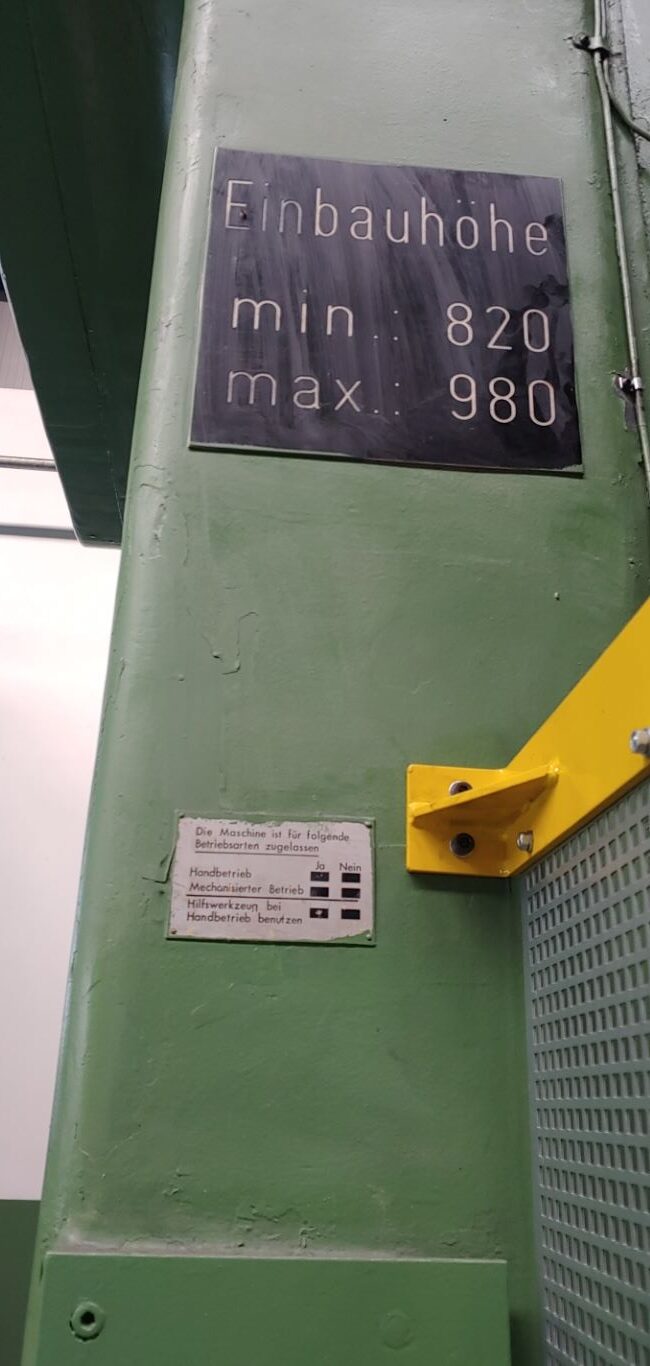

| Clearance | 1050 mm |
| Dimensions | 9300 x 3500 x 2200 mm |
| Under floor with pneumatic cylinder (ejector) | 2950 mm |
| Without pneumatic electors | 6500 mm |
| Press weight | 70 tons |
Mechanical press Weingarten - technological processes and operations
| Sheet stamping | Sheet stamping is a class of operations for forming parts from sheet material using dies. The workpiece is deformed in the tool without significant change in thickness, acquiring the specified shape. This group includes blanking, punching, bending, drawing, and other processes performed on presses. Sheet stamping is the foundation of mass production of body panels, housings, and other thin metal parts. |
|---|---|
| Drawing | Drawing turns a flat blank into a hollow product. The sheet is clamped at the edges while the tool presses the central part, forcing the metal to flow into the die cavity and form walls. This is how cups, caps, housings, and other parts with one open side are produced. |
| Blanking | Blanking a part from a sheet along a closed contour is performed on a press using a blanking die. The tool passes through the material, separating the finished part from the sheet. The accuracy of the contour and the cleanliness of the edge determine the quality of the final product. |
