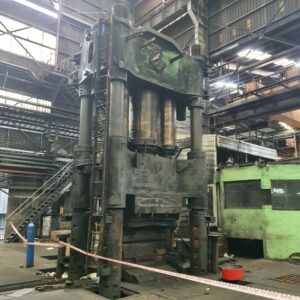

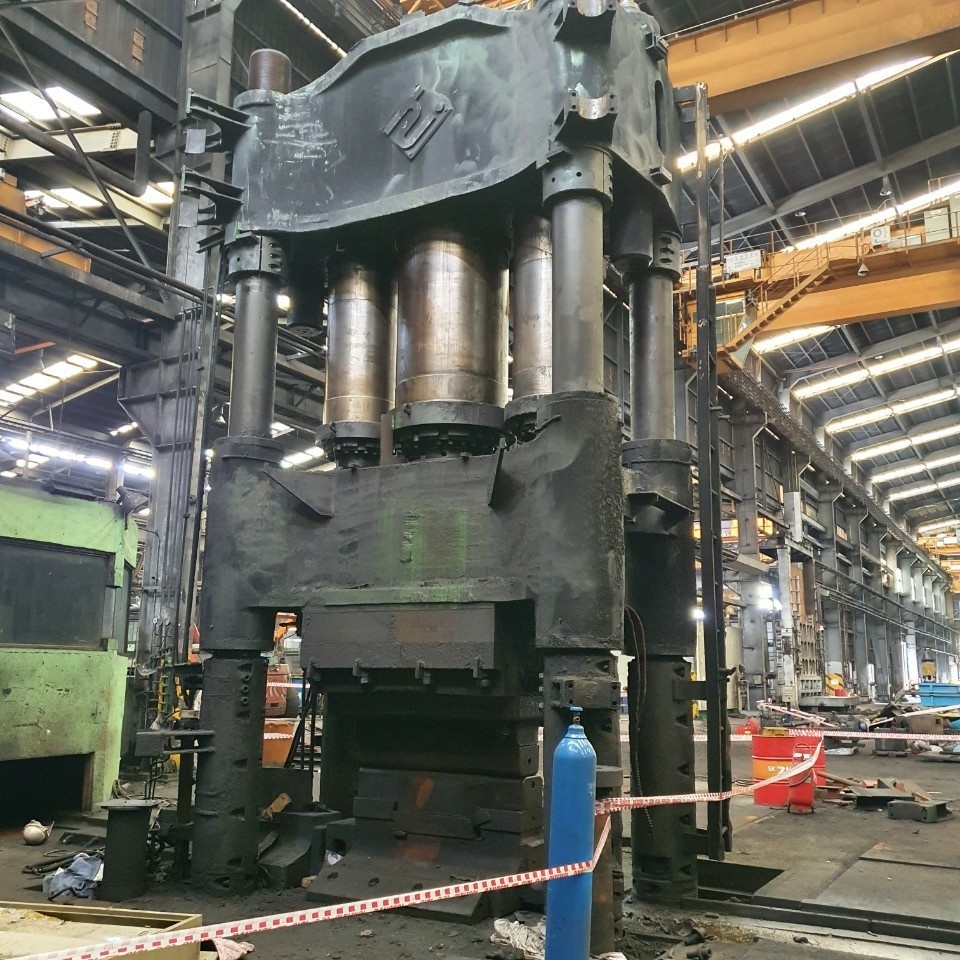

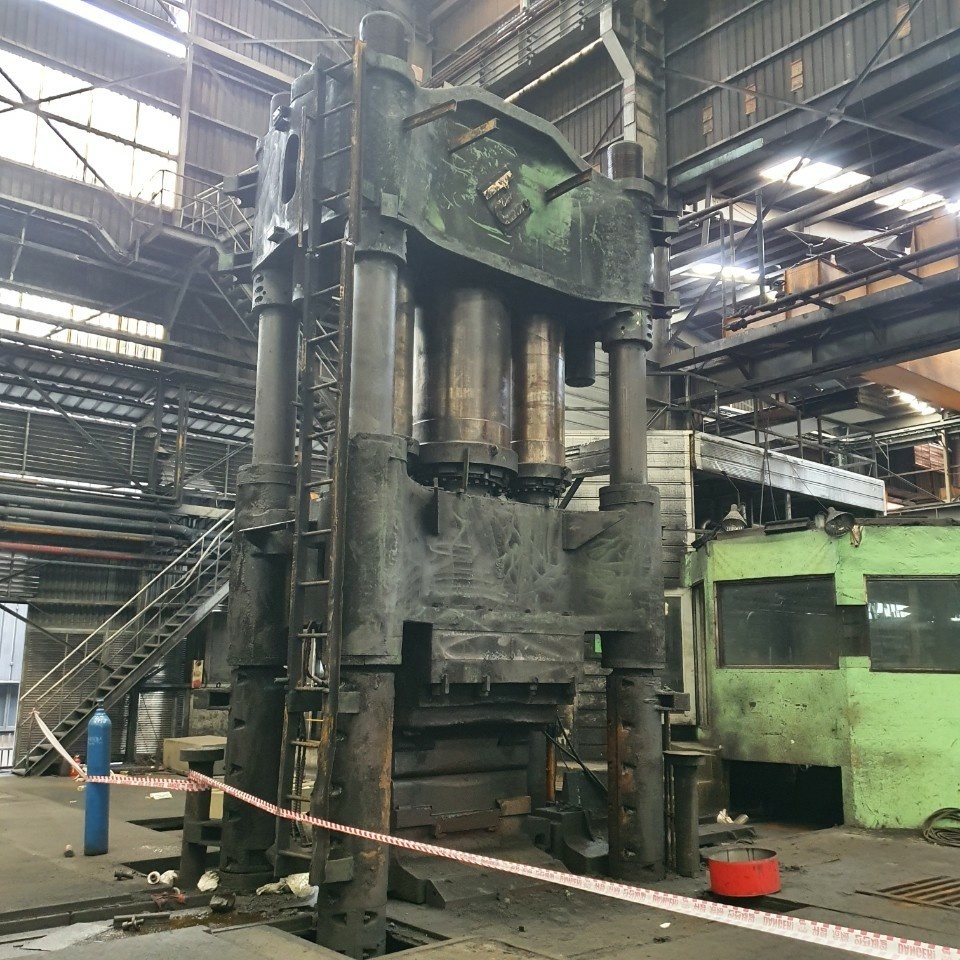

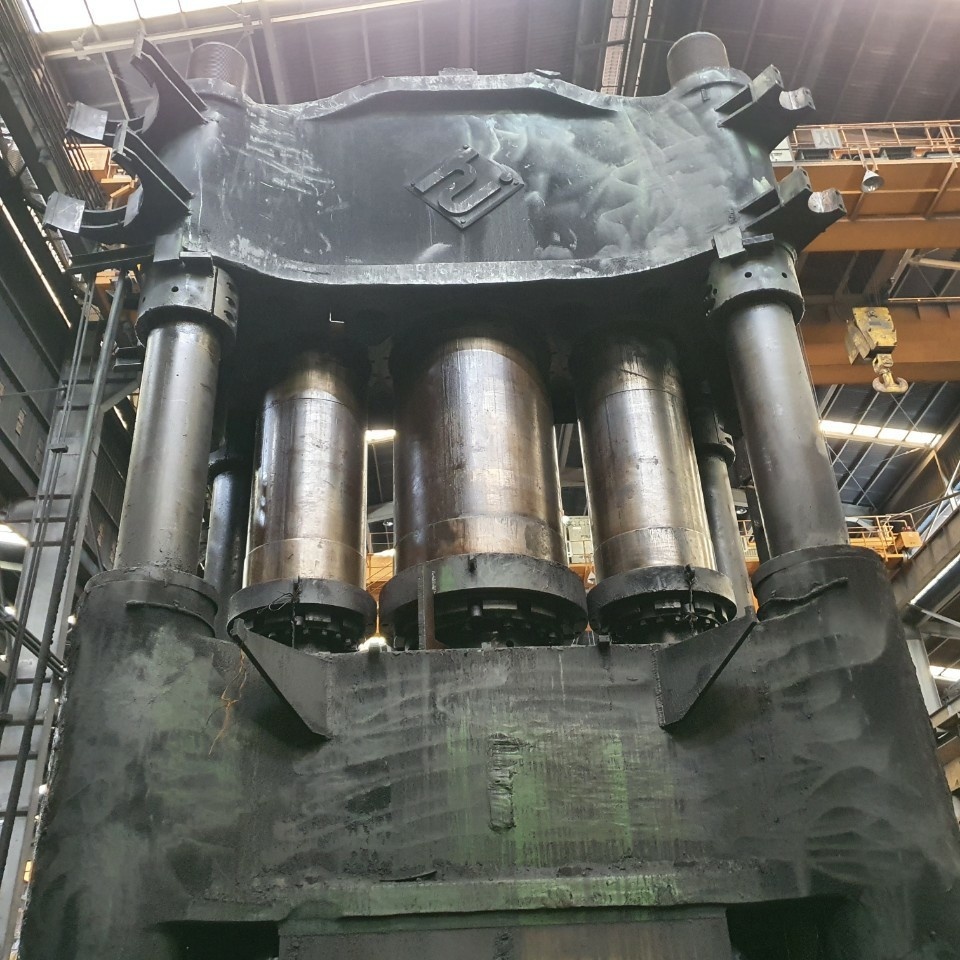

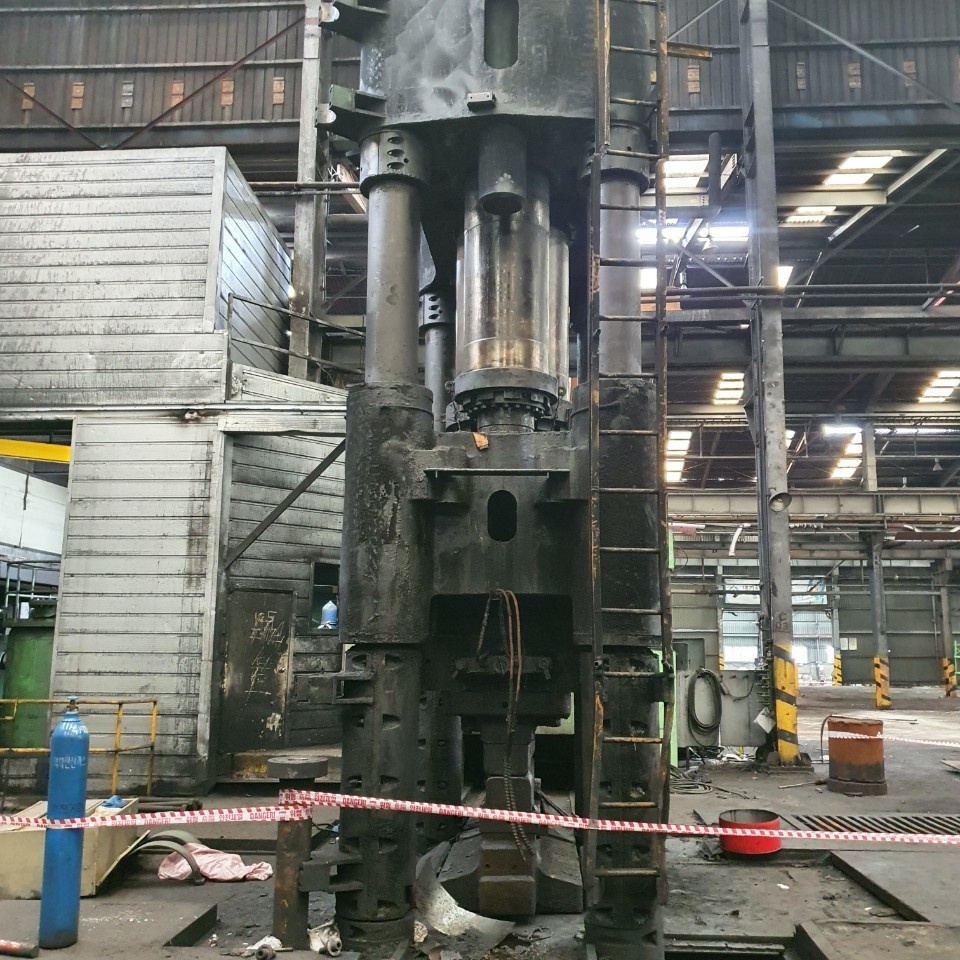

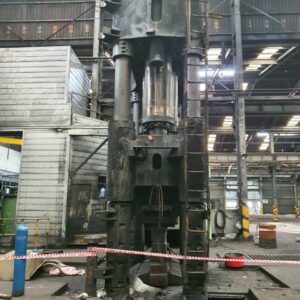

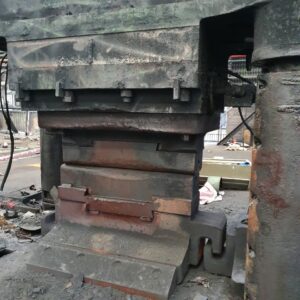

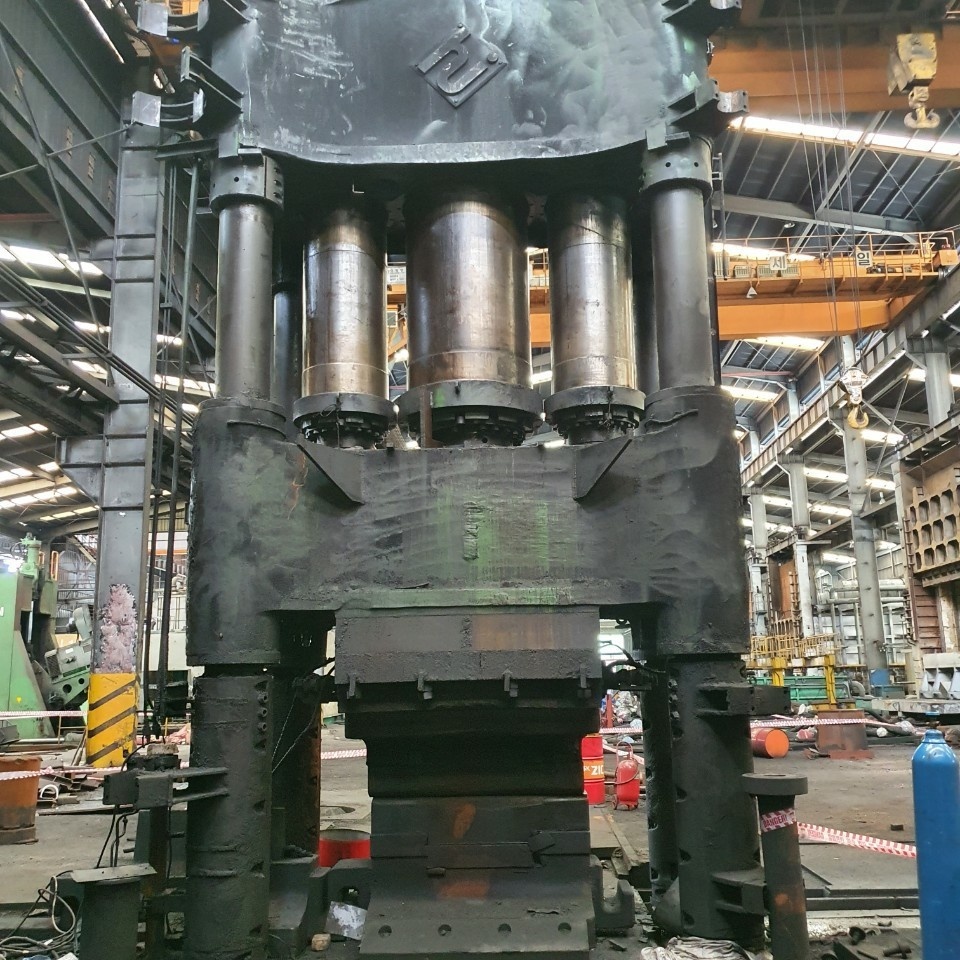

Open die forging press Seonam 2500 MT — 2500 ton
Seonam 2500 MT open die forging press - description
Technical specifications Seonam 2500 MT (ID:76302)
| Type | Open die forging press |
|---|---|
| Manufacturer | Seonam |
| Model | 2500 MT |
| Year of manufacture | 2006 |
| Capacity | 2500 ton |
| Stroke | 1500 mm |
| Daylight | 2400 mm |
| Moving Bolter | 2200 x 4050 mm |
| Column | 390 mm x 4 |
| Column distance | 3250 mm |
| Front inside distance | 2730 mm |
| Side distance | 1650 mm |
| Side inside distance | 1180 mm |
| Approaching speed | 100 mm/sec |
| Forging speed | 67/29 mm/sec |
| Return speed | 300 mm/sec |
| Hydraulic main motor | 185 kw x 5 |
| Press weight | 250 ton |
Open die forging press Seonam - technological processes and operations
| Forging | The process of plastic deformation of metal, in which the workpiece changes shape under the impact of blows or static pressure. During forging, the metal structure is densified, internal inhomogeneities are eliminated, and the mechanical properties of the material are improved. As a result, forged products are distinguished by high strength and reliability when operating under significant loads. Forging is used both for producing finished parts and for preparing workpieces for subsequent stamping. |
|---|---|
| Hot forging | Hot forging is a process of shaping metal under pressure at elevated temperatures. Heating reduces the deformation resistance of the material, allowing it to flow more easily into the die cavity. The process provides high productivity and the ability to form complex shapes. Used for manufacturing forgings from steel and alloys in series and mass production. |
| Open-die forging | Metal is deformed between flat or shaped tools without lateral restriction, allowing free flow in all directions. The workpiece is gradually shaped by repeated blows or press strokes, with the operator controlling its position between each step. This method is used for producing large forgings such as shafts, discs, and rings, where a refined internal structure is essential. |
| Preforming | Preforming prepares the workpiece for the main stamping operation by giving it an approximate shape of the future part. The metal is distributed in the die to facilitate final filling and reduce tool wear. This intermediate step improves accuracy and quality of the finished product. |
| Piercing | Piercing forms a hole in a solid workpiece by driving a tool through the material without removing it. The metal is displaced sideways, creating a through or blind opening while preserving the structure around it. The operation is performed on presses and is used in the production of hollow parts such as bushings, rings, and shafts. |
