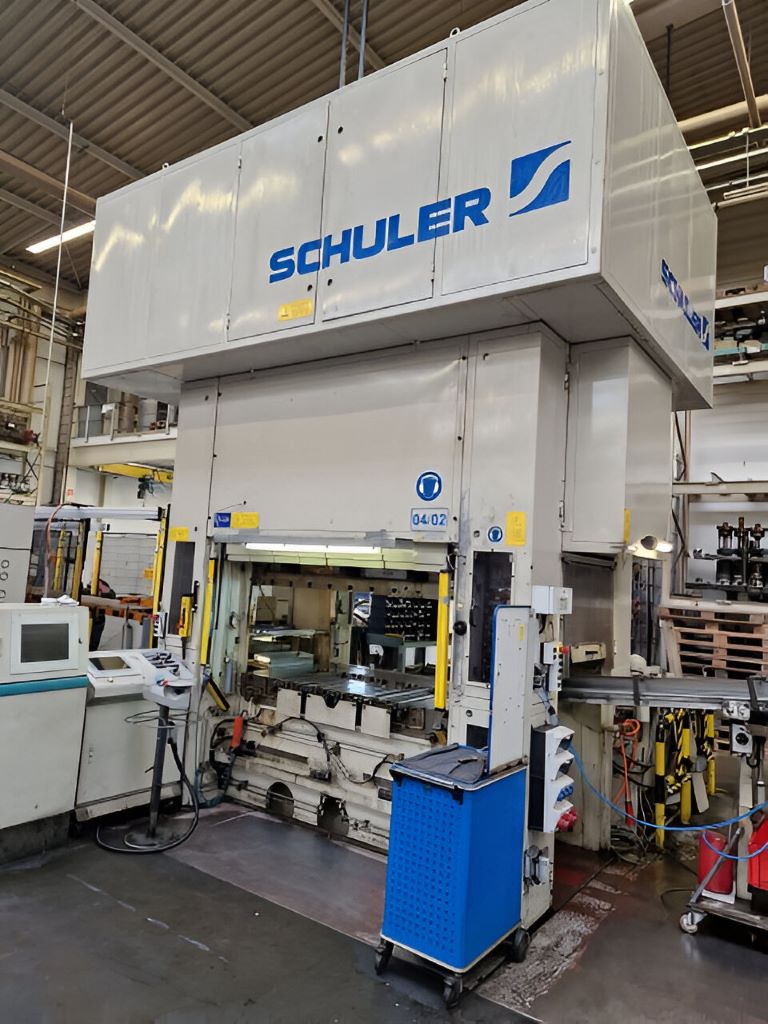

Progressive press Schuler GMO 2-315-2000-160 — 315 ton
Schuler GMO 2-315-2000-160 stamping press - description
Technical specifications Schuler GMO 2-315-2000-160 (ID:76354)
| Type | Stamping press |
|---|---|
| Manufacturer | Schuler |
| Model | GMO 2-315-2000-160 |
| Year of manufacture | 2003 |
| Press Design | |
| Drive system | knuckle-joint |
| Frame design | H-frame, monoblock |
| Openings in uprights | yes |
| Number of suspensions | 2 |
| Feedstock transport direction | left to right |

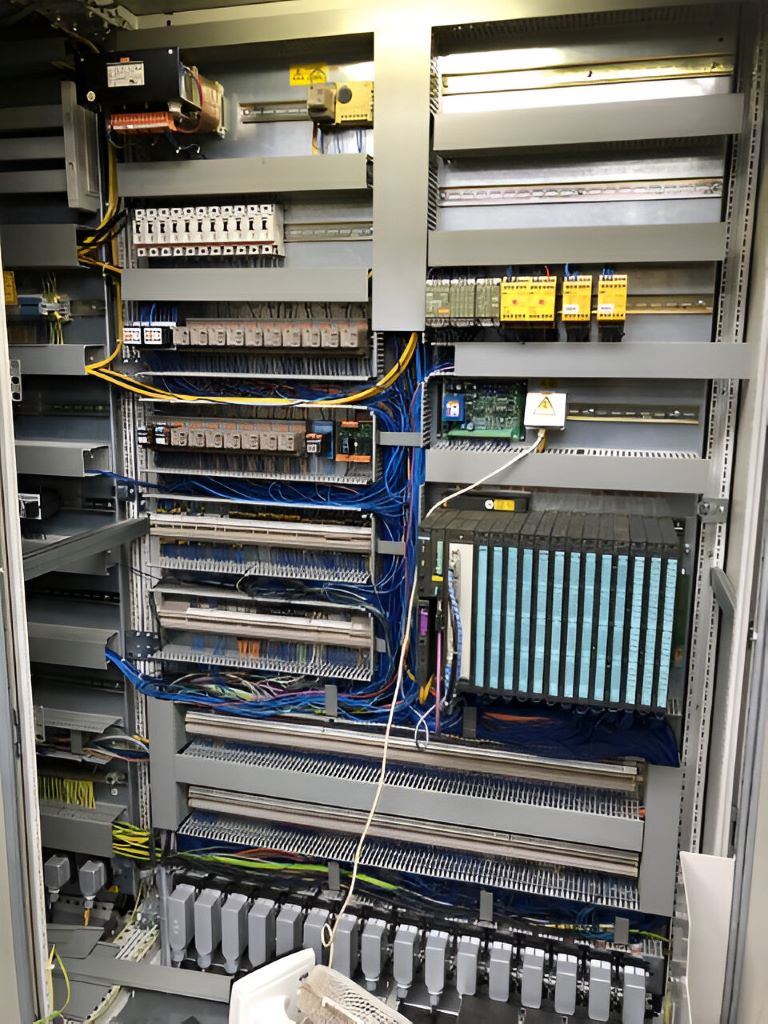

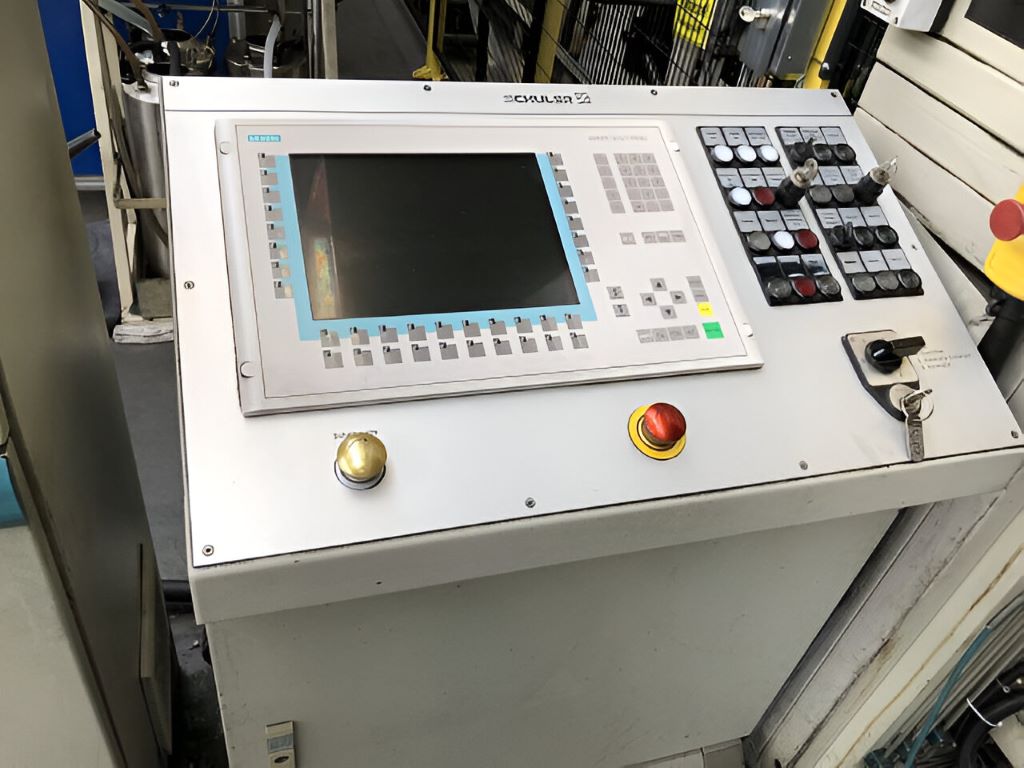

| Controls | SIEMENS S7 |
| Press forces | |
| Total force (nominal) | 315 ton |
| Nominal work capacity | 38 kNm |
| Press Table | |
| Table surface (left-right) | 2000 mm |
| Table surface (front-back) | 1200 mm |
| Thickness of bolster plate | 200 mm |
| Slide | |
| Slide force | 315 ton |
| Table surface (left-right) | 1995 mm |
| Table surface (front-back) | 1100 mm |
| Stroke | 160 mm |
| Stroke rate (max.) | 80 /min |
| Slide (mechan. Press) | |
| Slide adjustment | 140 mm |
| Stroke rate (min.) | 20 /min |
| Stroke rate (max.) | 80 /min |
| Main drive power | 90 kW |

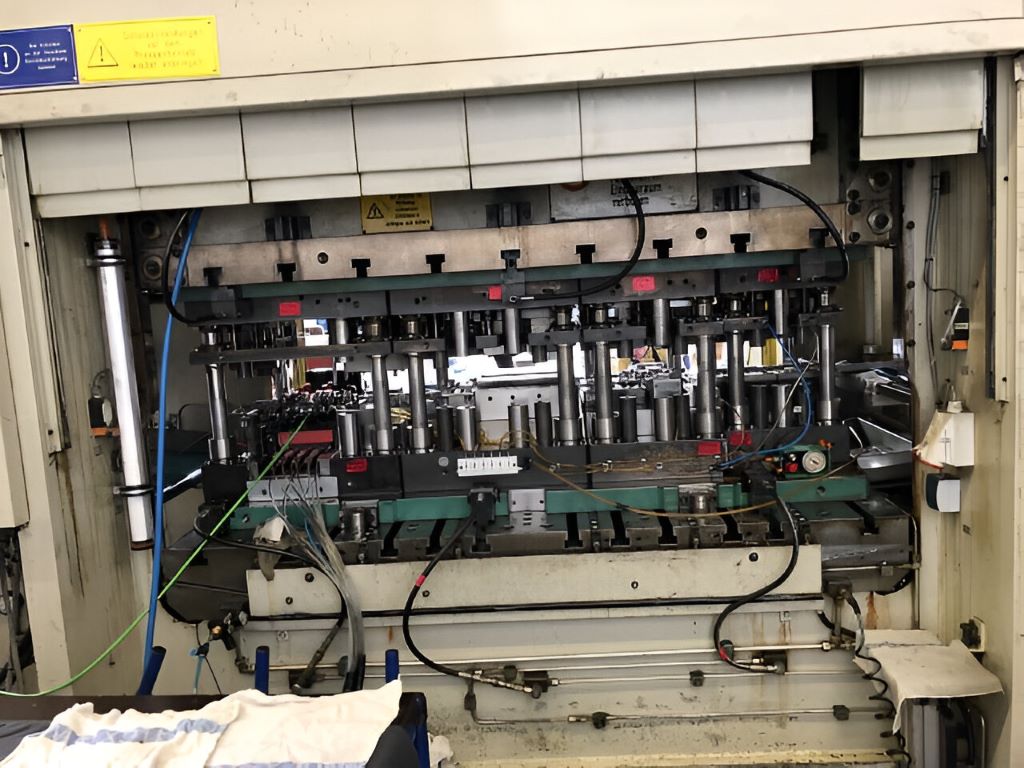

| Tool Assembly Dimensions | |
| Shut height (stroke down, adjustment up), BDC | 555 mm |
| Distance between columns (H-frame) | 2060 mm |
| Passline opening (free passage in side columns) | 1060 mm |
| Overall Specifications (coil lines) | |
| Sheet width max. | 400 mm |
| Sheet thickness max. | 5 mm |

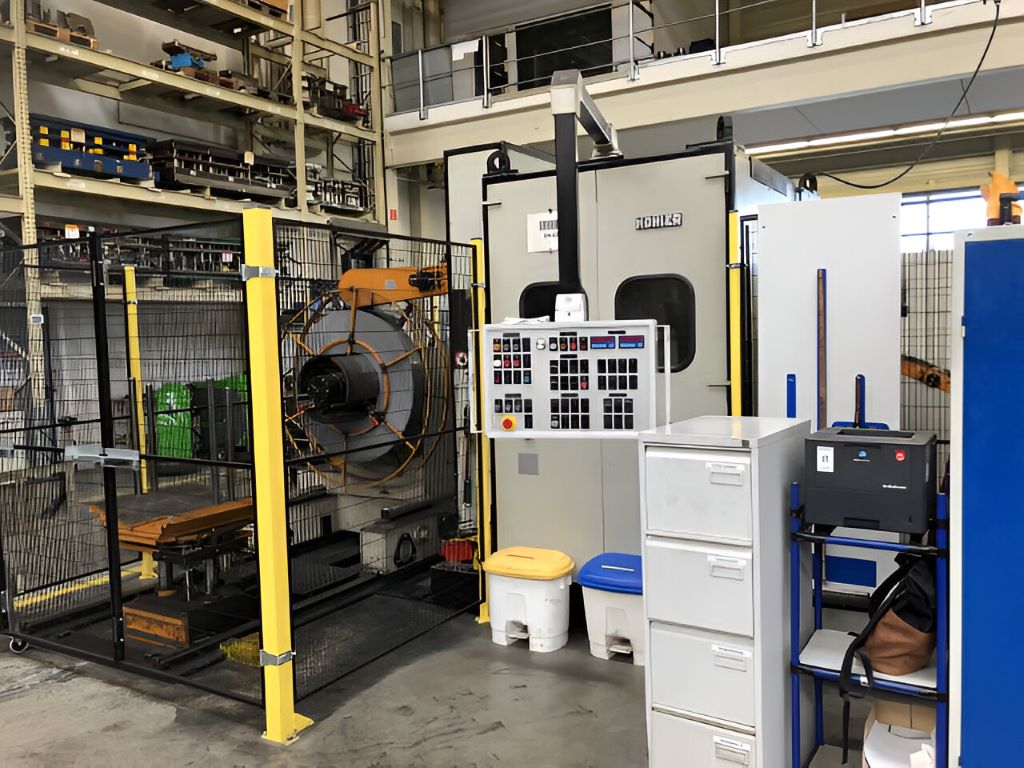

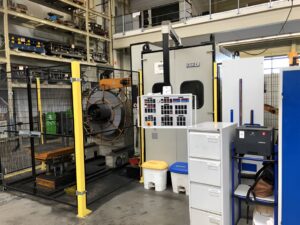

| Coil Chair | |
| Coil weight max. | 4 ton |
| Decoiler | |
| Design | single reel, traversable |
| Sheet width max. | 400 mm |
| Sheet width (min) | 30 mm |
| Coil weight max. | 4 ton |
| Max. diameter of coil | 1500 mm |
| Mandrel expansion range from | 460 mm |
| Mandrel expansion range up to | 530 mm |
| Movement | 1500 mm |

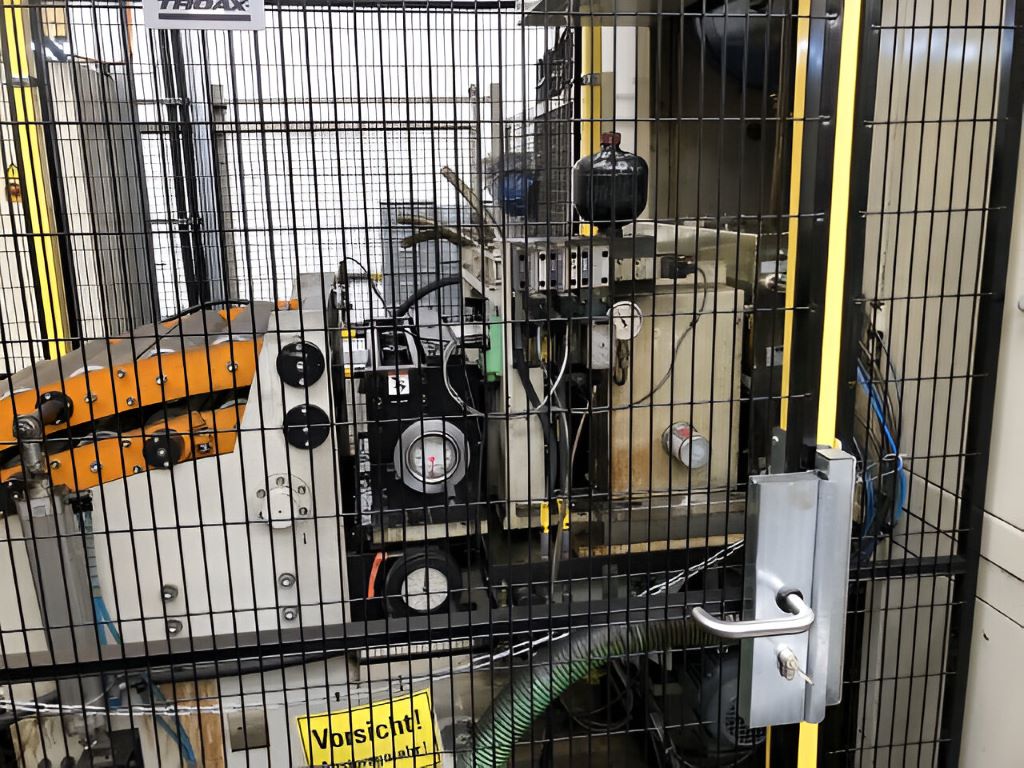

| Leveller Unit | |
| Sheet width max. | 400 mm |
| Sheet width (min) | 50 mm |
| Material cross section max. (450 N/mm2) | 1000 mm² |
| Number of leveller rolls | 9 |
| Diameter of leveller rolls | 50 mm |
| Number of infeed-/outfeed rolls | 150 |
| Feed velocity min. | 5 m/min |
| Feed velocity max. | 50 m/min |

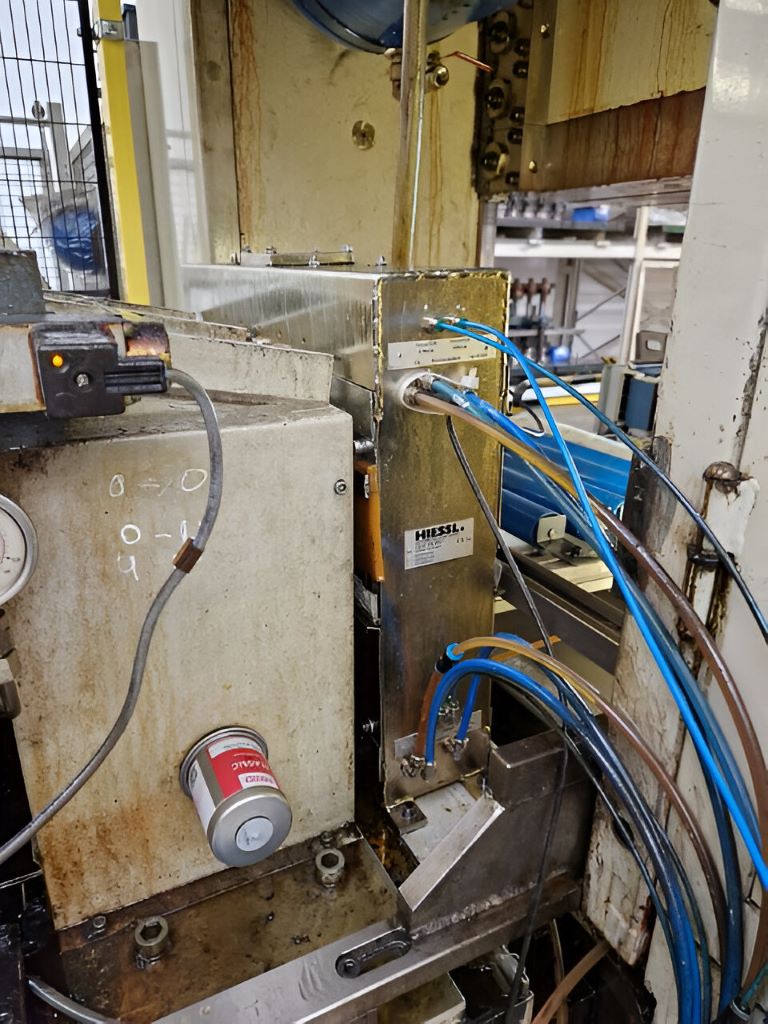

| Strip-Feeder | |
| Feeder type | roll feeder |
| Sheet width max. | 400 mm |
| Sheet thickness max. | 5 mm |
| Electrical specifications | |
| Mains voltage | 400 V |
| Mains frequency | 50 Hz |
| Dimensions / weights | |
| Total weight approx. | 45000 kg |
| Attachments (presses) | |
| Decoiler | yes |
| Leveller unit | yes |
| Strip feeder | yes |
Stamping press Schuler - technological processes and operations
| Sheet stamping | Sheet stamping is a class of operations for forming parts from sheet material using dies. The workpiece is deformed in the tool without significant change in thickness, acquiring the specified shape. This group includes blanking, punching, bending, drawing, and other processes performed on presses. Sheet stamping is the foundation of mass production of body panels, housings, and other thin metal parts. |
|---|---|
| Drawing | Drawing turns a flat blank into a hollow product. The sheet is clamped at the edges while the tool presses the central part, forcing the metal to flow into the die cavity and form walls. This is how cups, caps, housings, and other parts with one open side are produced. |
| Punching | Punching holes in sheet metal is performed in a die: a tool with sharp edges passes through the workpiece, separating material along a closed contour. The process is fast and precise, leaving no burrs when properly set up. Used for producing holes, slots, and cutouts in sheet metal parts. |
| Blanking | Blanking a part from a sheet along a closed contour is performed on a press using a blanking die. The tool passes through the material, separating the finished part from the sheet. The accuracy of the contour and the cleanliness of the edge determine the quality of the final product. |
| Bending | Bending gives a sheet blank an angle or curvature. The metal is bent in the die under the force of the press: the outer layers stretch, the inner layers compress, and the middle retains its original length. The operation allows producing parts with the specified geometry without changing the material thickness. |
