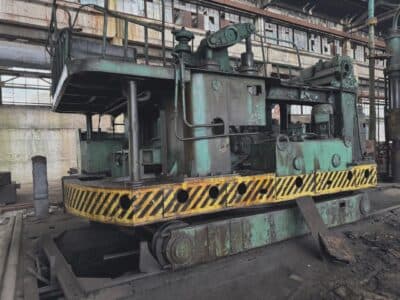

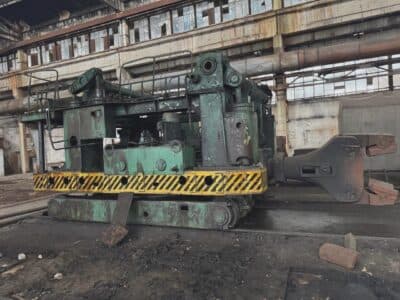

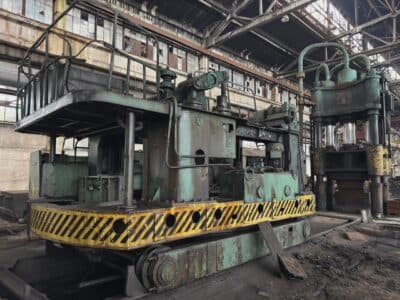

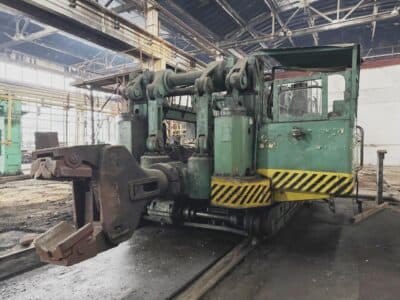

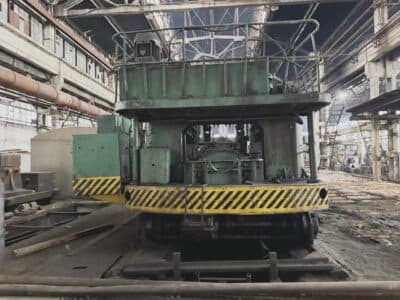

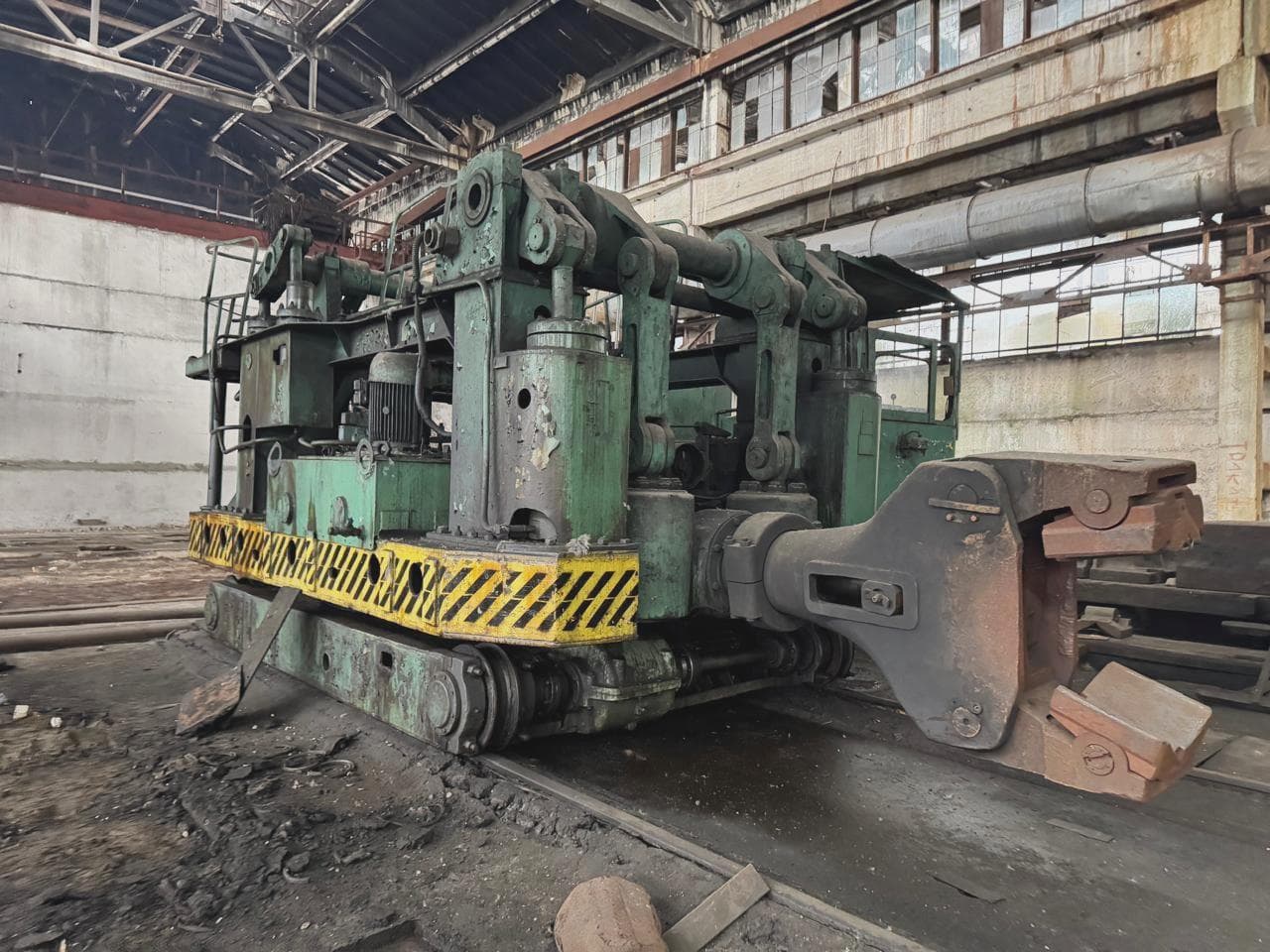

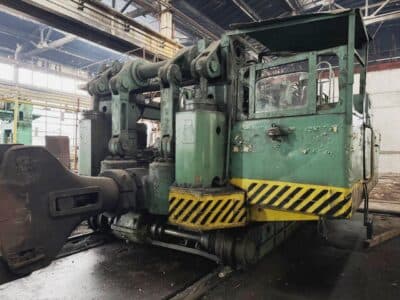

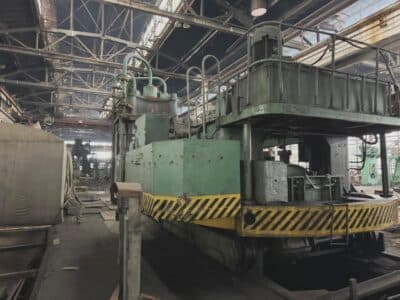

Rail-mounted forging manipulator Ryazan MK5 — 5 ton

Dabrox Listing ID: S93336

Request detailed information on this offer:
- availability, price
- payment/delivery terms
- specifications, condition, photos, etc.

* Required fields

Ryazan MK5 forging manipulator - description

Rail-mounted forging manipulator Ryazan MK5 — 5 ton (ID:S93336) is specialized forging equipment designed for holding, moving, and rotating workpieces during the forging process. The manipulator provides precise positioning of the workpiece relative to the dies of a press or hammer, which is critical when processing heavy and large-sized forgings.

Technical specifications Ryazan MK5 (ID:S93336)

TypeForging manipulator
ManufacturerRyazan
ModelMK5
Load capacity500 kN / 5 ton
Max gripping moment12 ton
Max jaw opening diameter720 mm
Min jaw opening diameter260 mm
Min jaw opening diameter with inserts100 mm
Wheelbase3700 mm
Carriage travel speed40 m/min
Max horizontal reach from boom axis to tong axis1450 mm
Min horizontal reach950 mm
Vertical boom travel500 mm
Boom tilt angle upwards23°
Boom tilt angle downwards11°
Total installed power107 kW
Weight52300 kg
