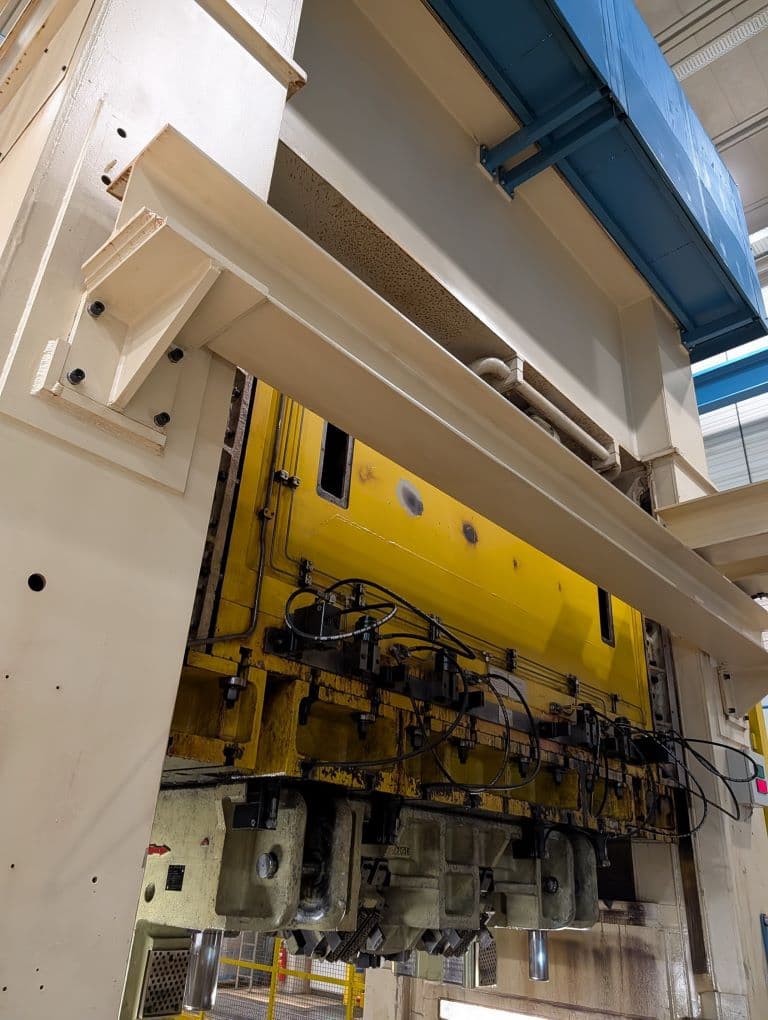

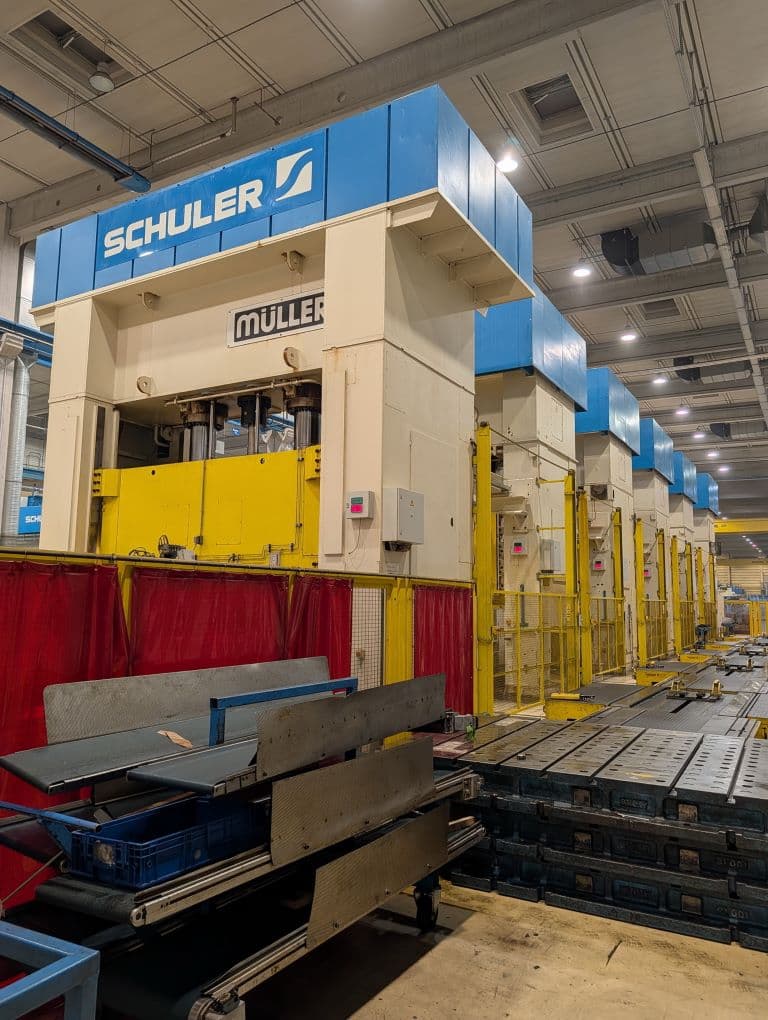

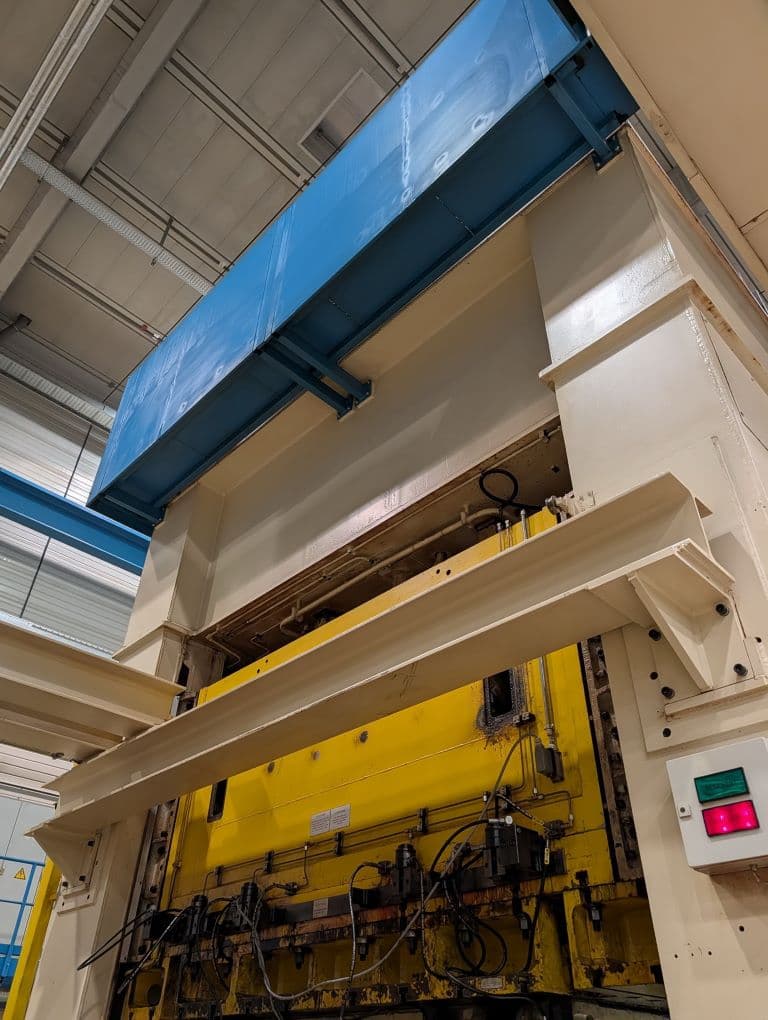

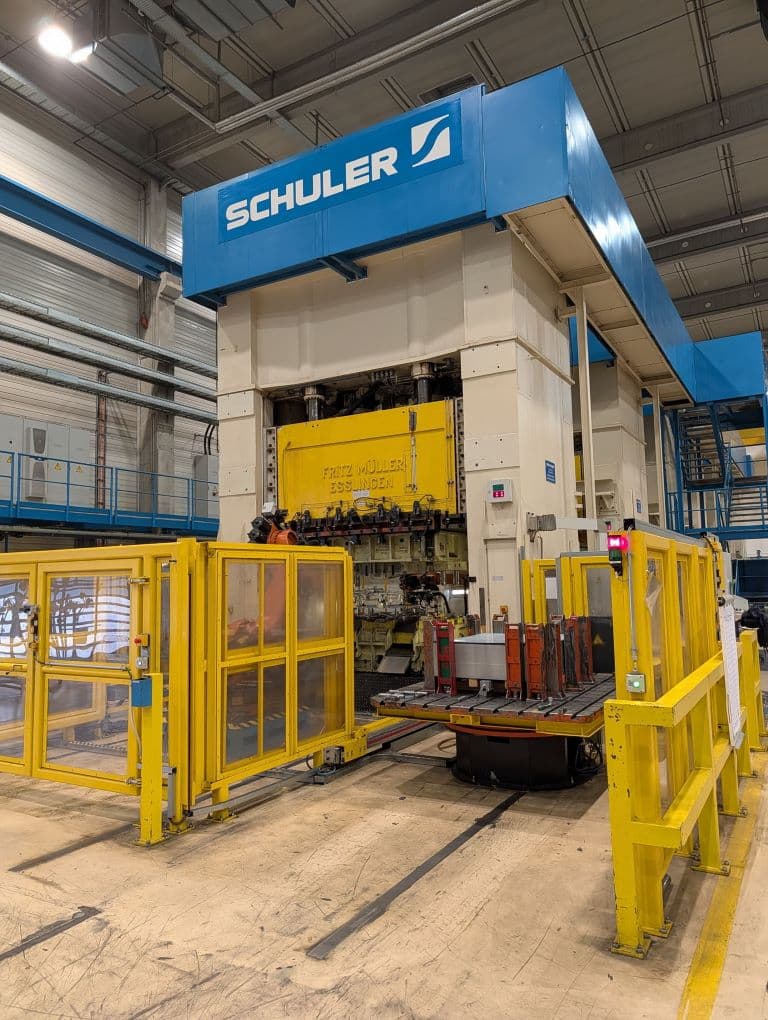

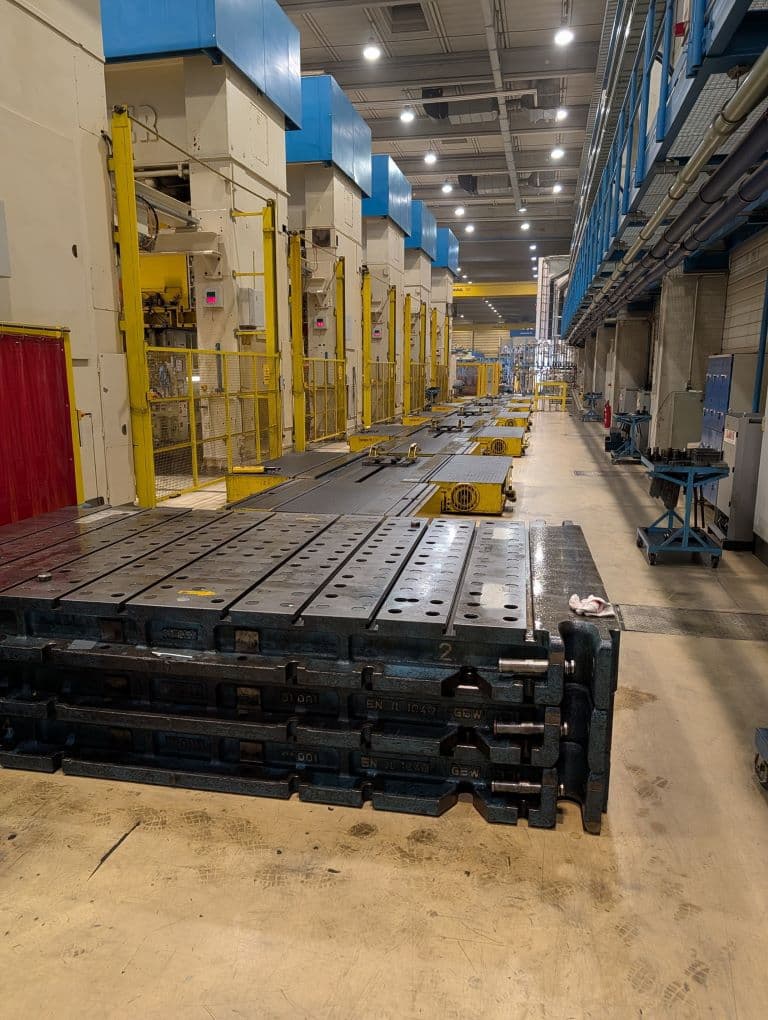

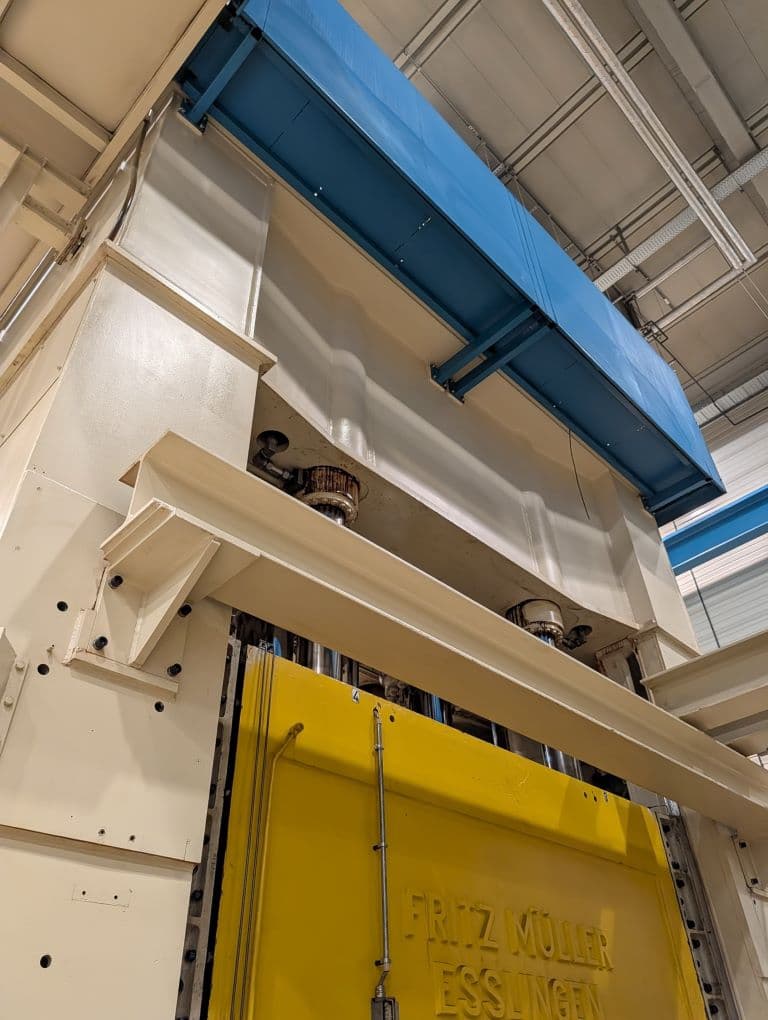

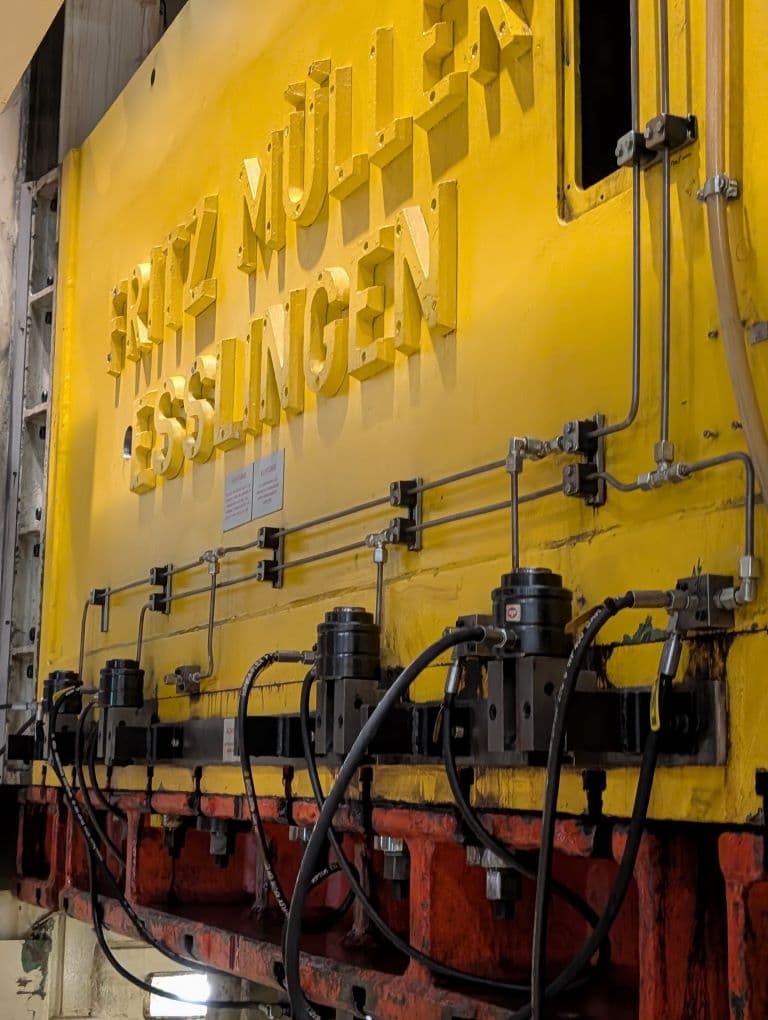

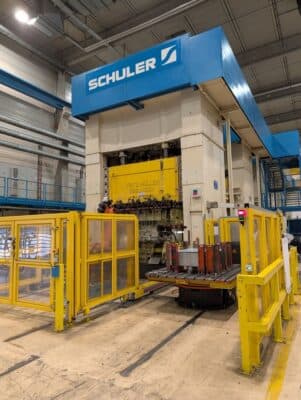

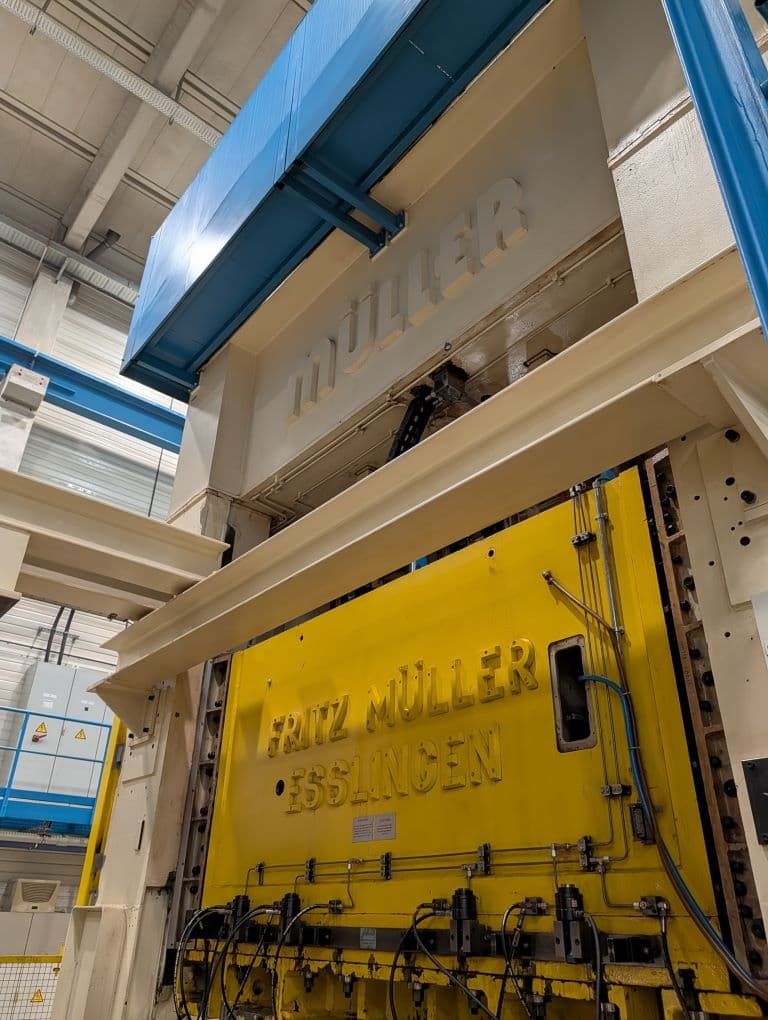

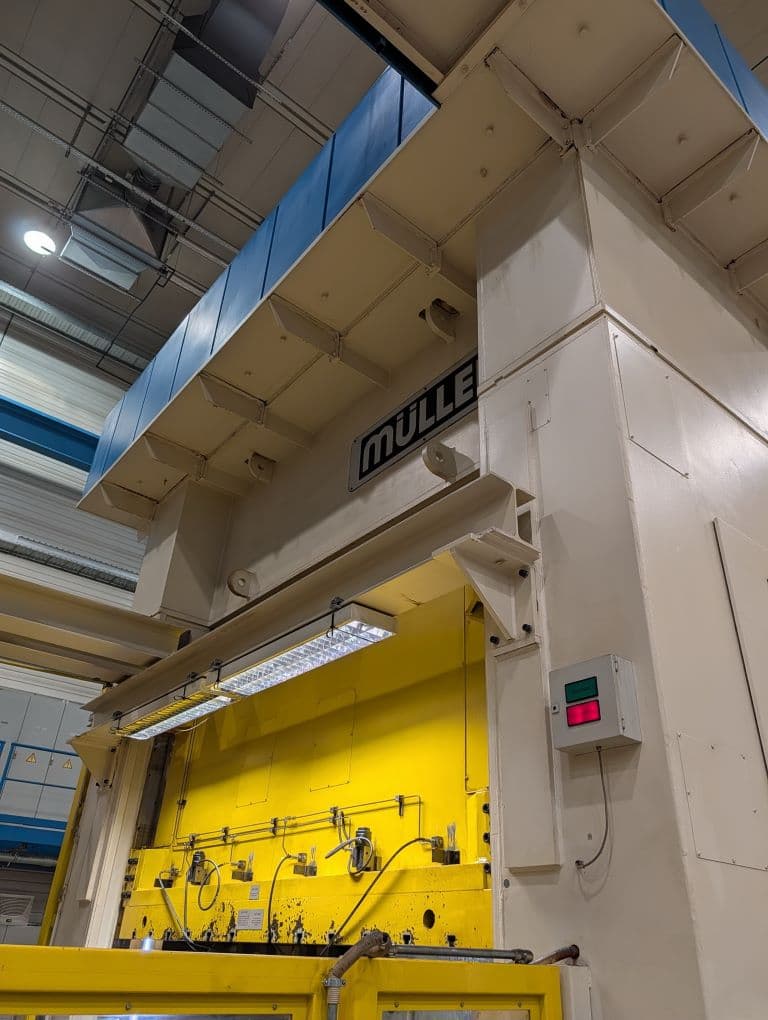

Tandem press line Fritz Muller 6P/5200 — 5200 ton

Dabrox Listing ID: 76459

Request detailed information on this offer:
- availability, price
- payment/delivery terms
- specifications, condition, photos, etc.

* Required fields

Fritz Muller 6P/5200 tandem press line - description

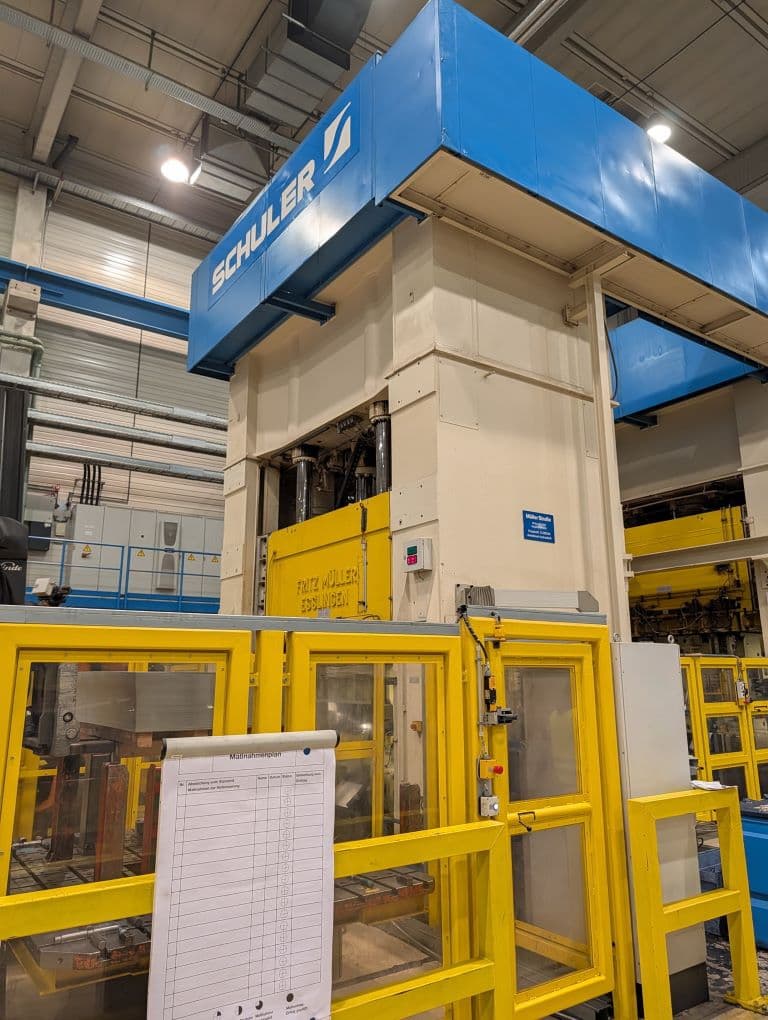

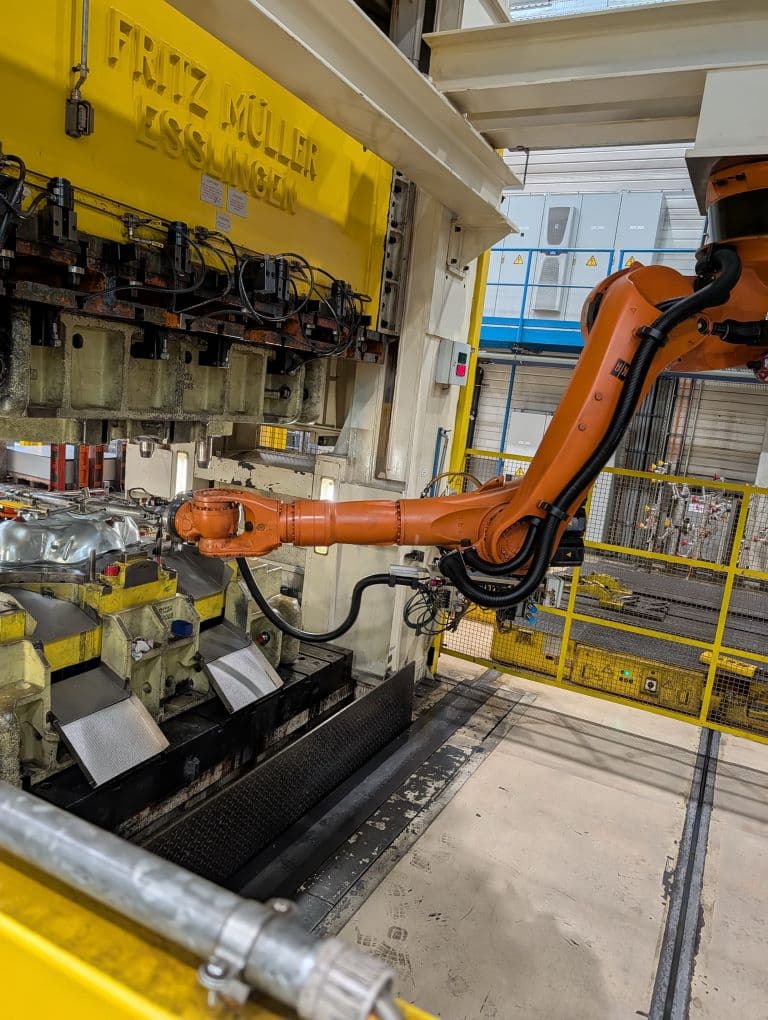

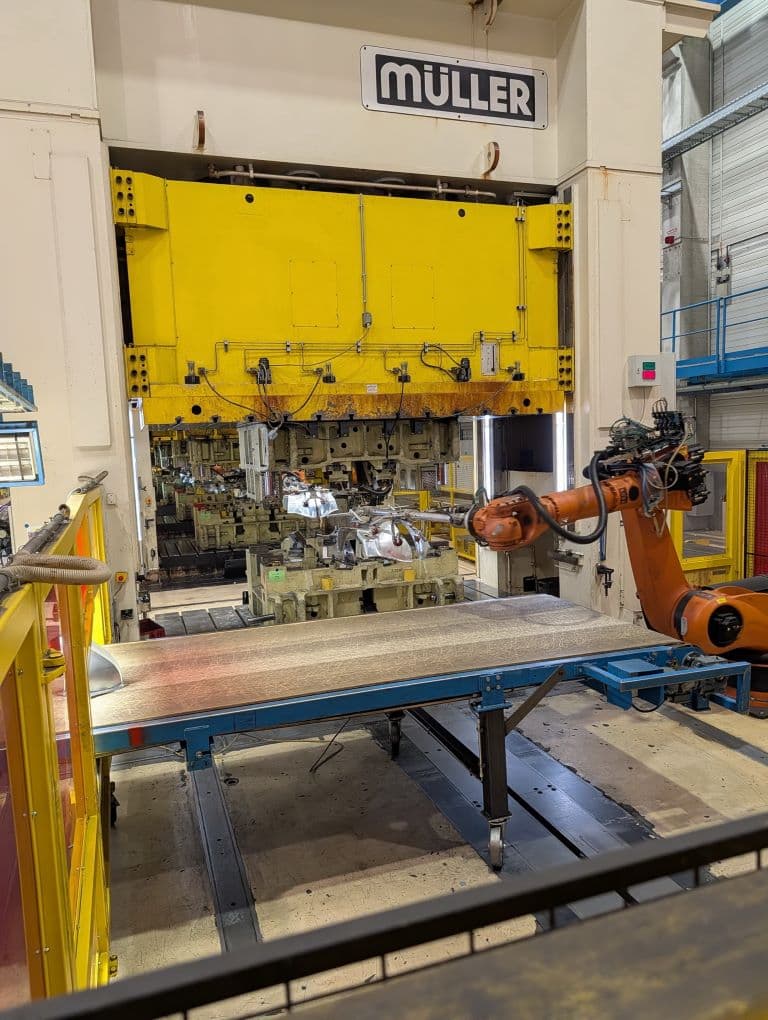

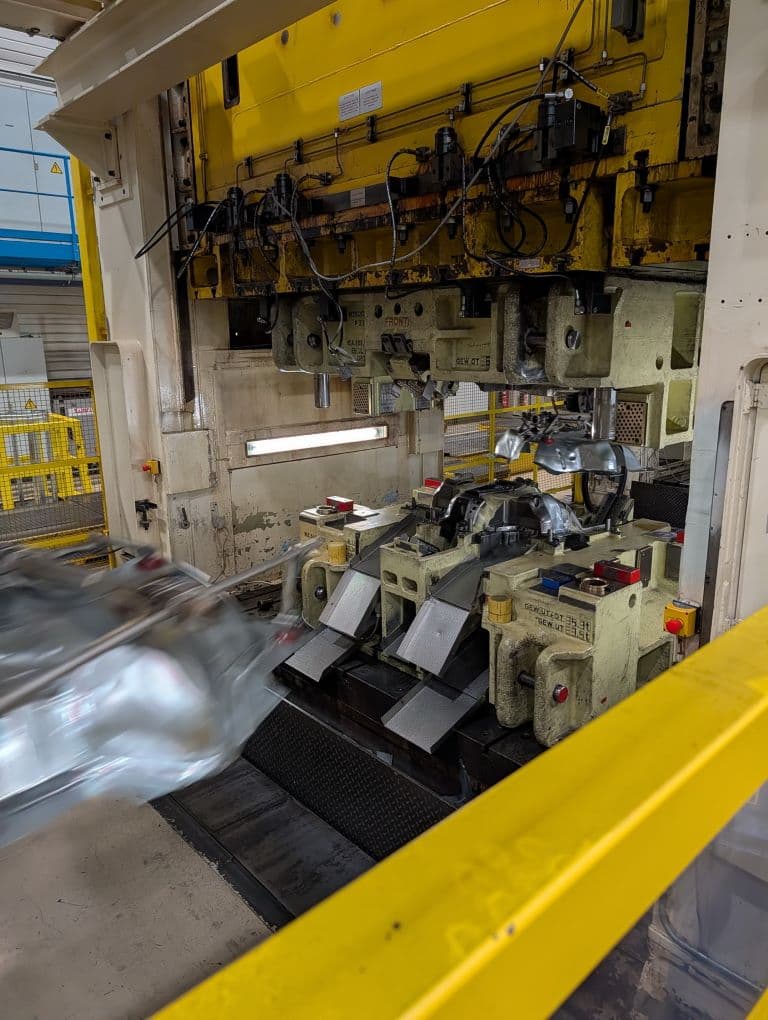

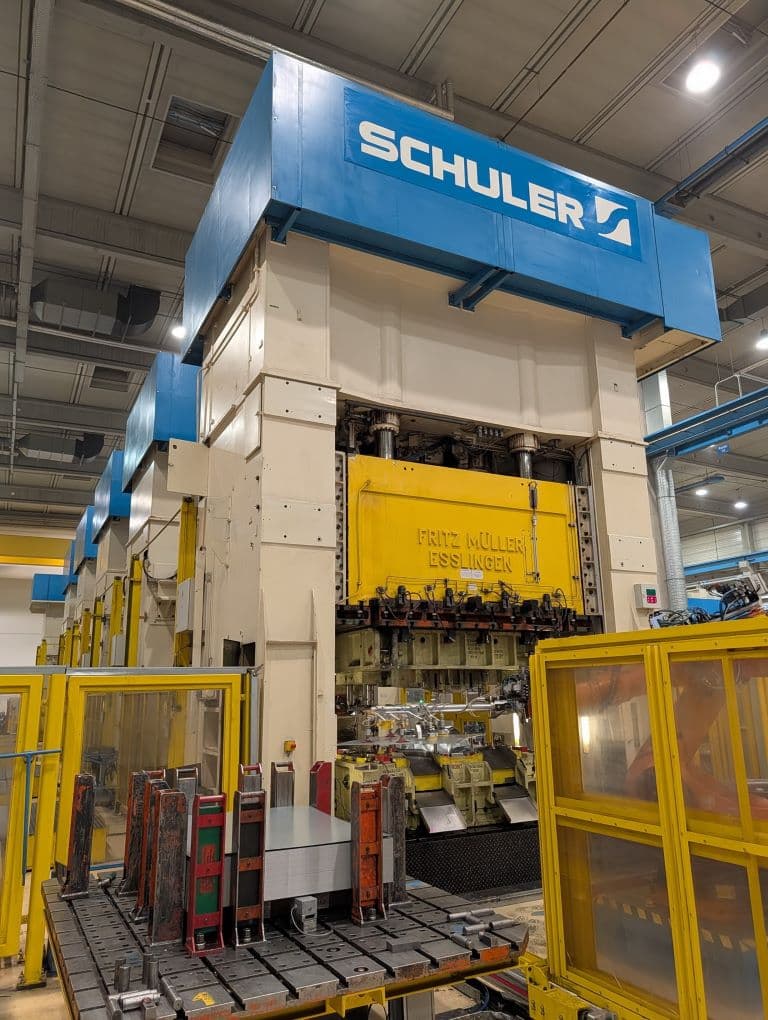

Tandem press line Fritz Muller 6P/5200 — 5200 ton (ID:76459) is a production line in which the stamping process is divided between several individual presses arranged sequentially one after another. The workpiece is transferred from one press to the next by independent robots or high-speed feeders. This layout provides production flexibility and allows processing of large, complex-shaped parts, with a separate operation performed at each position.

Technical specifications Fritz Muller 6P/5200 (ID:76459)

TypeTandem press line
ManufacturerFritz Muller
Model6P/5200
Number of presses6
Press 1 Type BZE 1200 – 35.1.1
Year of manufacture1972
Press force1200 ton
Press 2 Type ZE 800 – 35.1.1
Year of manufacture1969
Press force800 ton
Press 3 Type ZE 800 – 35.1.1
Year of manufacture1969
Press force800 ton
Press 4 Type ZE 800 – 35.1.1
Year of manufacture1969
Press force800 ton
Press 5 Type ZE 800 – 35.1.1
Year of manufacture1969
Press force800 ton
Press 6 Type ZE 800 – 40.3.1
Year of manufacture1993
Press force800 ton
Max. workpiece size3500 x 2200 mm
Max. tool weight32000 kg
Material thickness0.5 – 2.5 mm
Max. drawing depth430 mm
