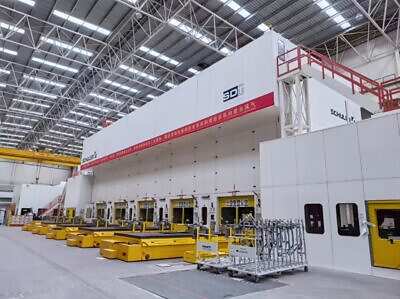

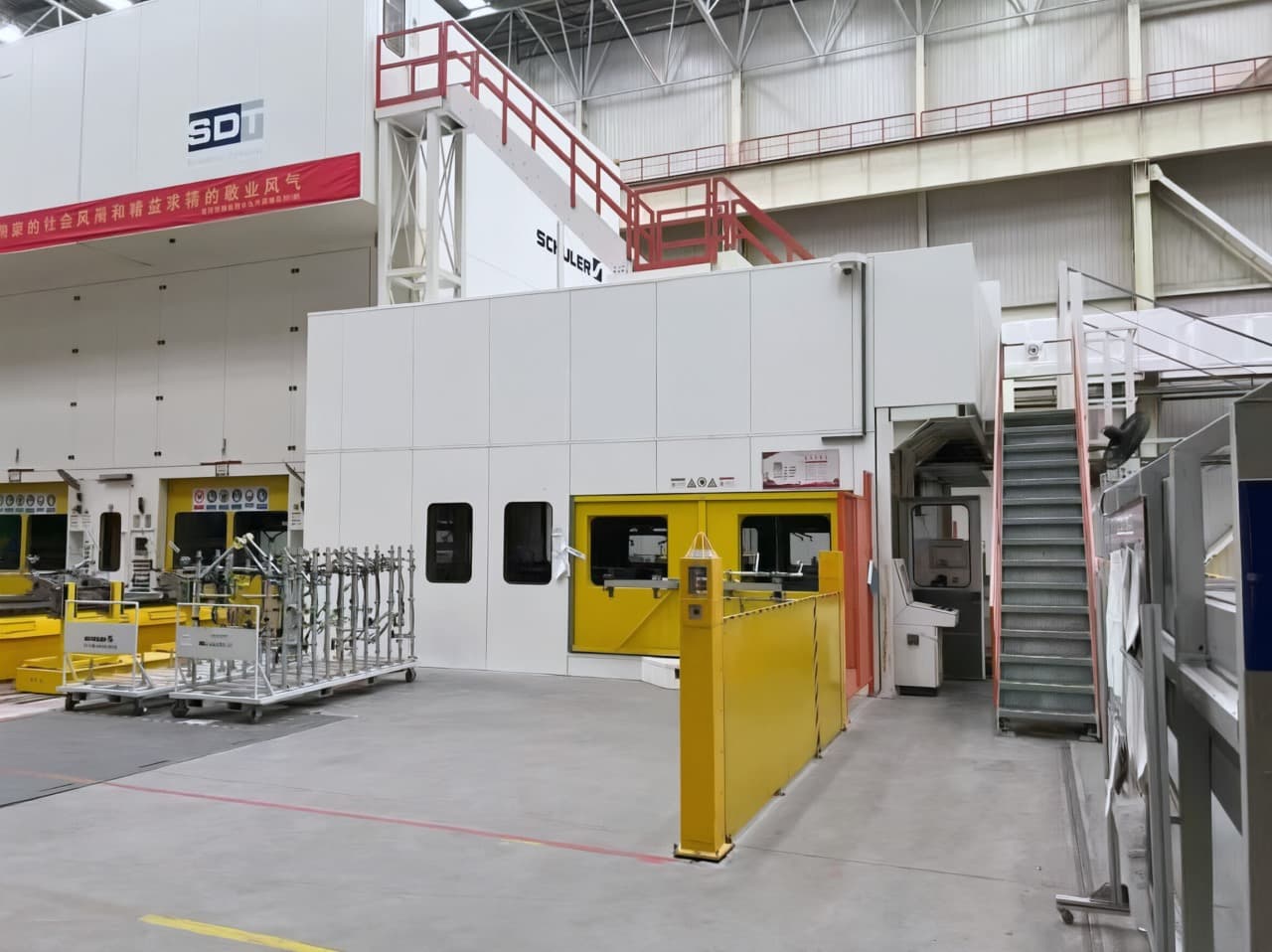

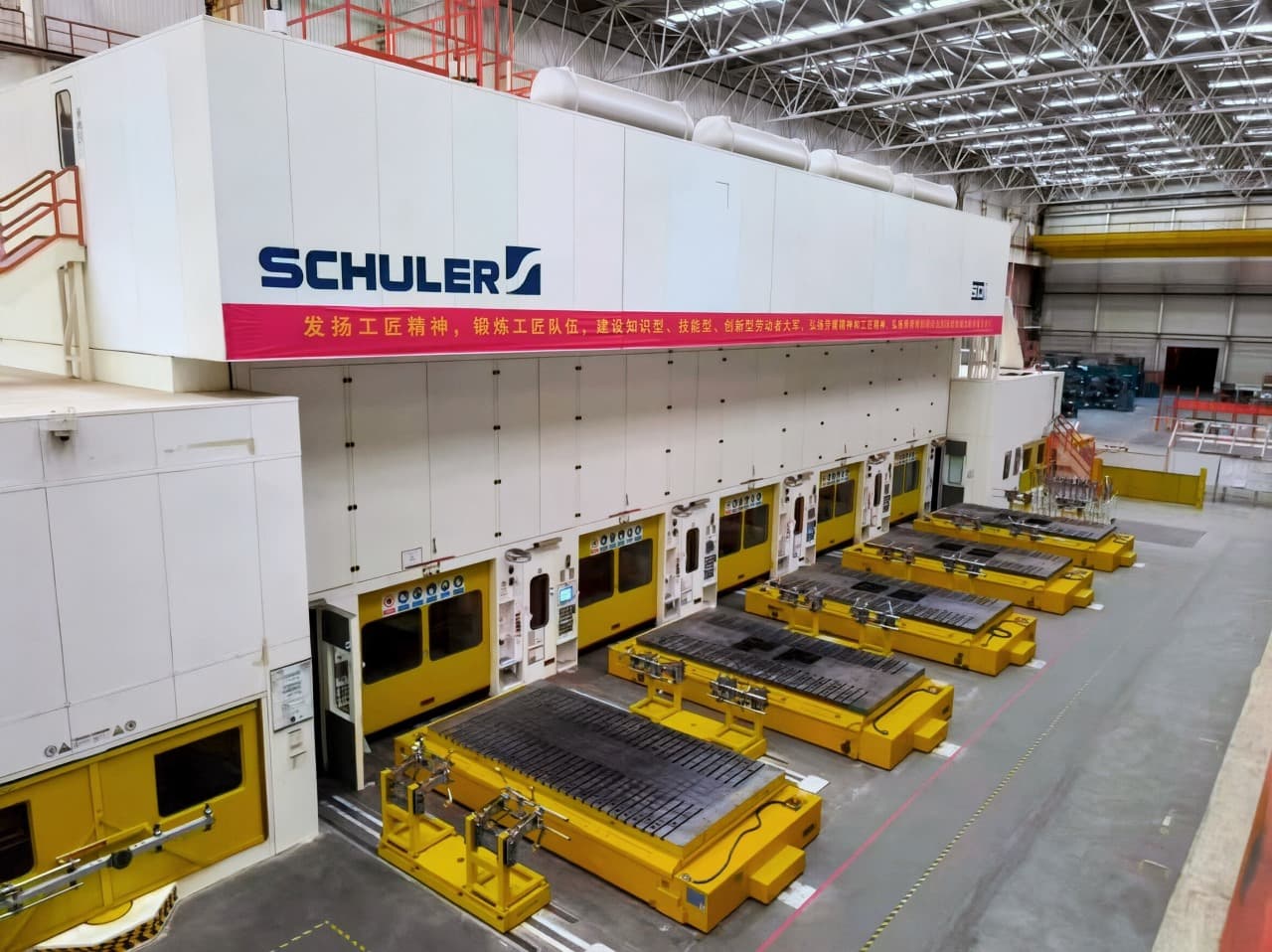

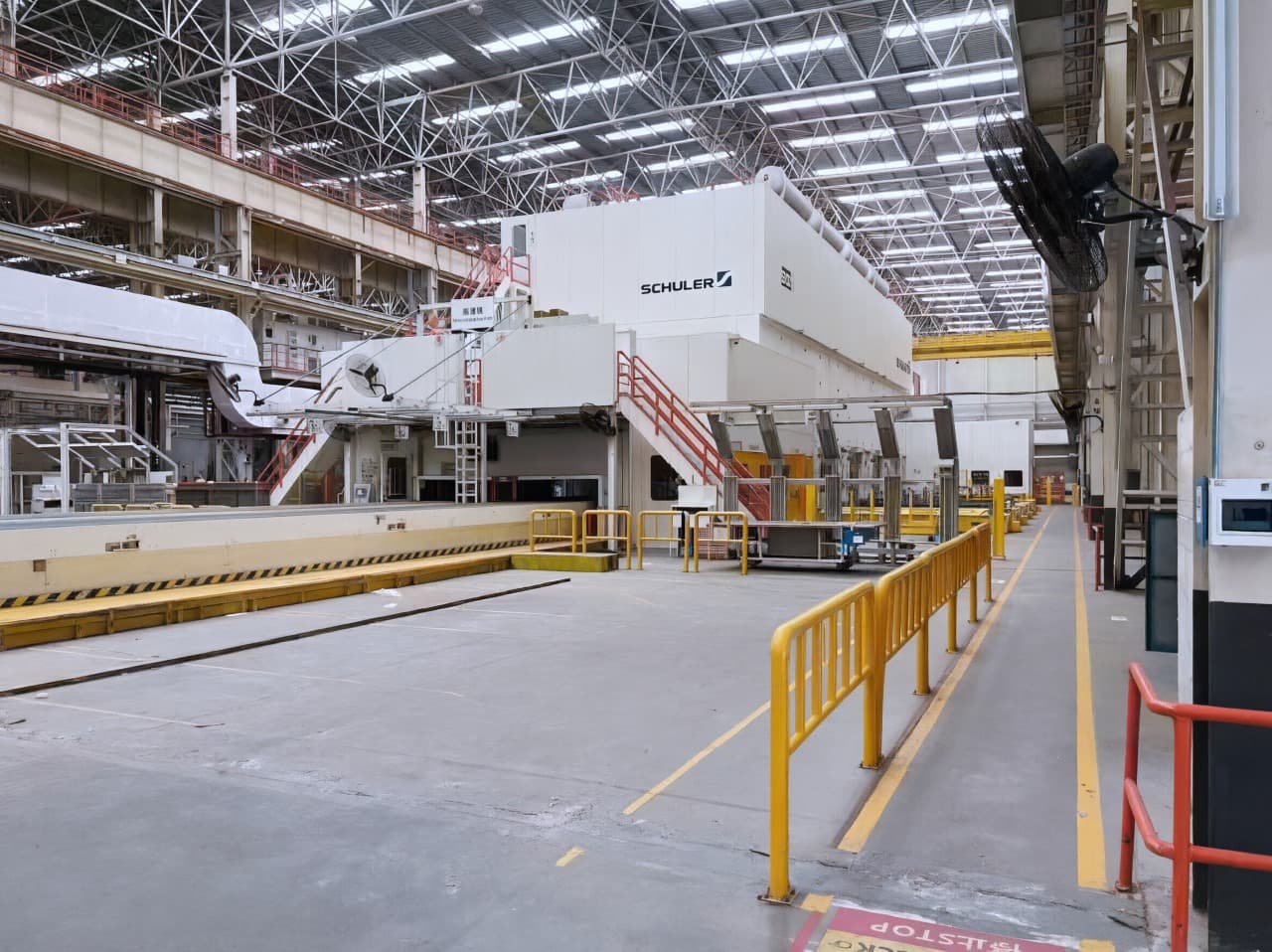

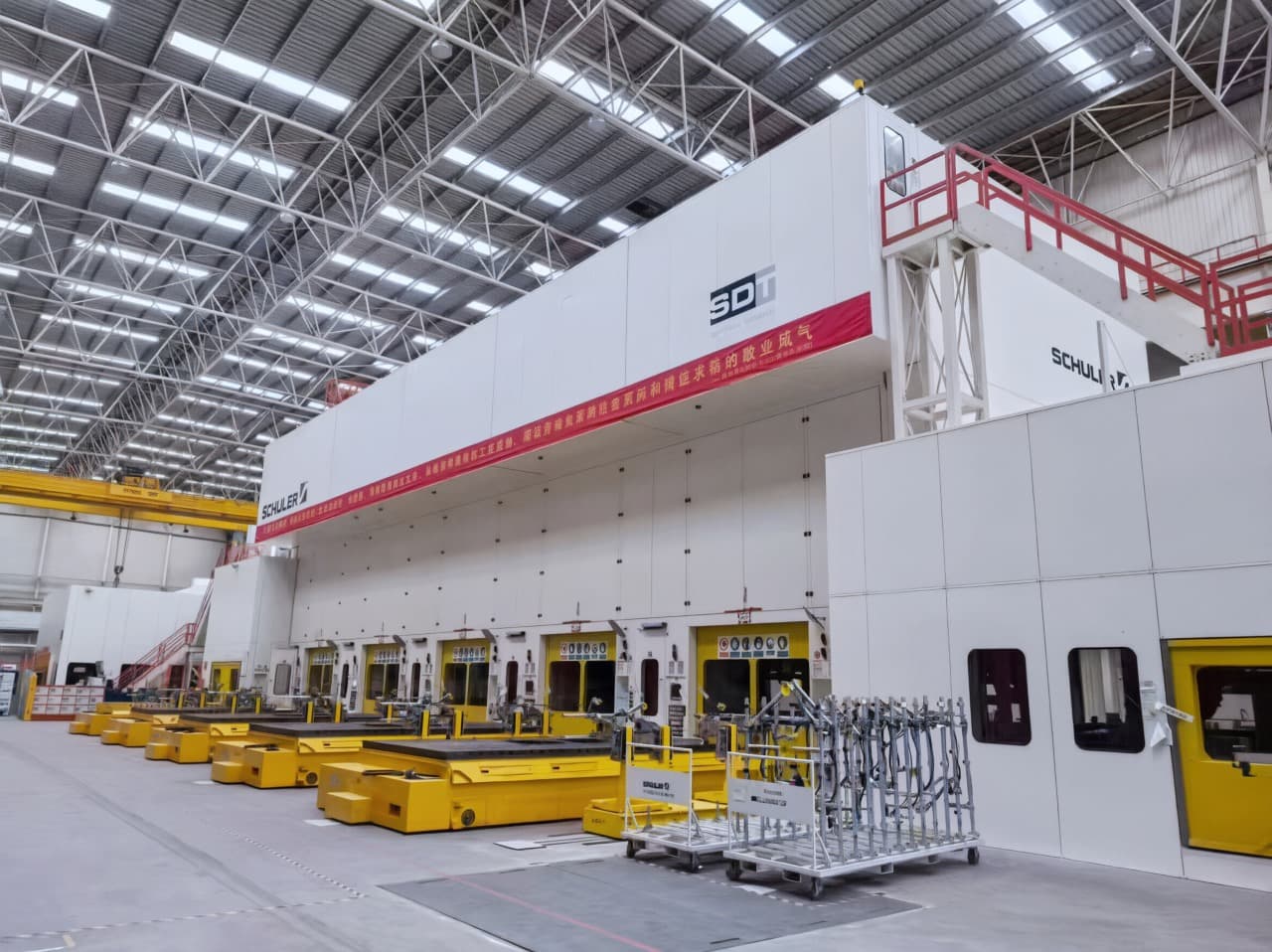

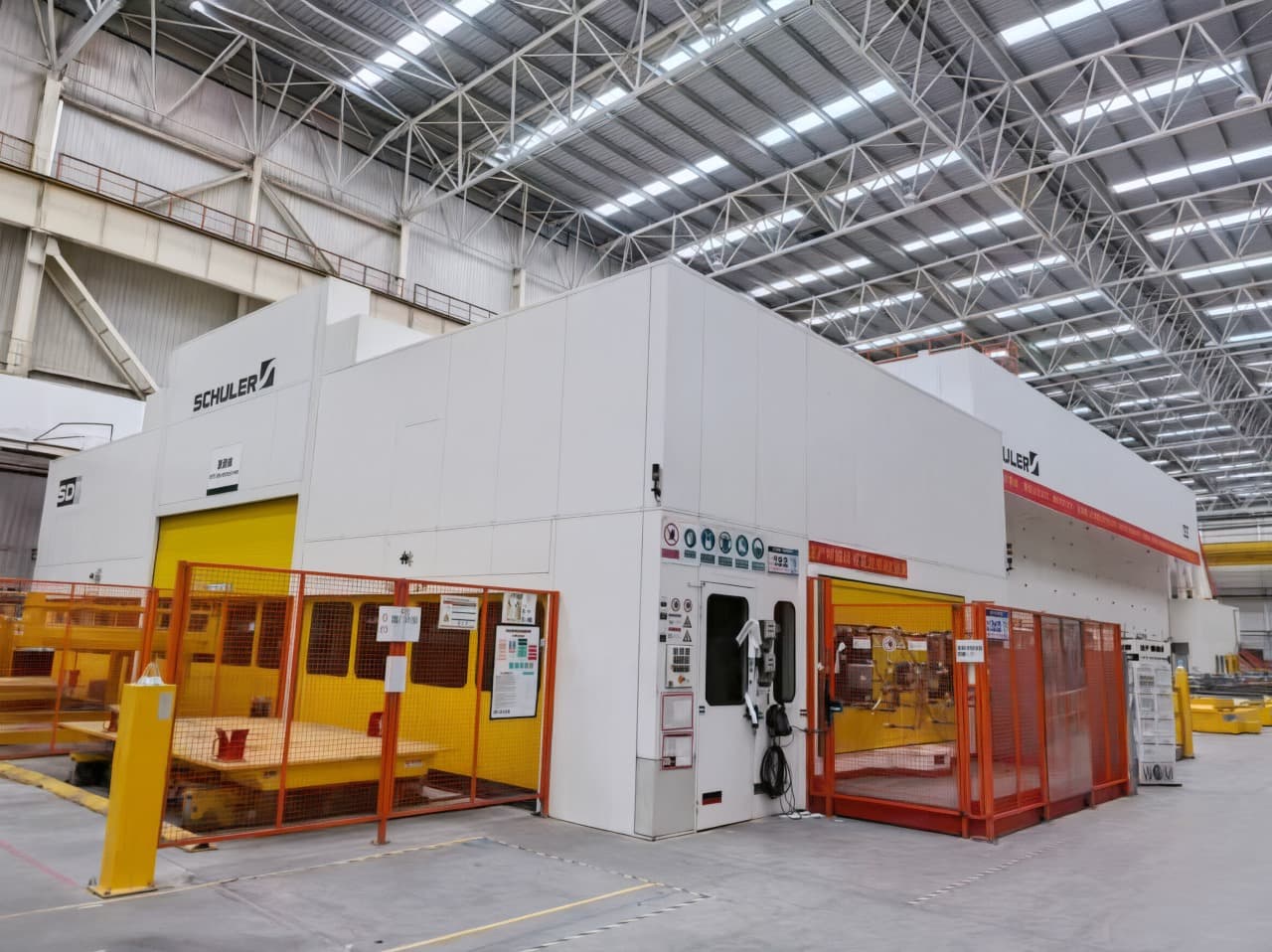

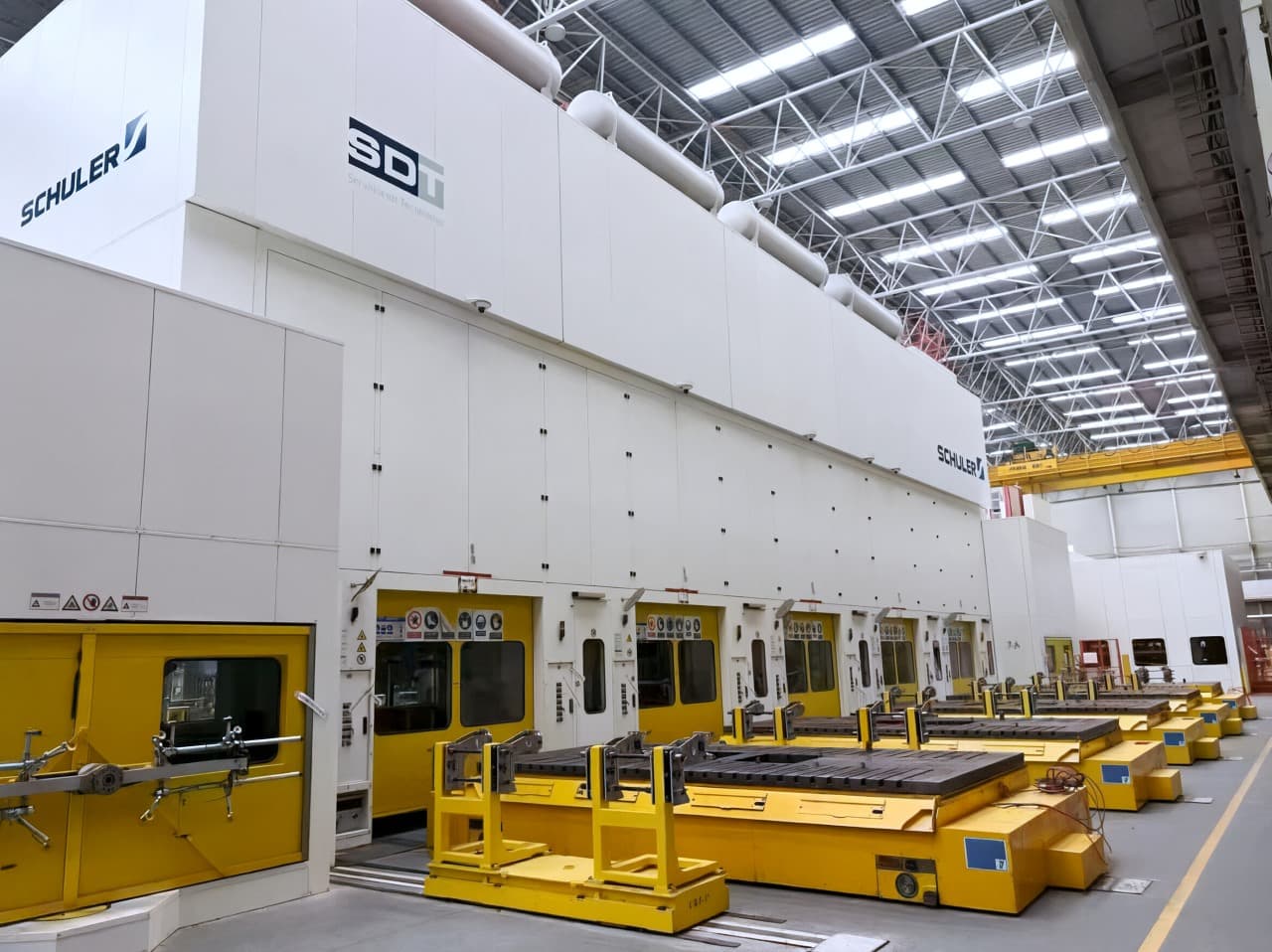

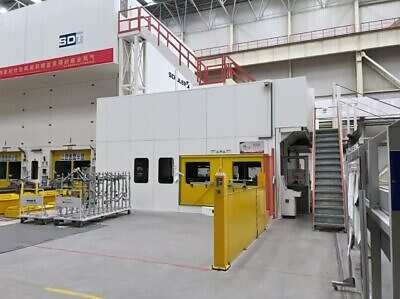

Tandem press line Schuler G1 5P/7300 — 7300 ton
Schuler G1 5P/7300 stamping line - description
Schuler G1 5P/7300 video (ID:76537)
Technical specifications Schuler G1 5P/7300 (ID:76537)
| Type | Stamping line |
|---|---|
| Manufacturer | Schuler |
| Model | G1 5P/7300 |
| Year of manufacture | 2014 |
| Type | Tandem line |
| Press 1 | |
| Make | Schuler |
| Model | SSL4 |
| Force | 2500 ton |
| Nominal force stroke | 8 mm |
| Strokes per minute | 3-17 |
| Table dimensions | 5000 x 2500 mm |
| Die height | 1600 mm |
| Slider stroke | 1300 mm |
| Adjustment | 530 mm |
| Presses 2-5 | |
| Make | Schuler |
| Model | SSL4 |
| Force | 1200 ton |
| Nominal force stroke | 8 mm |
| Strokes per minute | 3-17 |
| Table dimensions | 5000 x 2500 mm |
| Die height | 1600 mm |
| Slider stroke | 1300 mm |
| Adjustment | 530 mm |
Please note: Specifications are indicative and subject to final confirmation. For current availability and price, as well as photos and technical details, please contact us.
Stamping line Schuler - technological processes and operations
| Sheet stamping | Sheet stamping is a class of operations for forming parts from sheet material using dies. The workpiece is deformed in the tool without significant change in thickness, acquiring the specified shape. This group includes blanking, punching, bending, drawing, and other processes performed on presses. Sheet stamping is the foundation of mass production of body panels, housings, and other thin metal parts. |
|---|---|
| Blanking | Blanking a part from a sheet along a closed contour is performed on a press using a blanking die. The tool passes through the material, separating the finished part from the sheet. The accuracy of the contour and the cleanliness of the edge determine the quality of the final product. |
