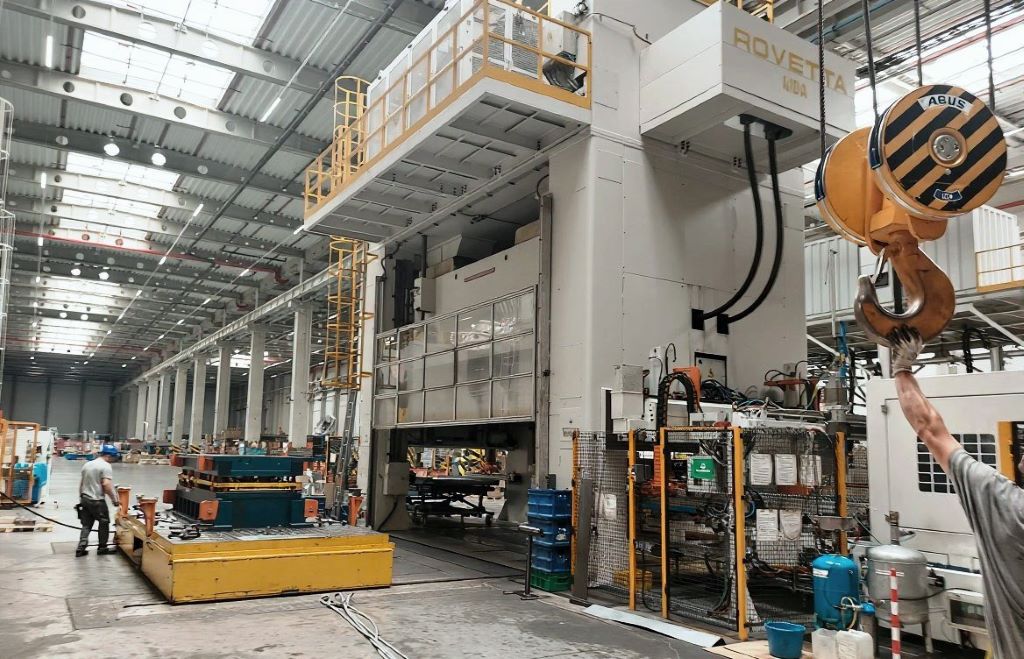

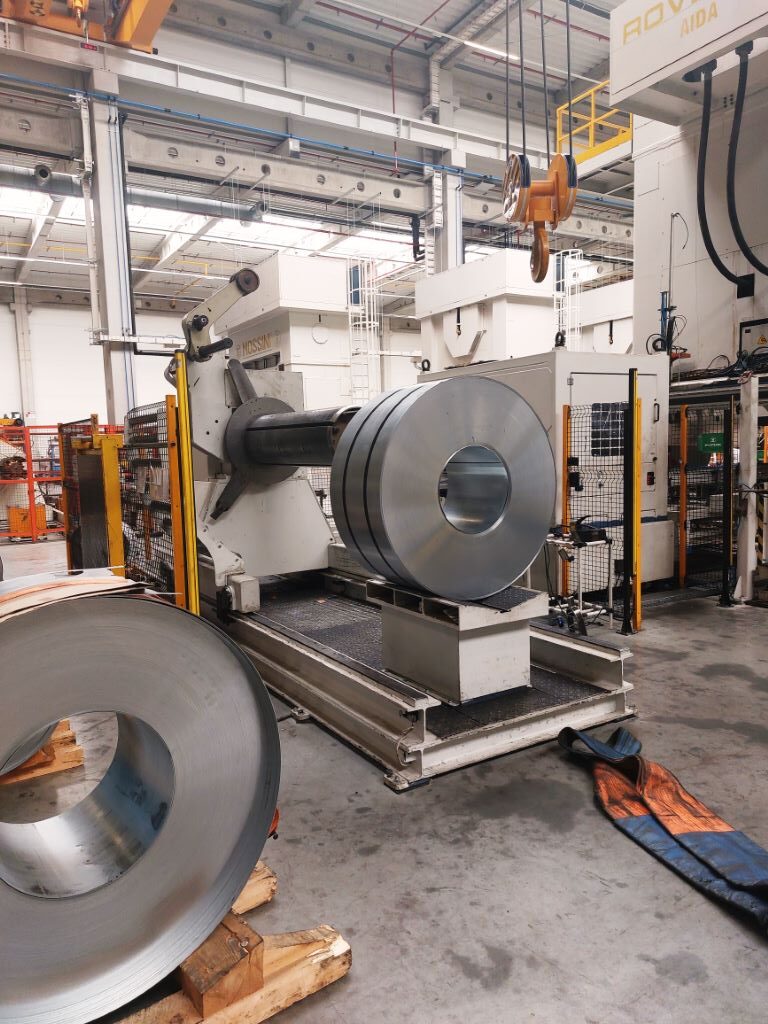

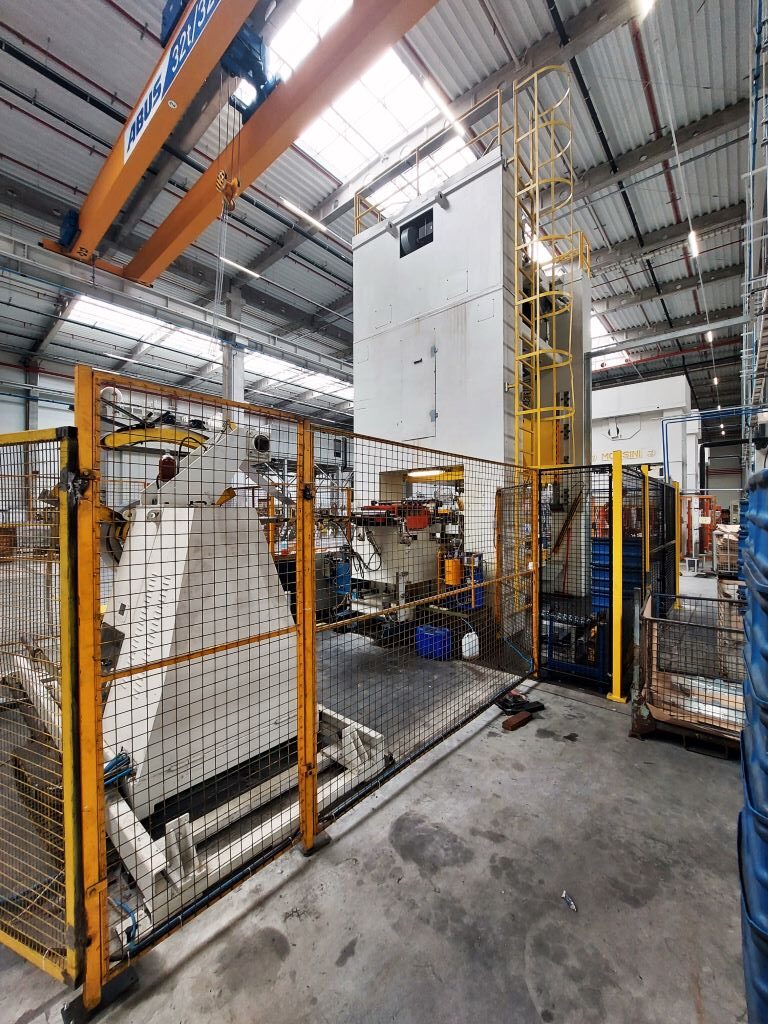

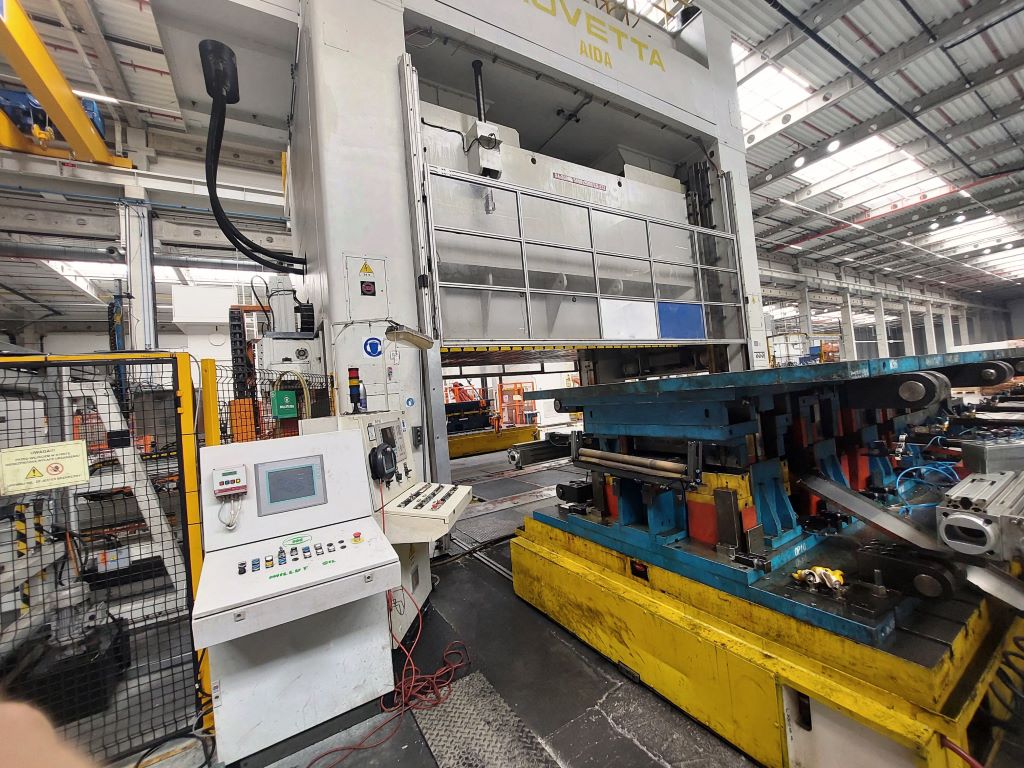

Transfer press Aida Rovetta S4-20000/5500×2500/LD-ET3 — 2000 ton
Rovetta S4-20000/5500x2500/LD-ET3 stamping press - description
Technical specifications Rovetta S4-20000/5500x2500/LD-ET3 (ID:76379)
| Type | Stamping press |
|---|---|
| Manufacturer | Rovetta |
| Model | S4-20000/5500x2500/LD-ET3 |
| Nominal press force | 2000 ton |
| SPM | 8-24 |
| Nominal energy | 400 kJ |
| Slide stroke | 700 mm |
| Slide adjustment | 600 mm |
| Open height | 1400 mm |
| Clearance between uprights | 5970 mm |
| Table dimensions | 5500 × 2500 mm |
| Lower slide table dimensions | 5500 × 2500 mm |
| Height of slide/ram carriage | 600 mm |
| Opening in uprights | 3100 mm |
| Main motor power | 250 kW |
| Cushion force | 1500 kN |
| Cushion stroke | 250 mm |
| Press weight approx. | 390000 kg |
| Normal slide rest position | Top Dead Centre |
| Maximum flywheel speed | 421.6 rpm |
| Maximum slide dimensions | 5500 × 2500 mm |
| Max weight of upper die | 200 kN |
| Power supply | 400 V, 50 Hz |
| Minimum pneumatic supply pressure | 6 bar |
| Hydraulic pressure in brake–clutch unit – min. | 68 bar |
| Hydraulic pressure in brake–clutch unit – max. | 73 bar |
| Transfer system | |
| Transfer stroke | 0-1250 mm |
| Maximum opening | 2500 mm |
| Bar-closing stroke | 0-750 mm |
| Lift stroke | 0-280 mm |
| Internal clearance between closed bars | 1000 mm |
| Pass-line height relative to bolster | 580 mm |
Stamping press Rovetta - technological processes and operations
| Sheet stamping | Sheet stamping is a class of operations for forming parts from sheet material using dies. The workpiece is deformed in the tool without significant change in thickness, acquiring the specified shape. This group includes blanking, punching, bending, drawing, and other processes performed on presses. Sheet stamping is the foundation of mass production of body panels, housings, and other thin metal parts. |
|---|---|
| Drawing | Drawing turns a flat blank into a hollow product. The sheet is clamped at the edges while the tool presses the central part, forcing the metal to flow into the die cavity and form walls. This is how cups, caps, housings, and other parts with one open side are produced. |
| Punching | Punching holes in sheet metal is performed in a die: a tool with sharp edges passes through the workpiece, separating material along a closed contour. The process is fast and precise, leaving no burrs when properly set up. Used for producing holes, slots, and cutouts in sheet metal parts. |
| Blanking | Blanking a part from a sheet along a closed contour is performed on a press using a blanking die. The tool passes through the material, separating the finished part from the sheet. The accuracy of the contour and the cleanliness of the edge determine the quality of the final product. |
| Bending | Bending gives a sheet blank an angle or curvature. The metal is bent in the die under the force of the press: the outer layers stretch, the inner layers compress, and the middle retains its original length. The operation allows producing parts with the specified geometry without changing the material thickness. |
