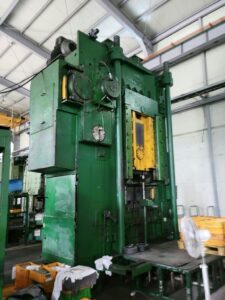

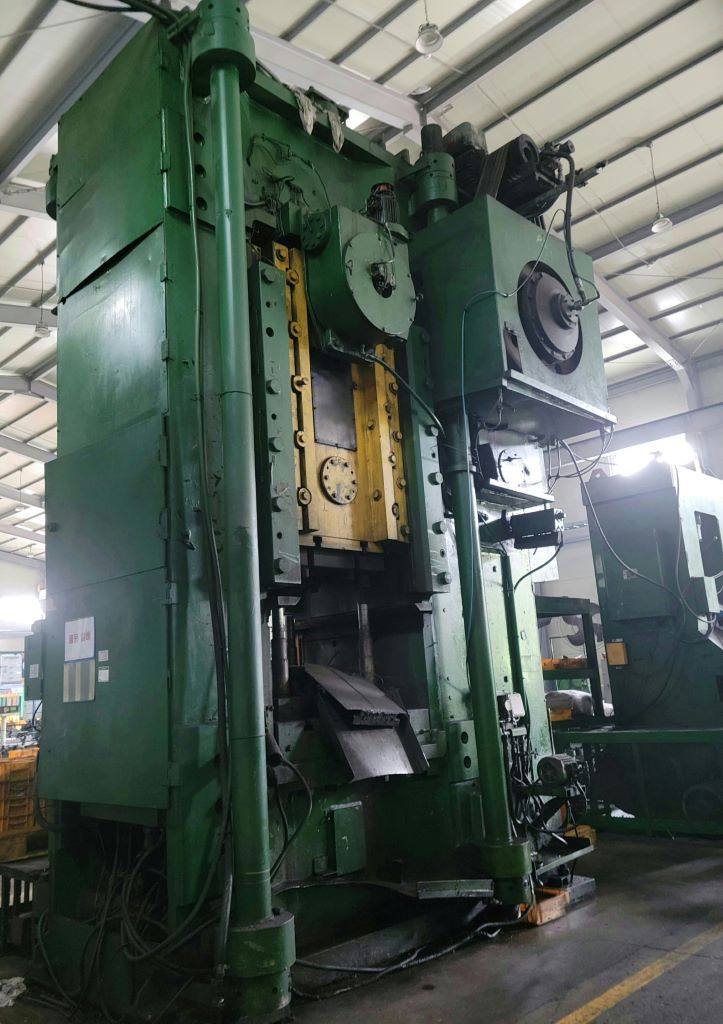

Cold extrusion press Barnaul KB0040 — 1000 ton
Barnaul KB0040 cold forging press - description
Technical specifications Barnaul KB0040 (ID:76323)
| Type | Cold forging press |
| Manufacturer | Barnaul |
| Model | KB0040 |
| Year of manufacture | 1995 |
| Nominal force | 1000 ton |
| SPM | 25 |
| Stroke | 300 mm |
| Distance between table and ram | 700 mm |
| Table dimensions | 1250 x 1250 mm |
| Dimensions | 3870 x 3150 x 5900 mm |
| Weight | 75 ton |
Cold forging press Barnaul - technological processes and operations
| Forging | The process of plastic deformation of metal, in which the workpiece changes shape under the impact of blows or static pressure. During forging, the metal structure is densified, internal inhomogeneities are eliminated, and the mechanical properties of the material are improved. As a result, forged products are distinguished by high strength and reliability when operating under significant loads. Forging is used both for producing finished parts and for preparing workpieces for subsequent stamping. |
| Coining | Under enormous pressure, the die is pressed into the workpiece, forcing the metal to distribute into the smallest recesses of the tool. As a result, clear reliefs, inscriptions, or patterns are formed on the surface with high accuracy. The metal fills all details of the die, fully reproducing its geometry. Used in the production of coins, medals, and precision parts where relief clarity and dimensional accuracy are essential. |
| Calibrating | A finishing operation that brings the forging to precise dimensions. The workpiece is placed in a calibration die, where under pressure its surface is leveled and the geometry is brought to the specified tolerances. This process eliminates minor shape distortions left after previous operations. As a result, the part receives stable dimensions and a smooth surface without additional machining. |
| Extrusion | Shaping is achieved by forcing metal through the opening of a die (stamp), as a result of which the workpiece acquires the specified cross-section along its entire length. The process ensures high geometric accuracy and surface quality of the resulting products. |
