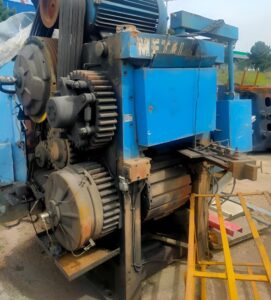

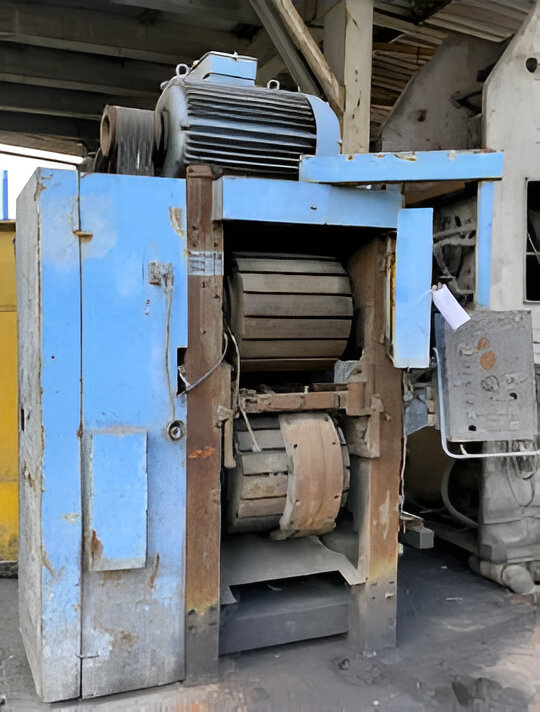

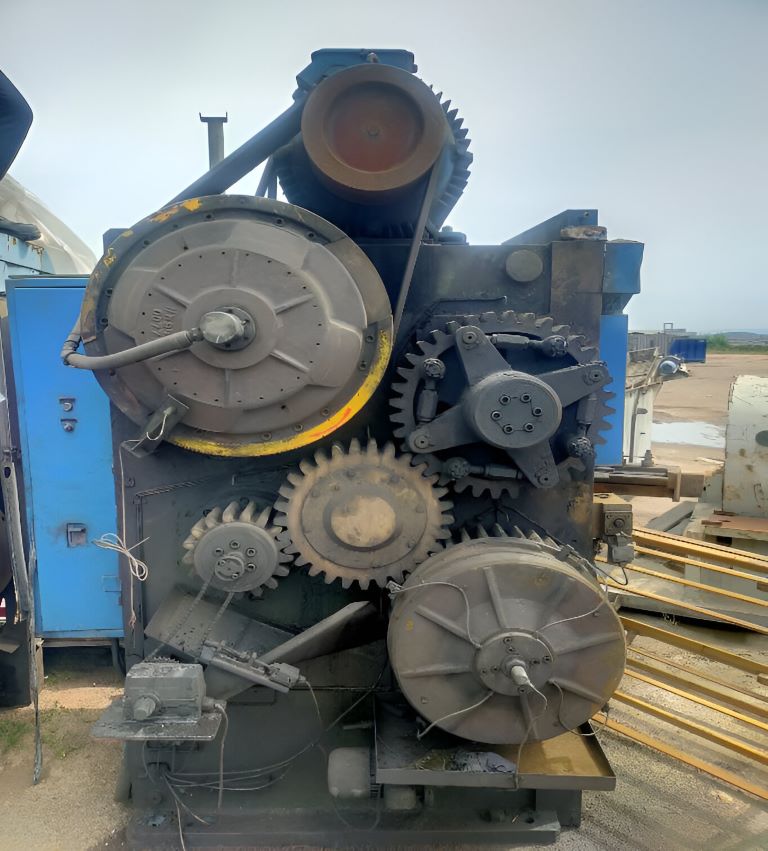

Cross wedge rolling machine Metalpres ULT 45 — 45 mm
Metalpres ULT 45 forging rolls - description
Technical specifications Metalpres ULT 45 (ID:76253)
| Type | Forging rolls |
|---|---|
| Manufacturer | Metalpres |
| Model | ULT 45 |
| Year of manufacture | 1990 |
| Diameters of the Rolled Billets | 14 — 45 mm |
| Rollers Width | 400 mm |
| Number of Rollers Revolutions | 15 rpm |
| Rollers Gap Distance | 0 — 25 mm |
| Working Cycle Time | 6.5 Seconds |
| Total Installed Output | 85 hp |
| Dimensions approx. (L x W x H) | 1700 x 2250 x 2380 mm |
| Weight approx. | 9400 kg |
Forging rolls Metalpres - technological processes and operations
| Forging | The process of plastic deformation of metal, in which the workpiece changes shape under the impact of blows or static pressure. During forging, the metal structure is densified, internal inhomogeneities are eliminated, and the mechanical properties of the material are improved. As a result, forged products are distinguished by high strength and reliability when operating under significant loads. Forging is used both for producing finished parts and for preparing workpieces for subsequent stamping. |
|---|---|
| Preforming | Preforming prepares the workpiece for the main stamping operation by giving it an approximate shape of the future part. The metal is distributed in the die to facilitate final filling and reduce tool wear. This intermediate step improves accuracy and quality of the finished product. |
| Roll forging | The workpiece is passed between two rolls with profiled grooves (dies), and under their pressure the metal flows, changing its cross-section and length. Each pass through the rolls gradually brings the workpiece closer to the desired shape — this is how shaped forgings are prepared for subsequent stamping. The method is characterized by high productivity and minimal material loss, making it cost-effective in series production. |
