Forging upsetter Eumuco SM 200 — 200 ton

Dabrox Listing ID: S89866

Request detailed information on this offer:
- availability, price
- payment/delivery terms
- specifications, condition, photos, etc.

* Required fields

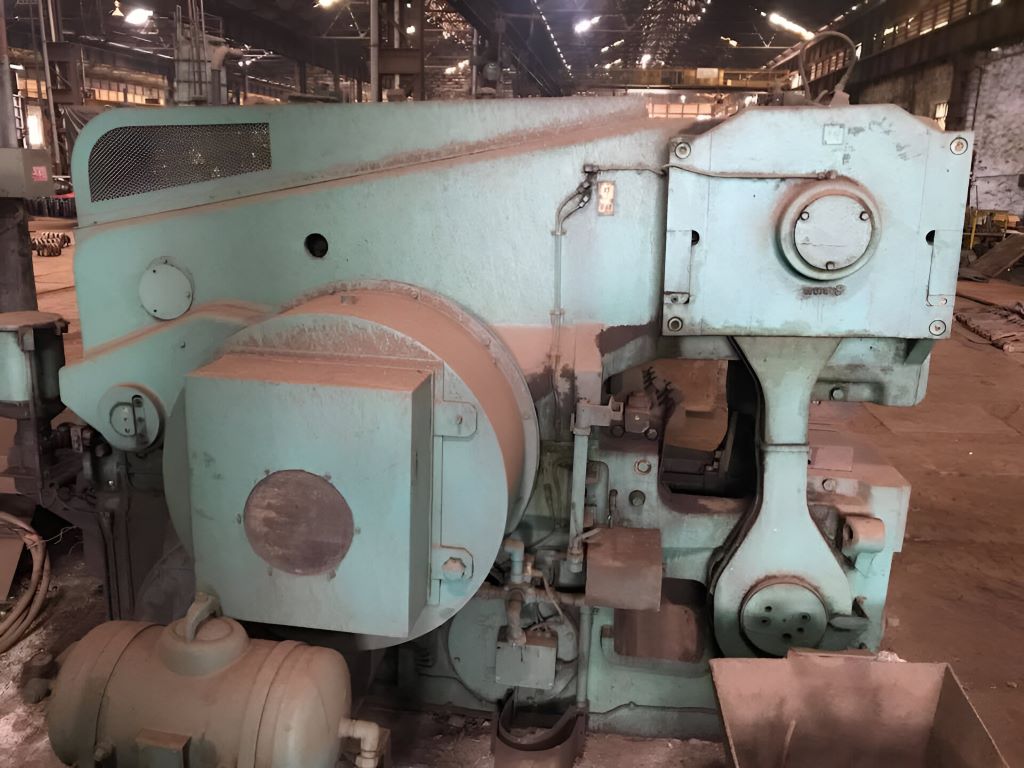

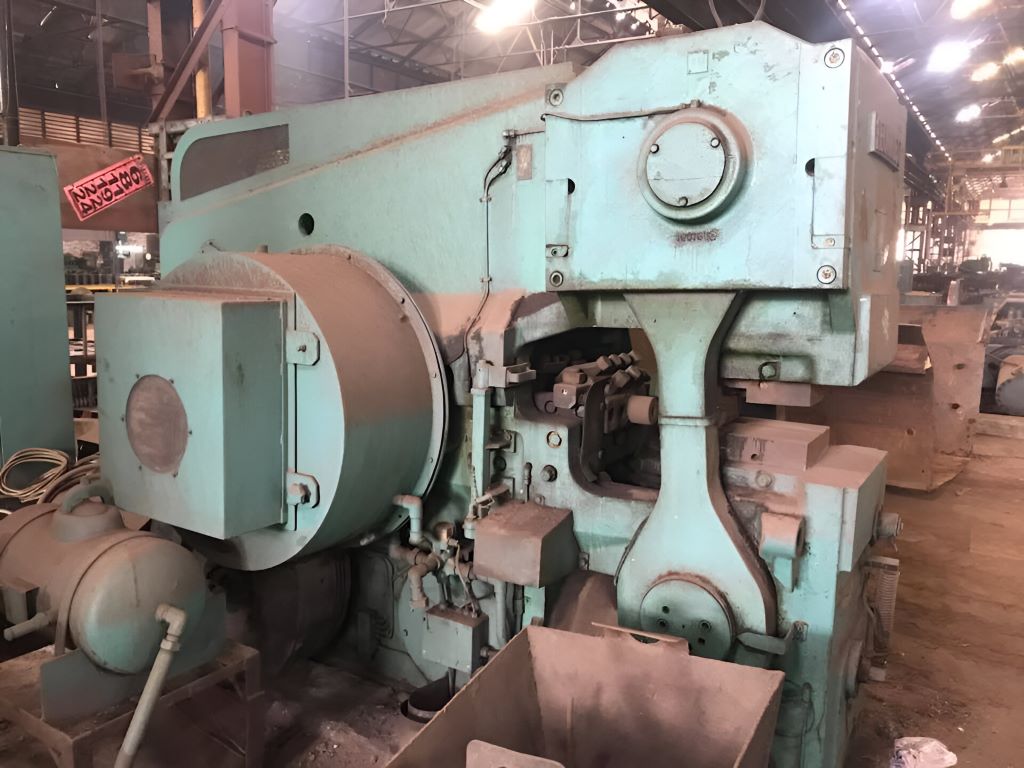

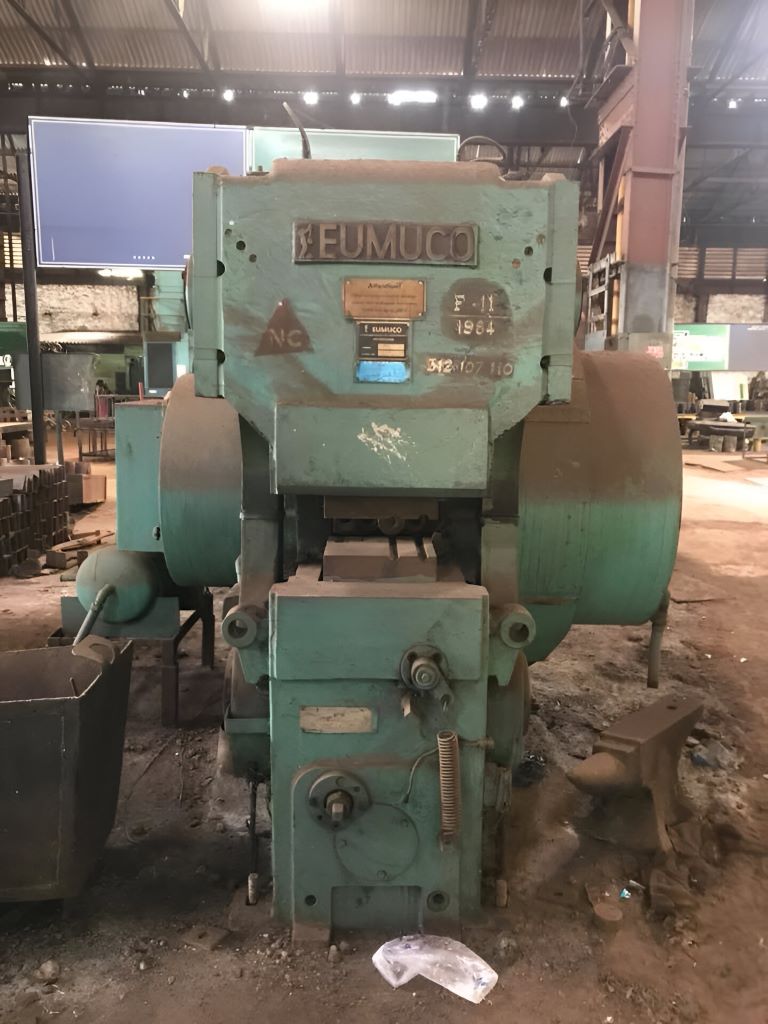

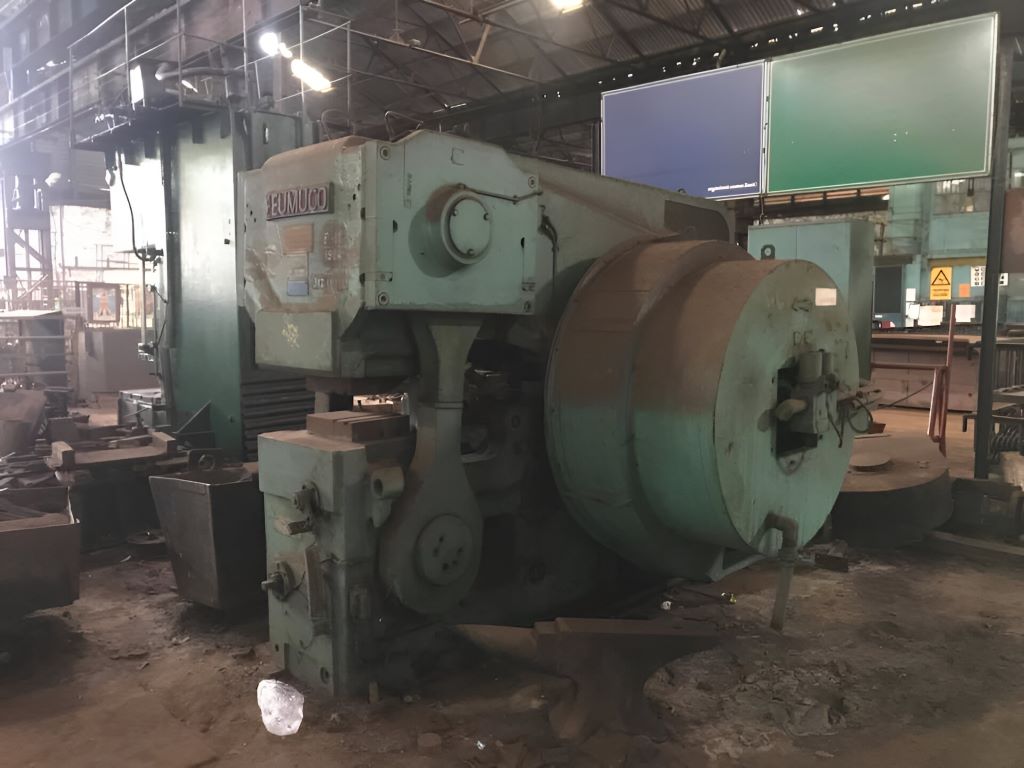

Eumuco SM 200 forging upsetter - description

Forging upsetter Eumuco SM 200 — 200 ton (ID:S89866) is forging and pressing equipment designed for metal upsetting — an operation in which the workpiece is compressed axially with an increase in cross-section. The machine ensures precise workpiece positioning, high deformation force, and stability over repeated working cycles. Used in the production of rod-type parts with heads, flanges, and stepped transitions.

Technical specifications Eumuco SM 200 (ID:S89866)

TypeForging upsetter
ManufacturerEumuco
ModelSM 200
Upsetting force200 ton
Clamping force265 ton
Usable upsetting stroke130 mm
SPM65
Opening of clamping jaws100 mm
Stroke of clamping slide100 mm
Dimensions3300 x 2400 x 2400 mm
Total weight16.2 ton
