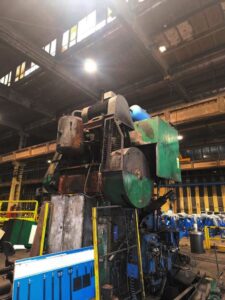

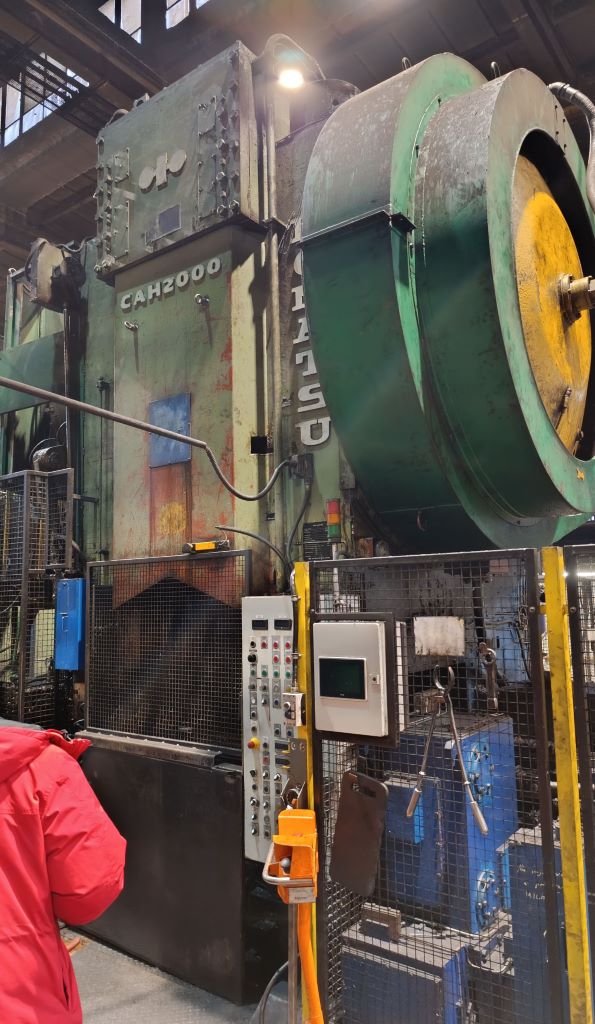

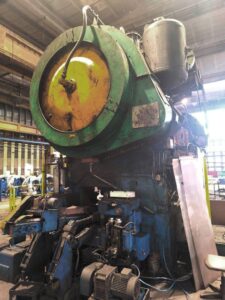

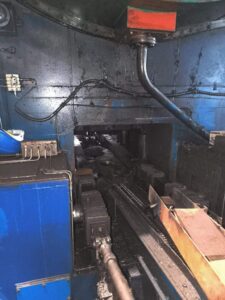

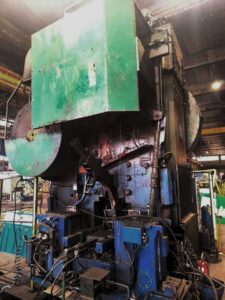

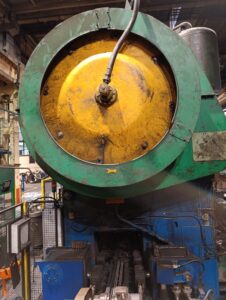

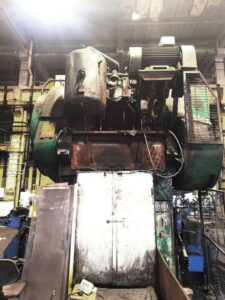

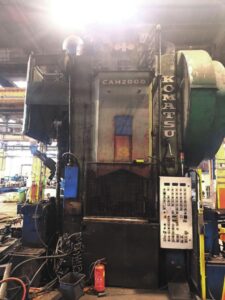

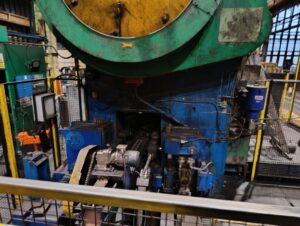

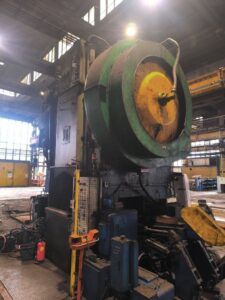

Hot forging press Komatsu CAH2000 — 2000 ton
Komatsu CAH2000 hot forging press - description
Technical specifications Komatsu CAH2000 (ID:76397)
| Type | Hot forging press |
| Manufacturer | Komatsu |
| Model | CAH2000 |
| Max. capacity | 2000 ton |
| Slide stroke | 300 mm |
| Shut-height | 900 mm |
| Wedge adjustment | 14 mm |
| Number of slide strokes | 60 rpm |
| Slide bottom face size | 1050 x 1000 mm |
| Bed top face size | 1150 x 1250 mm |
| Balancer capacity | 2.7 tons |
| Slide knockout (2 pins) | |
| — Type | mechanical |
| — Capacity | 10 ton |
| — Stroke (manual) | 55 mm |
| — Stroke (auto) | 30 mm |
| — Diameter of knockout pin | 50 mm |
| Bed knockout (3 pins) | |
| — Type | mechanical, pneumatic |
| — Capacity mechanical | 15 ton |
| — Capacity pneumatic | 200 kg |
| — Stroke mechanical | 58 mm |
| — Stroke pneumatic (full stroke, manual) | 70 mm |
| — Stroke pneumatic (full stroke, auto) | 60 mm |
| — Diameter of knockout pin | 70 mm |
| Machine dimensions | |
| — Height to floor | 6430 mm |
| — Length | 4200 mm |
| — Width | 3750 mm |
Hot forging press Komatsu CAH2000 - technological processes and operations
| Forging | The process of plastic deformation of metal, in which the workpiece changes shape under the impact of blows or static pressure. During forging, the metal structure is densified, internal inhomogeneities are eliminated, and the mechanical properties of the material are improved. As a result, forged products are distinguished by high strength and reliability when operating under significant loads. Forging is used both for producing finished parts and for preparing workpieces for subsequent stamping. |
| Hot forging | Hot forging is a process of shaping metal under pressure at elevated temperatures. Heating reduces the deformation resistance of the material, allowing it to flow more easily into the die cavity. The process provides high productivity and the ability to form complex shapes. Used for manufacturing forgings from steel and alloys in series and mass production. |
| Closed-die forging | The workpiece is deformed inside a die cavity that restricts metal flow, forcing it to fill the exact shape of the tool. Under high pressure, the material spreads into every recess and detail of the die, producing a part with precise geometry. This method provides high accuracy and repeatability, making it the standard for series and mass production of complex forgings. |
| Preforming | Preforming prepares the workpiece for the main stamping operation by giving it an approximate shape of the future part. The metal is distributed in the die to facilitate final filling and reduce tool wear. This intermediate step improves accuracy and quality of the finished product. |
| Piercing | Piercing forms a hole in a solid workpiece by driving a tool through the material without removing it. The metal is displaced sideways, creating a through or blind opening while preserving the structure around it. The operation is performed on presses and is used in the production of hollow parts such as bushings, rings, and shafts. |
