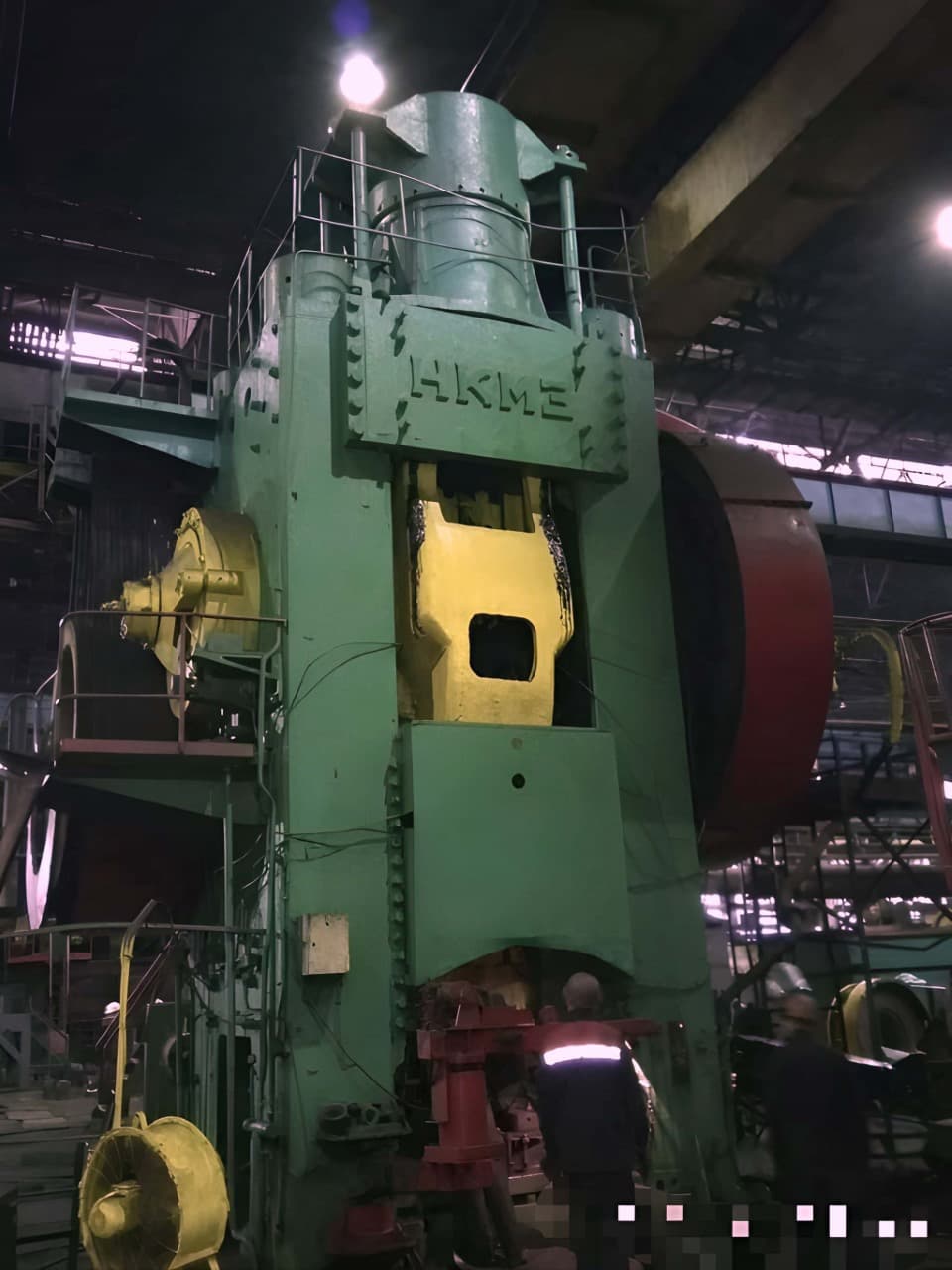

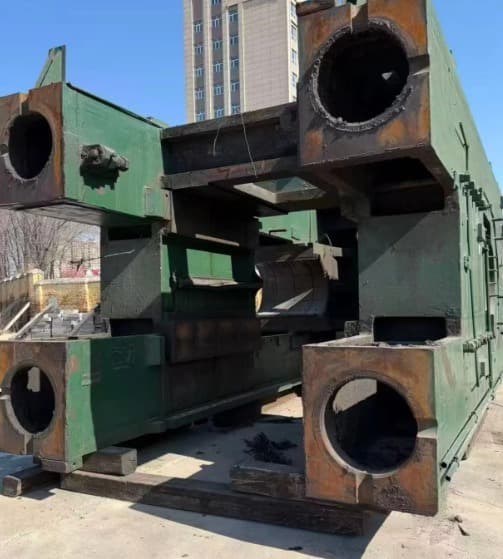

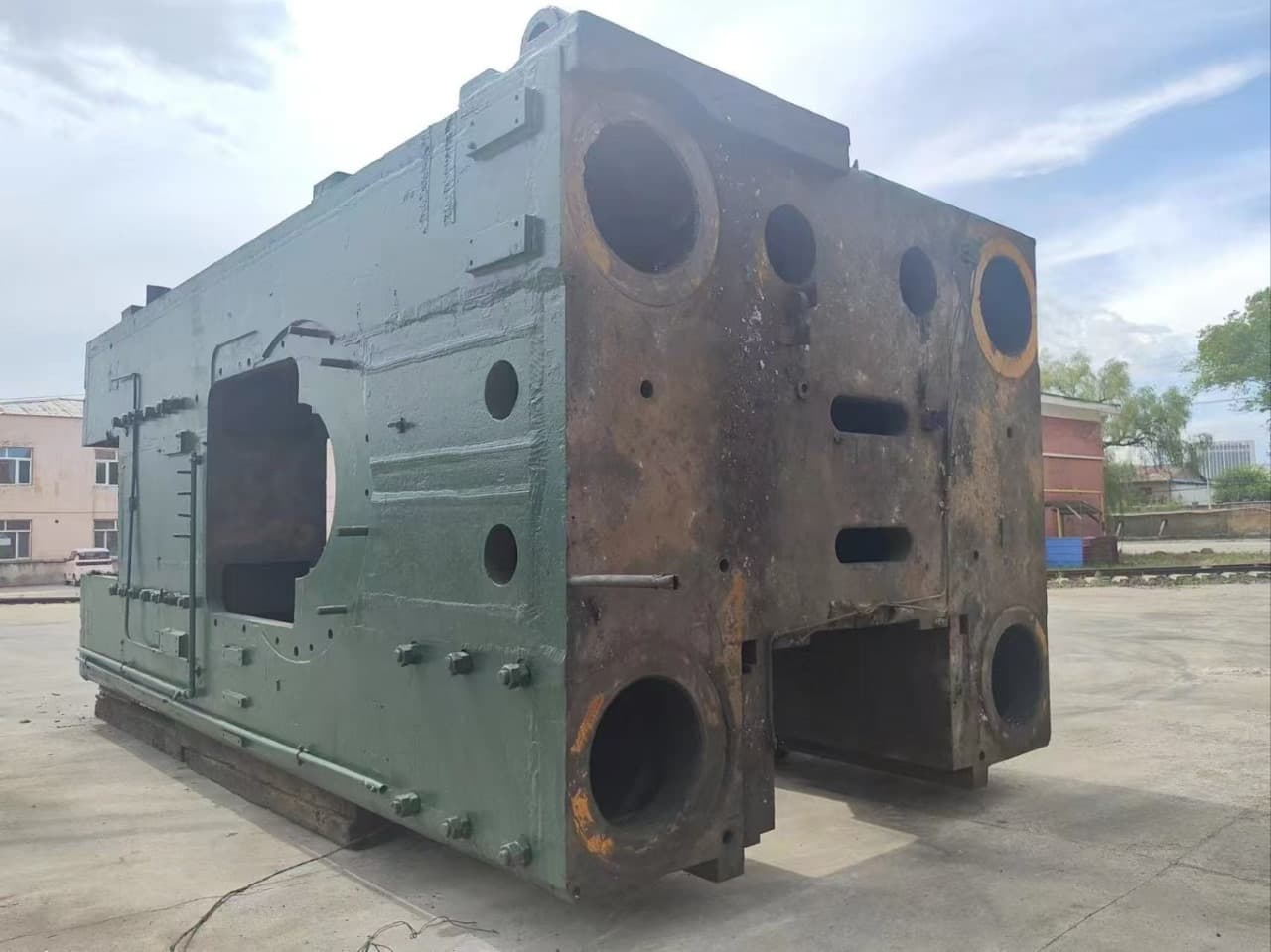

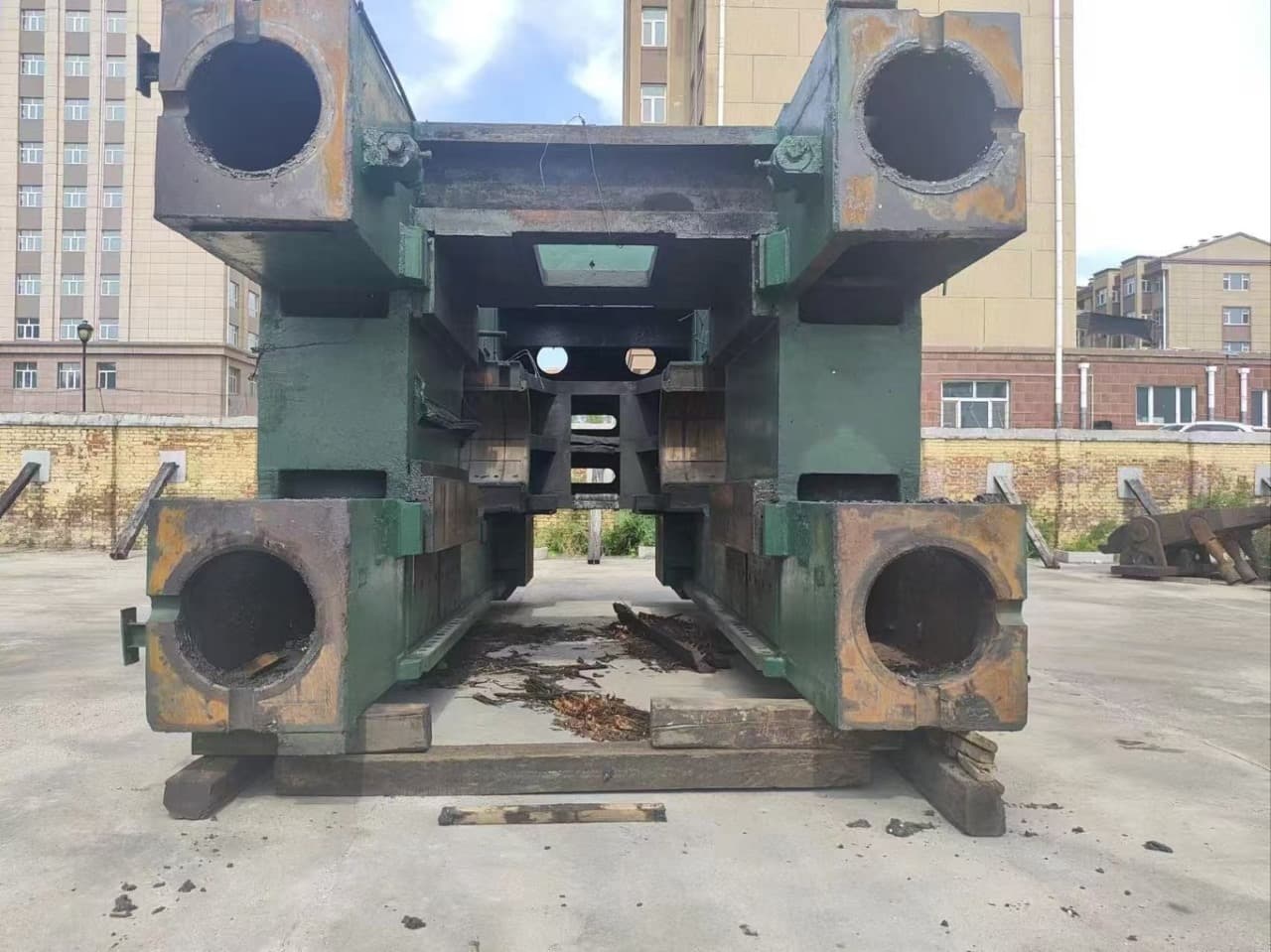

Hot forging press NKMZ Kramatorsk 6300 — 6300 ton
NKMZ Kramatorsk 6300 hot forging press - description
Technical specifications NKMZ Kramatorsk 6300 (ID:76490)
| Type | Hot forging press |
|---|---|
| Manufacturer | NKMZ Kramatorsk |
| Model | 6300 |
| Nominal force | 63000 kN / 6300 ton |
| Stroke | 460 mm |
| SPM | 40 |
| Shut height | 1150 mm |
| Slide adjustment | 15 mm |
| Distance between uprights clear | 1950 mm |
| Table size | 1600 x 1900 mm |
| Slide size | 1680 x 1680 mm |
| Top ejector stroke | 100 mm |
| Bottom ejector stroke | 230 mm |
| Uprights openings | 1100 x 1250 mm |
| Main motor power | 400 kW |
| Overall dimensions | 8600 x 5900 x 9300 mm |
| Weight | 658000 kg |
Hot forging press NKMZ Kramatorsk - technological processes and operations
| Forging | The process of plastic deformation of metal, in which the workpiece changes shape under the impact of blows or static pressure. During forging, the metal structure is densified, internal inhomogeneities are eliminated, and the mechanical properties of the material are improved. As a result, forged products are distinguished by high strength and reliability when operating under significant loads. Forging is used both for producing finished parts and for preparing workpieces for subsequent stamping. |
|---|---|
| Hot forging | Hot forging is a process of shaping metal under pressure at elevated temperatures. Heating reduces the deformation resistance of the material, allowing it to flow more easily into the die cavity. The process provides high productivity and the ability to form complex shapes. Used for manufacturing forgings from steel and alloys in series and mass production. |
| Closed-die forging | The workpiece is deformed inside a die cavity that restricts metal flow, forcing it to fill the exact shape of the tool. Under high pressure, the material spreads into every recess and detail of the die, producing a part with precise geometry. This method provides high accuracy and repeatability, making it the standard for series and mass production of complex forgings. |
| Preforming | Preforming prepares the workpiece for the main stamping operation by giving it an approximate shape of the future part. The metal is distributed in the die to facilitate final filling and reduce tool wear. This intermediate step improves accuracy and quality of the finished product. |
| Piercing | Piercing forms a hole in a solid workpiece by driving a tool through the material without removing it. The metal is displaced sideways, creating a through or blind opening while preserving the structure around it. The operation is performed on presses and is used in the production of hollow parts such as bushings, rings, and shafts. |
