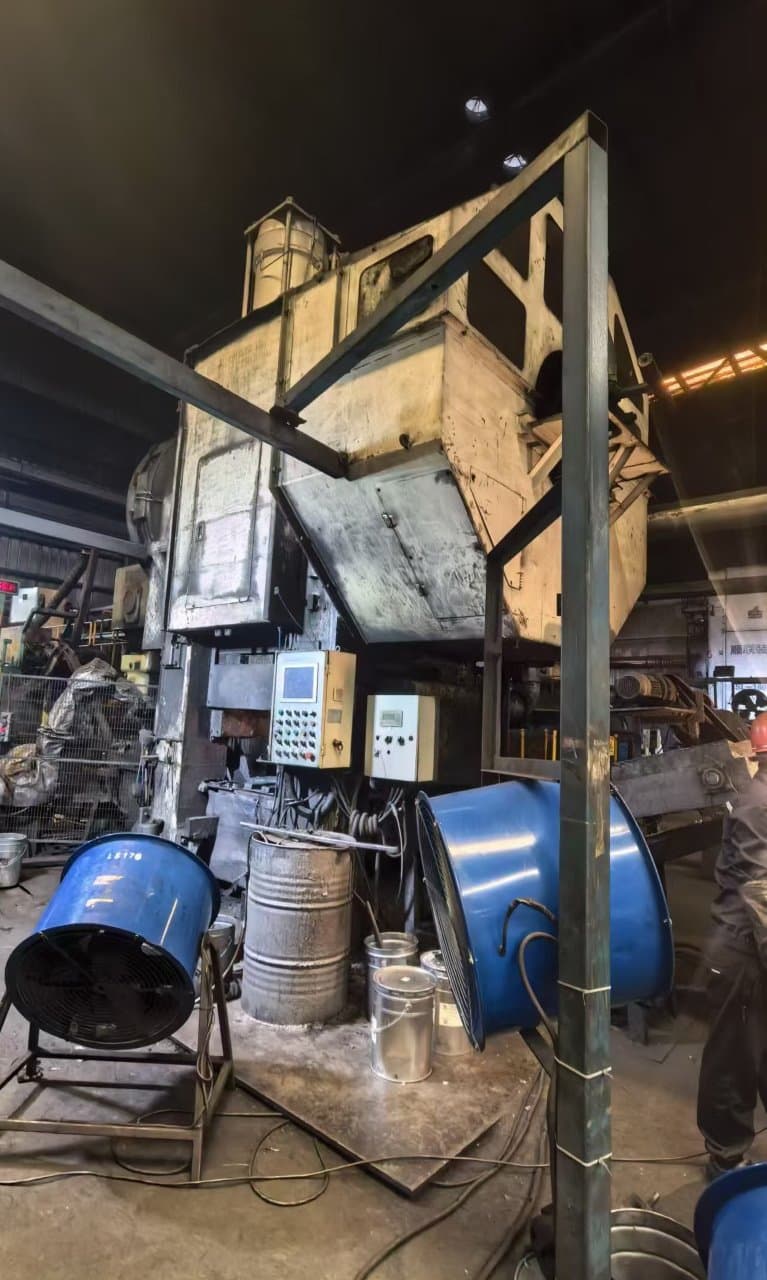

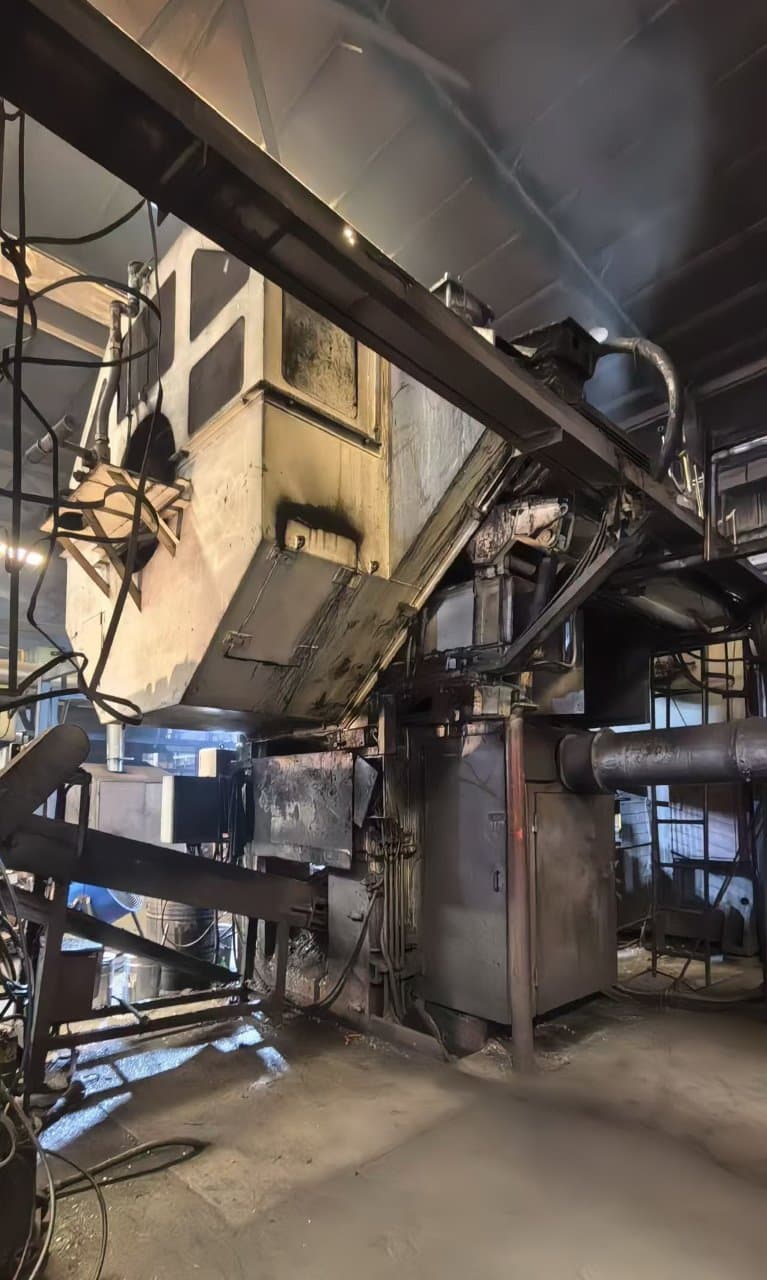

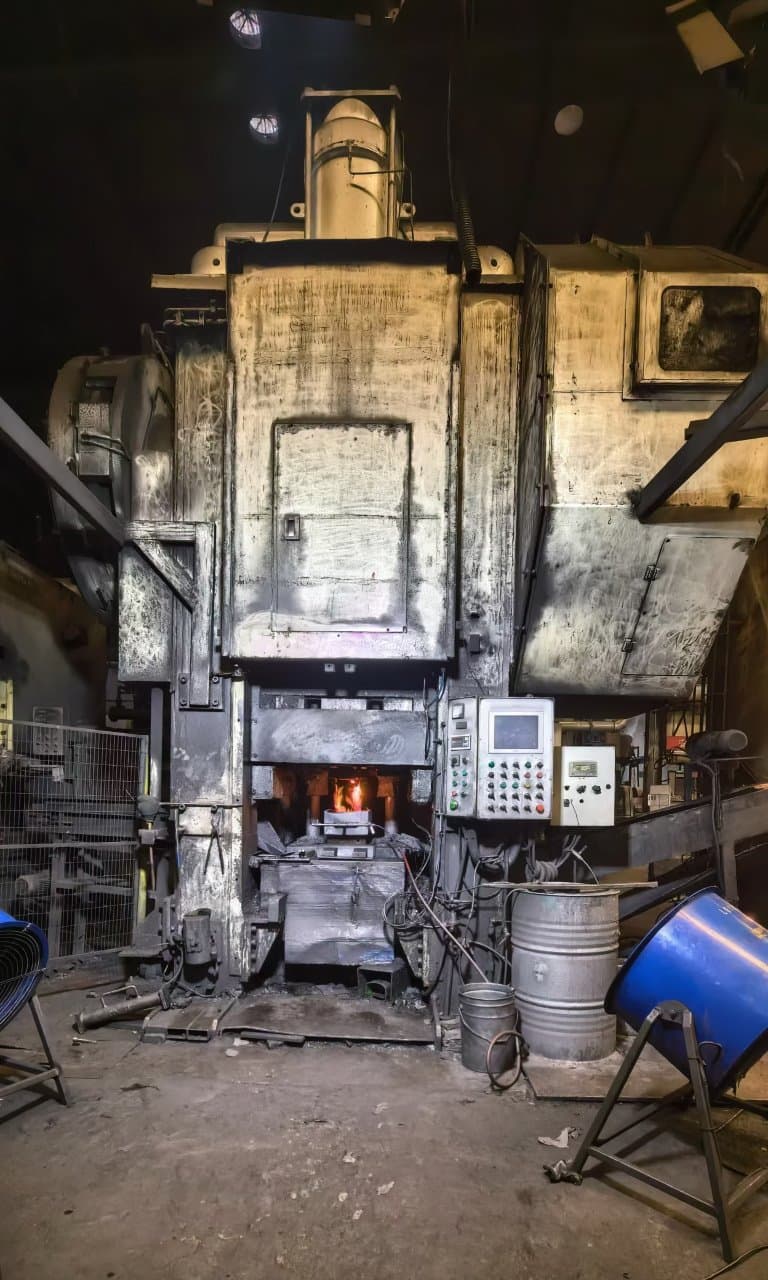

Hot forging press Sumitomo TFPW-1600 — 1600 ton

Dabrox Listing ID: 76465

Request detailed information on this offer:
- availability, price
- payment/delivery terms
- specifications, condition, photos, etc.

* Required fields

Sumitomo TFPW-1600 hot forging press - description

Hot forging press Sumitomo TFPW-1600 — 1600 ton (ID:76465) is forging and pressing equipment designed for manufacturing forgings from ferrous and non-ferrous metals by hot closed-die forging. The press is used in large-scale and mass production to produce precise die forgings of complex shape. The equipment is widely used in the automotive industry.

Technical specifications Sumitomo TFPW-1600 (ID:76465)

TypeHot forging press
ManufacturerSumitomo
ModelTFPW-1600
Nominal Force1600 ton
Stroke330 mm
SPM85
Slide Adjustment10 mm
Die Set Height (Open)350 mm
Die Set Height (Closed)800 mm
Lower Base Dimensions1200 × 850 × 295 mm
Upper Base Dimensions1200 × 850 × 295 mm
Main Motor ModelYH2-355M-8
Main Motor Power110 kW
Main Motor Speed740 r/min
Main Motor Voltage/Frequency380V / 50Hz
Upper Knock-outN/A
Lower Knock-out Stroke35 mm

Hot forging press Sumitomo - technological processes and operations

Closed-die forging The workpiece is deformed inside a die cavity that restricts metal flow, forcing it to fill the exact shape of the tool. Under high pressure, the material spreads into every recess and detail of the die, producing a part with precise geometry. This method provides high accuracy and repeatability, making it the standard for series and mass production of complex forgings.
Preforming Preforming prepares the workpiece for the main stamping operation by giving it an approximate shape of the future part. The metal is distributed in the die to facilitate final filling and reduce tool wear. This intermediate step improves accuracy and quality of the finished product.
Punching A hole in a solid workpiece is a task handled by bulk punching. The metal is not drilled out but pushed through: the punch penetrates the workpiece, displacing material sideways and forming a through or blind hole. The operation is performed on presses, keeping the metal structure around the hole intact. Used in the production of bushings, rings, and hollow shafts.
