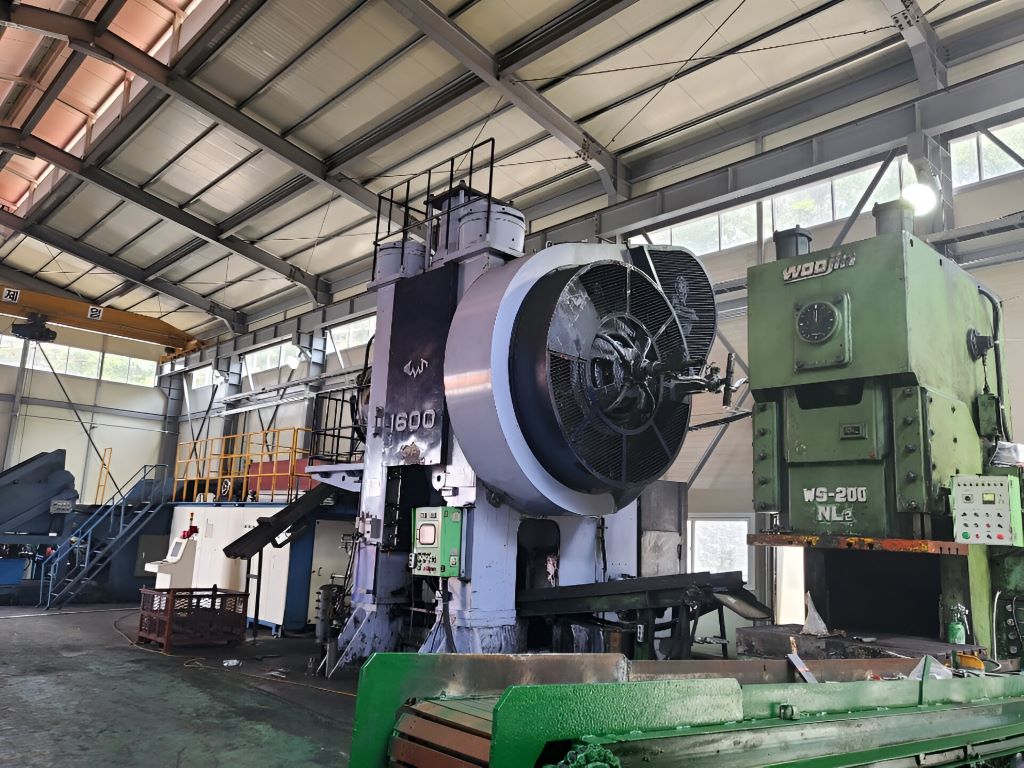

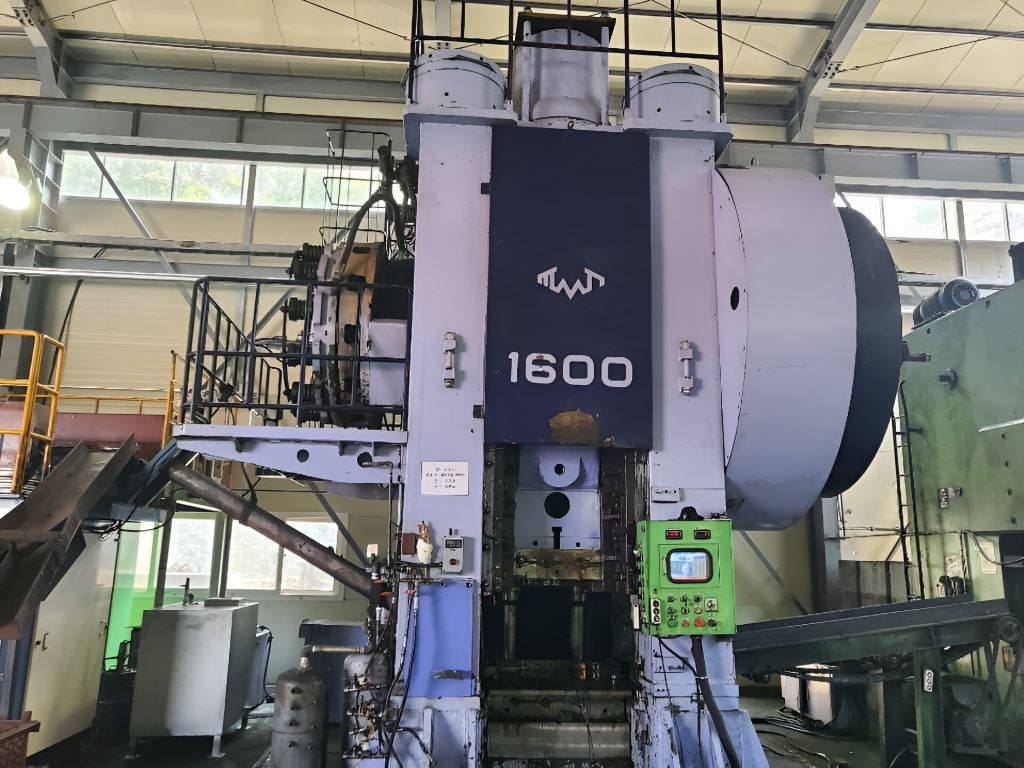

Hot forging press TMP Voronezh KB8042 — 1600 ton
Specifications (EN) -
Hot forging press TMP Voronezh KB8042 — 1600 ton (ID: S89629)
| Type | Hot forging press |
| Manufacturer | TMP Voronezh |
| Model | KB8042 |
| Capacity | 1600 ton |
| Stroke | 300 mm |
| SPM | 85 |
| Distance between | 660 mm |
| Adjustment | 10 mm |
| Upper ejector | |
| — Stroke | 40±3 mm |
| — Force | 63 kN |
| Lower ejector | |
| — Stroke | 32±2 mm |
| — Force | at least 100 kN |
| Table | 1050 x 1200 mm |
| Slide | 860 x 910 mm |
| Size of windows in press columns | |
| — Height | 710 mm |
| — Width | 630 mm |
| Press dimensions (L x W x H) ±50 mm | 4850 x 3515 x 5570 mm |
| Main drive electric motor | 90 kW |
| Press weight | 116 ton |
