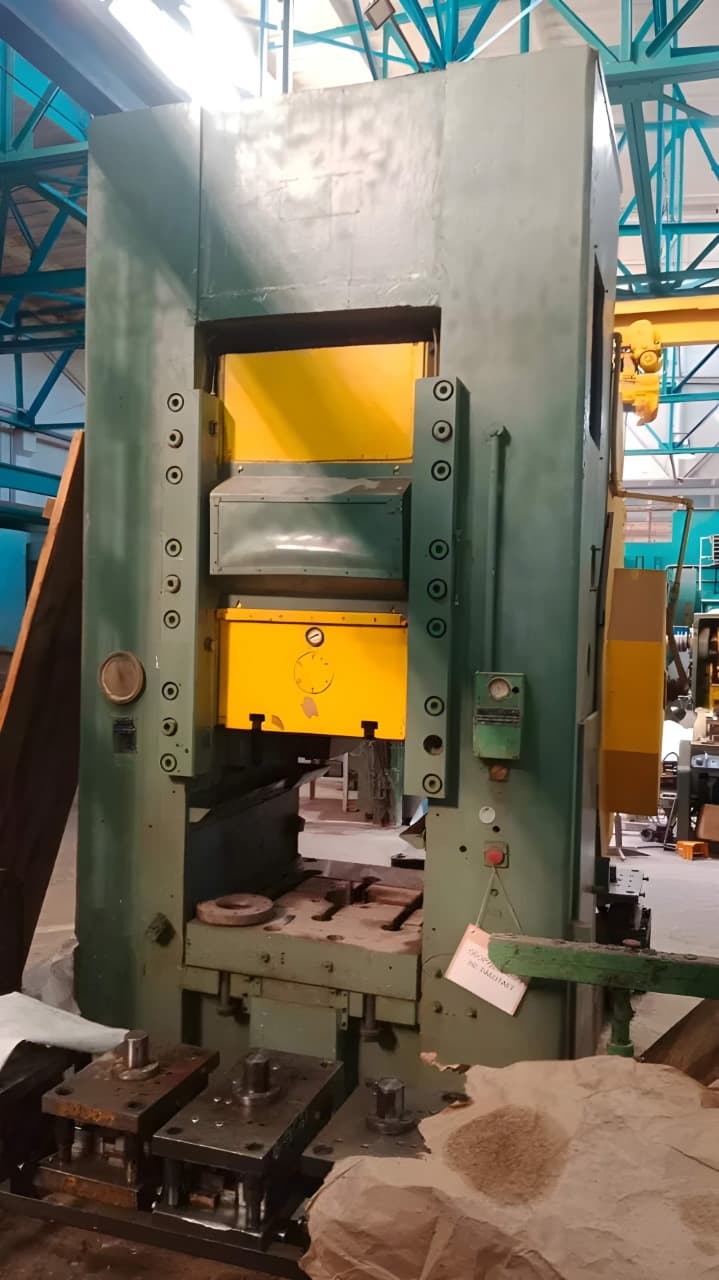

Knuckle joint cold extrusion press Barnaul K0034 — 250 ton
Specifications (EN) -
Knuckle joint cold extrusion press Barnaul K0034 — 250 ton (ID: 76494)
| Type | Cold extrusion press |
| Manufacturer | Barnaul |
| Model | K0034 |
| Year of manufacture | 1974 |
| Nominal force | 2500 kN / 250 ton |
| Stroke | 200 mm |
| SPM continuous | 32 |
| SPM single max | 20 |
| Tool height adjustment | 15 mm |
| Maximum shut height | 490 mm |
| Table size left-to-right | 800 mm |
| Table size front-to-back | 800 mm |
| Overall dimensions | 2950 x 1950 x 4090 mm |
| Weight | 21500 kg |
