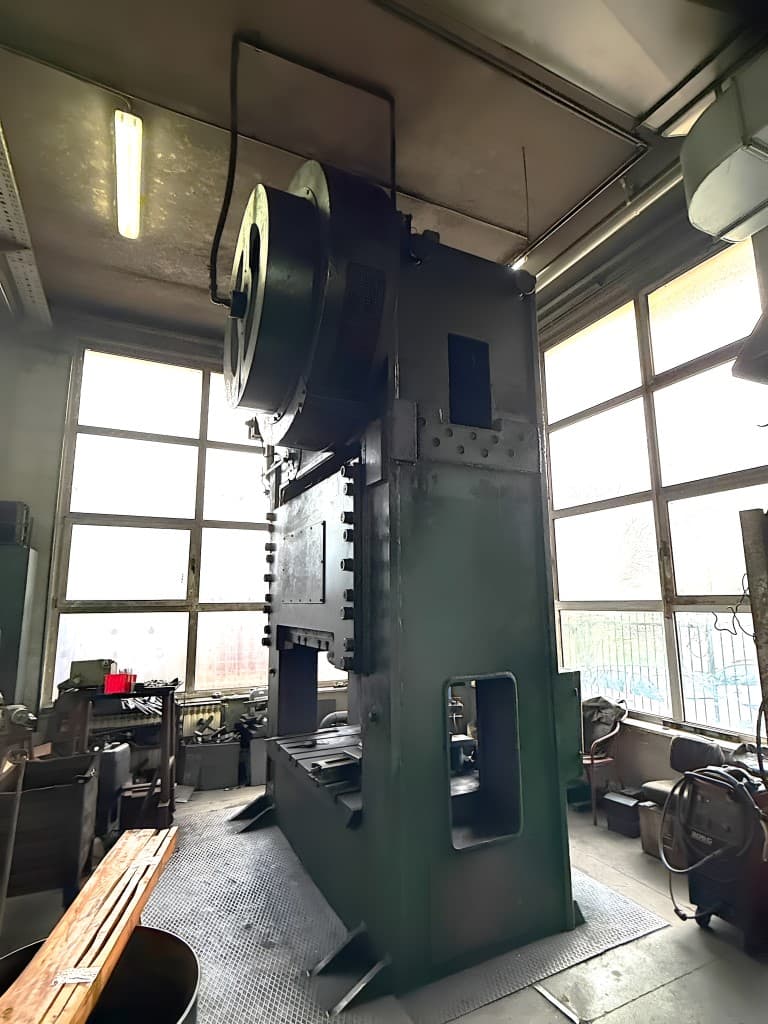

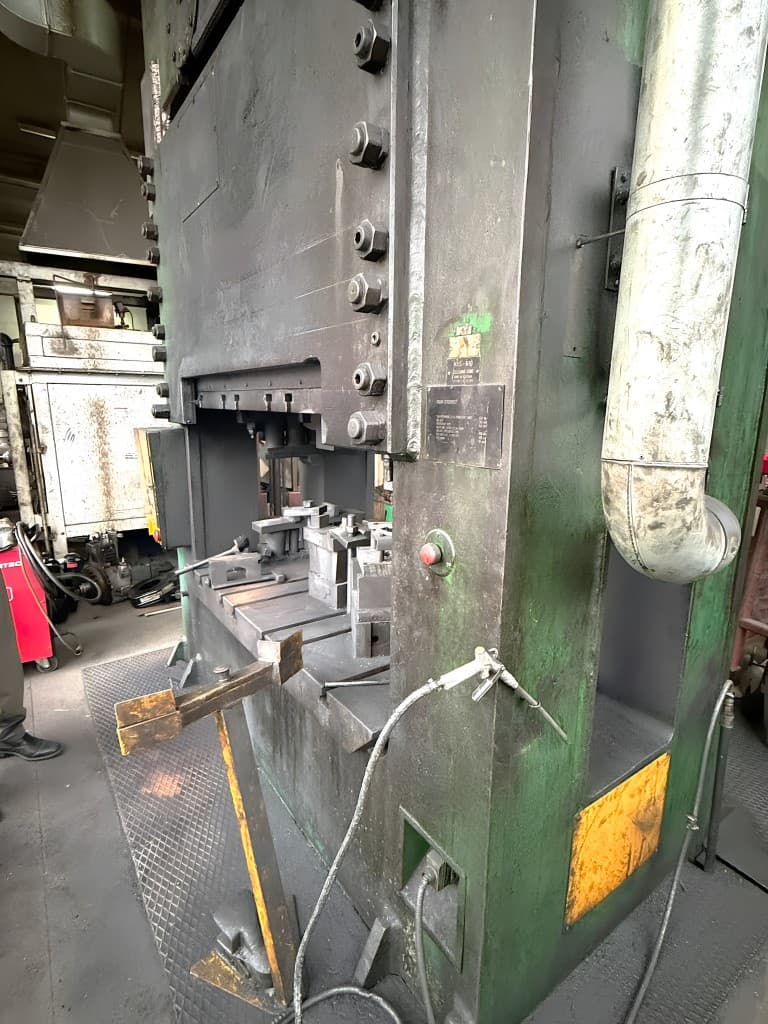

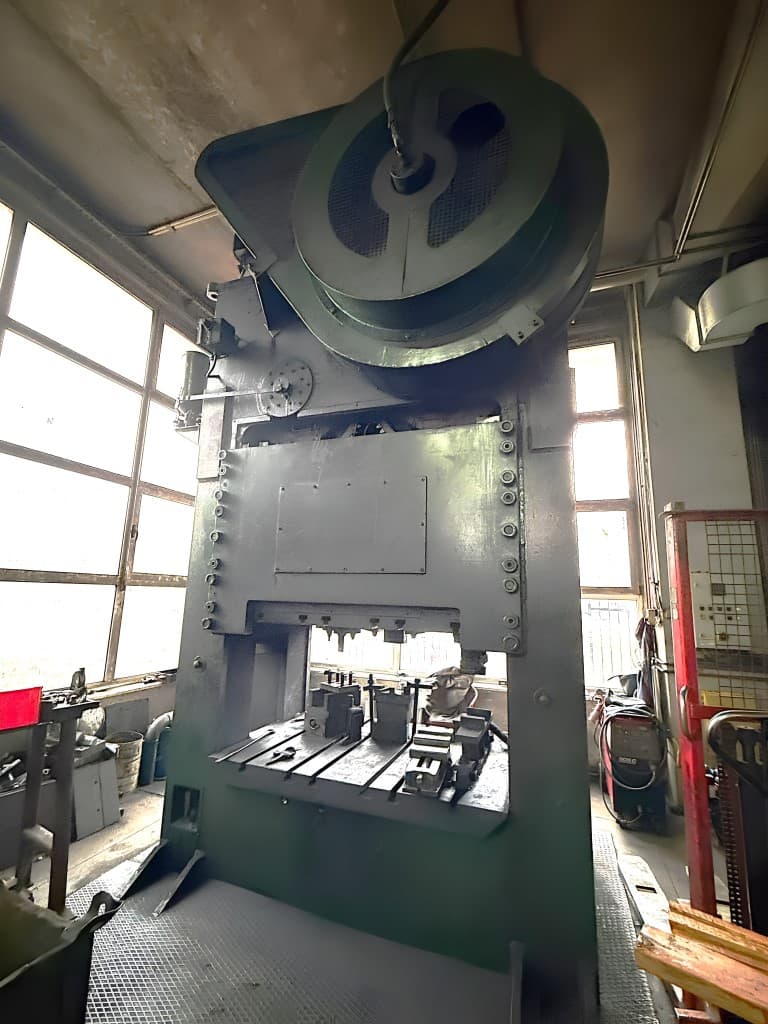

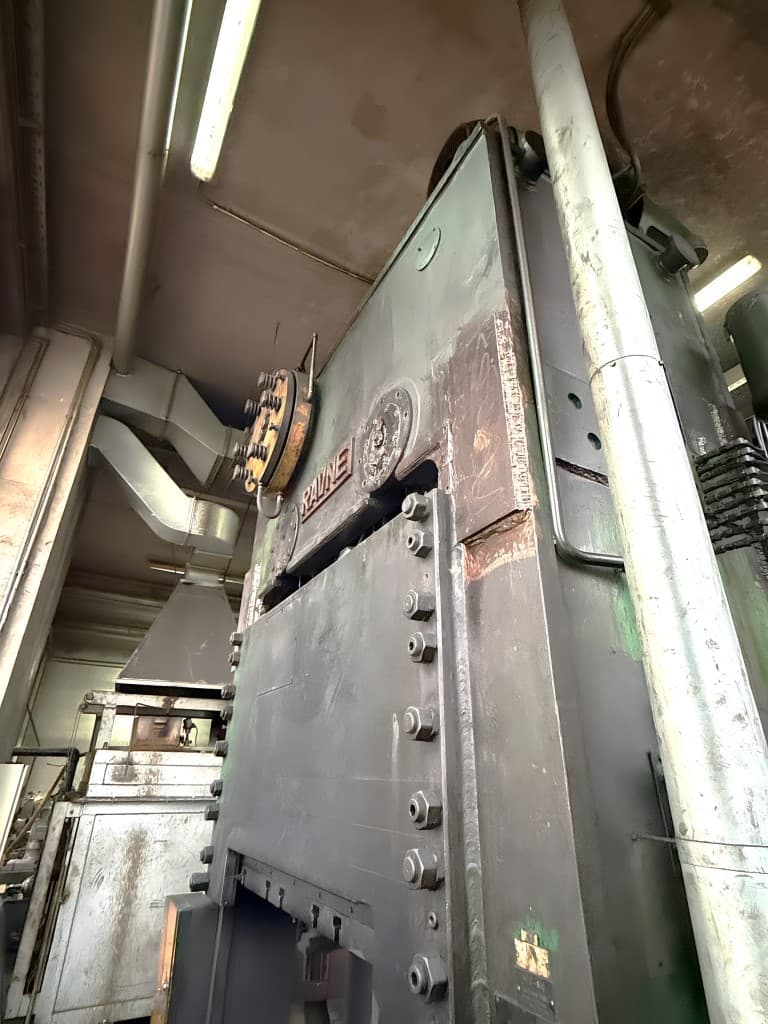

Mechanical press Ravne KES 630 — 630 ton
Ravne KES 630 mechanical press - description
Technical specifications Ravne KES 630 (ID:76432)
| Type | Mechanical press |
| Manufacturer | Ravne |
| Model | KES 630 |
| Capacity | 630 ton |
| SPM | 42 |
| Stroke | 250 mm |
| Table | 1690 x 1200 mm |
| Motor | 37 kW |
| Dimensions | 2500 x 1300 x 4950 mm |
| Height above floor | 4950 mm |
| Total weight | 36 ton |
Mechanical press Ravne KES 630 - technological processes and operations
| Trimming | When a hot forging leaves the die, flash comes out with it — excess metal squeezed into the gap between the tools. It is removed on a trimming press, where the part passes through a die and the cutting edge shears off everything excess along the contour. This is how the forging gets a clean edge and precise shape, ready for the next stage. |
| Sheet stamping | Sheet stamping is a class of operations for forming parts from sheet material using dies. The workpiece is deformed in the tool without significant change in thickness, acquiring the specified shape. This group includes blanking, punching, bending, drawing, and other processes performed on presses. Sheet stamping is the foundation of mass production of body panels, housings, and other thin metal parts. |
| Drawing | Drawing turns a flat blank into a hollow product. The sheet is clamped at the edges while the tool presses the central part, forcing the metal to flow into the die cavity and form walls. This is how cups, caps, housings, and other parts with one open side are produced. |
| Blanking | Blanking a part from a sheet along a closed contour is performed on a press using a blanking die. The tool passes through the material, separating the finished part from the sheet. The accuracy of the contour and the cleanliness of the edge determine the quality of the final product. |
