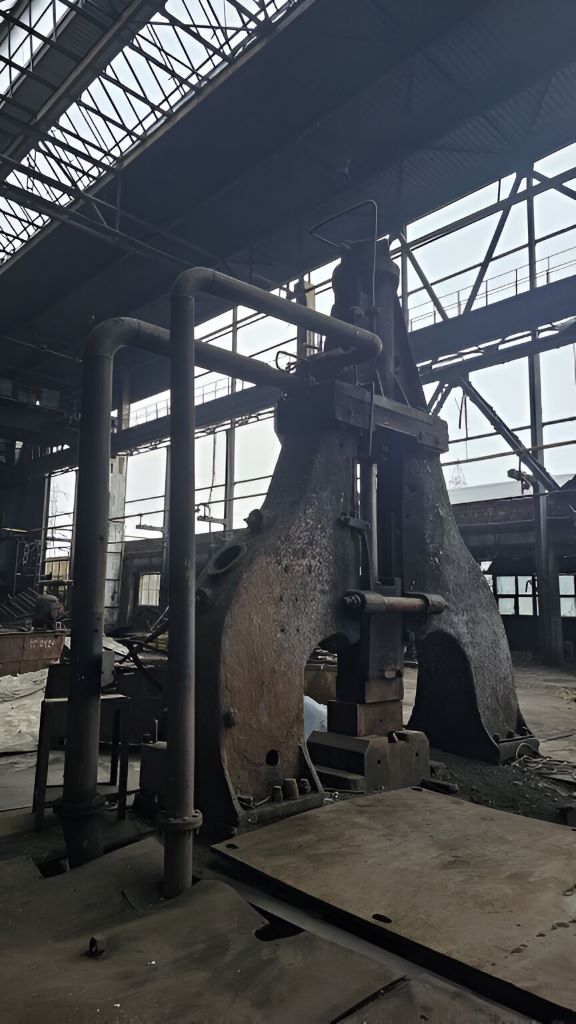

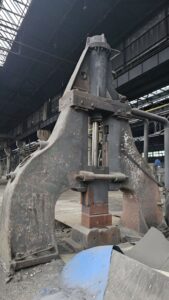

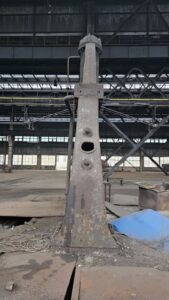

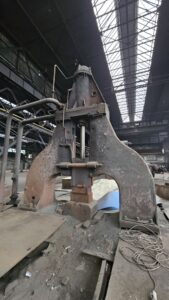

Open die forging hammer ICP-TCM 3 MT — 3 ton
ICP-TCM 3 MT forging hammer - description
Technical specifications ICP-TCM 3 MT (ID:76275)
| Type | Forging hammer |
| Manufacturer | ICP-TCM |
| Model | 3 MT |
| Nominal mass of drop parts | 3150 kg |
| Max. no. of blows/min. | 50 |
| Ram stroke | 1250 mm |
| Height of the working area | 630 mm |
| Distance between columns | 2700 mm |
| Distance between guideways | 630 mm |
| Diameter of the workinh cylinder | 760 mm |
| Diameter of the ram rod | 180 mm |
| Surface of the anvil | 330 x 630 mm |
| Total weight | 74700 kg |
| Weight of the anvil | 47600 kg |
| Weight of the hammer less the anvil | 26900 kg |
Forging hammer ICP-TCM 3 MT - technological processes and operations
| Forging | The process of plastic deformation of metal, in which the workpiece changes shape under the impact of blows or static pressure. During forging, the metal structure is densified, internal inhomogeneities are eliminated, and the mechanical properties of the material are improved. As a result, forged products are distinguished by high strength and reliability when operating under significant loads. Forging is used both for producing finished parts and for preparing workpieces for subsequent stamping. |
| Open-die forging | Metal is deformed between flat or shaped tools without lateral restriction, allowing free flow in all directions. The workpiece is gradually shaped by repeated blows or press strokes, with the operator controlling its position between each step. This method is used for producing large forgings such as shafts, discs, and rings, where a refined internal structure is essential. |
| Drop forging | A method of hot closed-die forging in which the workpiece is deformed by the energy of a falling ram. Under the impact, the metal fills the die cavity, reproducing its geometry and taking the shape of the finished part. The process is characterized by high productivity and repeatability, making it in demand in series and mass production. |
