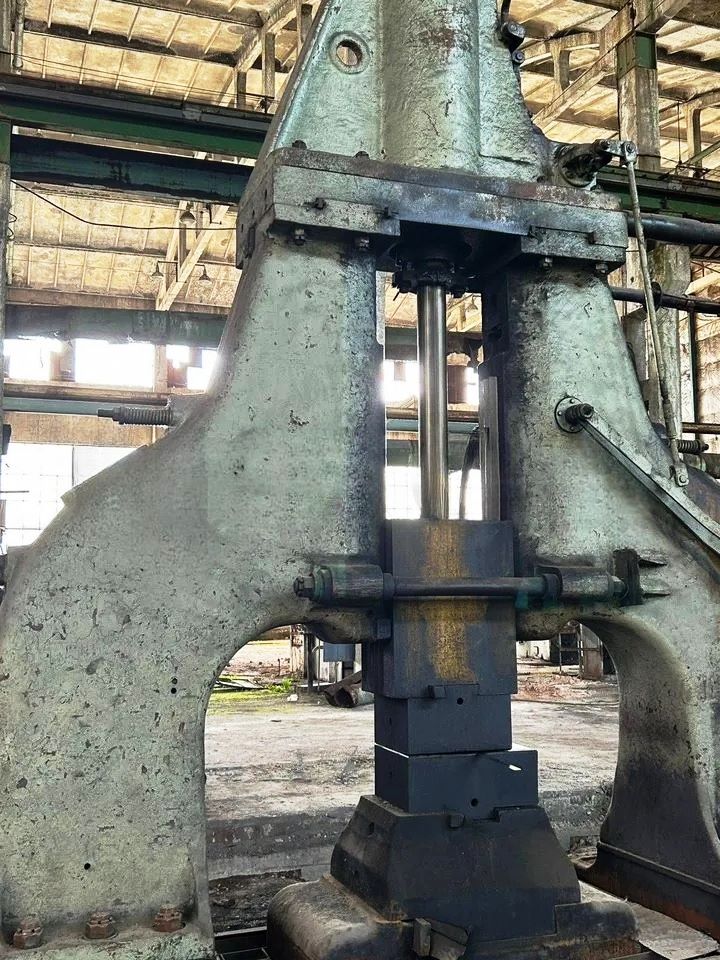

Open die forging hammer TMP Voronezh M1343 — 2 ton
TMP Voronezh M1343 open die forging hammer - description
Technical specifications TMP Voronezh M1343 (ID:76355)
| Type | Open die forging hammer |
|---|---|
| Manufacturer | TMP Voronezh |
| Model | M1343 |
| Impact energy | 50 kJ |
| Nominal mass of drop parts | 2000 kg |
| Max. number of blows per minute | 56 |
| Max. stroke of headstock | 1000 mm |
| Distance between columns in daylight | 2360 mm |
| Distance between guides in daylight | 550 mm |
| Working zone height in daylight | 530 mm |
| Bottom die impression-to-floor distance | 750 mm |
| Die impression size (L x W) | 530 x 300 mm |
| Steam pressure | 0,7…0,9 MPa |
| Compressed air pressure | 0,6…0,8 MPa |
| Hammer dimensions (L x W) | 4900 х 1930 mm |
| Hammer height above floor level | 5000 mm |
| Weight of the hammer without anvil block | 18100 kg |
| Anvil block weight | 30000 kg |
| Total weight | 48100 kg |
Open die forging hammer TMP Voronezh M1343 - technological processes and operations
| Forging | The process of plastic deformation of metal, in which the workpiece changes shape under the impact of blows or static pressure. During forging, the metal structure is densified, internal inhomogeneities are eliminated, and the mechanical properties of the material are improved. As a result, forged products are distinguished by high strength and reliability when operating under significant loads. Forging is used both for producing finished parts and for preparing workpieces for subsequent stamping. |
|---|---|
| Hot forging | Hot forging is a process of shaping metal under pressure at elevated temperatures. Heating reduces the deformation resistance of the material, allowing it to flow more easily into the die cavity. The process provides high productivity and the ability to form complex shapes. Used for manufacturing forgings from steel and alloys in series and mass production. |
| Open-die forging | Metal is deformed between flat or shaped tools without lateral restriction, allowing free flow in all directions. The workpiece is gradually shaped by repeated blows or press strokes, with the operator controlling its position between each step. This method is used for producing large forgings such as shafts, discs, and rings, where a refined internal structure is essential. |
| Drop forging | A method of hot closed-die forging in which the workpiece is deformed by the energy of a falling ram. Under the impact, the metal fills the die cavity, reproducing its geometry and taking the shape of the finished part. The process is characterized by high productivity and repeatability, making it in demand in series and mass production. |
