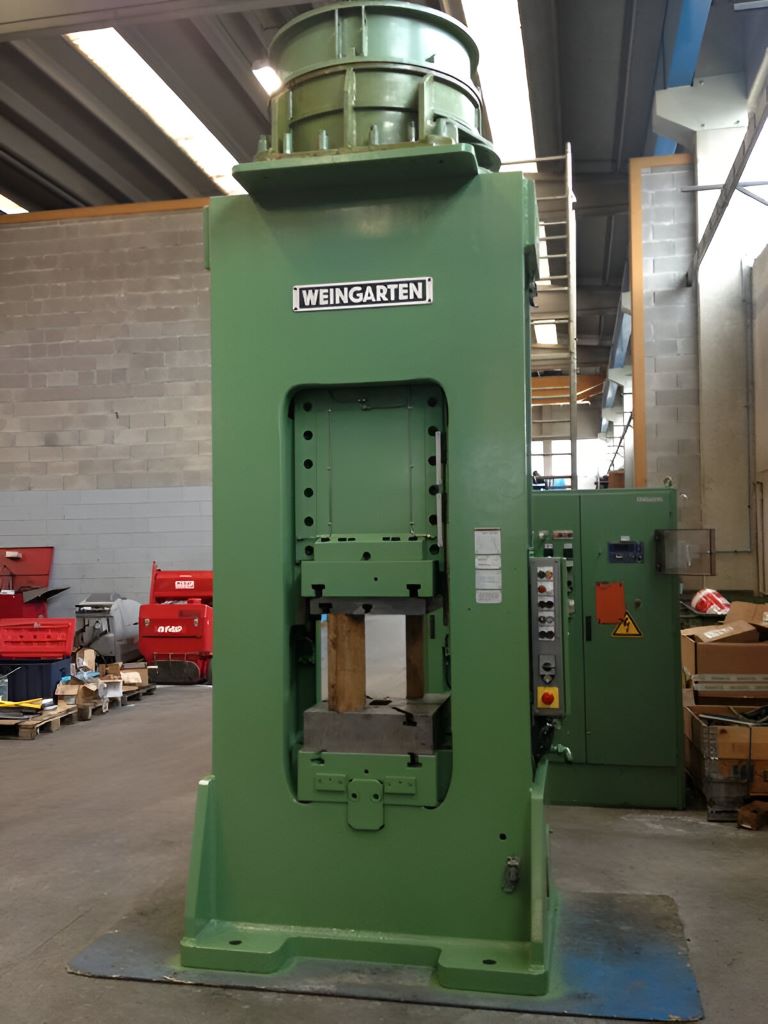

Screw press Weingarten PA 180 — 315 ton

Dabrox Listing ID: S89417

Request detailed information on this offer:
- availability, price
- payment/delivery terms
- specifications, condition, photos, etc.

* Required fields

Weingarten PA 180 screw press - description

Screw press Weingarten PA 180 — 315 ton (ID:S89417) is press equipment in which force is generated by screw rotation and converted into linear motion of the ram. This type of press is used for various bulk metal forming operations. The press combines high energy capacity with precise stroke control, which is especially important when stamping parts with tight tolerances.

Technical specifications Weingarten PA 180 (ID:S89417)

TypeScrew press
ManufacturerWeingarten
ModelPA 180
Nominal force315 ton
Max force630 ton
Screw diam180 mm
Table dimension620 x 700 mm
Slide dimension640 x 350 mm
Stroke of the slide200 — 380 mm
Shut height560 mm
Distance between the uprights710 mm
Weight12 ton
