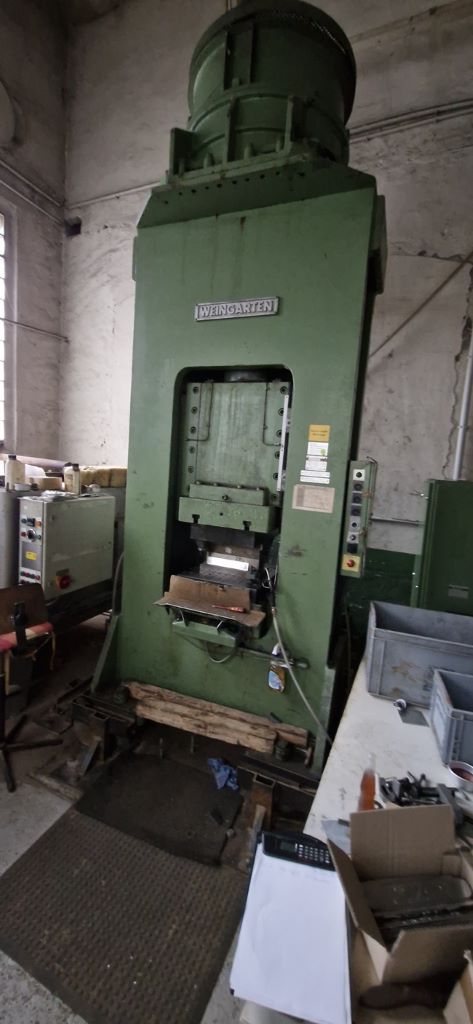

Screw press Weingarten PA 180 — 500 ton
Weingarten PA 180 screw press - description
Technical specifications Weingarten PA 180 (ID:76251)
| Type | Screw press |
|---|---|
| Manufacturer | Weingarten |
| Model | PA 180 |
| Spindle diameter | 180 mm |
| Permissible continuous load | 500 ton |
| Impact force | 630 ton |
| Ram stroke | 130-380 mm |
| SPM | 24 |
| Table | 600 x 500 mm |
| Clearance between uprights | 700 mm |
| Voltage | 380 V / 50 Hz |
| Motor | 18 kW |
| Weight approx. | 16 ton |
Screw press Weingarten PA 180 - technological processes and operations
| Forging | The process of plastic deformation of metal, in which the workpiece changes shape under the impact of blows or static pressure. During forging, the metal structure is densified, internal inhomogeneities are eliminated, and the mechanical properties of the material are improved. As a result, forged products are distinguished by high strength and reliability when operating under significant loads. Forging is used both for producing finished parts and for preparing workpieces for subsequent stamping. |
|---|---|
| Closed-die forging | The workpiece is deformed inside a die cavity that restricts metal flow, forcing it to fill the exact shape of the tool. Under high pressure, the material spreads into every recess and detail of the die, producing a part with precise geometry. This method provides high accuracy and repeatability, making it the standard for series and mass production of complex forgings. |
| Preforming | Preforming prepares the workpiece for the main stamping operation by giving it an approximate shape of the future part. The metal is distributed in the die to facilitate final filling and reduce tool wear. This intermediate step improves accuracy and quality of the finished product. |
| Calibrating | A finishing operation that brings the forging to precise dimensions. The workpiece is placed in a calibration die, where under pressure its surface is leveled and the geometry is brought to the specified tolerances. This process eliminates minor shape distortions left after previous operations. As a result, the part receives stable dimensions and a smooth surface without additional machining. |
