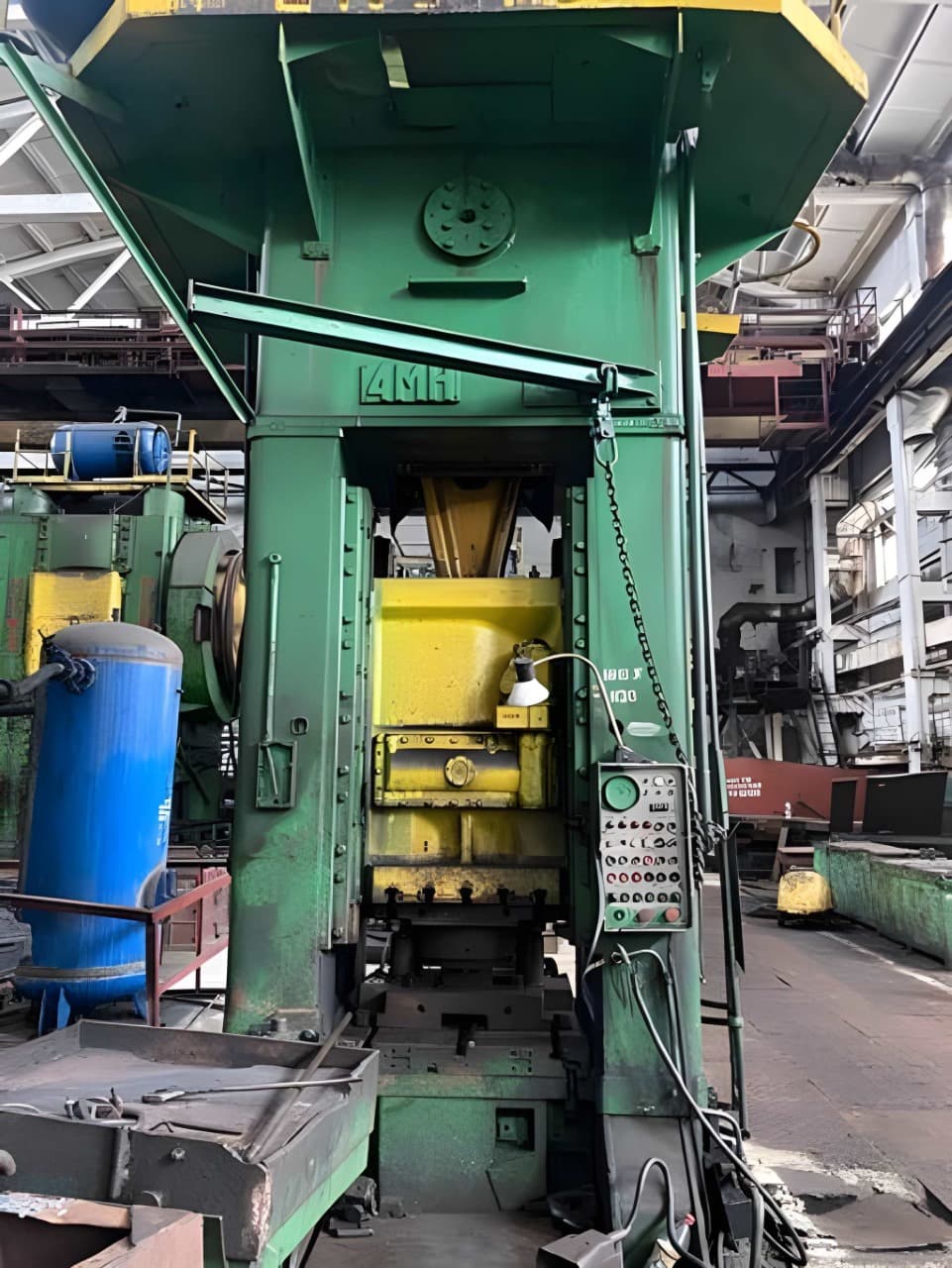

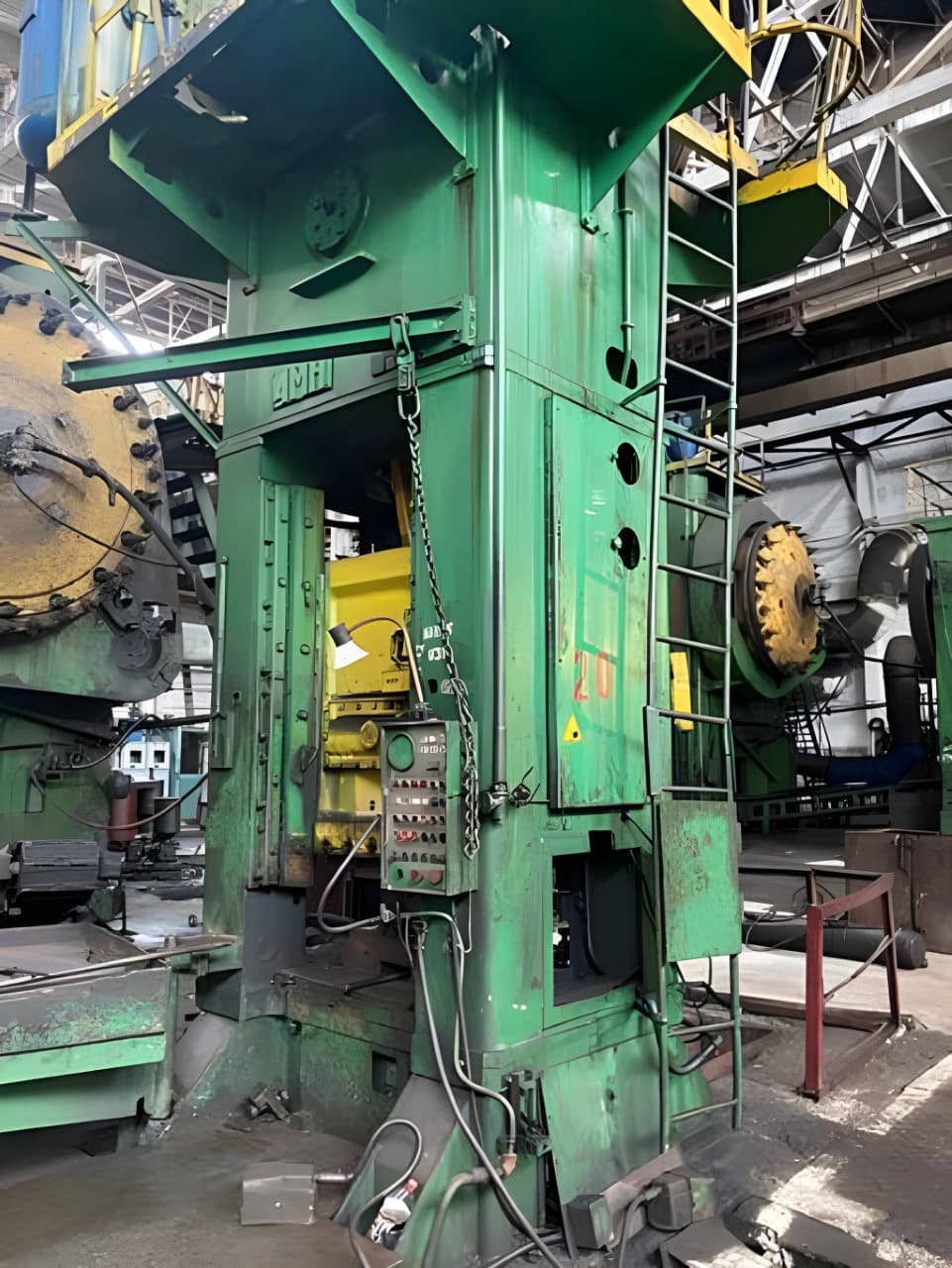

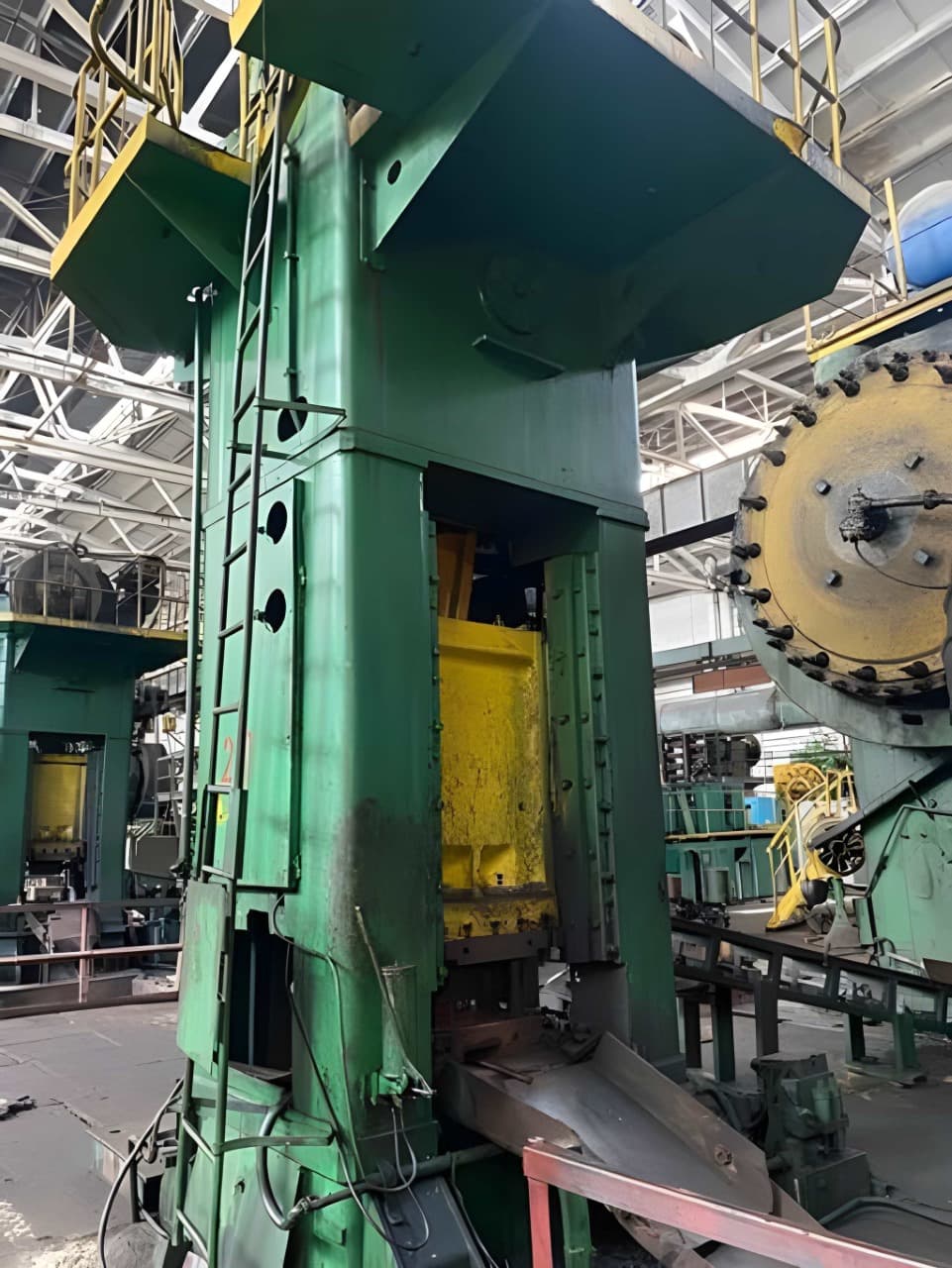

Trimming press Kuzlitmash KD9536 — 400 ton

Dabrox Listing ID: S92000

Request detailed information on this offer:
- availability, price
- payment/delivery terms
- specifications, condition, photos, etc.

* Required fields

Specifications (EN) -
Trimming press Kuzlitmash KD9536 — 400 ton (ID: S92000)

TypeTrimming press
ManufacturerKuzlitmash
ModelKD9536
Nominal force4000 kN / 400 ton
Stroke400 mm
SPM25
Maximum distance between table and slide in lower position470 mm
Slide adjustment160 mm
Table size1000 x 1000 mm
Slide size800 x 800 mm
Motor power40 kW
Overall dimensions3470 x 3140 x 5940 mm
Weight36000 kg
