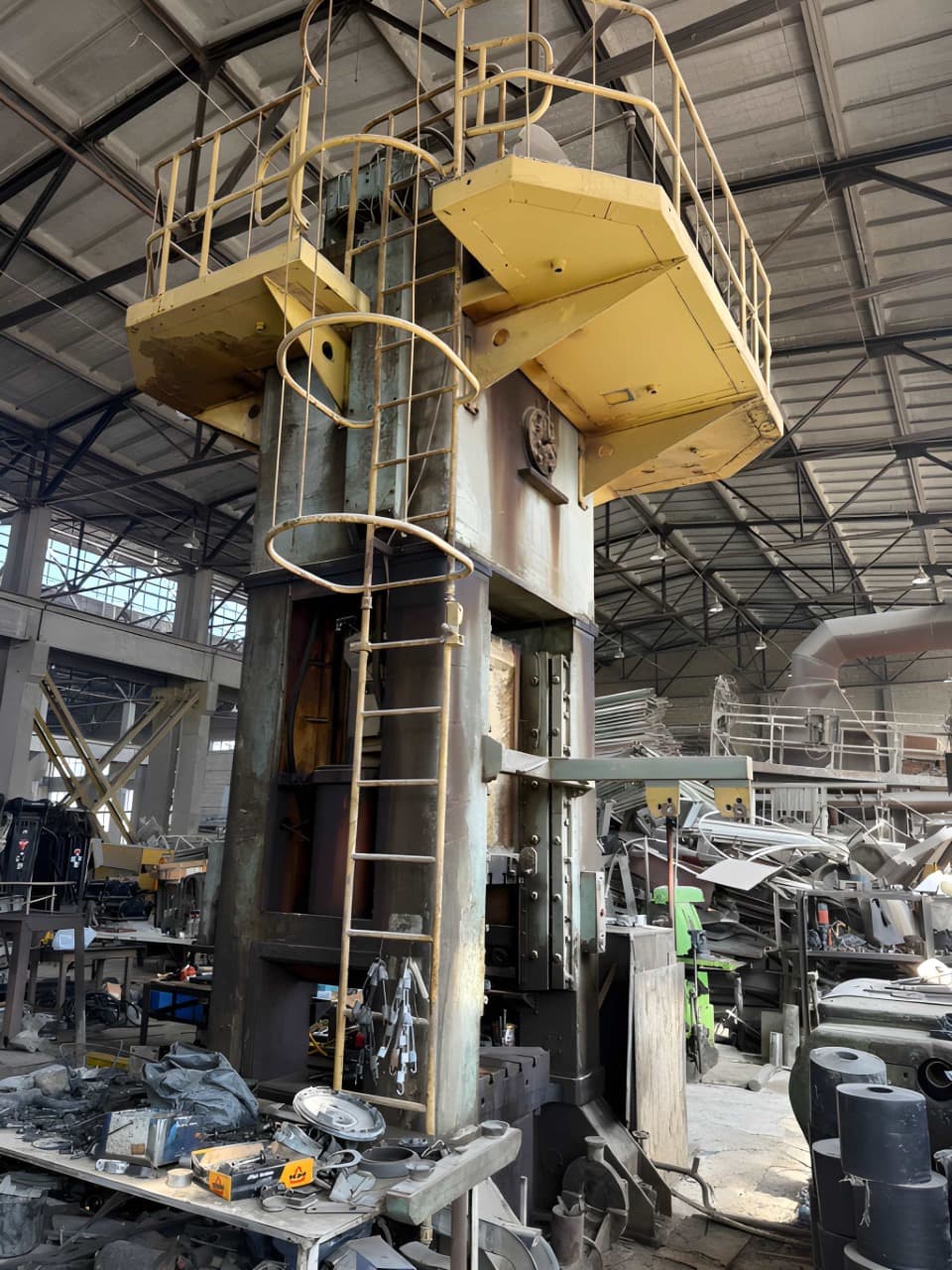

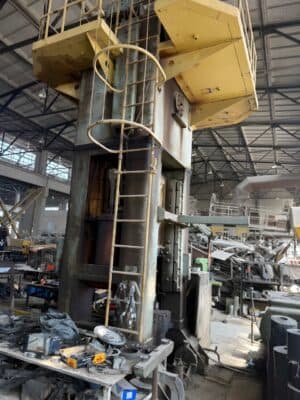

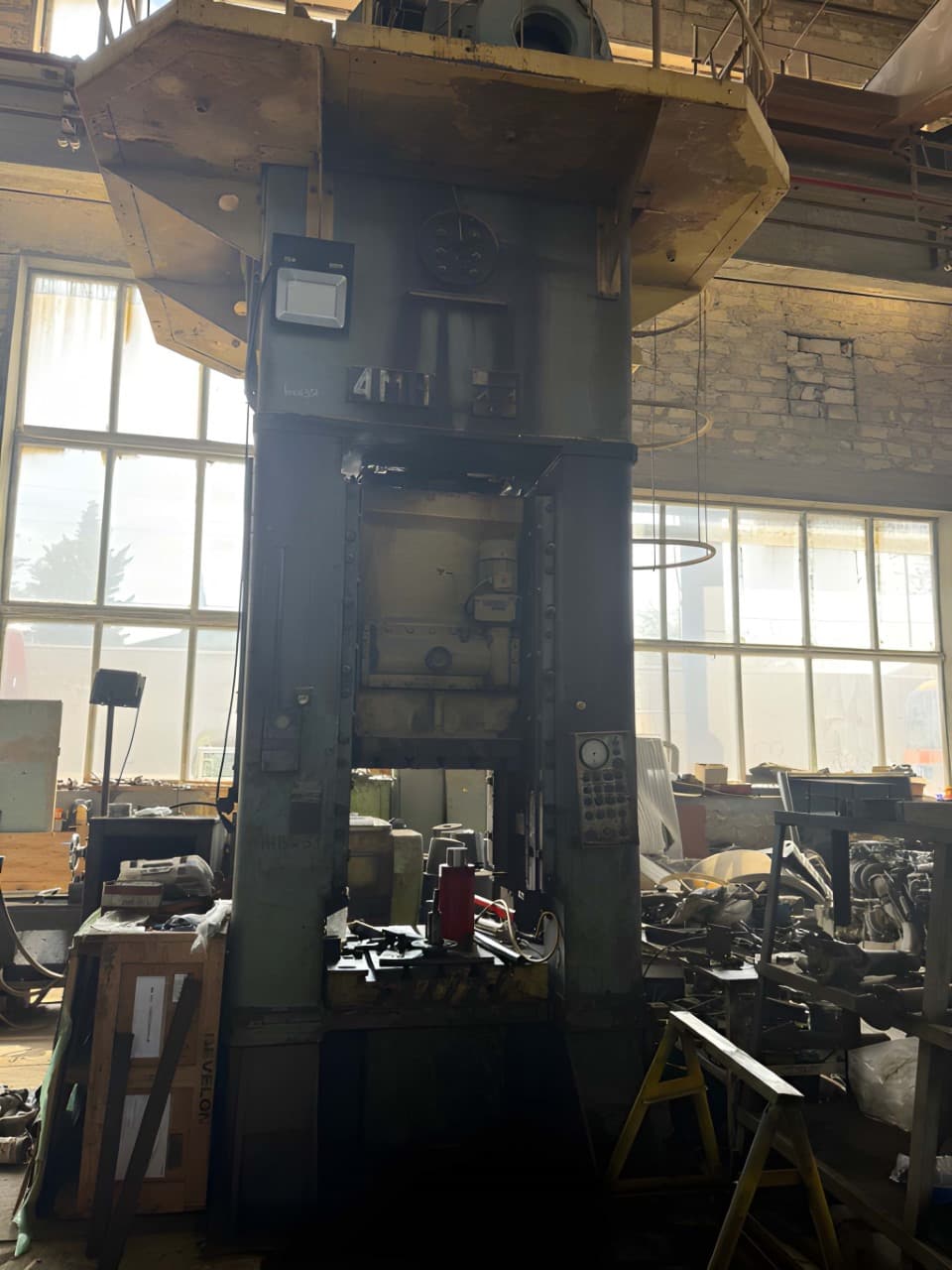

Trimming press TMP Voronezh KA9536 — 400 ton

Dabrox Listing ID: 76496

Request detailed information on this offer:
- availability, price
- payment/delivery terms
- specifications, condition, photos, etc.

* Required fields

Specifications (EN) -
Trimming press TMP Voronezh KA9536 — 400 ton (ID: 76496)

TypeTrimming press
ManufacturerTMP Voronezh
ModelKA9536
Nominal force4000 kN / 400 ton
Stroke400 mm
SPM25
Shut height470 mm
Slide adjustment160 mm
Table size1000 x 1000 mm
Bed opening630 x 630 mm
Slide size800 x 800 mm
Bolster thickness160 mm
Main motor power40 kW
Height above floor5940 mm
Overall dimensions3410 x 3140 x 5940 mm
Weight36000 kg
