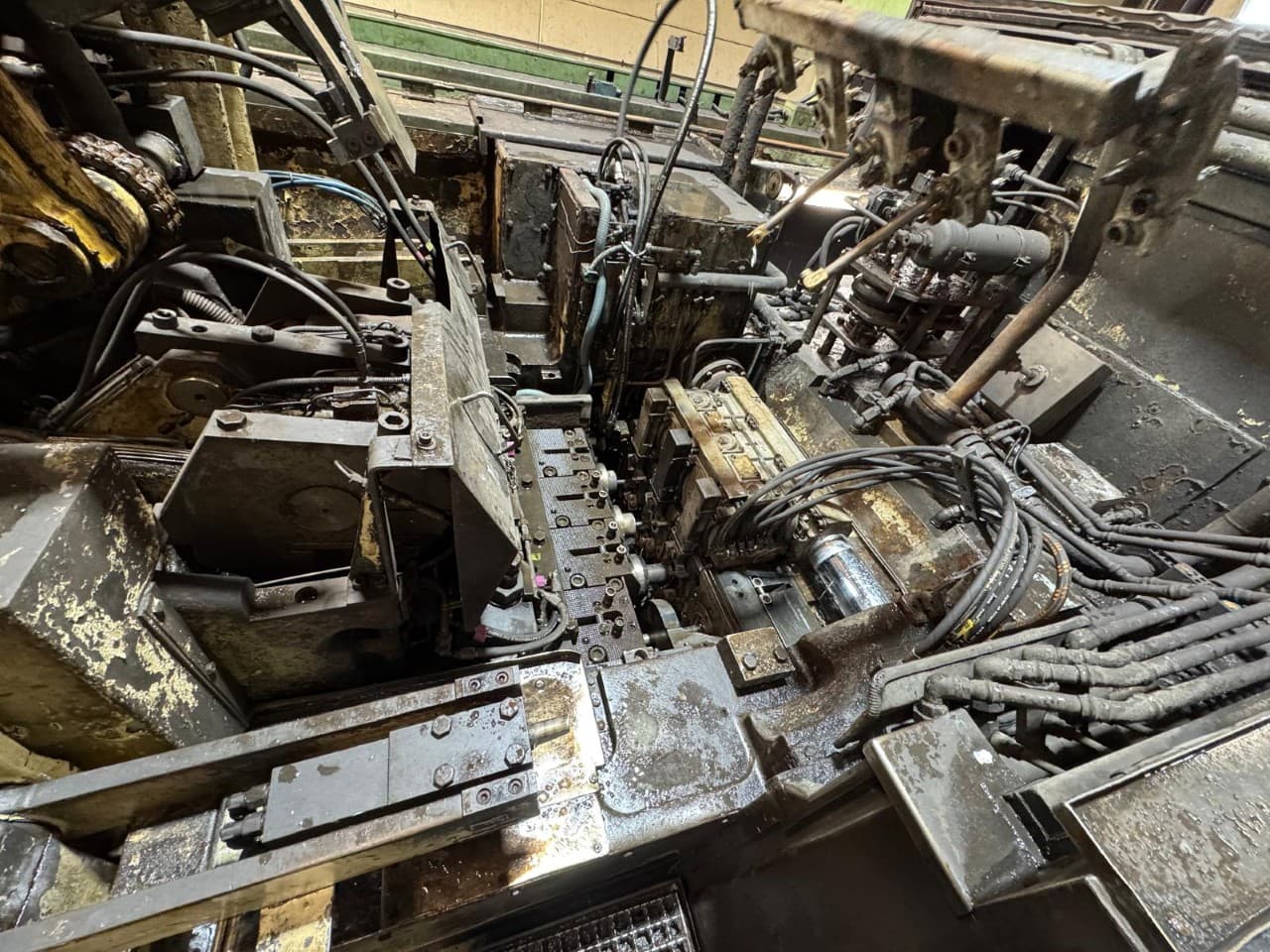

Automatic forging machine Hatebur AMP30 — 230 ton

Dabrox Listing ID: 76458

Request detailed information on this offer:
- availability, price
- payment/delivery terms
- specifications, condition, photos, etc.

* Required fields

Hatebur AMP30 automatic forging machine - description

Automatic forging machine Hatebur AMP30 — 230 ton (ID:76458) is industrial equipment designed for high-performance production of forgings by hot or cold stamping in automatic mode. The machine provides a full workpiece processing cycle — from material feeding to finished product output — with minimal operator involvement. Used in serial and mass production of parts for the automotive, machine-building, and hardware industries.

Technical specifications Hatebur AMP30 (ID:76458)

TypeAutomatic forging machine
ManufacturerHatebur
ModelAMP30
Press Capacity230 ton
Forming section3
Max outer diameter of piece64 mm
Max OD for Combi blanks55 mm
Main ram stroke160 mm
Power of induction heating installation800 kW
Bar diameter19-40 mm
Cutting width22-72 mm
Weight of pieces50-700 gr
Stroke70-120 min
Main motor56 kW
Weight of the machine35.8 ton
