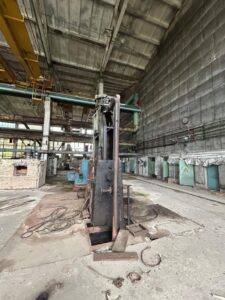

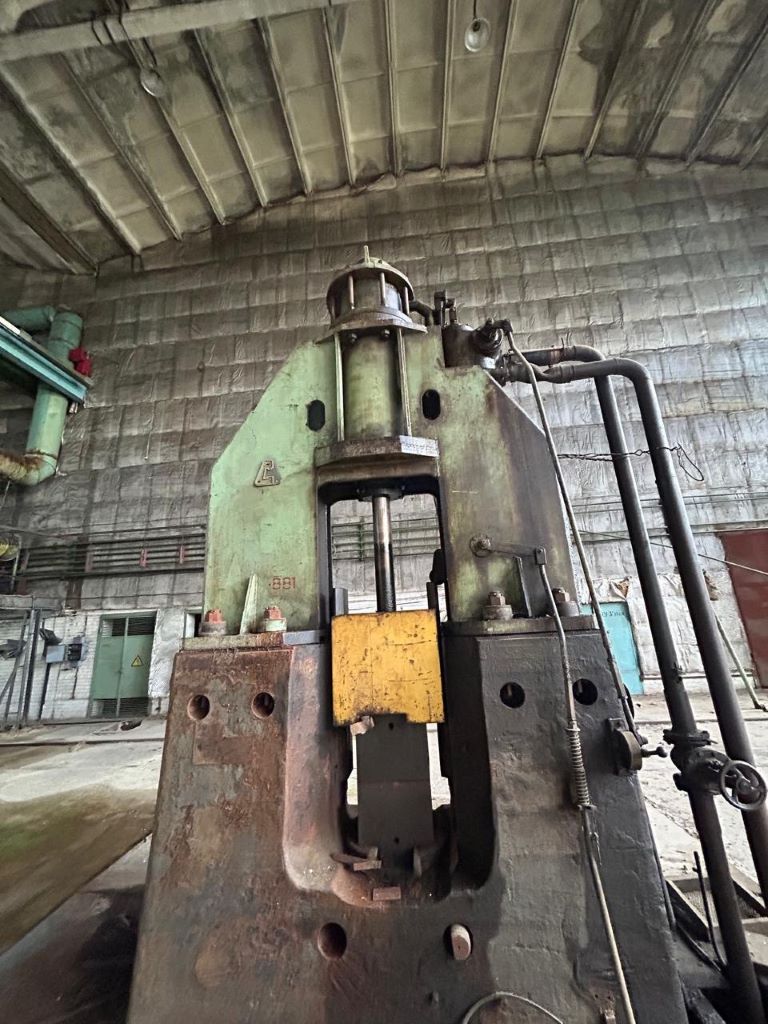

Forging hammer VoronezhPress K05.501 — 40 kJ
VoronezhPress K05.501 forging hammer - description
Technical specifications VoronezhPress K05.501 (ID:76359)
| Type | Forging hammer |
| Manufacturer | VoronezhPress |
| Model | K05.501 |
| Strike energy | 40 kJ |
| Nominal weight of the falling parts | 1600 kg |
| SPM | 70 |
| Distance between guides in daylight | 520 mm |
| Height of dies without shafts | 220/460 mm |
| Dimensions of die holder front-to-back | 620 mm |
| Diameter of cylinder | 350 mm |
| Diameter of rod | 125 mm |
| Weight of upper die | 85/200 kg |
| Voltage | 360 V, 50 Hz |
| Dimensions | 3000 x 1600 x 4400 mm |
| Weight | 41000 kg |
Forging hammer VoronezhPress K05.501 - technological processes and operations
| Forging | The process of plastic deformation of metal, in which the workpiece changes shape under the impact of blows or static pressure. During forging, the metal structure is densified, internal inhomogeneities are eliminated, and the mechanical properties of the material are improved. As a result, forged products are distinguished by high strength and reliability when operating under significant loads. Forging is used both for producing finished parts and for preparing workpieces for subsequent stamping. |
| Closed-die forging | The workpiece is deformed inside a die cavity that restricts metal flow, forcing it to fill the exact shape of the tool. Under high pressure, the material spreads into every recess and detail of the die, producing a part with precise geometry. This method provides high accuracy and repeatability, making it the standard for series and mass production of complex forgings. |
| Drop forging | A method of hot closed-die forging in which the workpiece is deformed by the energy of a falling ram. Under the impact, the metal fills the die cavity, reproducing its geometry and taking the shape of the finished part. The process is characterized by high productivity and repeatability, making it in demand in series and mass production. |
