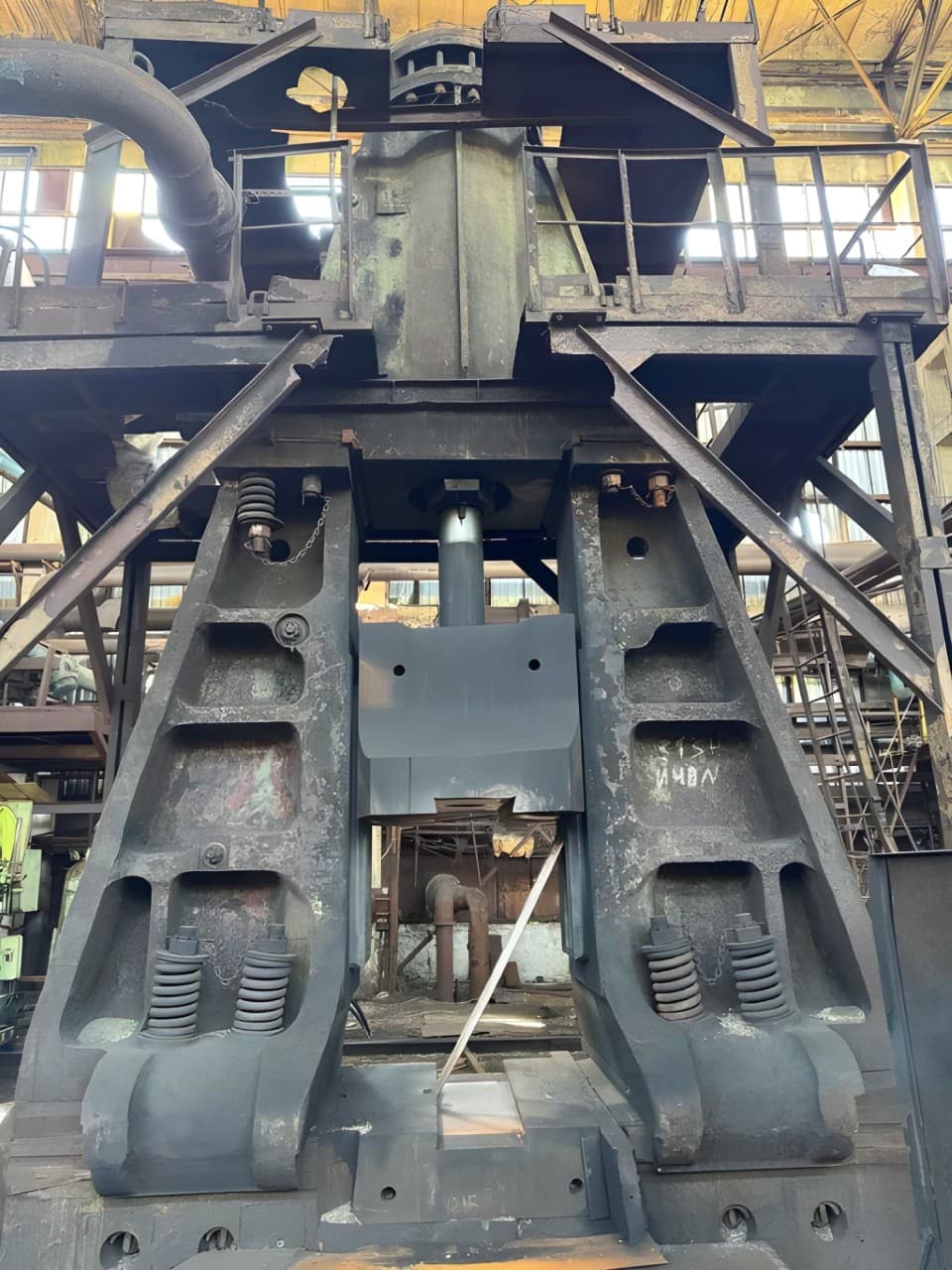

Forging hammer NKMZ Kramatorsk M2152 — 16 ton
NKMZ Kramatorsk M2152 forging hammer - description
Technical specifications NKMZ Kramatorsk M2152 (ID:S93486)
| Type | Forging hammer |
|---|---|
| Manufacturer | NKMZ Kramatorsk |
| Model | M2152 |
| Year of manufacture | 1985 |
| Impact energy | 400 kJ |
| Nominal mass of drop parts | 16000 kg |
| Ram stroke | 1500 mm |
| Strokes per minute | 20 |
| Distance clear between guides | 1180 mm |
| Ram dimensions front to back | 1500 mm |
| Die holder dimensions front to back | 1600 mm |
| Bottom die impression to floor distance | 500 mm |
| Steam/air pressure | 0,7–0,9 MPa |
| Overall dimensions | 4500 x 2450 x 7920 mm |
| Anvil block mass | 325000 kg |
| Mass | 425000 kg |
Please note: Specifications are indicative and subject to final confirmation. For current availability and price, as well as photos and technical details, please contact us.
Forging hammer NKMZ Kramatorsk - technological processes and operations
| Forging | The process of plastic deformation of metal, in which the workpiece changes shape under the impact of blows or static pressure. During forging, the metal structure is densified, internal inhomogeneities are eliminated, and the mechanical properties of the material are improved. As a result, forged products are distinguished by high strength and reliability when operating under significant loads. Forging is used both for producing finished parts and for preparing workpieces for subsequent stamping. |
|---|---|
| Hot forging | Hot forging is a process of shaping metal under pressure at elevated temperatures. Heating reduces the deformation resistance of the material, allowing it to flow more easily into the die cavity. The process provides high productivity and the ability to form complex shapes. Used for manufacturing forgings from steel and alloys in series and mass production. |
| Closed-die forging | The workpiece is deformed inside a die cavity that restricts metal flow, forcing it to fill the exact shape of the tool. Under high pressure, the material spreads into every recess and detail of the die, producing a part with precise geometry. This method provides high accuracy and repeatability, making it the standard for series and mass production of complex forgings. |
| Drop forging | A method of hot closed-die forging in which the workpiece is deformed by the energy of a falling ram. Under the impact, the metal fills the die cavity, reproducing its geometry and taking the shape of the finished part. The process is characterized by high productivity and repeatability, making it in demand in series and mass production. |
