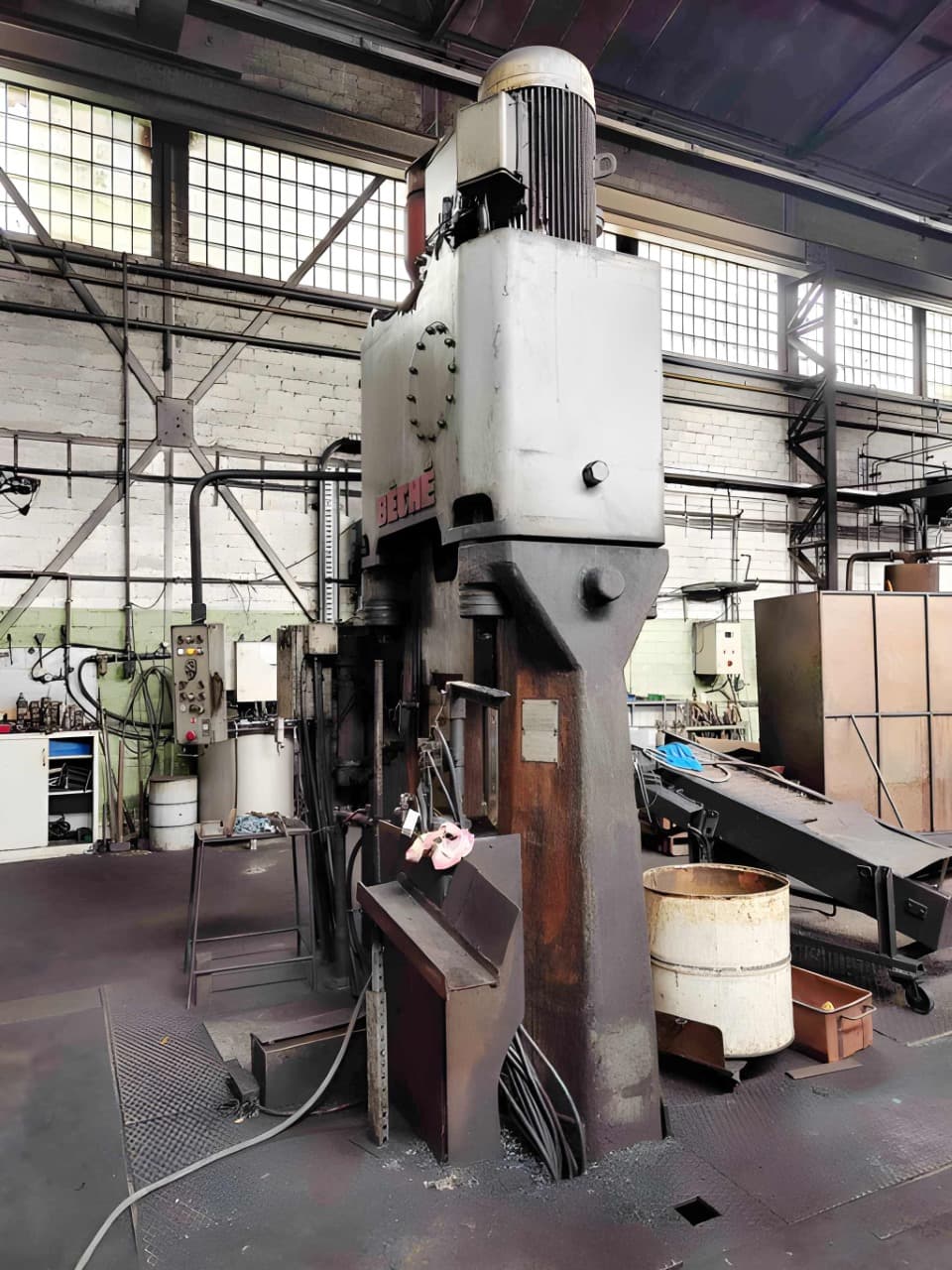

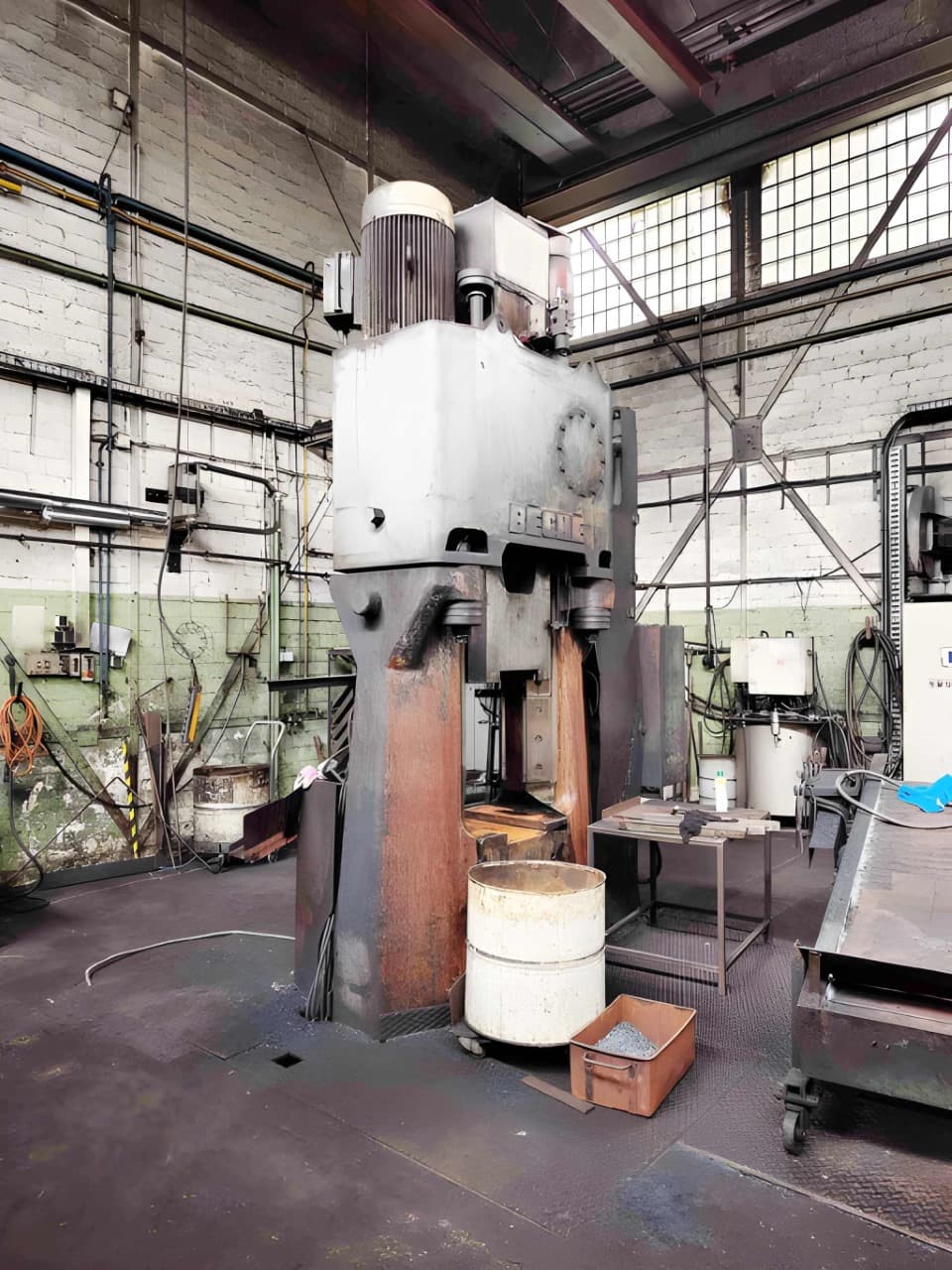

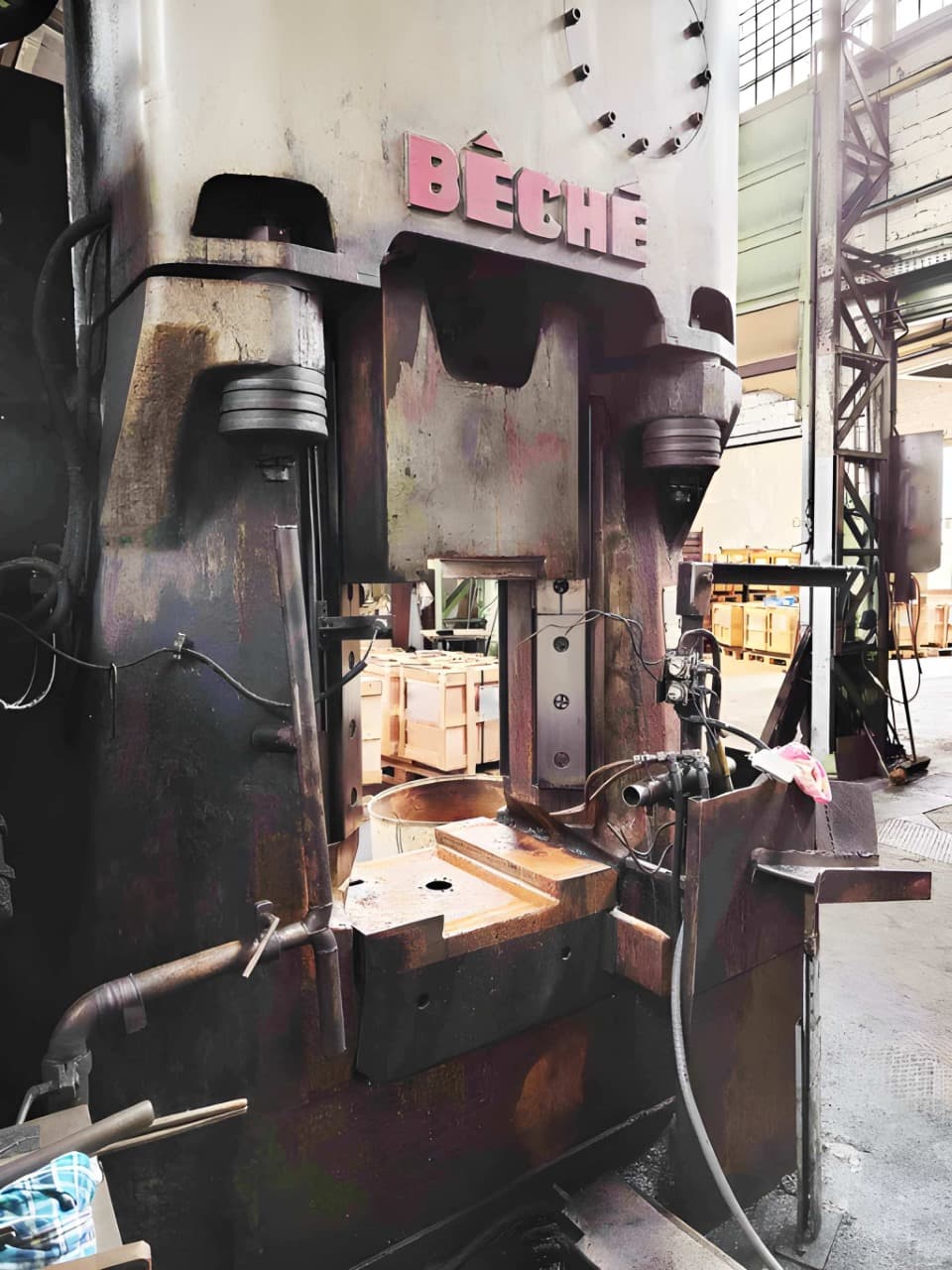

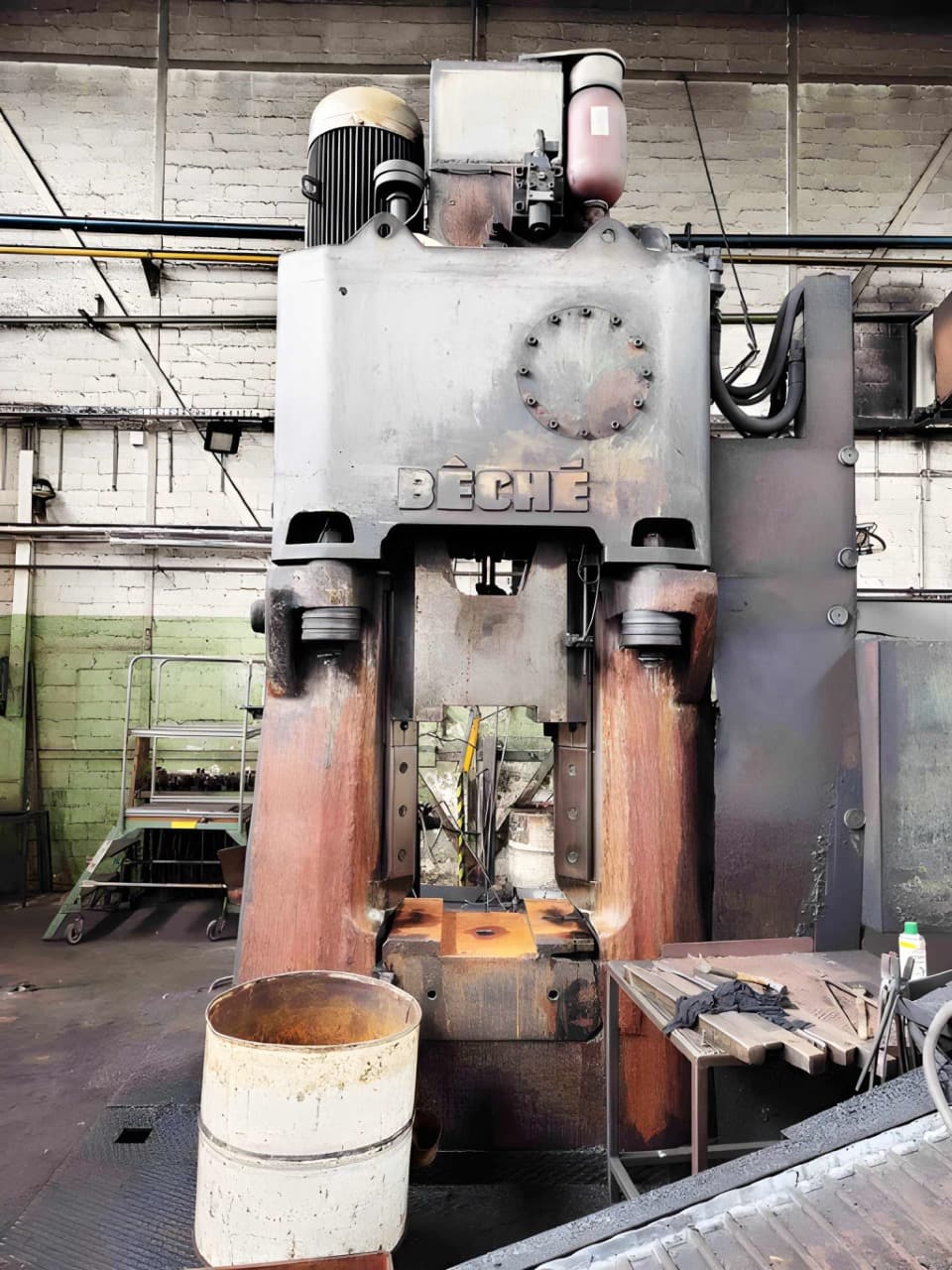

Hydraulic forging hammer Beche KGH 1.6 — 16 kJ
Beche KGH 1.6 hydraulic forging hammer - description
Technical specifications Beche KGH 1.6 (ID:76505)
| Type | Hydraulic forging hammer |
| Manufacturer | Beche |
| Model | KGH 1.6 |
| Impact energy | 16 kJ |
| BPM continuous at full load | 32–38 |
| BPM max | 122 |
| Final ram velocity | 5,1 m/s |
| Main drive pump flow rate | 187,5 l/min |
| Circulation pump flow rate | 120 l/min |
| Oil capacity in drive head | 550 l |
| Clear width between guides | 520 mm |
| Working height to upper edge of insert | 750 mm |
| Ram depth | 470 mm |
| Insertion depth | 550 mm |
| Die height minimum | 120 mm |
| Die height maximum | 320 mm |
| Overall dimensions | 1485 x 825 x 4552 mm |
| Foundation dimensions | 3350 x 3300 mm |
| Total weight | 23200 kg |
Hydraulic forging hammer Beche KGH 1.6 - technological processes and operations
| Forging | The process of plastic deformation of metal, in which the workpiece changes shape under the impact of blows or static pressure. During forging, the metal structure is densified, internal inhomogeneities are eliminated, and the mechanical properties of the material are improved. As a result, forged products are distinguished by high strength and reliability when operating under significant loads. Forging is used both for producing finished parts and for preparing workpieces for subsequent stamping. |
| Hot forging | Hot forging is a process of shaping metal under pressure at elevated temperatures. Heating reduces the deformation resistance of the material, allowing it to flow more easily into the die cavity. The process provides high productivity and the ability to form complex shapes. Used for manufacturing forgings from steel and alloys in series and mass production. |
| Closed-die forging | The workpiece is deformed inside a die cavity that restricts metal flow, forcing it to fill the exact shape of the tool. Under high pressure, the material spreads into every recess and detail of the die, producing a part with precise geometry. This method provides high accuracy and repeatability, making it the standard for series and mass production of complex forgings. |
| Drop forging | A method of hot closed-die forging in which the workpiece is deformed by the energy of a falling ram. Under the impact, the metal fills the die cavity, reproducing its geometry and taking the shape of the finished part. The process is characterized by high productivity and repeatability, making it in demand in series and mass production. |
