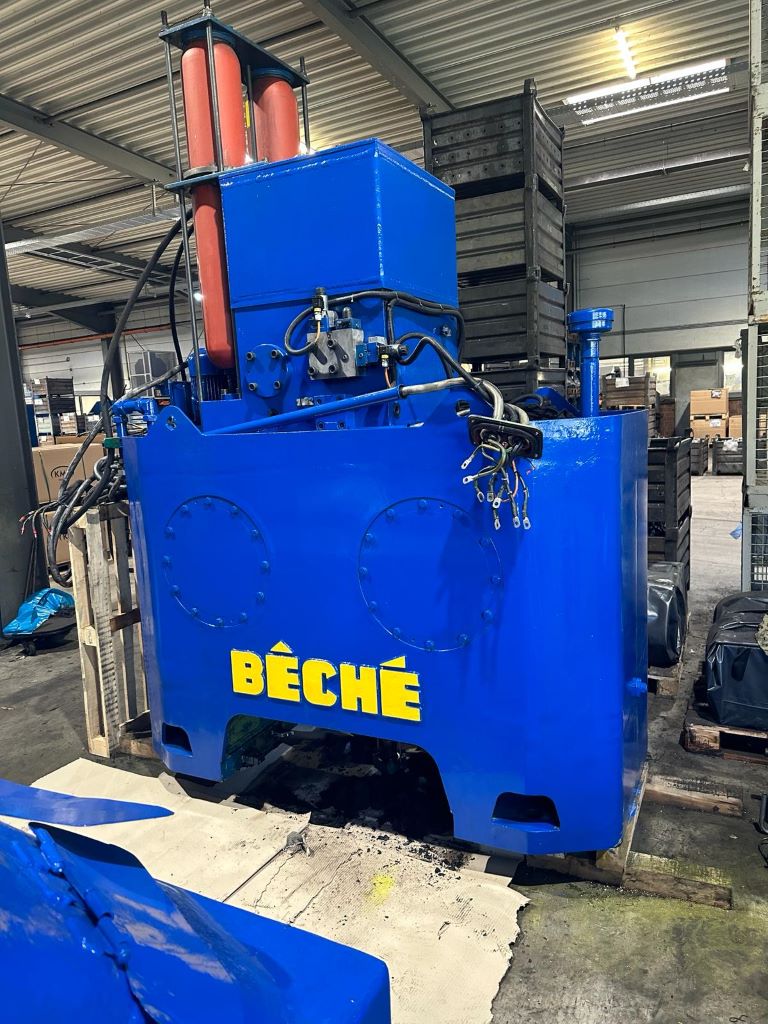

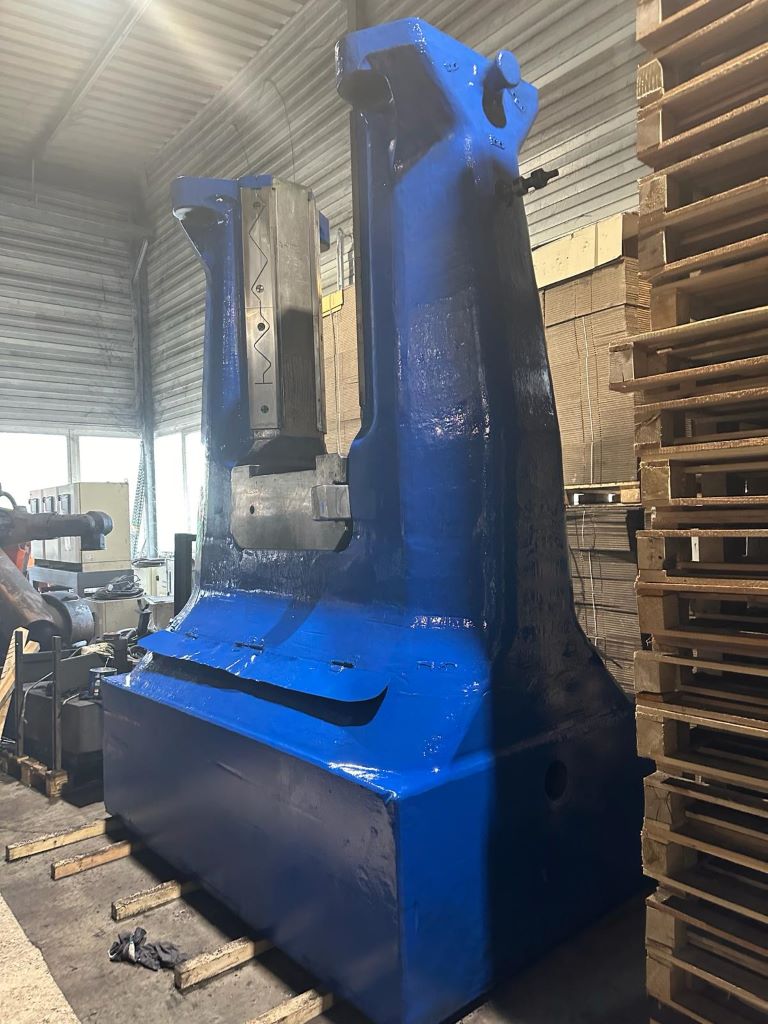

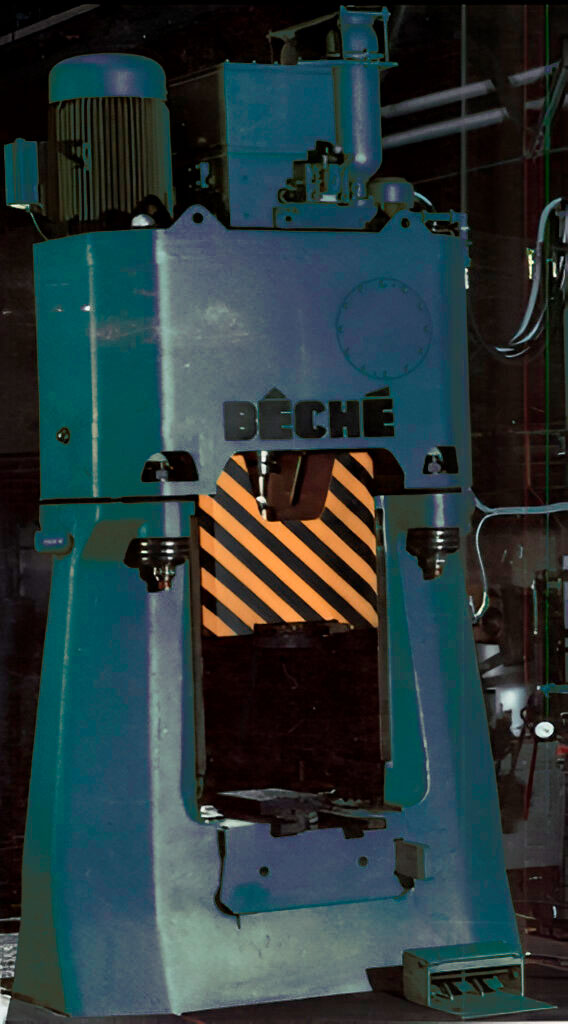

Hydraulic forging hammer Beche KGH 4 — 40 kJ

Dabrox Listing ID: 76289

Request detailed information on this offer:
- availability, price
- payment/delivery terms
- specifications, condition, photos, etc.

* Required fields

Beche KGH 4 hydraulic forging hammer - description

Hydraulic forging hammer Beche KGH 4 — 40 kJ (ID:76289) is impact-type forging equipment with hydraulic drive. Unlike traditional hammers, the impact energy here is generated not by the free fall of the ram, but by the forced movement of the piston under fluid pressure. This design allows precise adjustment of each blow's energy, increases efficiency, and reduces vibration levels.

Technical specifications Beche KGH 4 (ID:76289)

TypeHydraulic forging hammer
ManufacturerBeche
ModelKGH 4
Working capacity40 kJ
SPM98
Tup stroke790 mm
Tup depth640 mm
Clearance guide717 mm
Die height3455 mm
Total weight60 ton

Hydraulic forging hammer Beche KGH 4 - technological processes and operations

Forging The process of plastic deformation of metal, in which the workpiece changes shape under the impact of blows or static pressure. During forging, the metal structure is densified, internal inhomogeneities are eliminated, and the mechanical properties of the material are improved. As a result, forged products are distinguished by high strength and reliability when operating under significant loads. Forging is used both for producing finished parts and for preparing workpieces for subsequent stamping.
Closed-die forging The workpiece is deformed inside a die cavity that restricts metal flow, forcing it to fill the exact shape of the tool. Under high pressure, the material spreads into every recess and detail of the die, producing a part with precise geometry. This method provides high accuracy and repeatability, making it the standard for series and mass production of complex forgings.
Drop forging A method of hot closed-die forging in which the workpiece is deformed by the energy of a falling ram. Under the impact, the metal fills the die cavity, reproducing its geometry and taking the shape of the finished part. The process is characterized by high productivity and repeatability, making it in demand in series and mass production.
