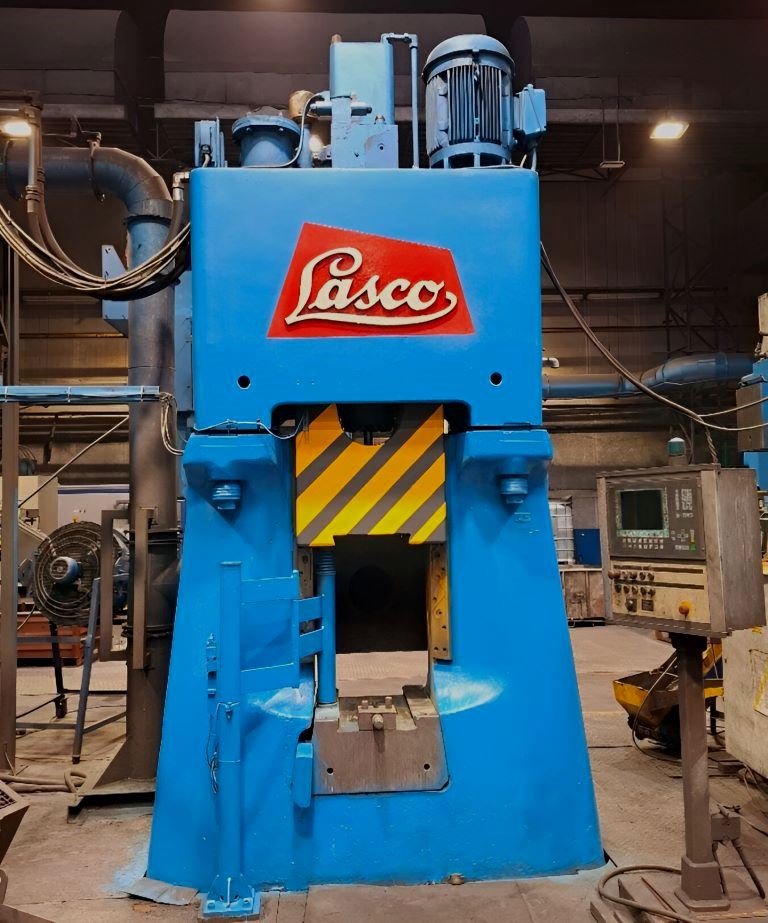

Hydraulic forging hammer Lasco HO-U 160 — 16 kJ

Dabrox Listing ID: 76294

Request detailed information on this offer:
- availability, price
- payment/delivery terms
- specifications, condition, photos, etc.

* Required fields

Lasco HO-U 160 hydraulic forging hammer - description

Hydraulic forging hammer Lasco HO-U 160 — 16 kJ (ID:76294) is impact-type forging equipment with hydraulic drive. Unlike traditional hammers, the impact energy here is generated not by the free fall of the ram, but by the forced movement of the piston under fluid pressure. This design allows precise adjustment of each blow's energy, increases efficiency, and reduces vibration levels.

Technical specifications Lasco HO-U 160 (ID:76294)

TypeHydraulic forging hammer
ManufacturerLasco
ModelHO-U 160
Weight of the ram1250 kg
Impact energy16 kJ
Max. impact frequency100/min
Min. stroke of the ram480 mm
Max. stroke of the ram640 mm
Depth of the ram460 mm
Ejector force50 kN
Ejector stroke50 mm
Main engine power37 kW
Total height4750 mm
Height of the hammer above floor4050 mm
Weight of the shabot24 000 kg
Total weight33.5 ton

Hydraulic forging hammer Lasco HO-U 160 - technological processes and operations

Forging The process of plastic deformation of metal, in which the workpiece changes shape under the impact of blows or static pressure. During forging, the metal structure is densified, internal inhomogeneities are eliminated, and the mechanical properties of the material are improved. As a result, forged products are distinguished by high strength and reliability when operating under significant loads. Forging is used both for producing finished parts and for preparing workpieces for subsequent stamping.
Hot forging Hot forging is a process of shaping metal under pressure at elevated temperatures. Heating reduces the deformation resistance of the material, allowing it to flow more easily into the die cavity. The process provides high productivity and the ability to form complex shapes. Used for manufacturing forgings from steel and alloys in series and mass production.
Closed-die forging The workpiece is deformed inside a die cavity that restricts metal flow, forcing it to fill the exact shape of the tool. Under high pressure, the material spreads into every recess and detail of the die, producing a part with precise geometry. This method provides high accuracy and repeatability, making it the standard for series and mass production of complex forgings.
Drop forging A method of hot closed-die forging in which the workpiece is deformed by the energy of a falling ram. Under the impact, the metal fills the die cavity, reproducing its geometry and taking the shape of the finished part. The process is characterized by high productivity and repeatability, making it in demand in series and mass production.
