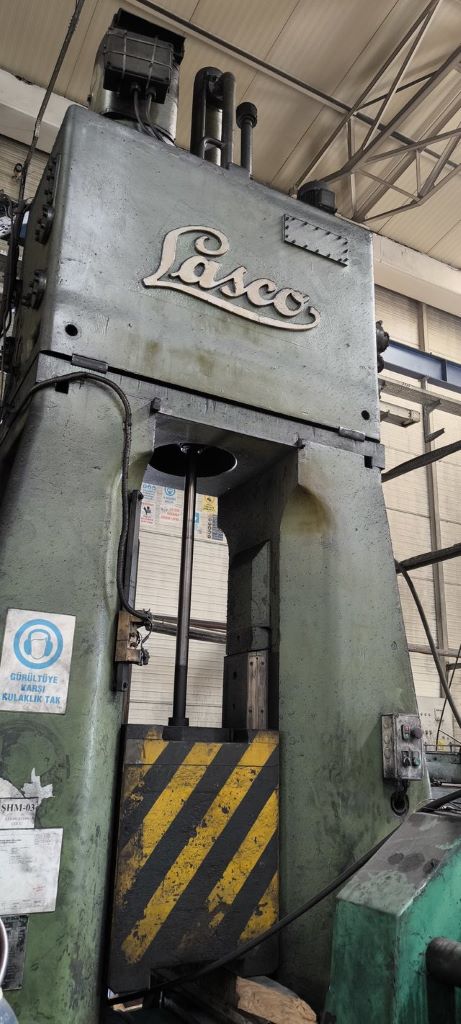

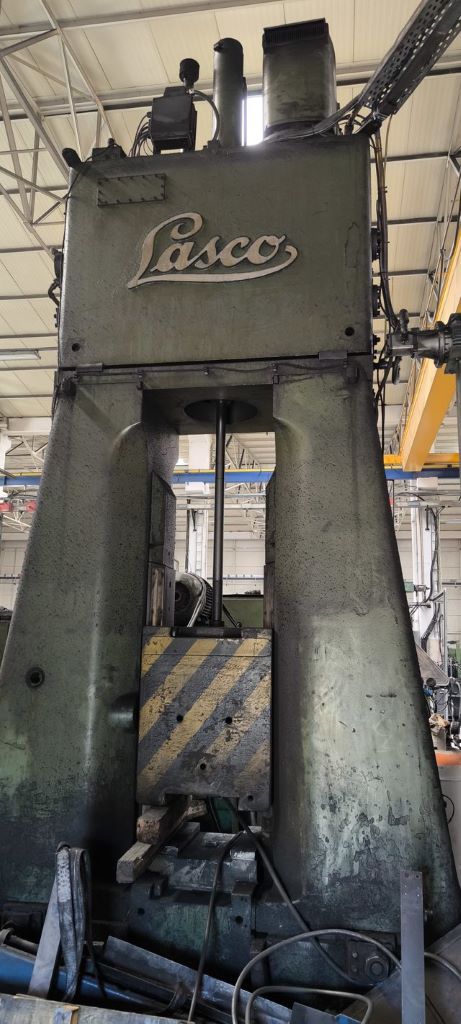

Hydraulic forging hammer Lasco KH 125 — 12 kJ
Lasco KH 125 forging hammer - description
Technical specifications Lasco KH 125 (ID:76320)
| Type | Forging hammer |
| Manufacturer | Lasco |
| Model | KH 125 |
| Capacity | 1250 kgm |
| Height of blow | 1000 mm |
| Weight of falling ram | 1250 kg |
| Way between uprights | 480 mm |
| Thickness of falling ram | 480 mm |
| Motor | 22 kW |
| Weight of anvil | 14000 kg |
| Total weight of hammer | 28000 kg |
| Min height of dies without dovetail | 100 mm |
| Total height of hammer over the floor | 5000 mm |
Forging hammer Lasco KH 125 - technological processes and operations
| Forging | The process of plastic deformation of metal, in which the workpiece changes shape under the impact of blows or static pressure. During forging, the metal structure is densified, internal inhomogeneities are eliminated, and the mechanical properties of the material are improved. As a result, forged products are distinguished by high strength and reliability when operating under significant loads. Forging is used both for producing finished parts and for preparing workpieces for subsequent stamping. |
| Closed-die forging | The workpiece is deformed inside a die cavity that restricts metal flow, forcing it to fill the exact shape of the tool. Under high pressure, the material spreads into every recess and detail of the die, producing a part with precise geometry. This method provides high accuracy and repeatability, making it the standard for series and mass production of complex forgings. |
| Drop forging | A method of hot closed-die forging in which the workpiece is deformed by the energy of a falling ram. Under the impact, the metal fills the die cavity, reproducing its geometry and taking the shape of the finished part. The process is characterized by high productivity and repeatability, making it in demand in series and mass production. |
