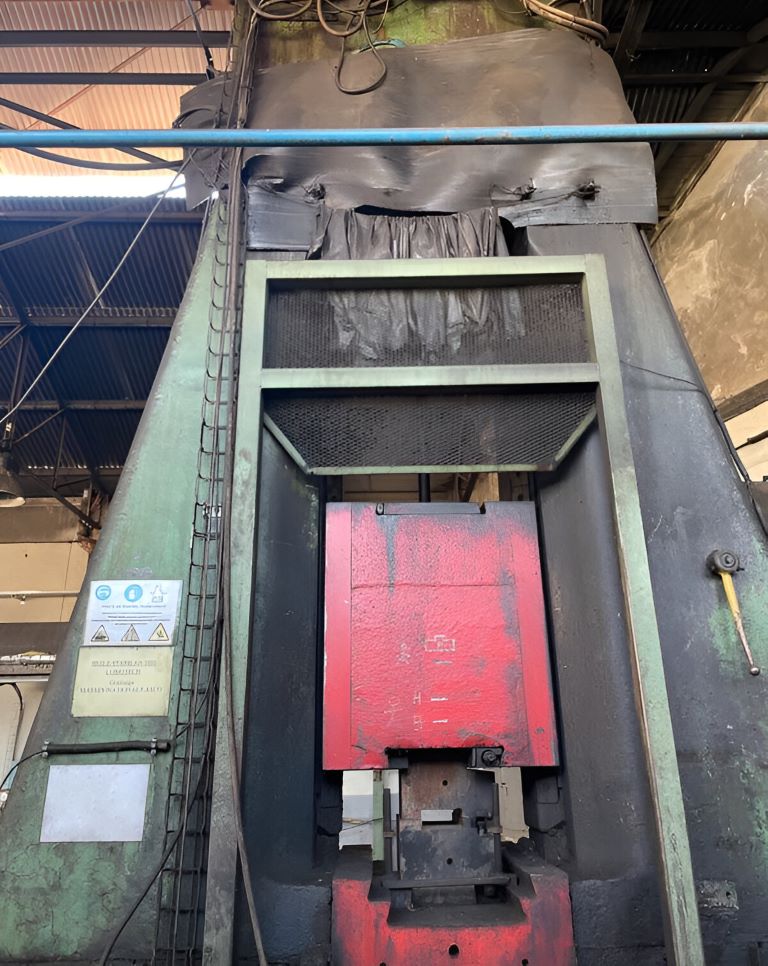

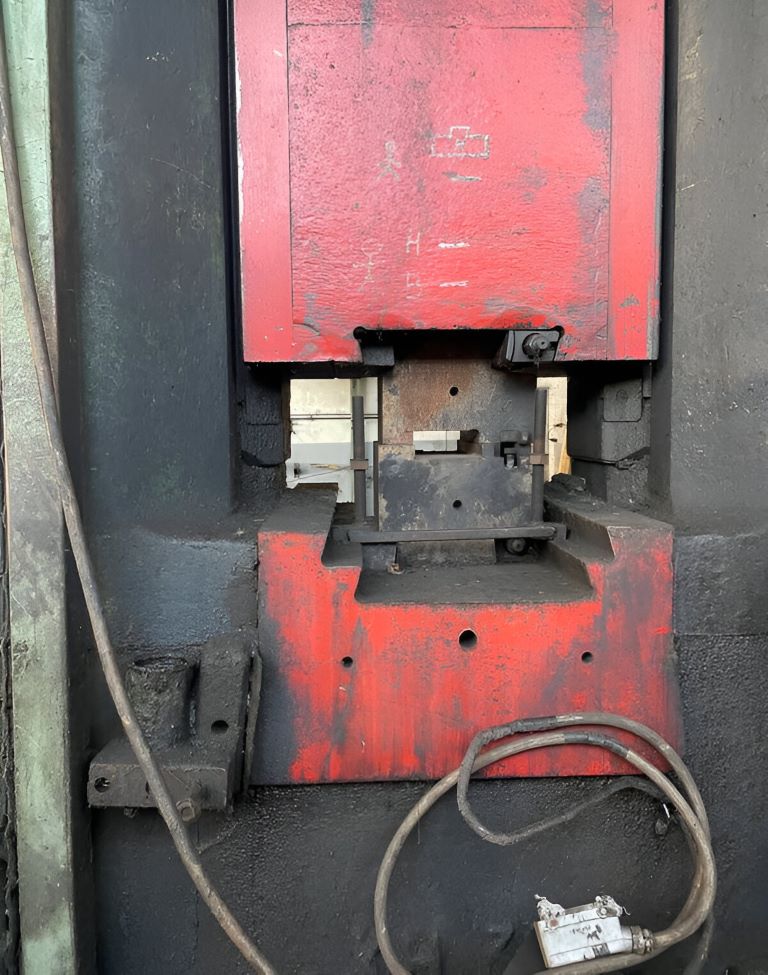

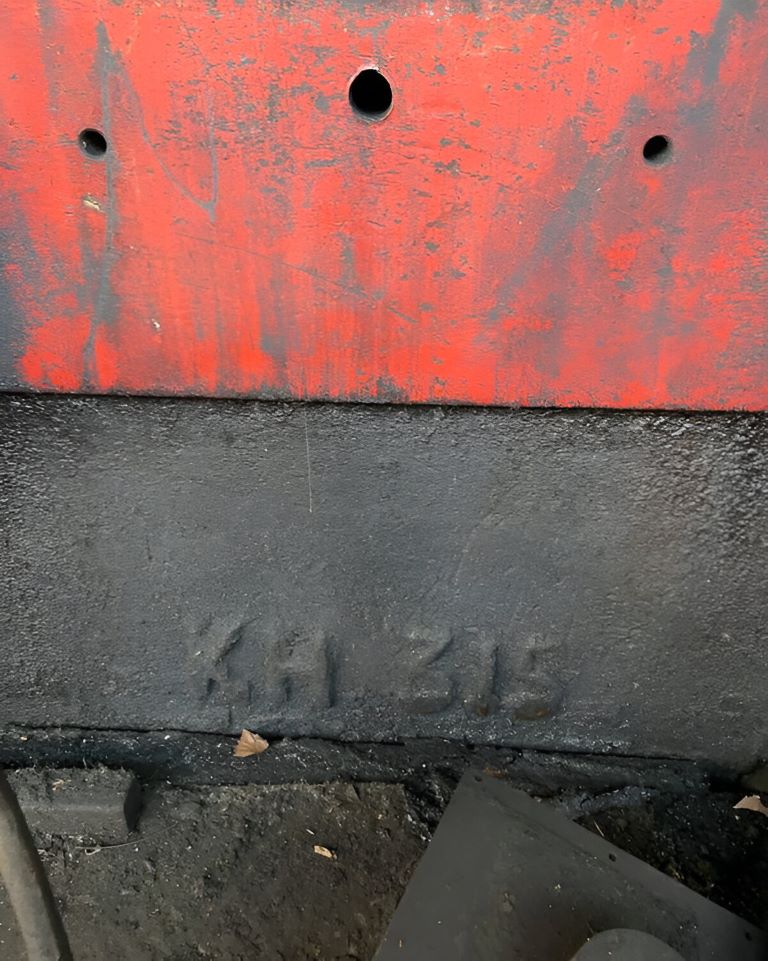

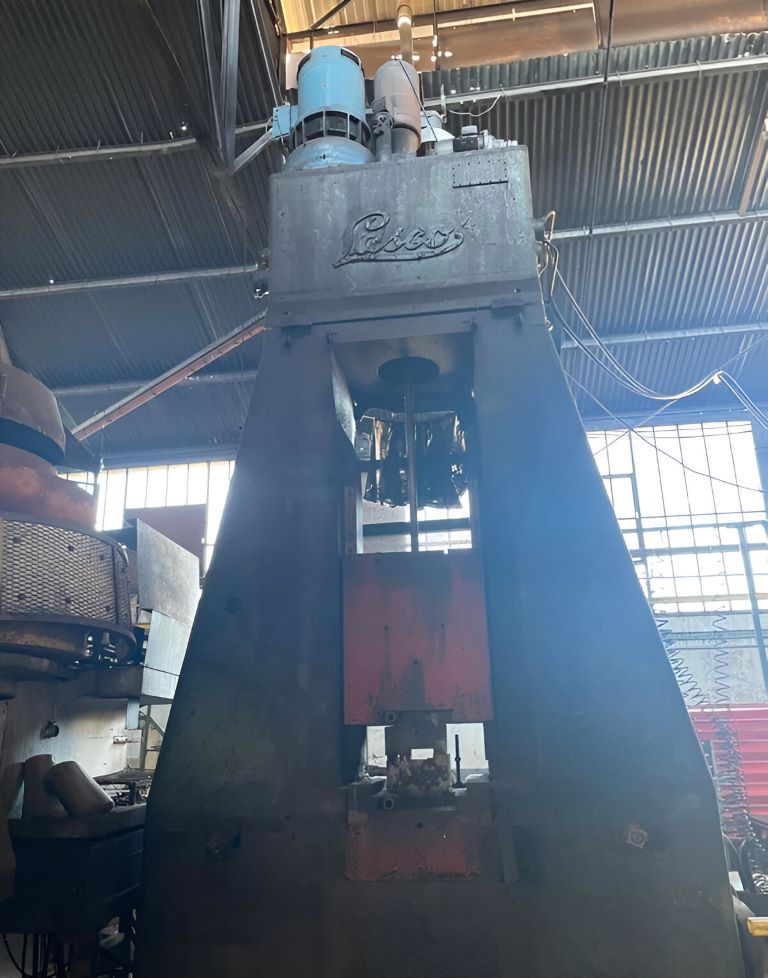

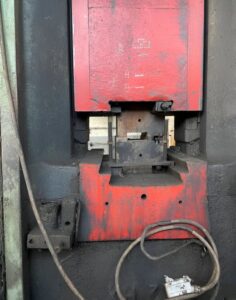

Hydraulic forging hammer Lasco KH 315 — 31 kJ

Dabrox Listing ID: 76290

Request detailed information on this offer:
- availability, price
- payment/delivery terms
- specifications, condition, photos, etc.

* Required fields

Lasco KH 315 hydraulic forging hammer - description

Hydraulic forging hammer Lasco KH 315 — 31 kJ (ID:76290) is impact-type forging equipment with hydraulic drive. Unlike traditional hammers, the impact energy here is generated not by the free fall of the ram, but by the forced movement of the piston under fluid pressure. This design allows precise adjustment of each blow's energy, increases efficiency, and reduces vibration levels.

Technical specifications Lasco KH 315 (ID:76290)

TypeHydraulic forging hammer
ManufacturerLasco
ModelKH 315
Energy of blow3150 kgm
Falling height1100 mm
Weightof falling ram2900 kg
Max. Weight of die530 kg
Way between slides700 mm
Motor power40 kw
Total height64 ton
Weight of anvil34 ton
Total weight6820 mm
Height above floor5600 mm

Hydraulic forging hammer Lasco KH 315 - technological processes and operations

Forging The process of plastic deformation of metal, in which the workpiece changes shape under the impact of blows or static pressure. During forging, the metal structure is densified, internal inhomogeneities are eliminated, and the mechanical properties of the material are improved. As a result, forged products are distinguished by high strength and reliability when operating under significant loads. Forging is used both for producing finished parts and for preparing workpieces for subsequent stamping.
Hot forging Hot forging is a process of shaping metal under pressure at elevated temperatures. Heating reduces the deformation resistance of the material, allowing it to flow more easily into the die cavity. The process provides high productivity and the ability to form complex shapes. Used for manufacturing forgings from steel and alloys in series and mass production.
Closed-die forging The workpiece is deformed inside a die cavity that restricts metal flow, forcing it to fill the exact shape of the tool. Under high pressure, the material spreads into every recess and detail of the die, producing a part with precise geometry. This method provides high accuracy and repeatability, making it the standard for series and mass production of complex forgings.
Drop forging A method of hot closed-die forging in which the workpiece is deformed by the energy of a falling ram. Under the impact, the metal fills the die cavity, reproducing its geometry and taking the shape of the finished part. The process is characterized by high productivity and repeatability, making it in demand in series and mass production.
